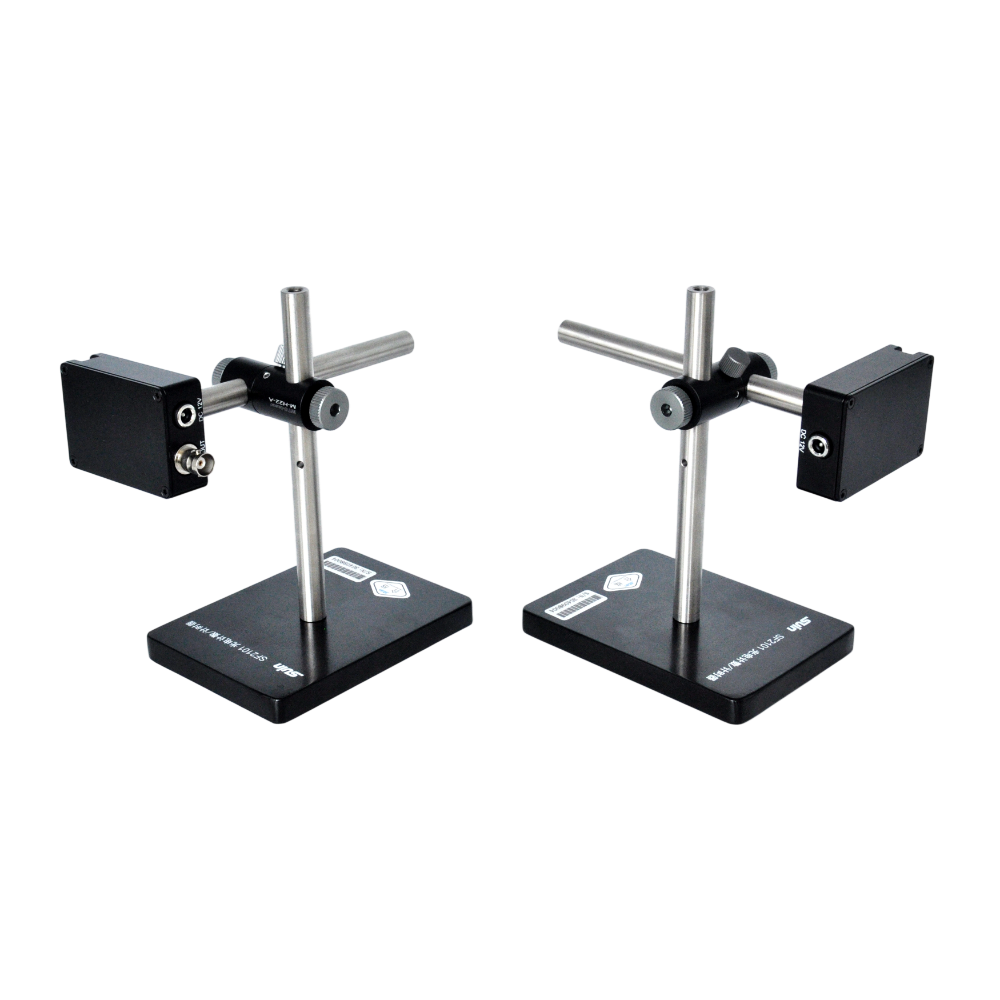

SF2101
Photoelectric Converter
Photoelectric Converter

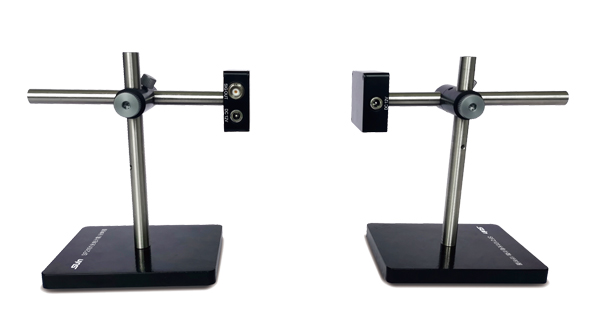

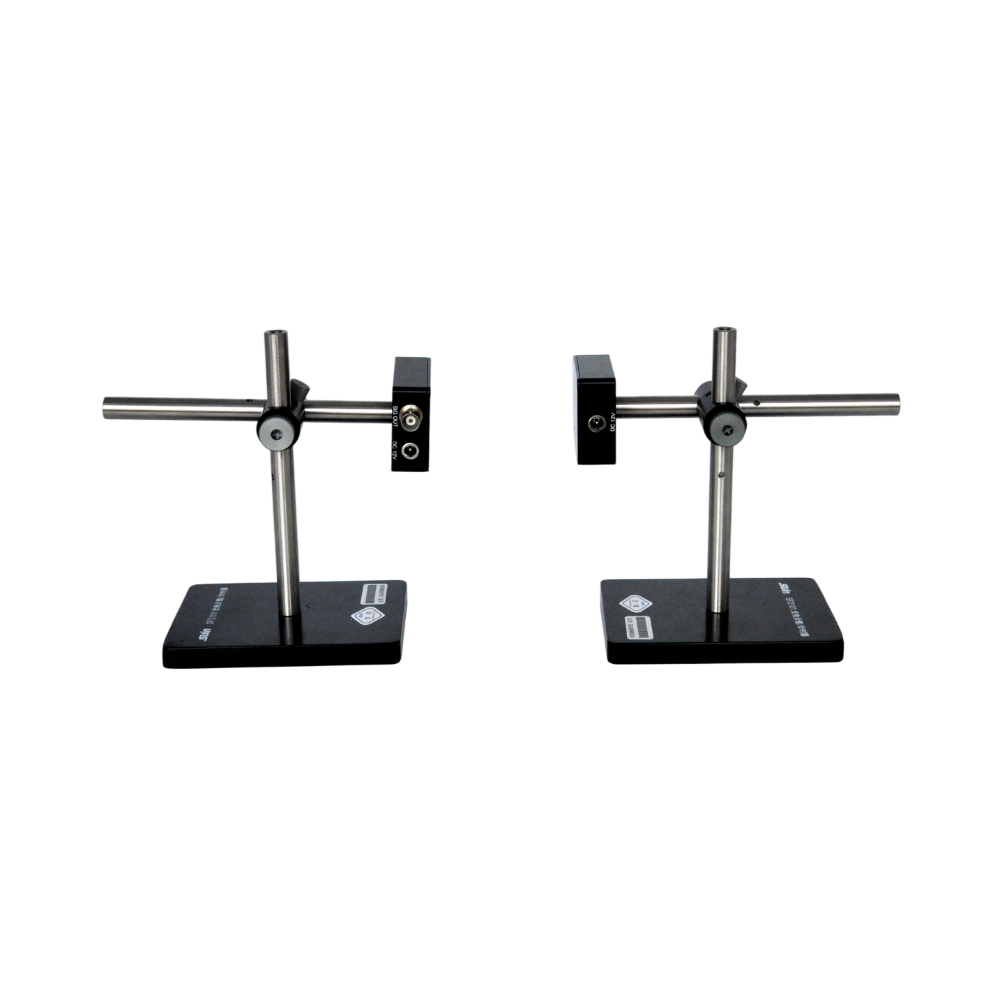

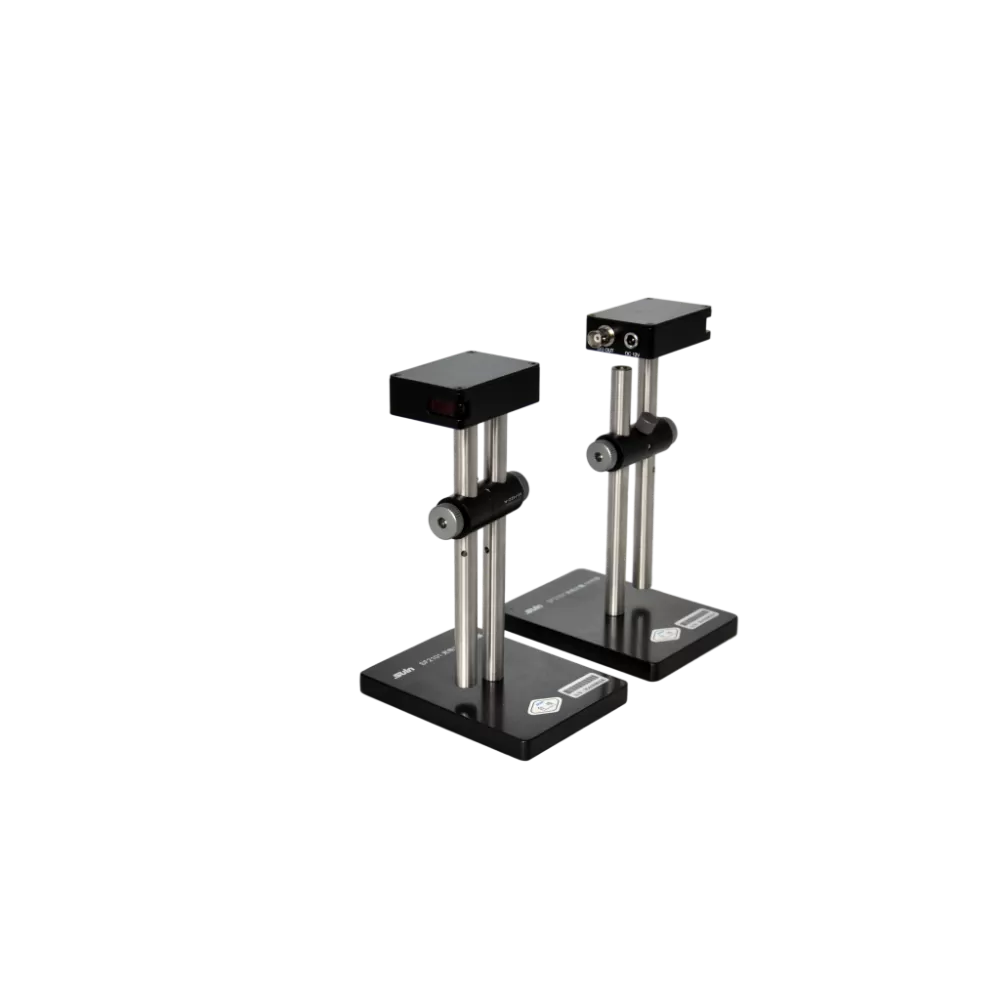

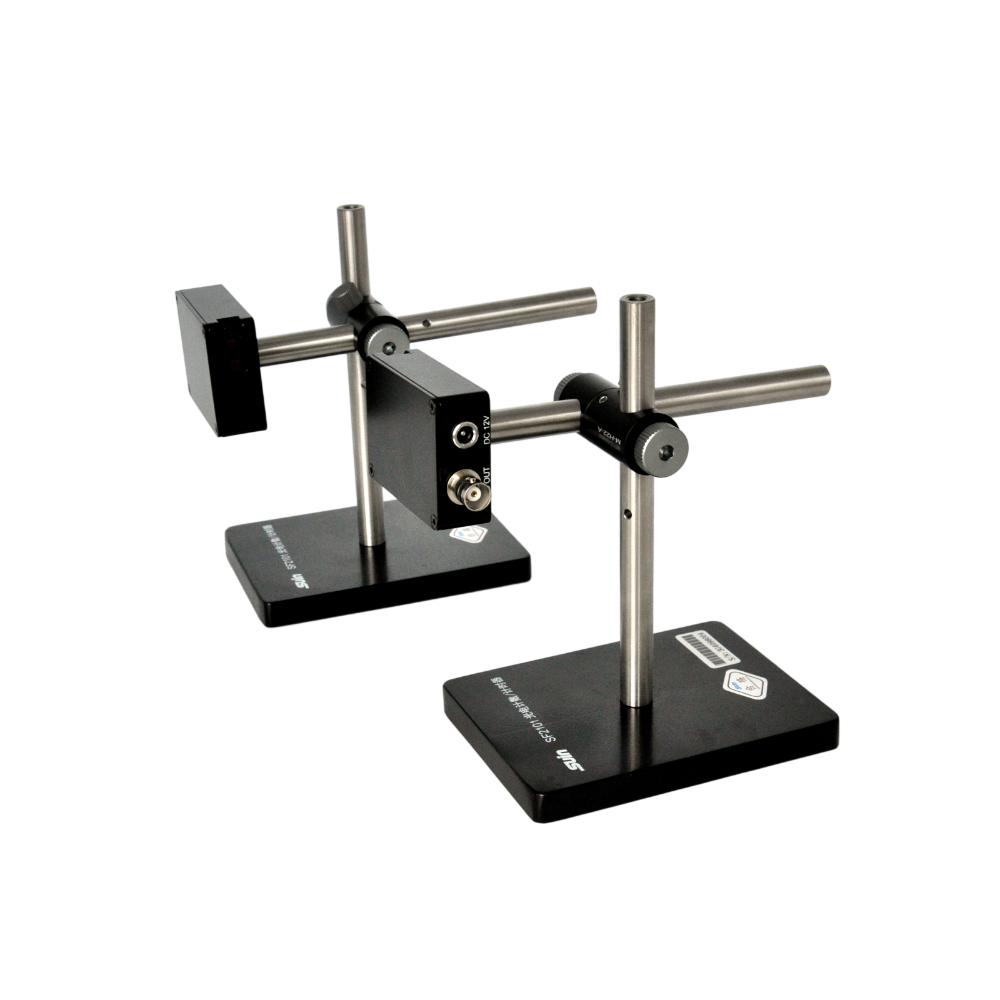

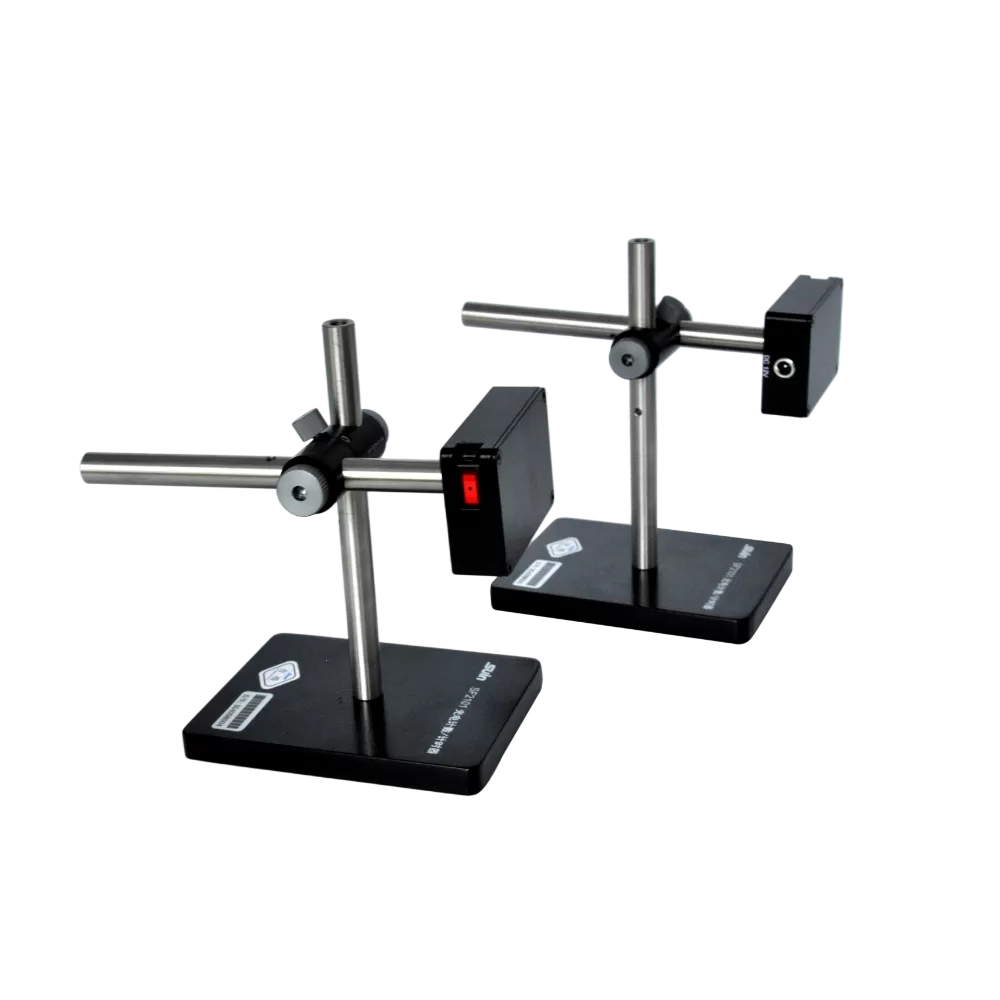

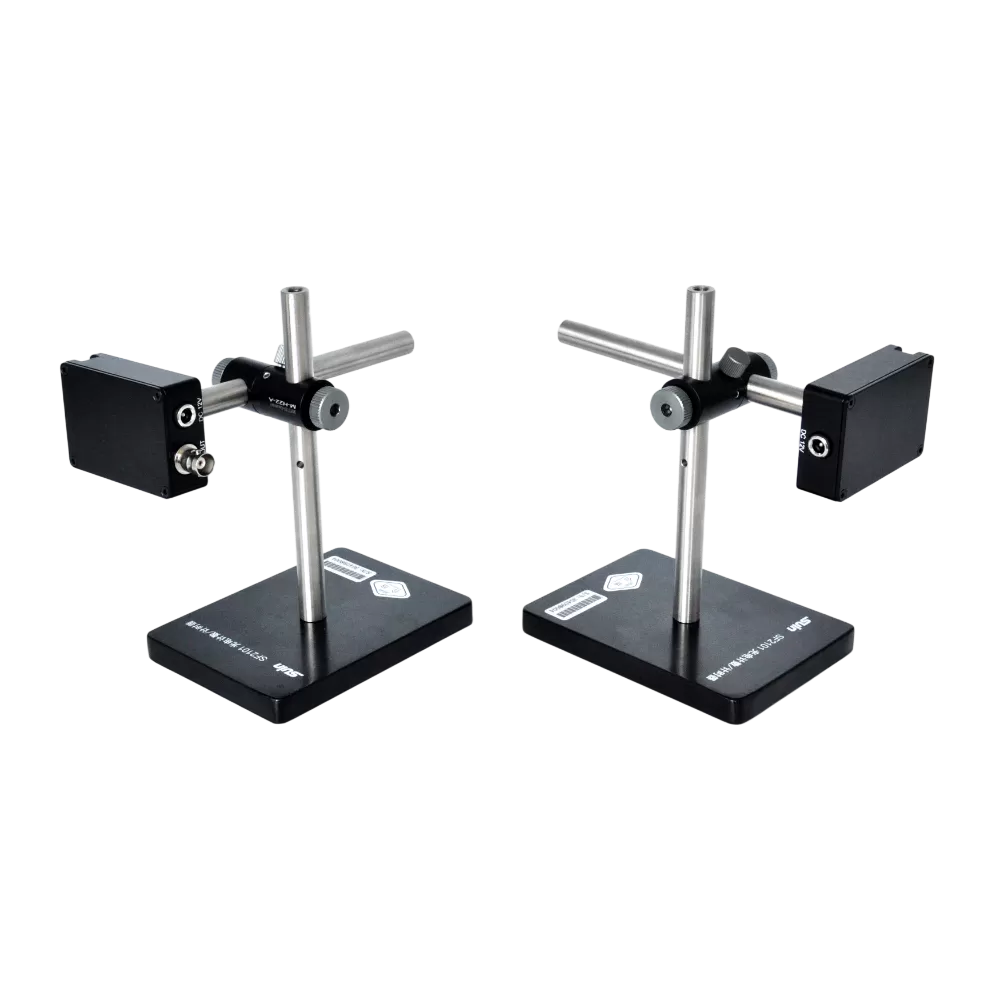

SF2101 Photoelectric Converter is designed according to Verification Regulation of Time Calibrators, used to verify actuation time of machinery such as stroke time of stopwatch fixture, bullet flying speed, object's rotating speed, etc., together with frequency counters.
Applications
Object Detection in Manufacturing: Used extensively in assembly lines to count products, detect labels, verify assembly, and position objects with high precision (e.g., in bottling plants, packaging facilities, automotive assembly).
Converting accuracy is ≤0.1 ms, which can enhance the detecting work efficiency.

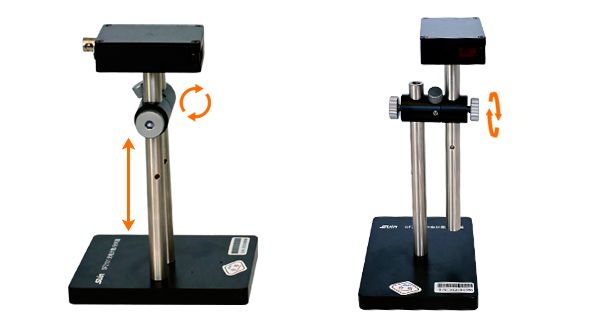

The directions of transmitter and receiver are adjustable to meet different kind detected objects.

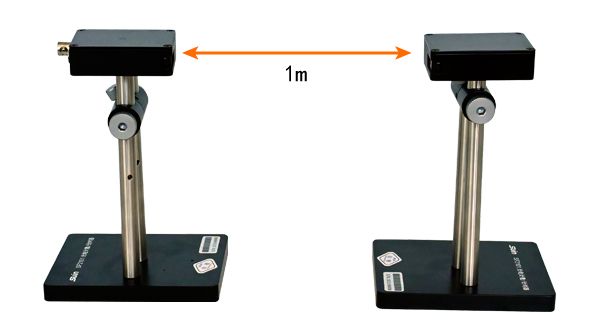

Detected distance ≤1 m

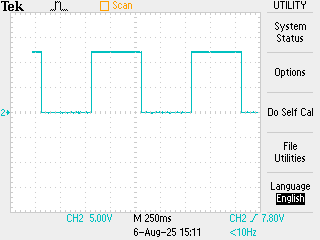

SF2101 Photoelectric Converter can output +12 V square signal.
| Basic information | |
| Converting accuracy | ≤0.1ms |
| Interface | BNC |
| Detected distance | ≤1m |
| Detected object | Untransparent objects with ≥Φ2mm |
| Output | +12V Square |

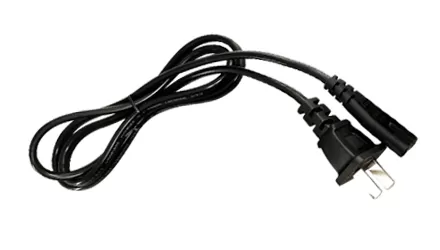

| Adapter | Input AC100-220V, 50/60Hz, output DC+12V |
| Power | Total current consumption ≤50mA for transmitting and receiving terminals |

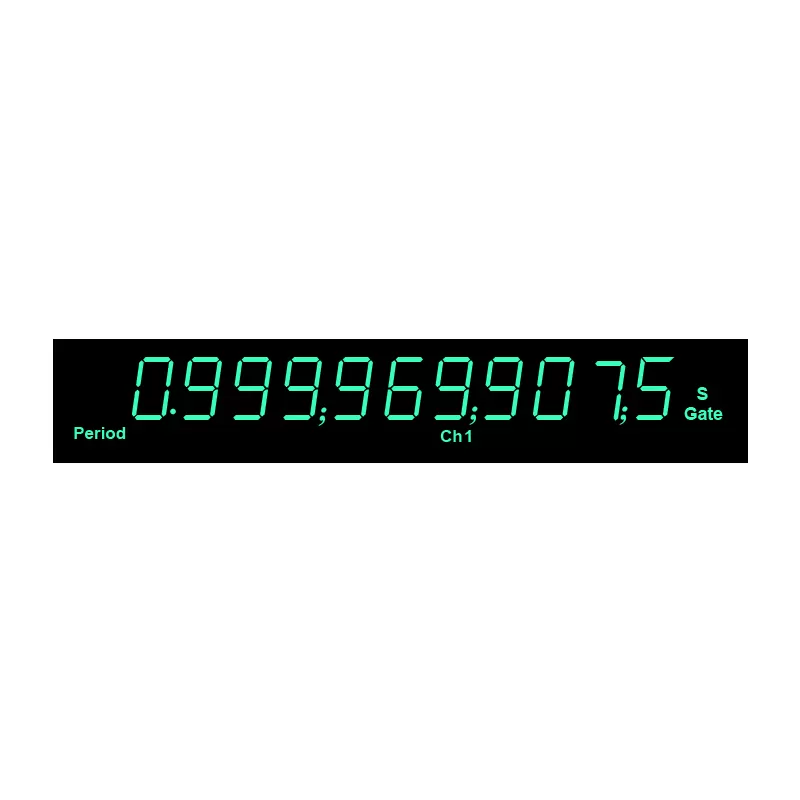

| Required Test Device | Frequency Counter or Oscilloscope |
| General Characteristic | |
| Working Environment | Temperature: 0~+40℃, RH:20~80% |
| Dimension & Weight | 185×120×90mm, approx. 3KGs |
