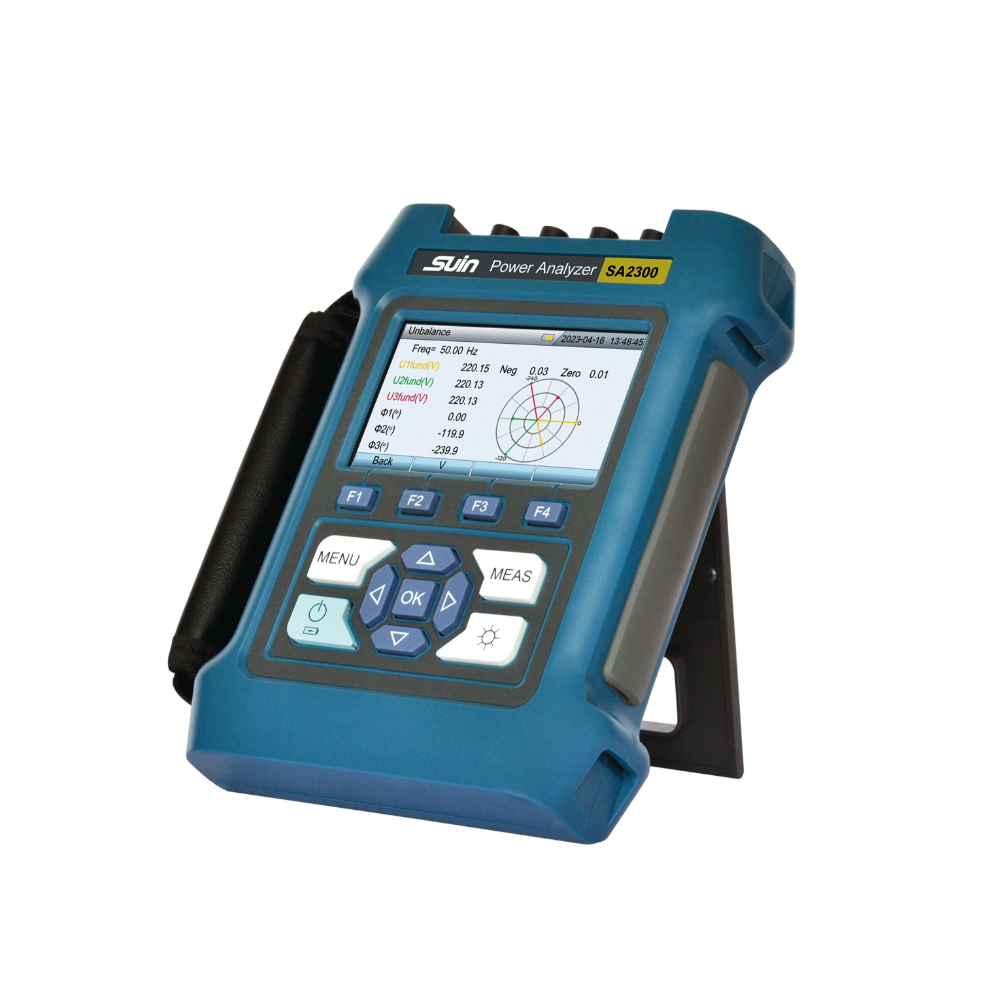

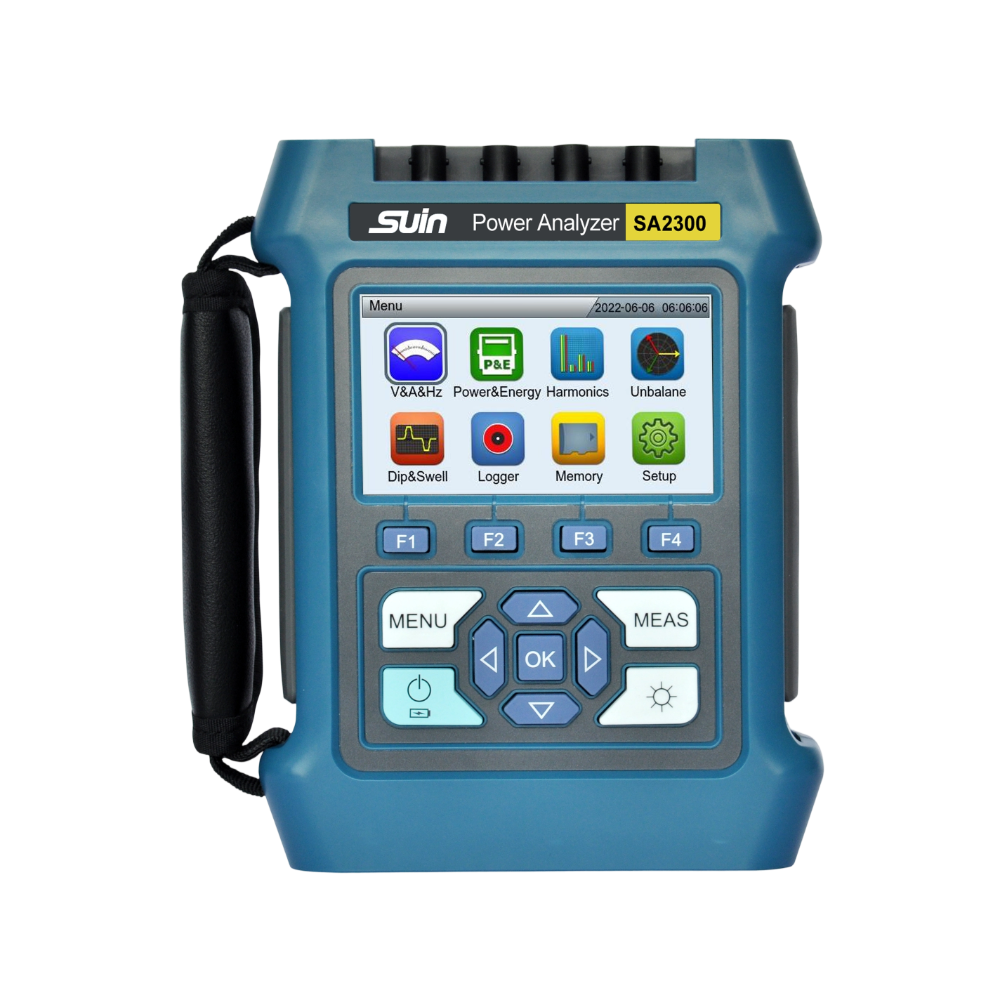

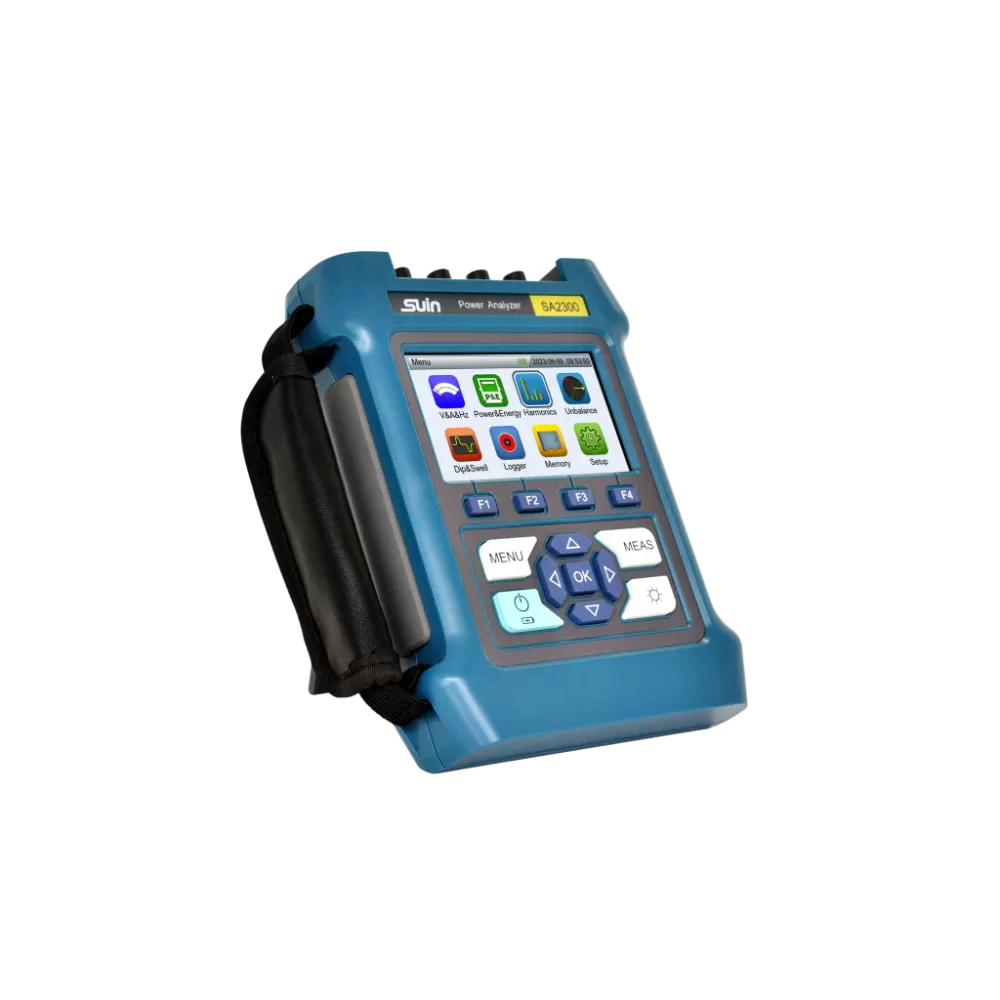

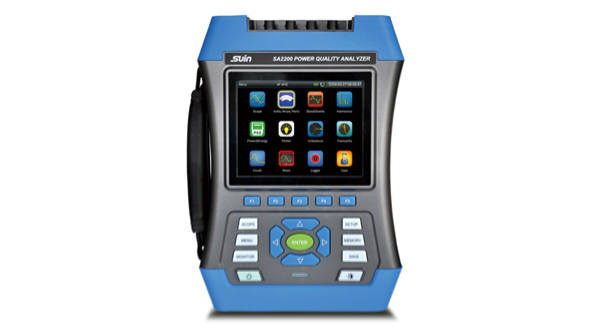

SA2300 Three Phase Power Analyzer


Overview

SA2300 can calculate a large number of electrical parameters and display them quickly. The device offers extensive and powerful measurements functions to check power distribution system, so it can detect quality of power grid and electrical characteristics rapidly and conveniently.

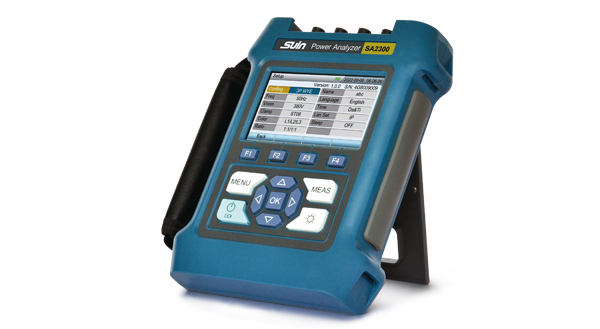

SA2300 Three Phase Power Analyzer


With the development of power equipment, the power grid system is becoming more and more complex, and the resulting fault problems are more difficult to troubleshoot, for this reason, our company has recently developed a multi-functional, lightweight, cost-effective power analyzer to help you more quickly and accurately troubleshoot the power system fault, more comprehensive and systematic monitoring of power quality.Widely used in monitoring the power quality and track faults.


Application

The three phase power analyzer is a special portable product for monitoring and analyzing the operating quality of power grid, which can provide harmonic and power measurement of the power operation, and can record and store the data of the power grid operation for a long time.

It is suitable for electric power, petrochemical, metallurgy, railway, industrial and mining enterprises, scientific research institutions, metrology departments, etc. Especially suitable for all voltage, current, power, electric energy, harmonics, phase and other electric parameters to do comprehensive analysis and diagnosis.


Design Features

Economical, compact and simple to use

Provide all necessary measurement function

4.3 inch color LCD touch screen

32GB Micro SD card is used for storage


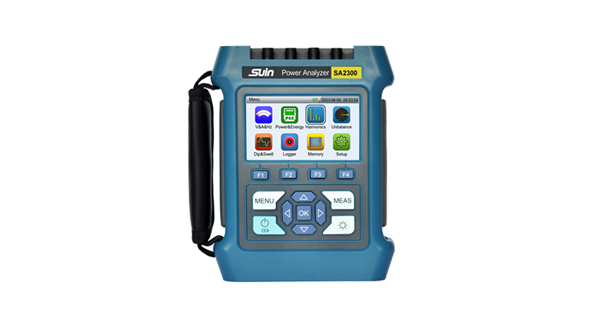

Advance function interface

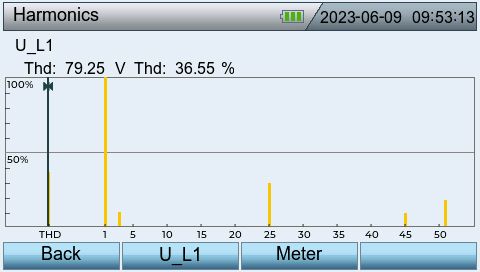

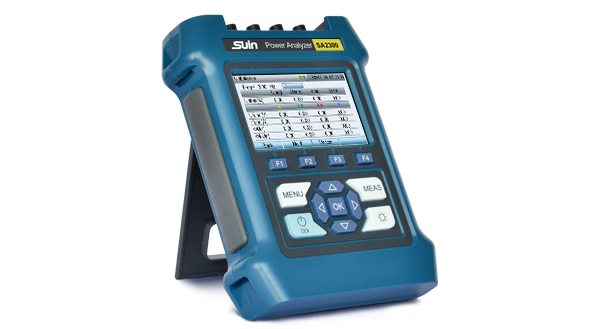

1. Track harmonics up to 51th

SA2300

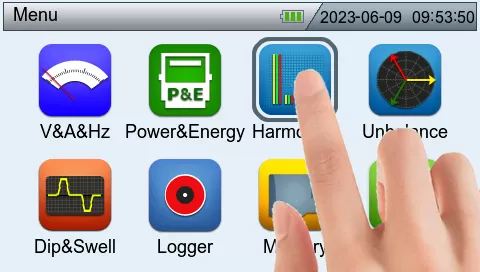

2. 4.3 inch touch screen display for a easier operation

SA2300

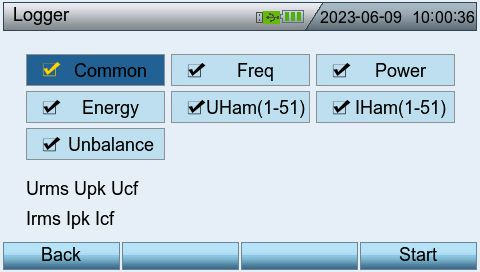

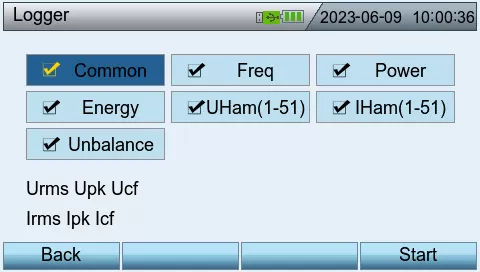

3. Powerful logger function

SA2300

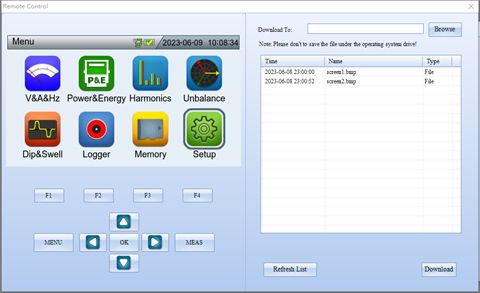

4. Equipped with PC software for data analysis

SA2300


Questions & Answer From SA2300 Power Analyzer

Q: What is the maximum recording time of the logger?

A: Usually one year,this depends on time interval


Q: Does SA2300 have THD measurement function?what about the measurement range?

A: Yes,you can find THD measurement in harmonic mode,range from 0% to 100%.


Q: How long does the battery of SA2300 can operate?what about the battery charge time?

A: The operating time can up to 6 hours when the screen brightness is in level 3. The battery charge time is about 6 hours.


INPUT

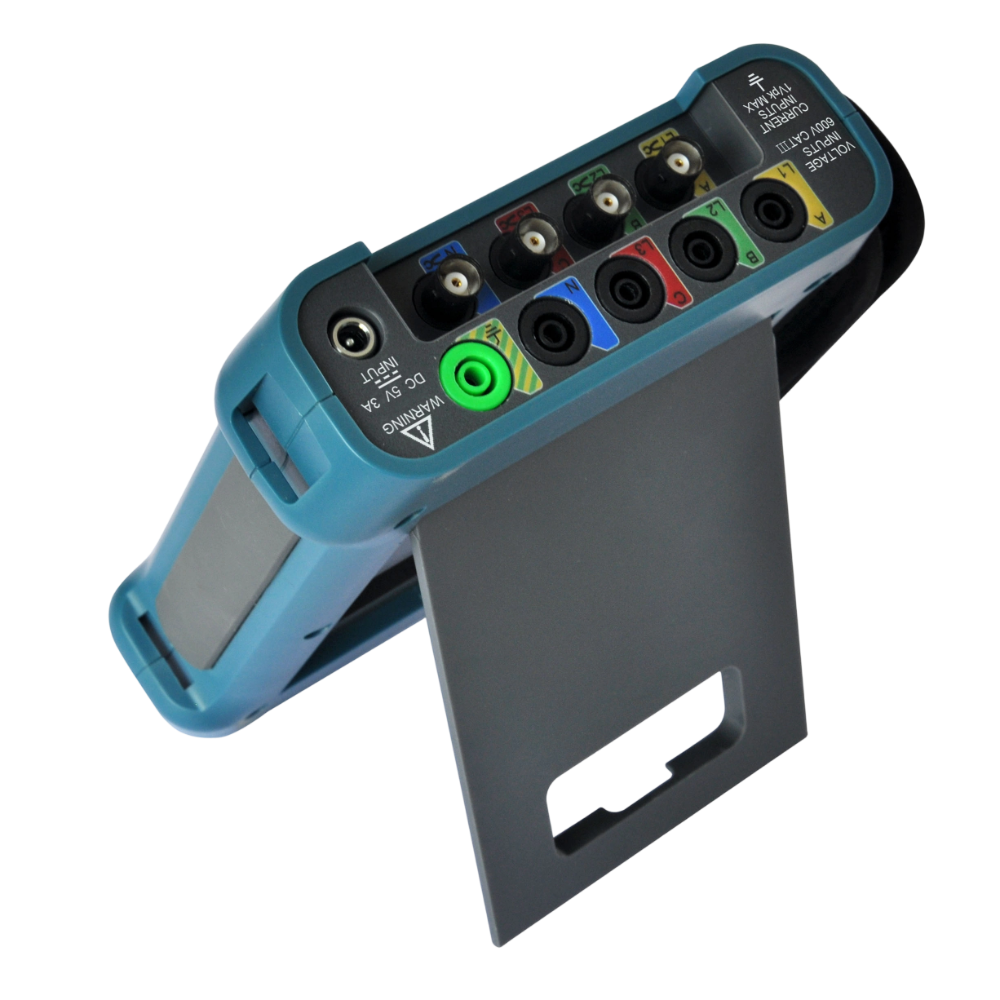

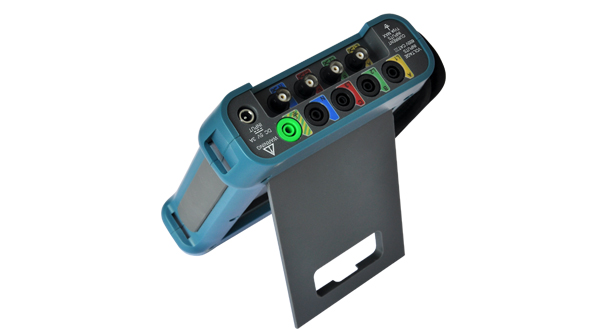

4 current input channels+4 voltage input channels
3 PHASE MULTI-POWER SYSTEM

1P/2W(1P+NEUTRAL

1P IT NO NEUTRAL)

1P/3W(1P Split Phase)

3P/3W(3P DELTA)

3P/4W (3P WYE)

DATA REFRESH RATE
1s
MEASUREMENT

Voltage/ACV

(Urms, Upk)

Range5~600Vrms

Accuracy

(L1/A,L2/B,L3/C)

±0.2%±2counts
PT ratio1 to 10000, variable

Current/ACA

(Irms, Ipk)

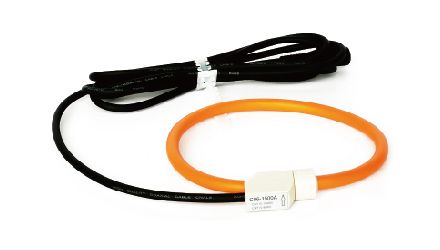

Range1500A, with SY-1500A current probe
Accuracy±0.2%±5counts
Optional current probe

ST08-5A, CTC0080-50A,CTC0130-100A,

PY-3000A, SY-6000A

CT ratio1 to 10000, variable
FrequencyRange

42.5-57.5Hz (50Hz nominal)

51-69Hz (60Hz nominal)

HarmonicNumber1-51th
Accuracy±0.1%±n x 0.1%
THD±2.5%
Power

Active power (P), Reactive power(Q),

 Apparent power(S),  Power Factor (PF),

cosФ (DPF)

Energy

Active energy (EP), Reactive entergy(EQ),

 Apparent energy(ES)

Transient EventDips/swell
LoggerInterval1s to 60 minutes
Memory 32G Micro SD card
GENERAL
Display4.3 inch color touch screen/480x272
LanguageMulti languge including Chinese, English, etc.

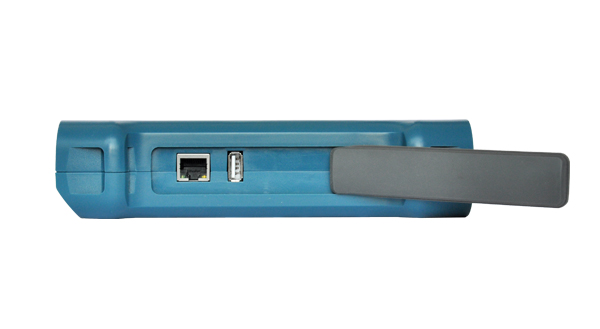

Communication PortUSB Host, LAN
Dimension/Weight158x200x47mm/1kg
Power

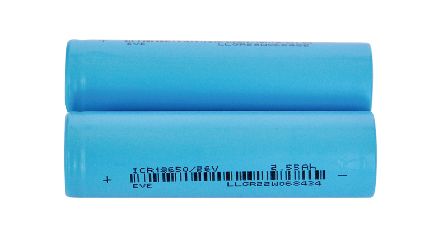

18650 lithium ion 3.6V x 2, 5100mAh / 6h

or DC 5V/3A adapter

Safety standardIEC61010-1, CATIII 600V

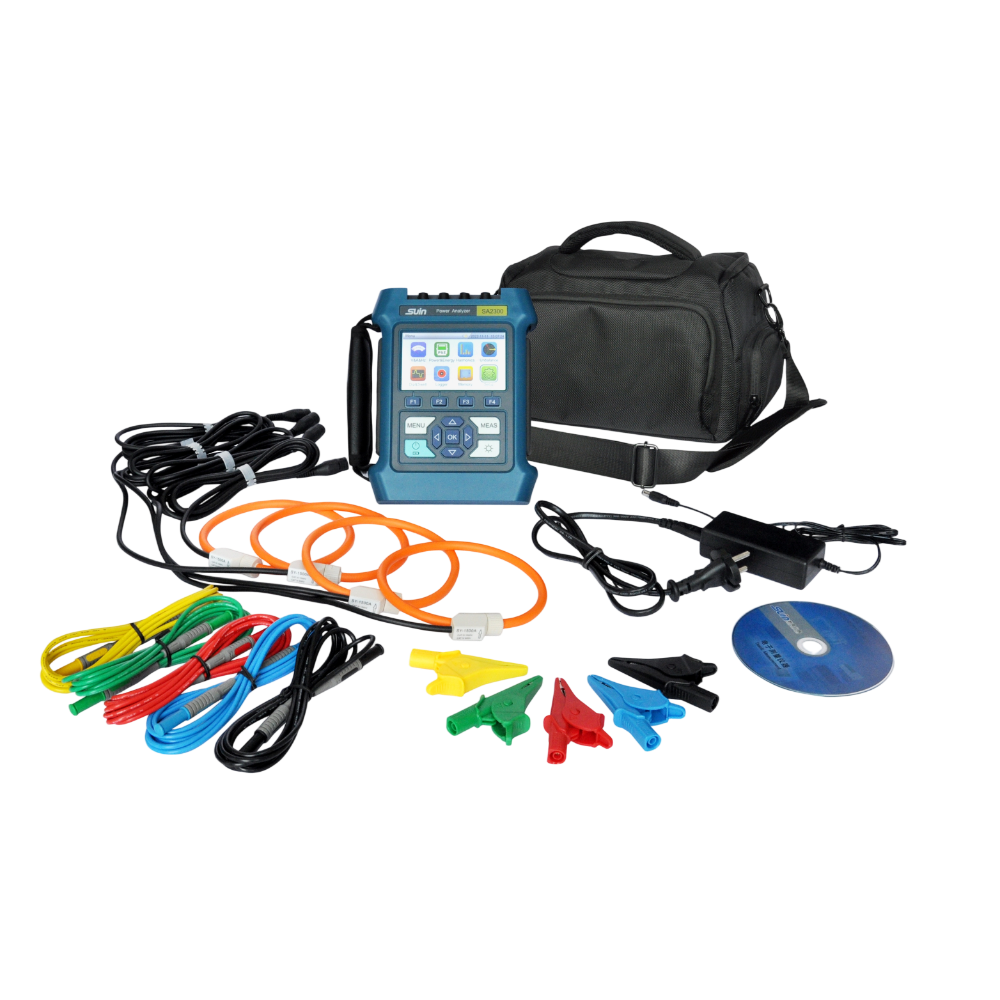

Standard Accessories

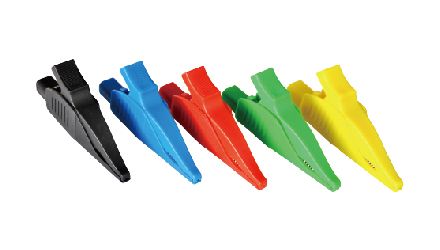

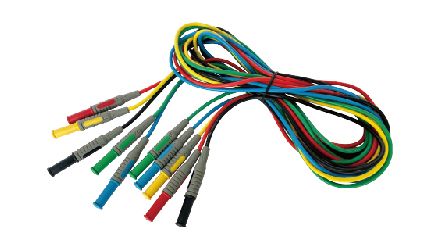

Voltage Test Leads and Alligator Clips:5pcs

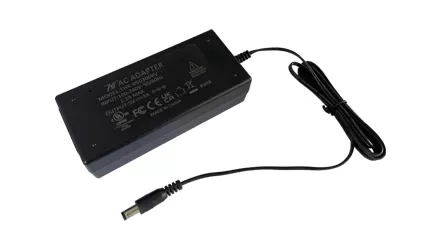

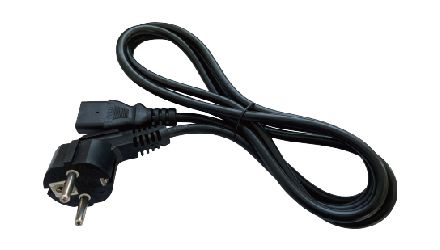

DC 5V/3A Power Adapter and Power Cord:1pcs

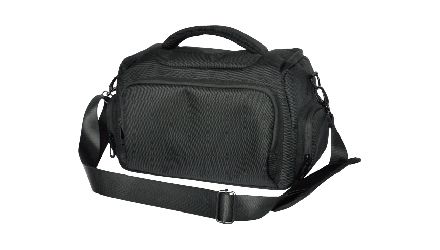

Soft Carry Bag:1pcs

CD(Manual and  PC Software):1pcs


Options

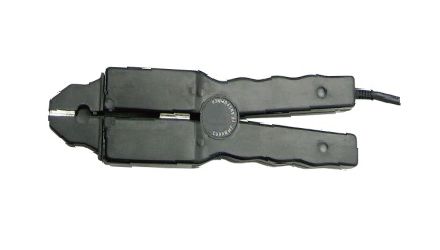

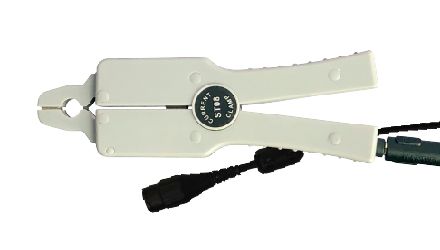

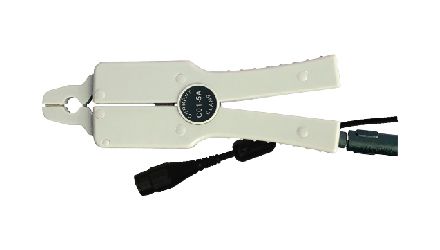

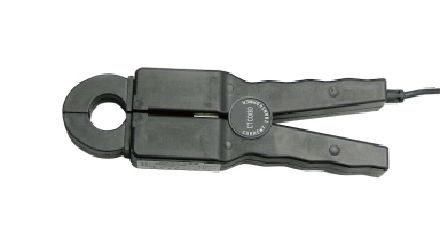

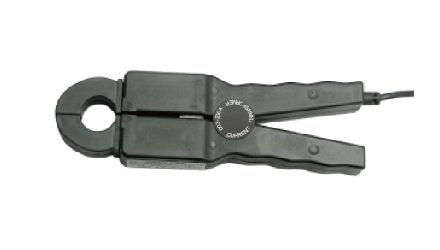

Current Clamps:ST08-5A,CTC0080-50A,CTC0130-100A

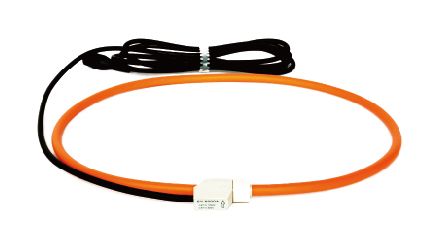

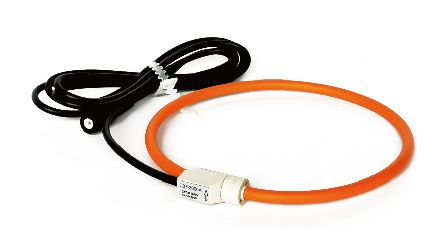

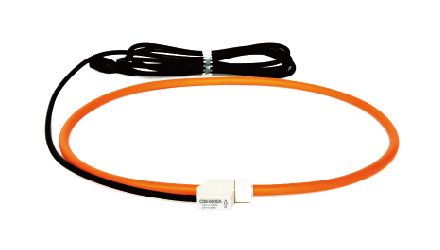

Flexible Current Probes:SY-1500,PY-3000A,SY-6000A
