A Good Tool to Test Power Quality in Power Grid System---Suin SA2200 Class A Power Quality Analyzer

May. 29, 2024

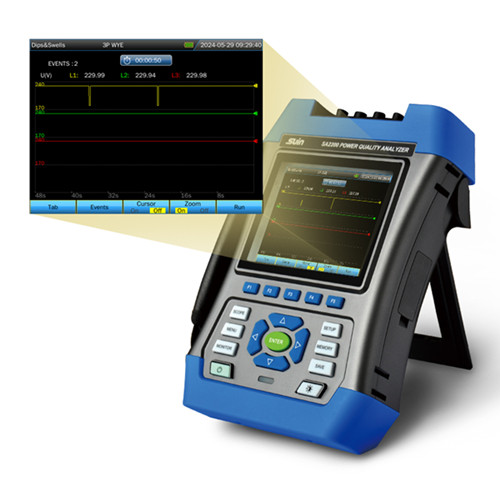

SA2200 Portable Power Analyzer

Power quality issues in a power grid can lead to inefficient operation of equipment, increased maintenance costs, and even system failures. Some common power quality problems include:

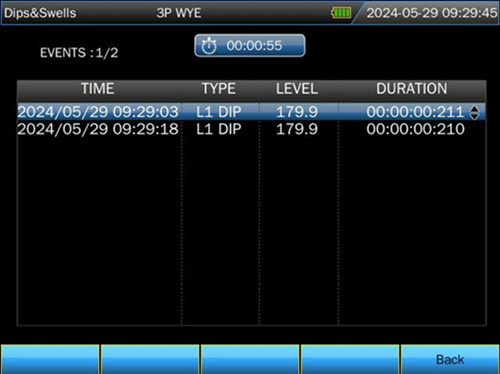

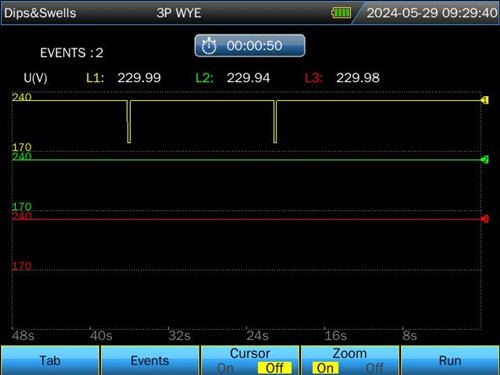

1. Voltage dips and swells: These are short-duration decreases or increases in voltage levels, often caused by sudden changes in the load or faults in the system. Voltage dips can lead to equipment malfunctions or shutdowns, while voltage swells can damage sensitive equipment. Below event is measured by SA2200: two dips voltage.

SA2200 Portable Power Analyzer

SA2200 Portable Power Analyzer

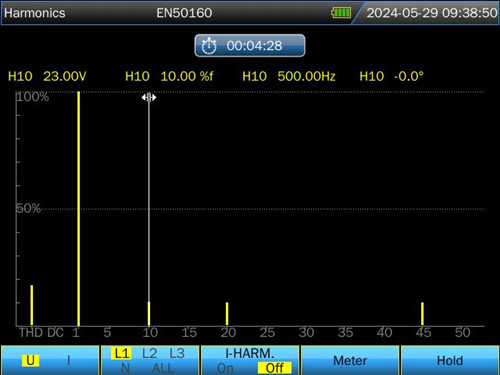

2. Harmonics: Harmonics are distortions in the normal sine wave voltage waveform, caused by nonlinear loads such as computers, variable speed drives, and fluorescent lights. Harmonics can lead to overheating of equipment, nuisance tripping of protective devices, and reduced efficiency in power systems.

SA2200 Portable Power Analyzer


3. Voltage fluctuations: Voltage fluctuations refer to rapid changes in voltage levels, typically caused by switching operations, motor starting, or load changes. These fluctuations can affect the performance of sensitive equipment and cause equipment malfunctions.


4. Transients: Transients are short-duration voltage spikes or surges, often caused by lightning strikes, switching operations, or faults in the system. Transients can damage electronic equipment and lead to equipment failures.

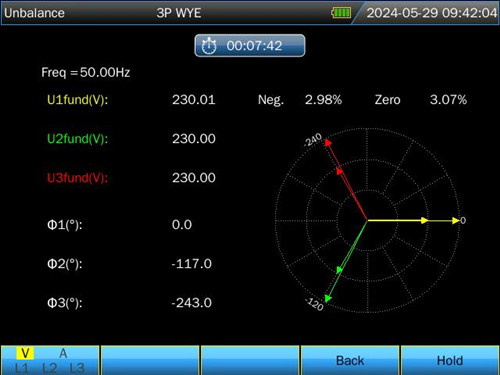

5. Voltage unbalance: Voltage unbalance occurs when the voltage levels in a three-phase power system are not equal. Unbalanced voltages can lead to overheating of motors, reduced efficiency in power systems, and increased equipment maintenance costs.

SA2200 Portable Power Analyzer


6. Power factor issues: Power factor is a measure of how efficiently electrical power is used in a system. A low power factor can lead to increased energy costs, excessive heating of equipment, and reduced overall system efficiency.


7. Flicker: Flicker is the rapid variation in voltage levels that can cause visible fluctuations in lighting systems and can lead to discomfort and reduced productivity for occupants of a building.


These power quality problems can result in equipment malfunctions, production downtime, increased energy costs, and potential safety hazards in power grid systems. Suin SA2200 Class A Power Quality Analyzer can test all above parameters so as to minimize the impact of these issues and ensure a reliable and stable power supply. Please do not hesitate to contact us for more about it.
