SU432X Series

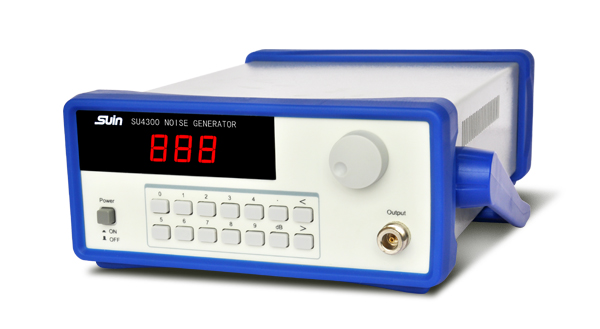

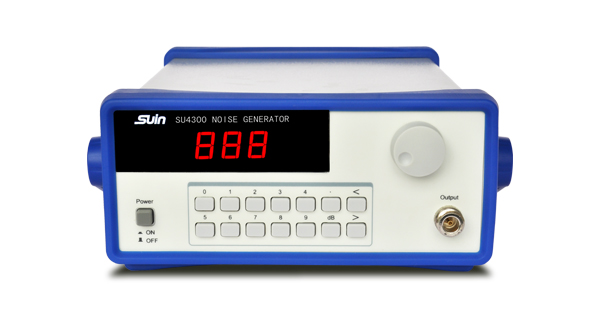

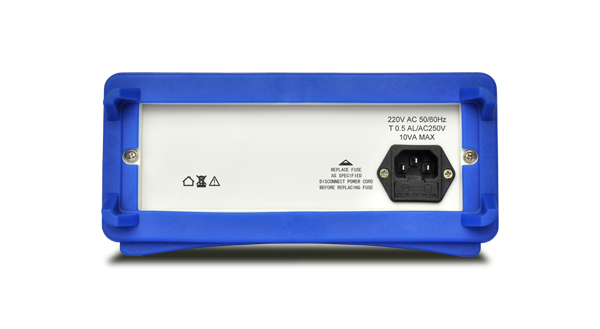

SU432X Noise Source


Overview

In the communication system, the measurement equipment with high performance should be prepared in order to ensure the working stability of facilities. SU432X Series Noise Source is one of them. It is used to simulate the noise of satellite communications to get an appropriate SNR to measure the miscode ratio of intermediate frequency modem. Noise source is not only used in satellite communications to simulate the Gauss white noise in the satellite circuitry, but also used in the microwave communication and scatter communication. The present SU432X Series noise source uses the heat noise generated by the intermediate amplifier as the noise source because it is of the characteristics of Gauss white noise.



Product Model

SU4323/SU4326

Submit your information and we will try to send you more comprehensive product information within 10 minutes for reference!


Features

*Gauss white noise with broadband standard could be generated

*Uniform and controlled spetral density, no DC and excess noise

*Simulate link noise in the UAV, navigation and satellite communication

*Widely application in electronic countermeasures and electromagnetic compaction, BER test and CATV test



Specifications


SU4323SU4326
Output
Noise Bandwidth10MHz ~ 3.0GHz10MHz ~ 6.0GHz
Attenuation Range0.0~60.0dB
Attenuation Step0.1 dB
Max. Output Noise≥3.0 dBm(10MHz ~ 3GHz)≥3.0 dBm(10MHz ~ 6GHz)
Flatness (attenuation 0.0dB)

±2.0 dB(10MHz ~ 50MHz

±2.0 dB(50MHz ~ 2.4GHz

±2.0 dB(2.4GHz ~ 3GHz

±2.0 dB(10MHz ~ 50MHz

±2.0 dB(50MHz ~ 2GHz)

±2.0 dB(2GHz ~ 5.4GHz)

±2.5 dB(5.4GHz ~ 6.0GHz)

Output Impedance50Ω
General Characteristics
InterfaceRS-232, USB(standard), GPIB(optional)
PowerAC 100V-240V, 50Hz~60Hz (1±10%),<15VA
EnvironmentTemperature 5℃ ~ 40℃, RH<80%
Dimension254×103×374mm
Weight4.0 kg
4.2kg



Standard Accessories

Power Cord:1pcs

CD(Software+ User's Guide):1pcs
