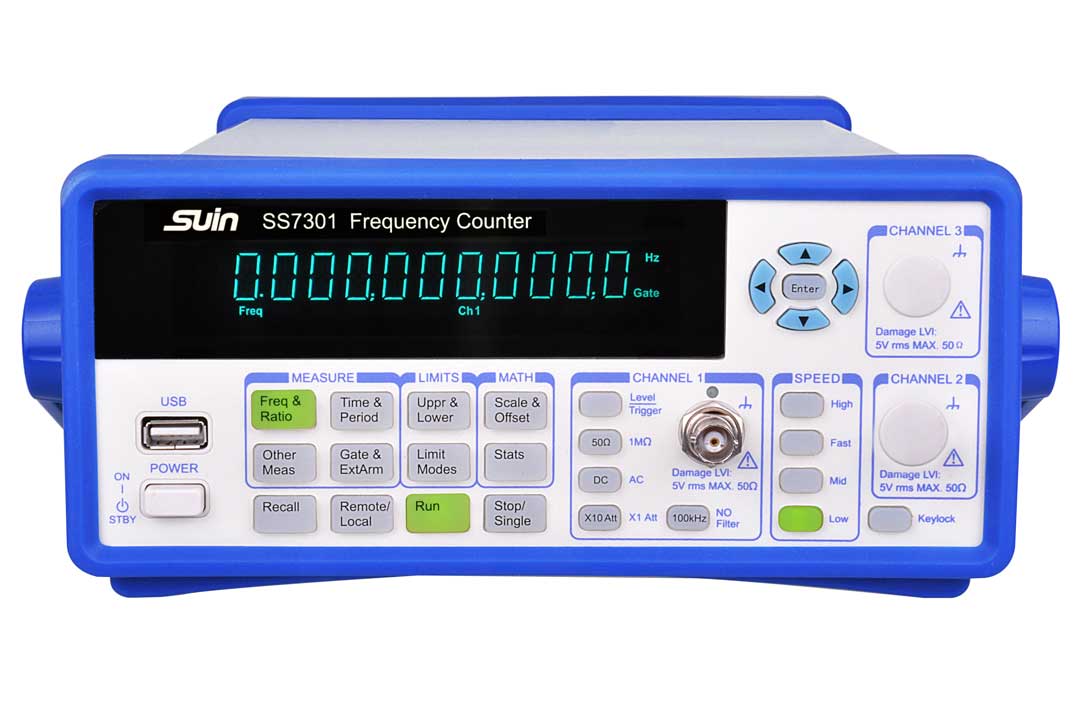

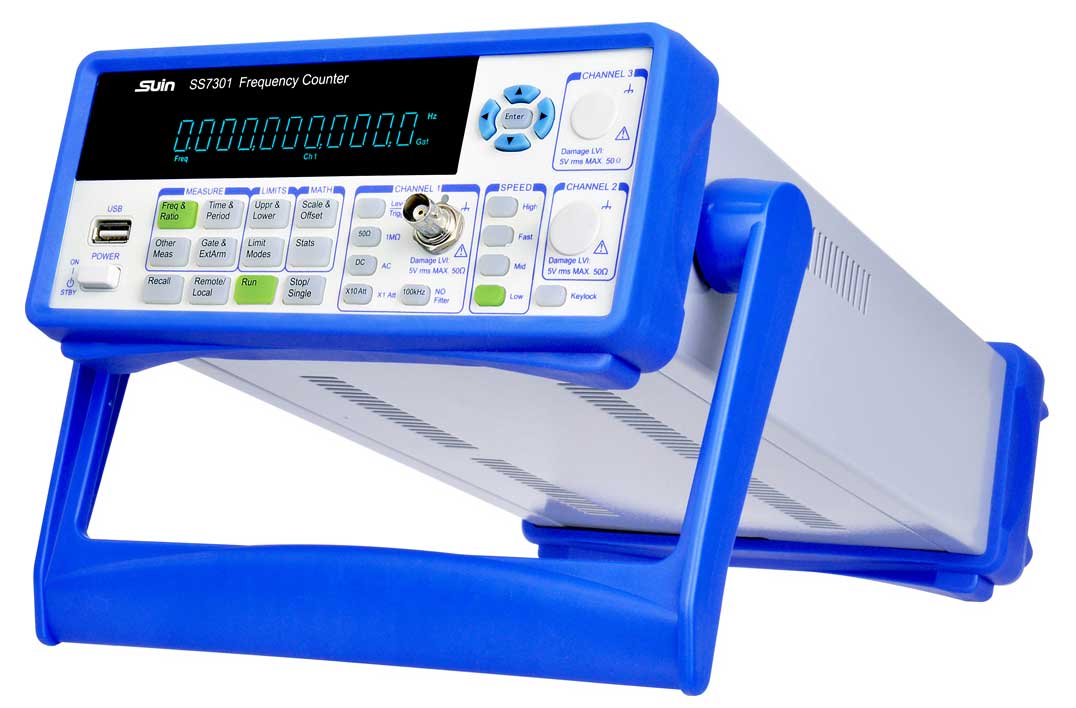

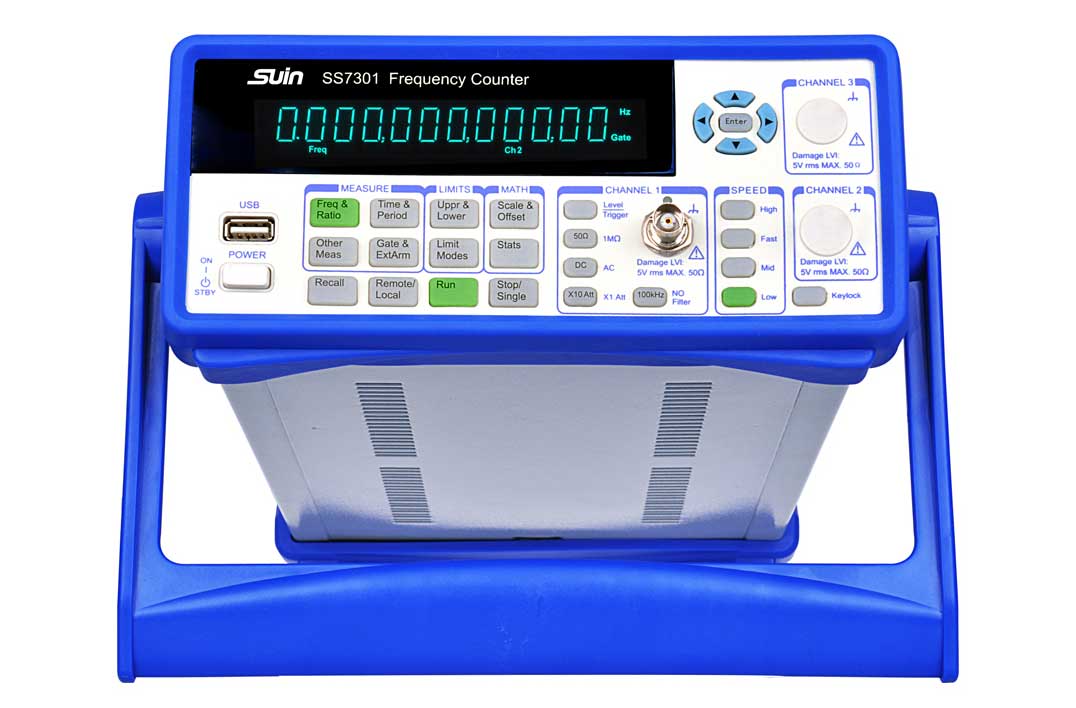

Frequency Counter
Feature
* High accuracy with minimum measuring resolution
10 digits/s
* 16-bit microcontroller is used and the speed of data
processing is fast.
* Maximum frequency’s measurement can reach to
26.5GHz (options)
* Utility statistics functions of multi-average, maximum,
minimum, PPM, standard deviation and Allan Variance
for frequency measurement
* High-stability crystal oscillator is optional
What does a frequency counter do?
A frequency counter is a test and measurement instrument that very accurately measures the frequency of repetitive electronic signals, conveying the number of oscillation cycles that occur within a specific period of time. Modern frequency counters also provide a complete statistical analysis and graphical representation of the frequency.
What is a frequency counter used for?
There are a number of applications that require a frequency counter, but they are most often used when measuring radio frequency in electronic and electrical engineering. Frequency counters tend to work best when measuring steady, repetitive signals in environments with low RF noise. Designers and manufacturers of oscillators, clock modules and PLLs make effective use of these instruments.
Specifications
| Measuring Functions | ||
| Frequency | CH 1: 0.001Hz ~ 200MHz | |
CH 2: options 3GHz/6.5GHz/12.4GHz/ 16GHz/20GHz/26.5GHz/40GHz | ||
CH 3: options 3GHz/6.5GHz/12.4GHz/ 16GHz/20GHz/26.5GHz/40GHz | ||
| Display Resolution | 10 digits/s | |
| Period | 5ns ~ 1000s | |
| Input | ||
| Dynamic Range | 50mVrms ~ 1.0Vrms (Sine), 150mVPP ~ 4.5VPP(Pulse) | |
| Input Impedance | 1MΩ//35pF or 50Ω | |
| Coupling Mode | AC or DC | |
| Trigger Mode | Rising edge or Falling edge | |
| Input Attenuation | ×1 or ×10 | |
| Low-pass Filter | stop frequency approx.100kHz | |
| Trigger Level | -5.000V ~ +5.000V, step 5mV | |
| Other Functions | ||
| Frequency Ratio | √ | |
| Frequency Self-test | √ | |
| Up/Low Limit | "Limit" light on shows the result out of range, off shows within range | |
| Statistics Calculation | Multi-average, Max.,Min., PPM, SD, Allan Variance | |
| Standard Time Base | ||
| Accuracy | 5×10-8 | |
| Daily Aging | 1×10-8/day | |

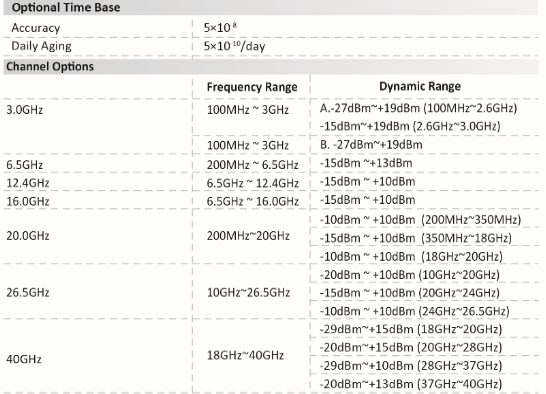

| Optional Time Base | ||
| Accuracy | 5×10-8 | |
| Daily Aging | 5×10-10/day | |
| Channel Options | ||
| Frequency Range | Dynamic Range | |
| 3.0GHz | 100MHz~3GHz | A. -27dBm~+19dBm (100MHz~2.6GHz) -15dBm~+19dBm (2.6GHz~3GHz) |
| 100MHz~3GHz | B. -27dBm~+19dBm | |
| 6.5GHz | 200MHz~6.5GHz | -15dBm~+13dBm |
| 12.4GHz | 6.5GHz~12.4GHz | -15dBm~+10dBm |
| 16.0GHz | 6.5GHz~16GHz | -15dBm~+10dBm |
| 20.0GHz | 200MHz~20GHz | -10dBm~+10dBm (200MHz~350MHz) |
| -15dBm~+10dBm (350MHz~18GHz) | ||
| -10dBm~+10dBm (18GHz~20GHz) | ||
| 26.5GHz | 10GHz~26.5GHz | -20dBm~+10dBm (10GHz~20GHz) |
| -15dBm~+10dBm (20GHz~24GHz) | ||
| -10dBm~+10dBm (24GHz~26.5GHz) | ||
| 40GHz | 18GHz~40GHz | -29dBm~+15dBm (18GHz~20GHz) |
| -20dBm~+15dBm (20GHz~28GHz) | ||
| -29dBm~+10dBm (28GHz~37GHz) | ||
| -20dBm~+13dBm (37GHz~40GHz) | ||
| Damage Level | +20dBm | |
| General Characteristics | ||

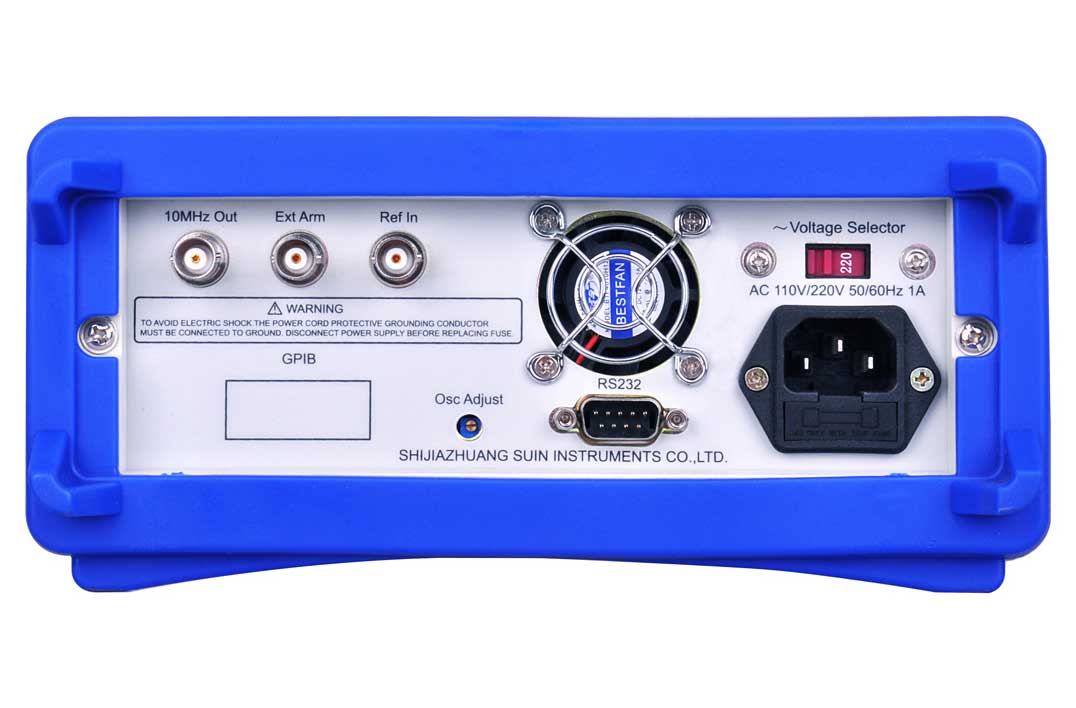

| Interface | Standard: USB, RS-232 | |
| Optional: GPIB | ||
| Power | AC 220V(10%) or AC110V(10%), 50Hz(5%) OR 60Hz(5%) | |
| Dimension & Weight | 375×105×235mm, Approx. 3.5kg | |
Standard Accessories
Power Cord:1pcs
BNC Testing Cable:1pcs
CD(Software+User's Guide):1pcs
Options
