Suin Function/Arbitrary Waveform Generators using Direct Digital Synthesis (DDS) technology can produce high quality signals up to 400 MHz. 1 channels to 4 channels outputs, and max 1.2 GSa/s sampling rate can improve engineers testing work efficiency.ArbEditor software can help engineers to produce more complex signals to simulate the actual application.
| Series | Vertical Resolution | CH | Max. Output Frequency | Sample Rate | Max. Arbitrary Waveform Length |
New
|
16 bits | 2 | 60 MHz | 625 MSa/s | 32 Mpts |
New
|
16 bits | 2 | 100 MHz | 250 MSa/s | 16 Mpts |
New
|
14 bits | 2/4 | 400 MHz | 1.2 GSa/s | 32 Mpts |
|

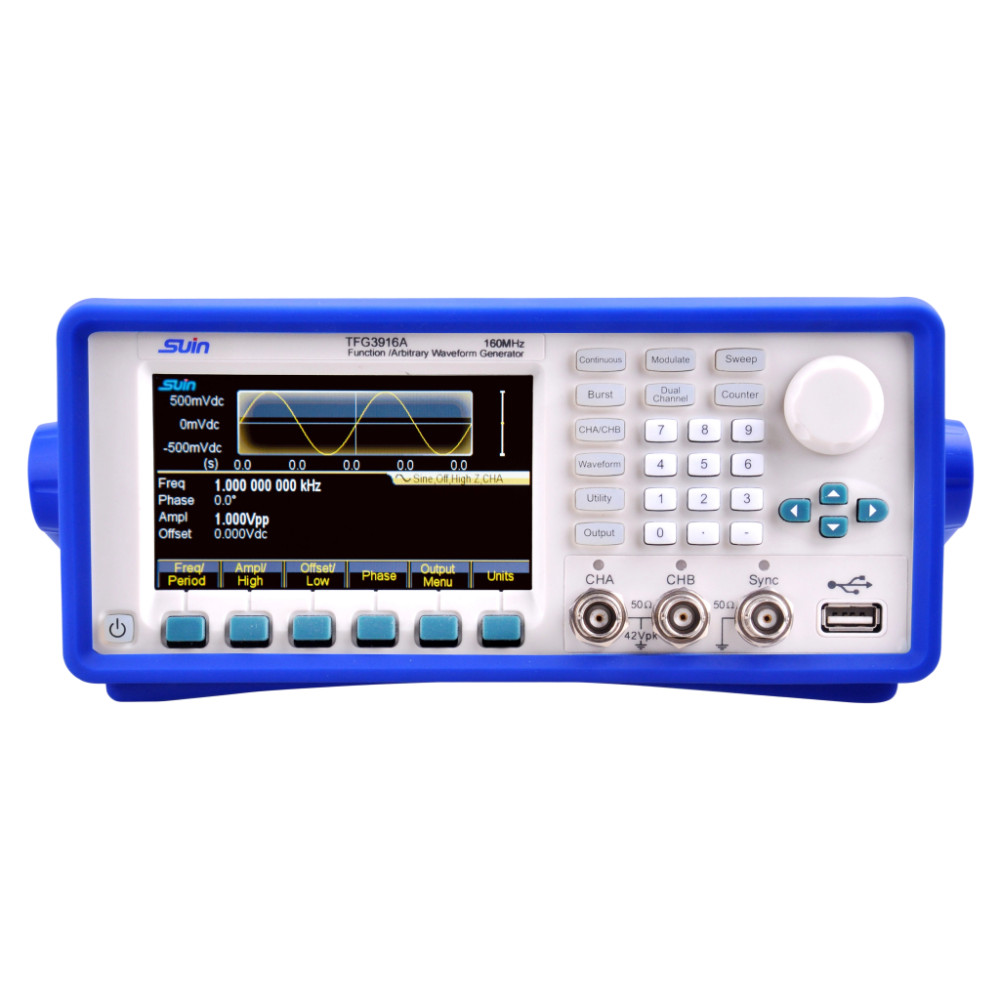

14 bits | 2 | 160 MHz | 500 MSa/s | 16 kpts |
|
14 bits | 2 | 60 MHz | 120 MSa/s | 4096 points |
|
10 bits | 2 | 20 MHz | 100 MSa/s | 4096 points |
|
8 bits | 1 | 20 MHz | 100 MSa/s | 1024 points |
