TFG1900B Series
Cheap frequency signal generator for sale
Cheap frequency signal generator for sale

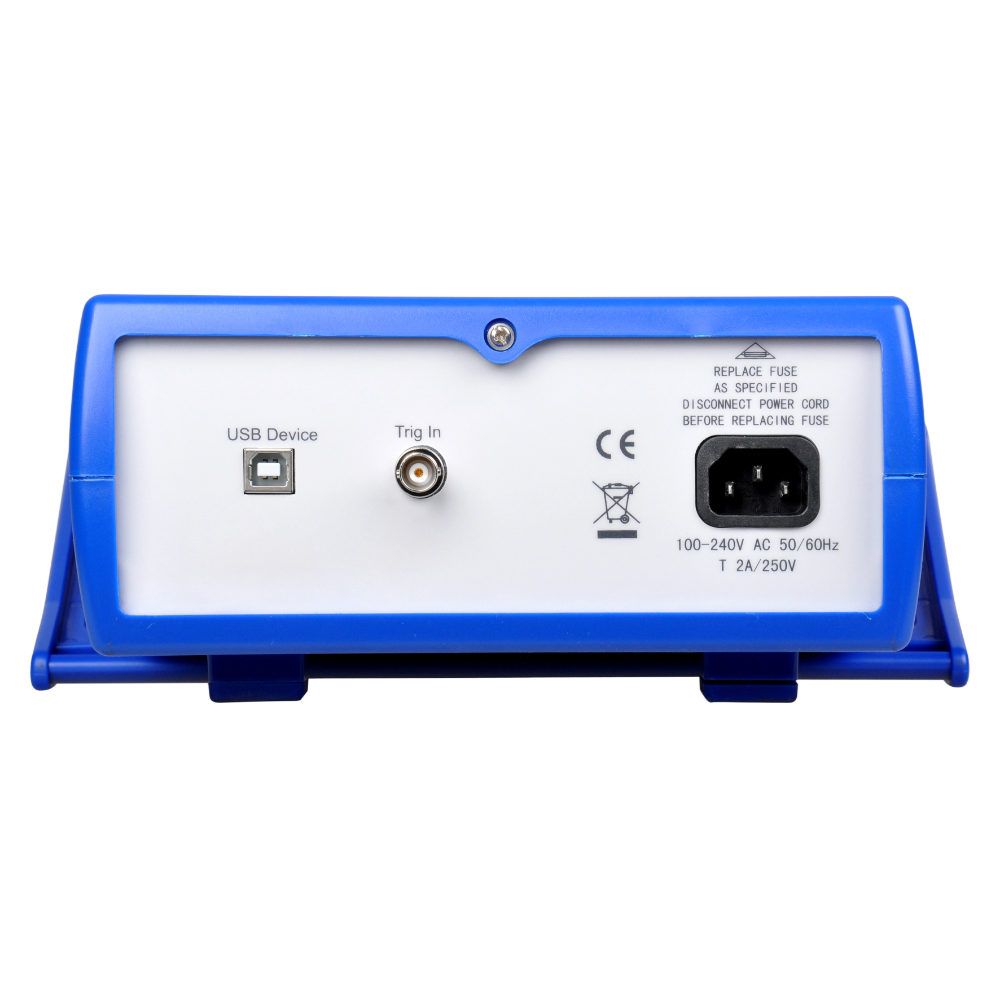

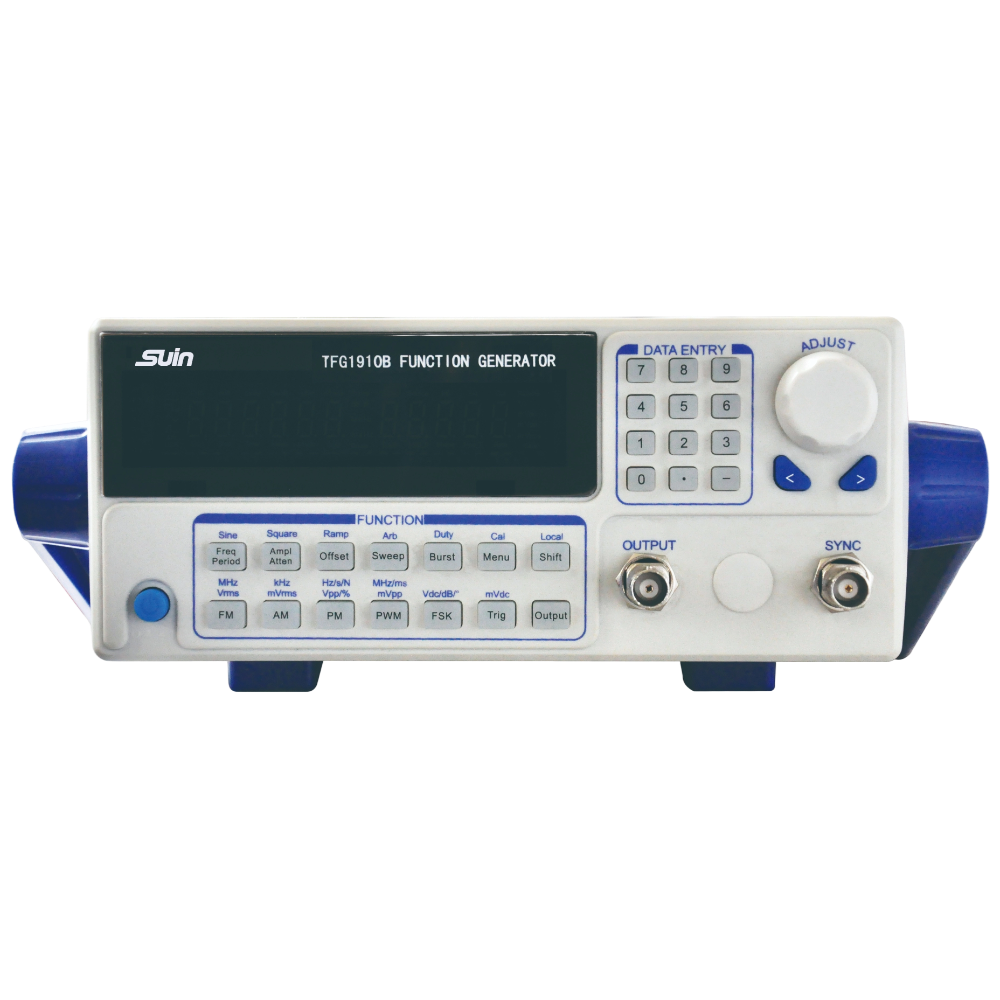

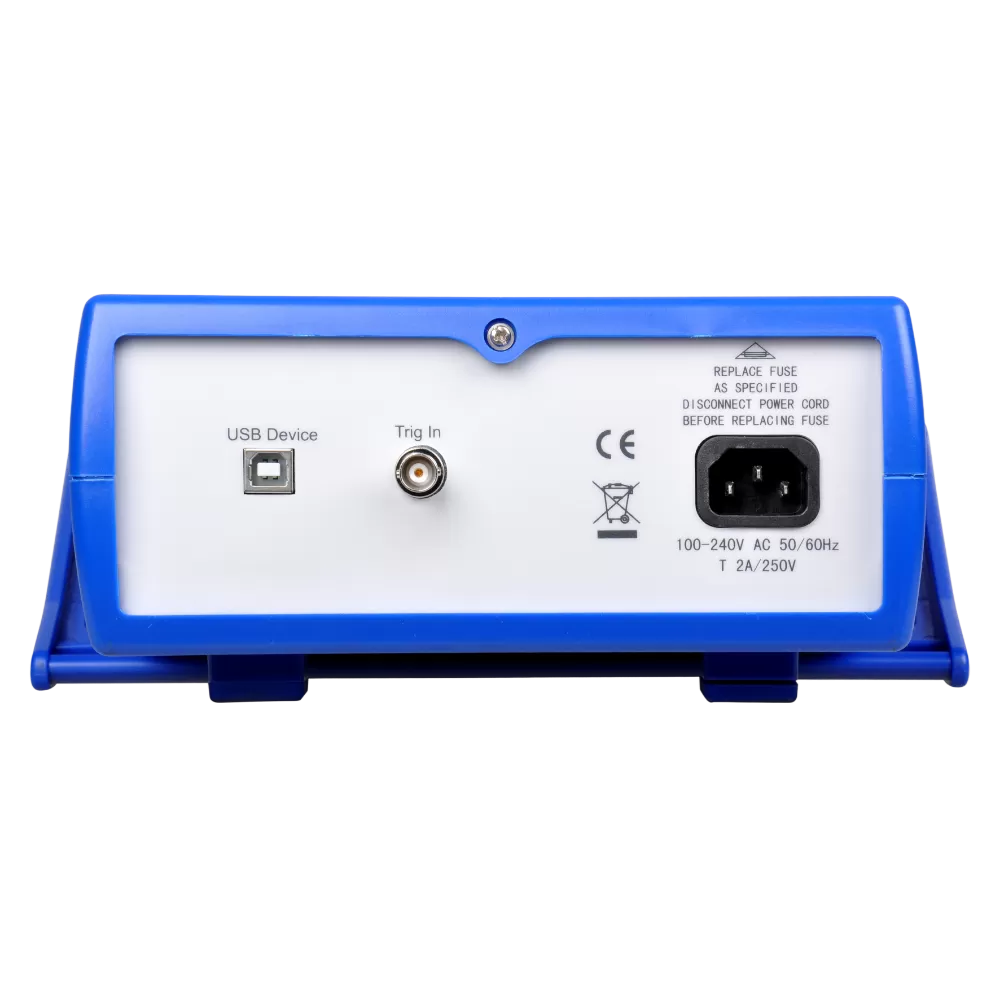

TFG1900B Series belonging to a low price function generator, with one channel output, 3MHz/5MHz/10MHz/20MHz for Sine, high precision PCB designed, can make the test quickly and accurately. Working at AC 100-240V voltage power, adopting the DDS technique, it is an inexpensive electronics test and measurement instrument for R&D, education, etc.
Application
Signal Testing & Circuit Debugging

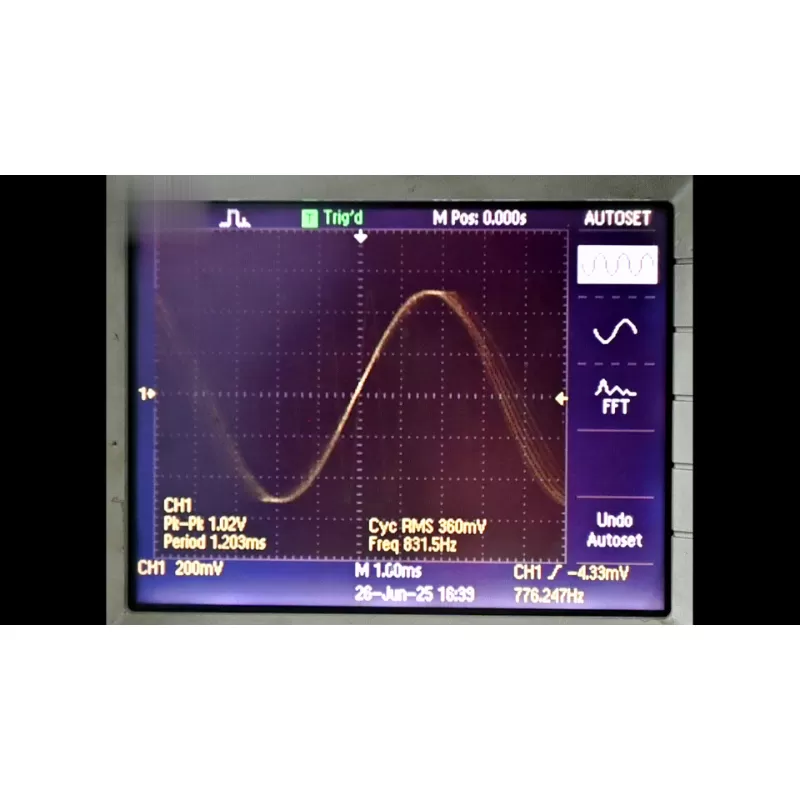

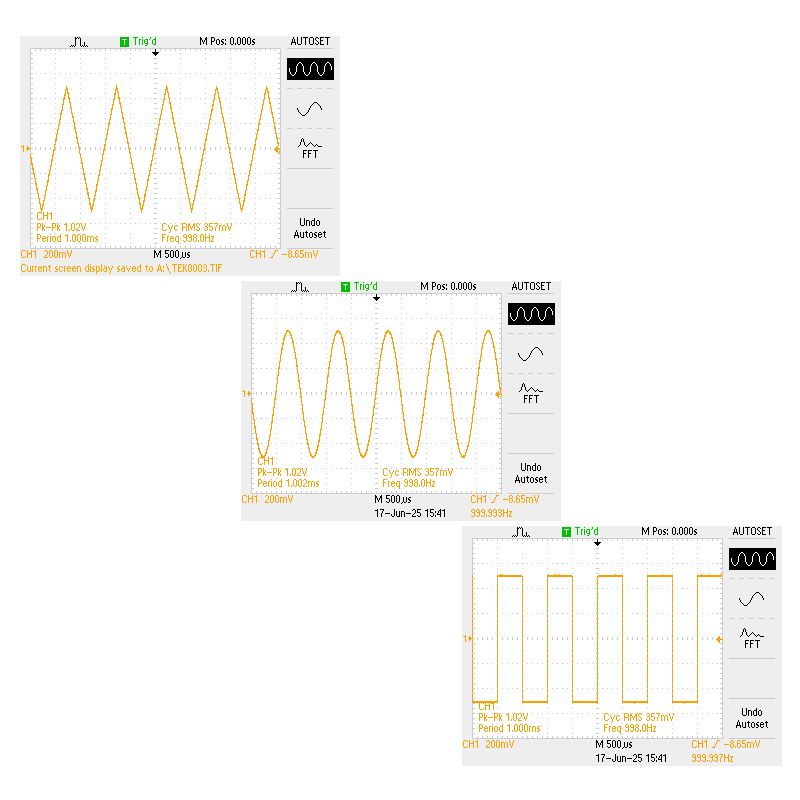

Generate sine, square, triangle, and pulse waveforms to test analog/digital circuits.
Verify amplifier frequency response, filter characteristics, and oscillator circuits.
Frequency Response Analysis
Test the bandwidth of amplifiers, filters, and sensors by sweeping frequencies (e.g., 1 Hz to 20 MHz).
Characterize resonant circuits (LC, RLC) and transducer responses.
Education & Training
Teach waveform fundamentals (frequency, amplitude, phase) in labs.
Demonstrate modulation techniques (AM, FM, PWM).
Component & Sensor Testing
Drive piezoelectric transducers, ultrasonic sensors, and MEMS devices.
Test passive components (capacitors, inductors) with frequency sweeps.
Troubleshooting & Repair
Inject signals into faulty circuits to trace signal paths in audio/RF systems.

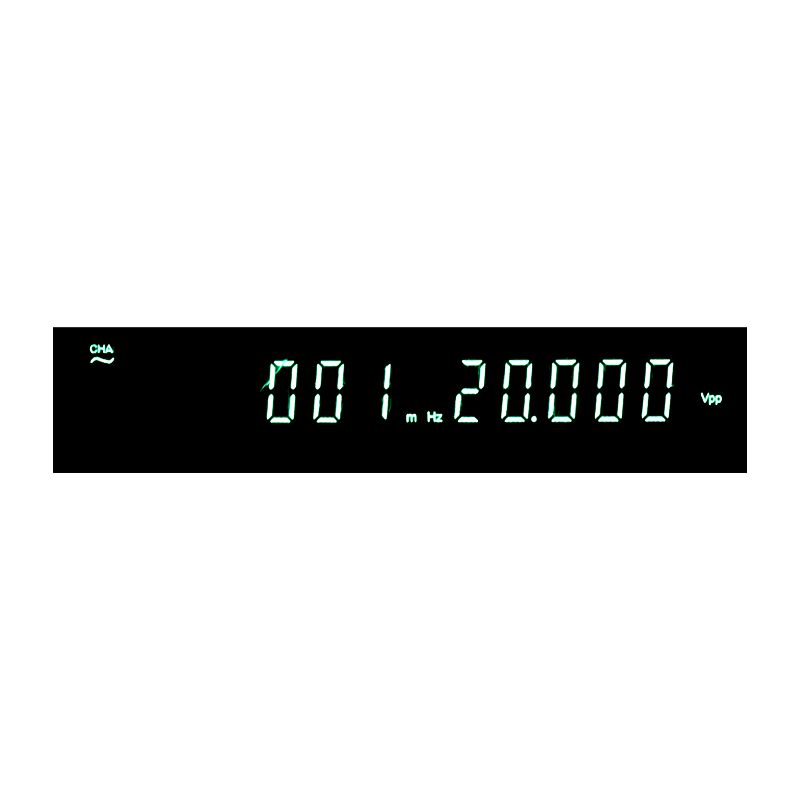

TFG1900B can output maximum 20 Vpp signal at open circuit.

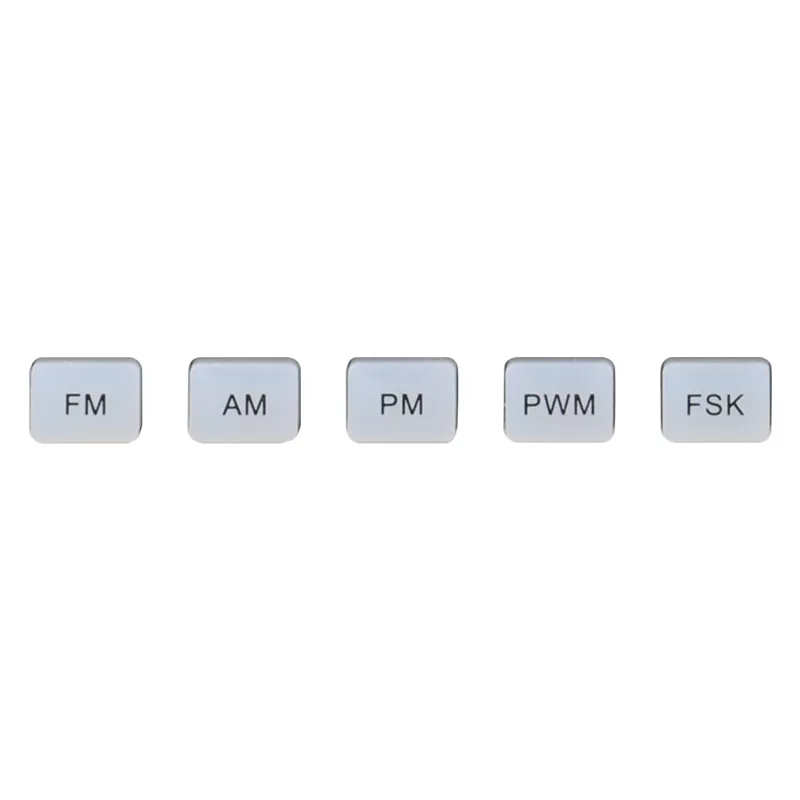

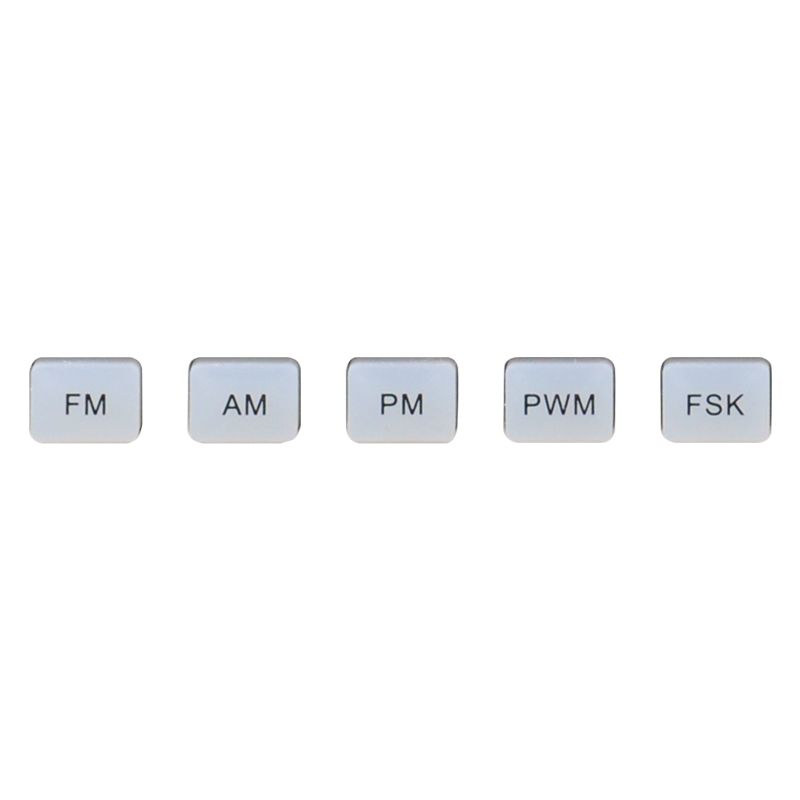

TFG1900B can provide FM, AM, PM, PWM, FSK modulations to meet the test requirement.
TFG1900B also provide frequency sweep function through internally, externally or manually triggered.
TFG1900B can output 16 kind waveforms, including Sine, Square, Ramp, Exp., Log. Noise, etc., which can meet the basic test requirement in education or laboratory.
| TFG1903B | TFG1905B | TFG1910B | TFG1920B | ||
| Frequency | |||||
| Range | Sine | 10μHz ~ 3MHz | 10μHz ~ 5MHz | 10μHz ~ 10MHz | 10μHz ~ 20MHz |
| Square | 10μHz ~ 5MHz | ||||
| Others | 10μHz ~ 1MHz | ||||
| Resolution | 10μHz | ||||
| Accuracy | ±50ppm | ||||
| Waveform | |||||
| Type | 16 waveform, Sine, Square, Ramp, Exp, Log, Noise, etc. | ||||
| Length | 1024 points | ||||
| Sampling Rate | 100 MSa/s | ||||
| Vertical Resolution | 8 bits | ||||
| Sine | Harmonic Distortion | ≤-40dBc(≤5MHz); ≤-35dBc(>5MHz) | |||
| Total Distortion | ≤0.5% (20Hz ~ 20kHz, 20Vpp) | ||||
| Square | Rise/Fall Edge Time | ≤35ns Overshoot: ≤ 10 % | |||
| Duty Cycle | 0.1% ~ 99.9% | ||||
| Ramp | Symmetry | 0.0% ~100.0% | |||
| Amplitude | |||||
| Range | Frequency≤8MHz | 0 ~ 10Vpp(50Ω),0 ~ 20Vpp(Open circuit) | |||
| Frequency>8MHz | 0 ~ 9Vpp(50Ω), 0 ~ 18Vpp(Open circuit) | ||||
| Resolution | 5mVpp(Amplitude>2Vpp) | ||||
| 0.5mVpp(Amplitude≤2Vpp) | |||||
| DC Offset (Ampl. 0Vpp) | |||||
| Range | ±5Vdc (50Ω), ±10Vdc (Open circuit) | ||||
| Resolution | 5mVdc | ||||
| Modulation | |||||
| FM,AM, | Carrier Waveform | 16 waveforms, Sine, Square, Ramp, etc. (only Pulse for PWM) | |||
| PM,PWM | Modulating Waveform | 16 waveforms, Sine, Square, Ramp, etc. | |||
| Modulating Frequency | 40mHz ~ 20kHz | ||||
| FSK | Carrier Waveform | 16 waveforms, Sine, Square, Ramp, etc. | |||
| Modulating Waveform | Square | ||||
| FSK Rate | 40mHz ~ 100kHz | ||||
| Frequency Sweep | |||||
| Type | Linear or Logarithmic | ||||
| Sweep Time | 50ms ~ 500s | ||||
| Trigger Source | Internal/External/Manual | ||||
| Burst | |||||
| Burst Waveform | 16 waveforms, Sine, Square, Ramp, etc. | ||||
| Burst Count | 1 ~ 1000000 | ||||
| Internal Period | 1μs ~ 20s | ||||
| Start Phase | 0° ~ 360° | ||||
| Trigger Source | Internal/External/Manual | ||||
| SYNC Output | |||||
| Electrical Level | TTL compatible | ||||
| Waveform Characteristic | Square, edge time ≤ 20ns | ||||
| Output Level | low level<0.3V, high level>4V | ||||
| General Characterisctics | |||||
| Power | AC 100 ~ 240V, 45 ~ 65Hz, < 20VA | ||||
| Display | LCD display | ||||
| Dimension & Weight | 322×256×102mm, Approx.1.5kg | ||||
Power Cord
CD
