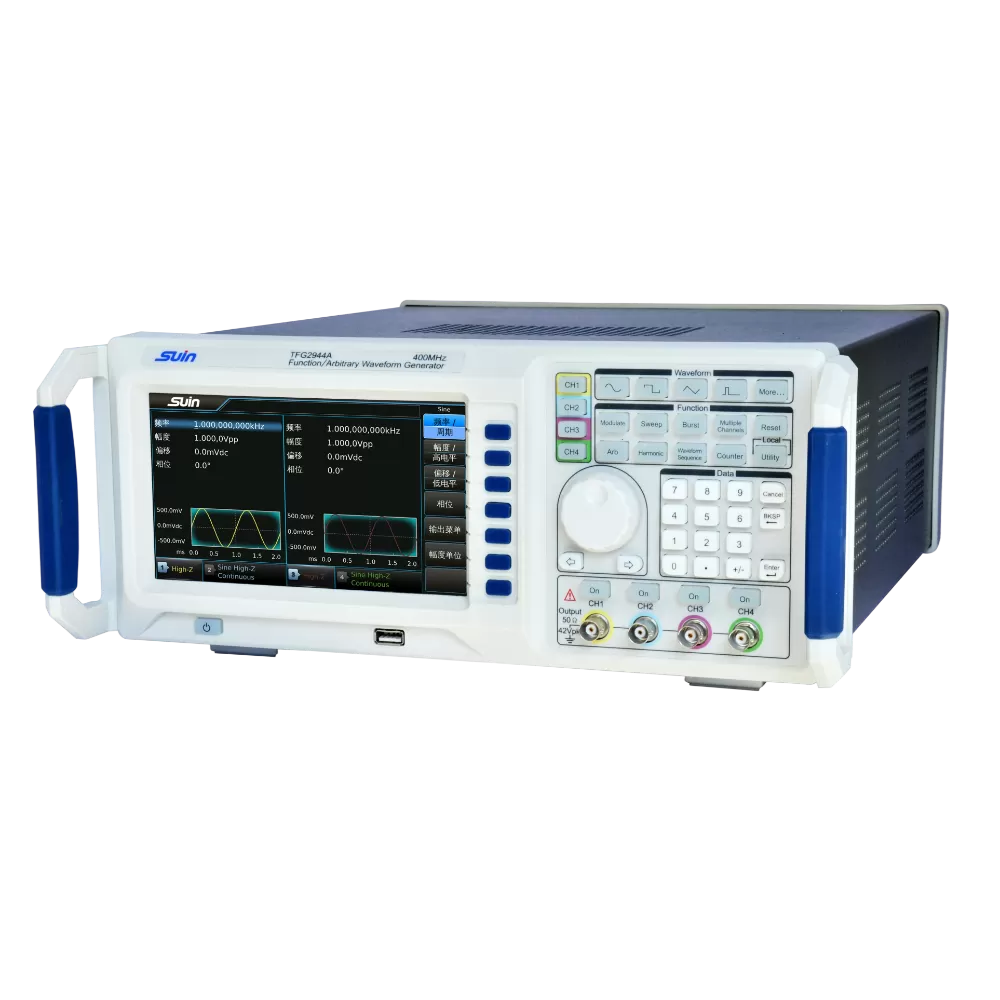

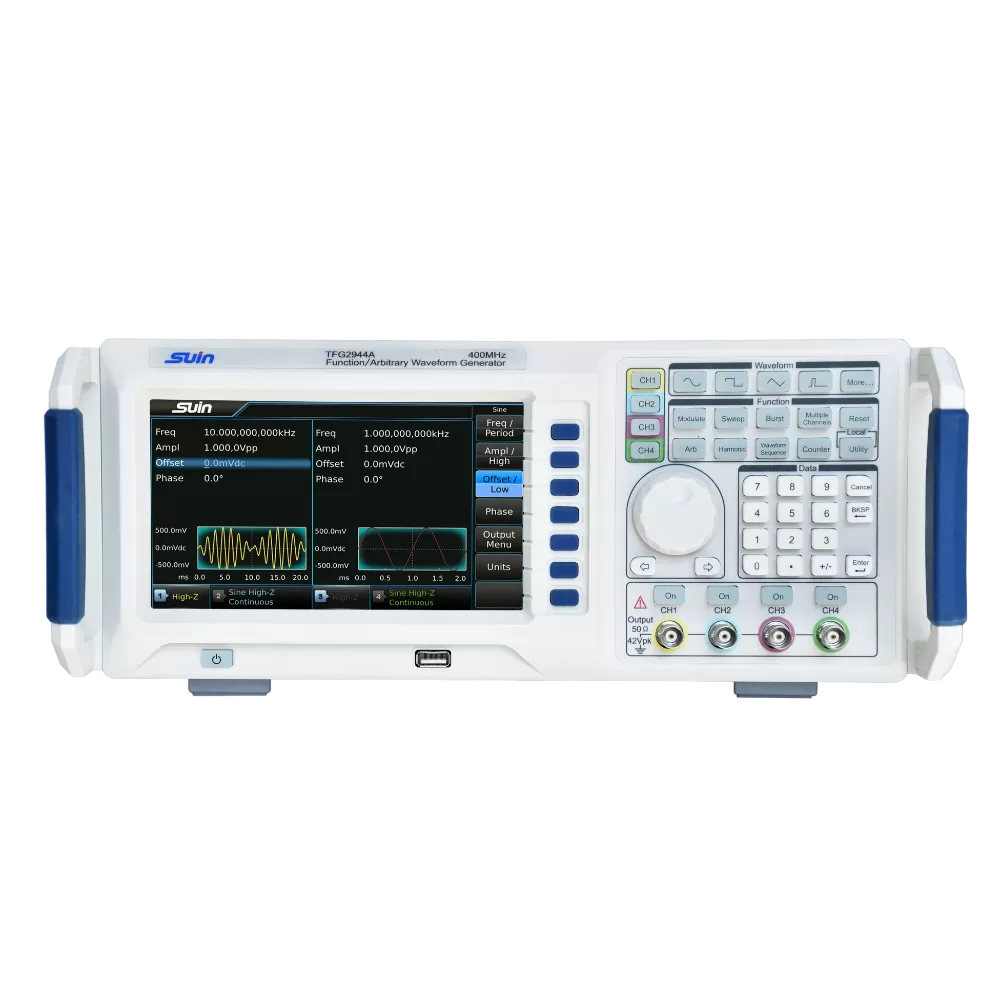

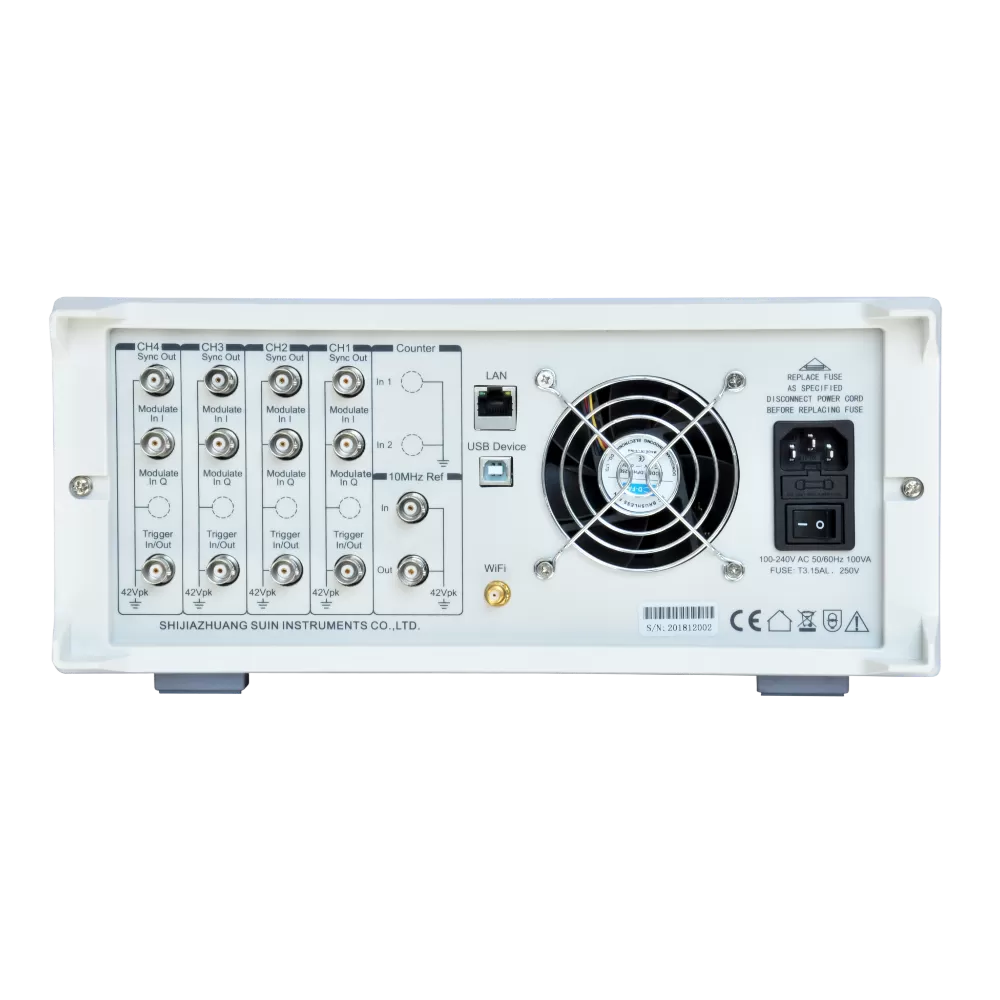

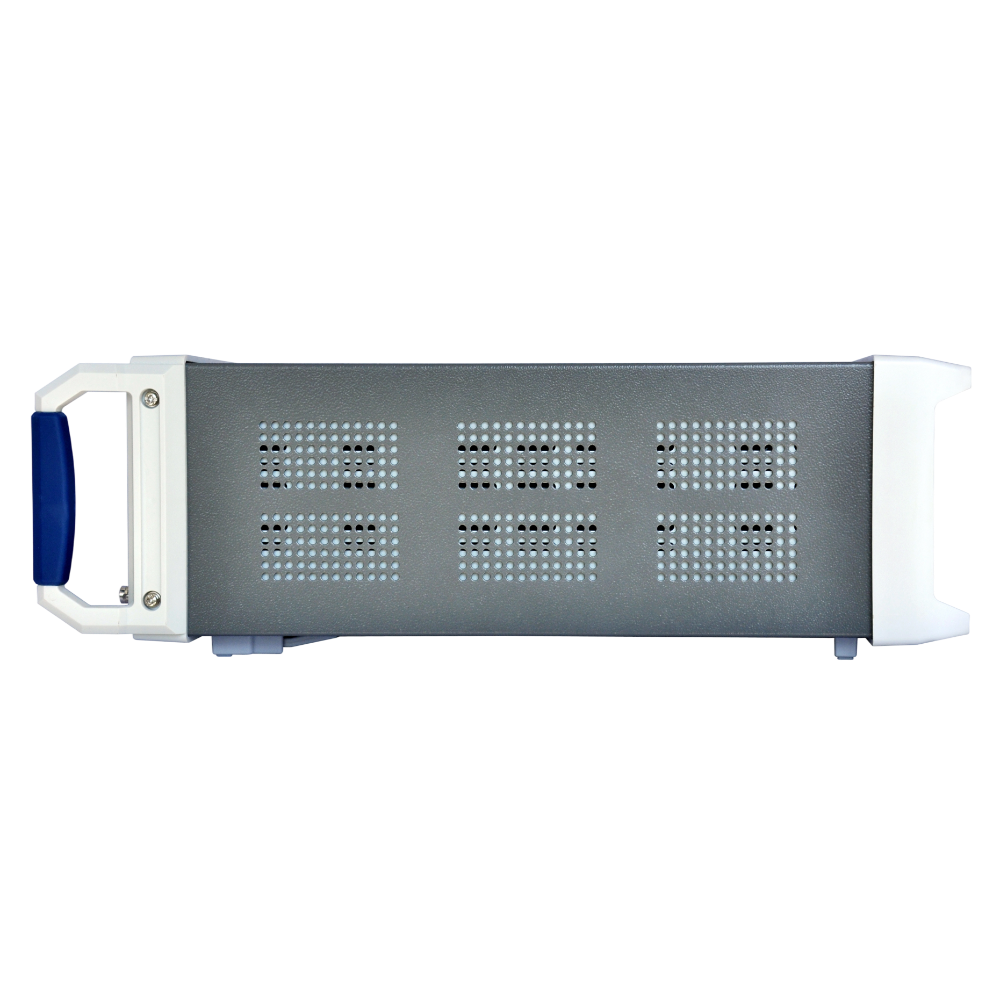

TFG2900A Series

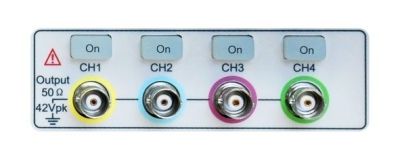

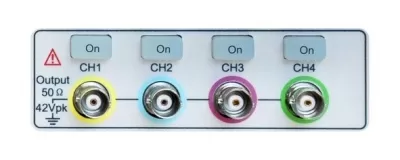

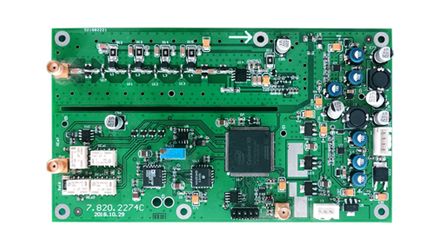

TFG2900A series has 6 functions, including function generator, any waveform generator, noise generator, pulse generator, harmonic generator and frequency counter. The series includes dual and four channel models, which are completely equal.

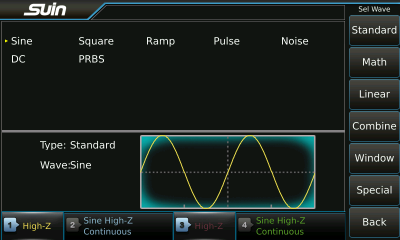

The TFG2900A series is a high-performance 4 channel function generator designed for engineers and researchers who require precise and flexible signal outputs. As a 4 channel arbitrary waveform generator, it supports independent or synchronized signal generation across all channels, making it ideal for complex testing environments. This advanced 4 channel signal generator delivers a wide range of standard and custom signals, supporting sine, square, pulse, ramp, and noise, along with powerful modulation capabilities.

 Whether you need a reliable waveform function generator for educational use or a cutting-edge arbitrary function generator for R&D applications, the TFG2900A provides exceptional versatility and accuracy. It combines the features of a modern electronic function generator with the precision of an arbitrary waveform function generator, supporting up to 32 Mpts of waveform length and a sample rate of 1.2 GSa/s.

Applications

•  Multi-Phase Signal Generation

   - Generates phase-shifted sine waves for power electronics and inverter testing.

•  High-Speed Digital & Mixed-Signal Testing

   - Used in FPGA/ASIC validation where multiple synchronized signals are needed.

   - Simulates data buses (parallel or serial) with independent timing control.

•   Automated Test Equipment (ATE) & Production Testing

   - Provides multiple stimulus signals for parallel testing of components (e.g., ADCs, DACs, sensors).

   - Reduces test time by applying different signals to multiple devices simultaneously.

• 4Arbitrary Waveform Generation for Complex Simulations

   - Generates custom multi-channel waveforms (e.g., simulating real-world signals like ECG, vibration patterns).

   - Used in physics experiments (e.g., multi-axis control in optics/laser systems).

• Education & Research

   - Demonstrates wave interference, Lissajous patterns, and phased signals in physics labs.

   - Used in quantum computing research for multi-channel control pulse generation.
