Economical 20 MHz/30 MHz/40 MHz/60 MHz Function Generator

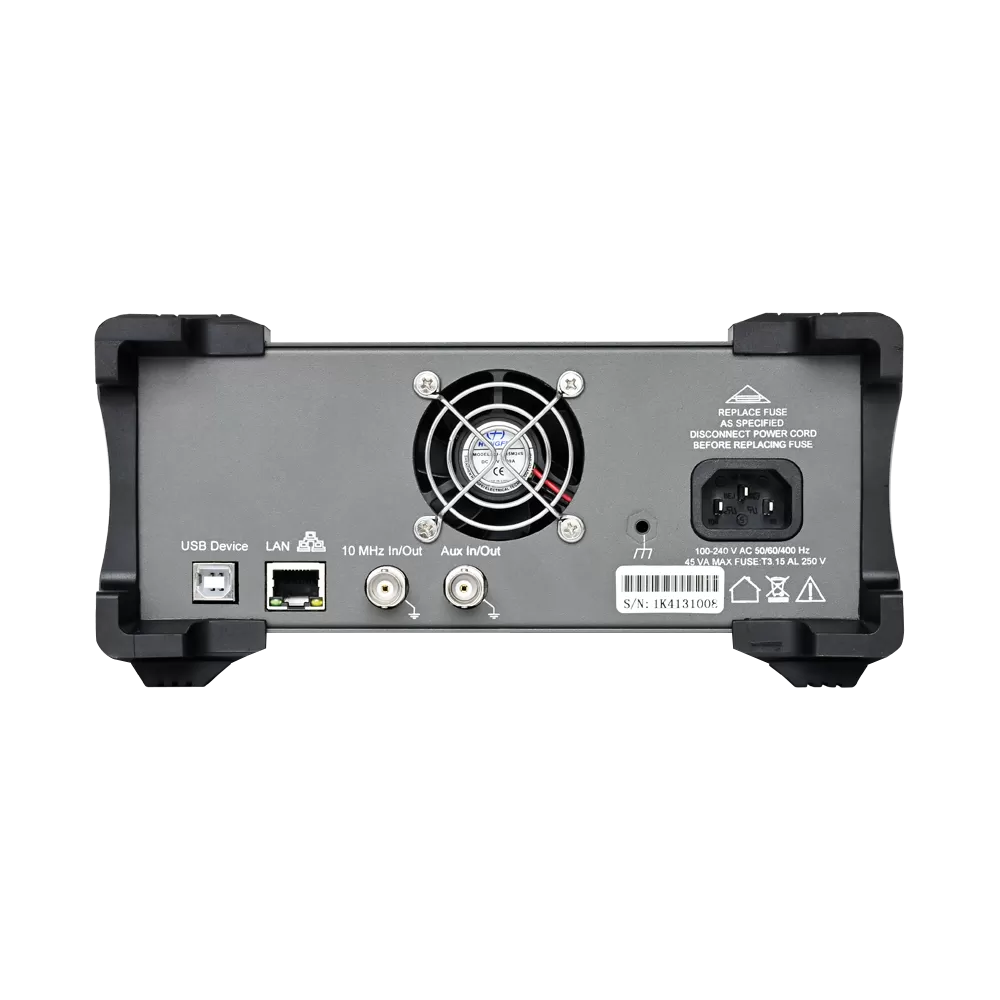

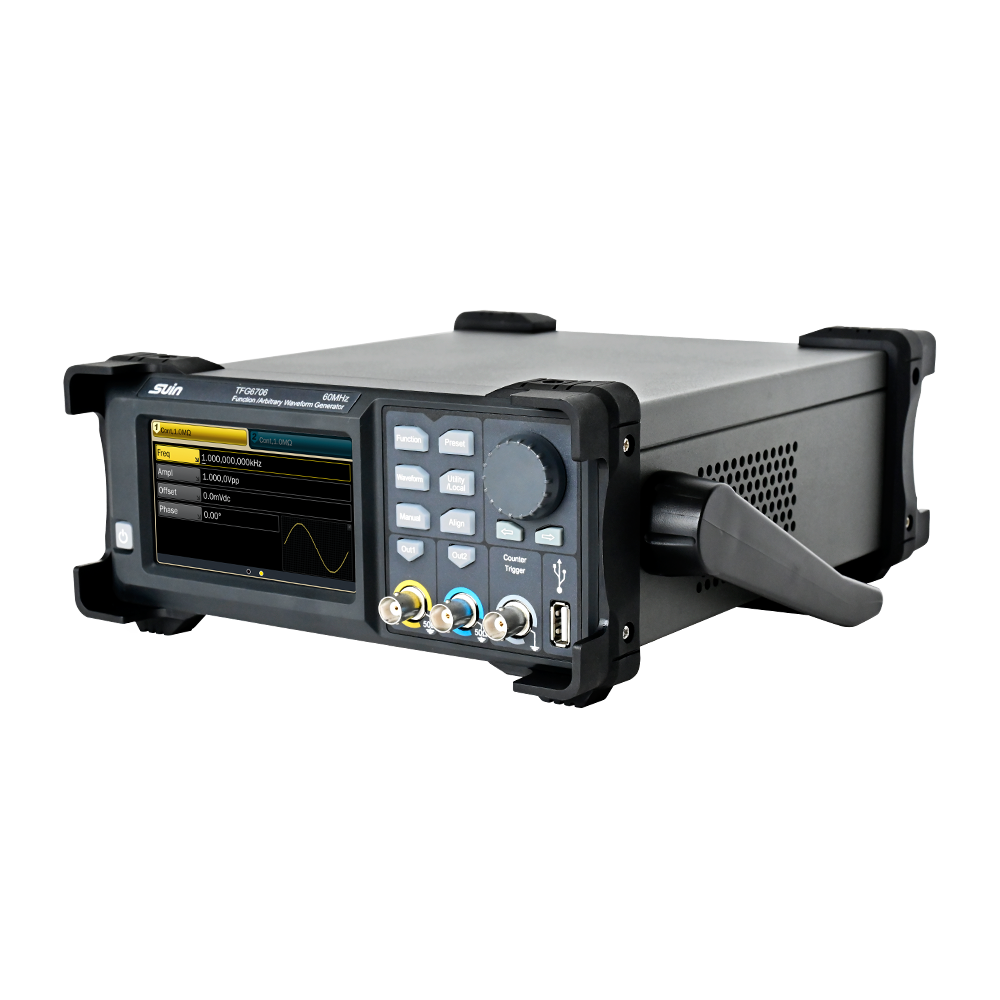

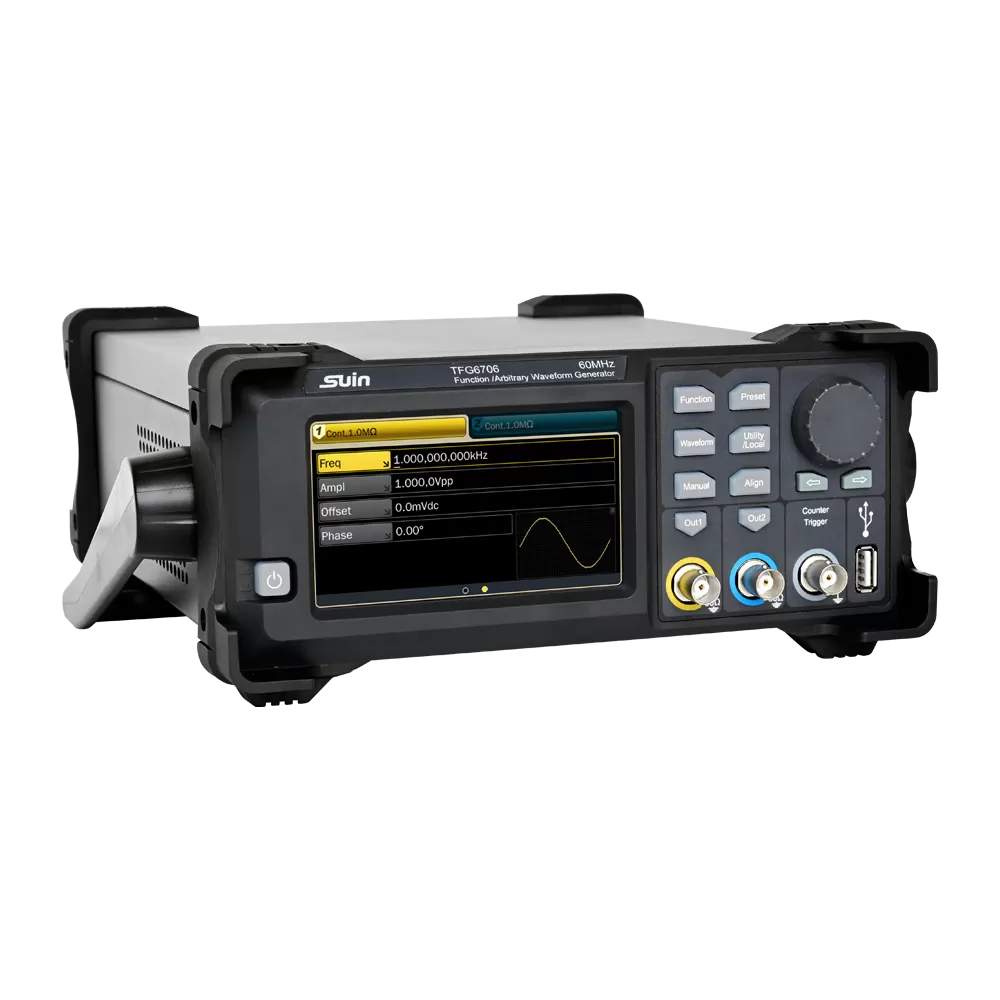

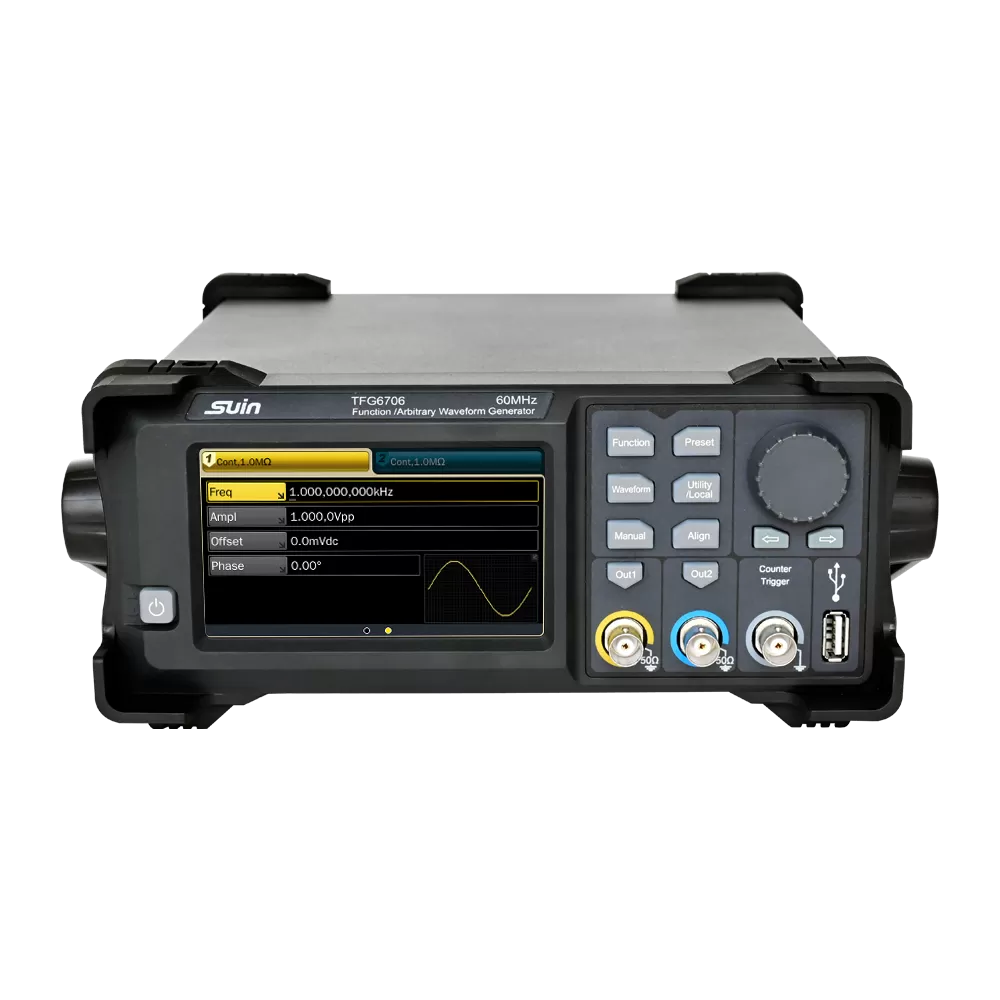

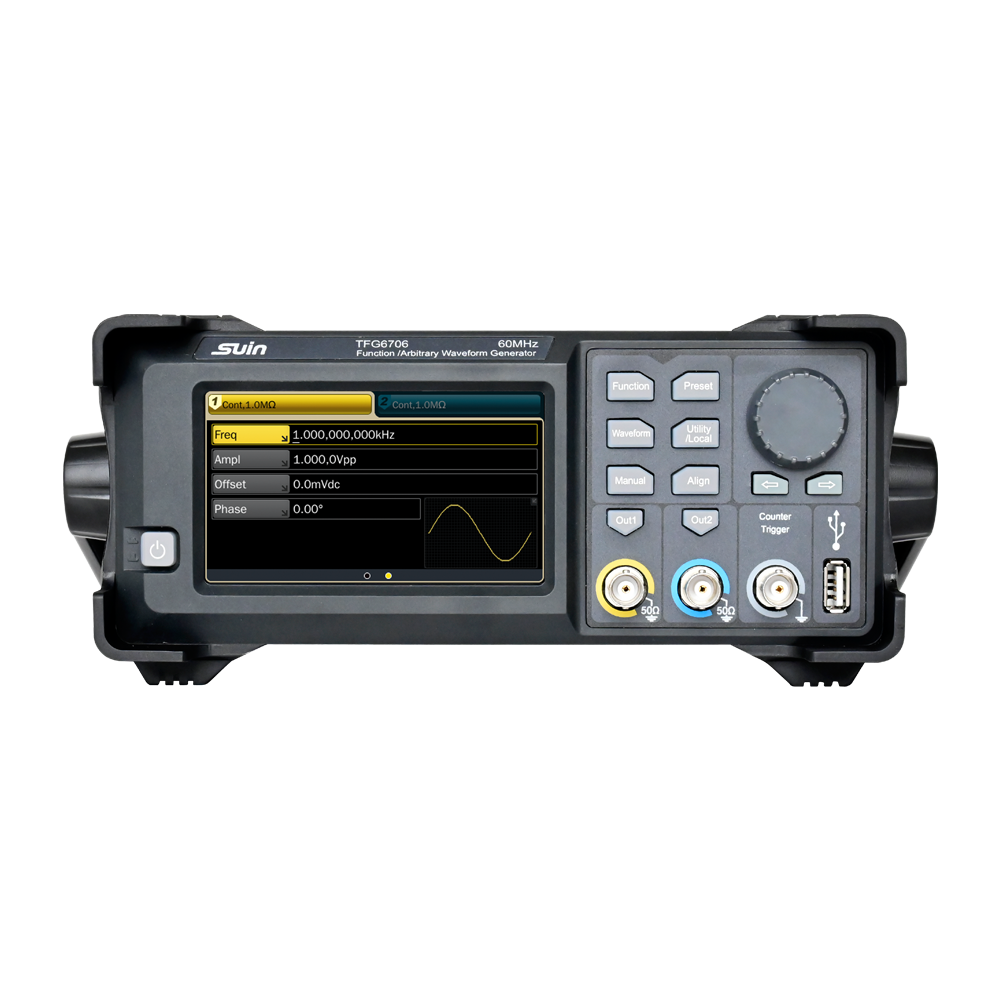

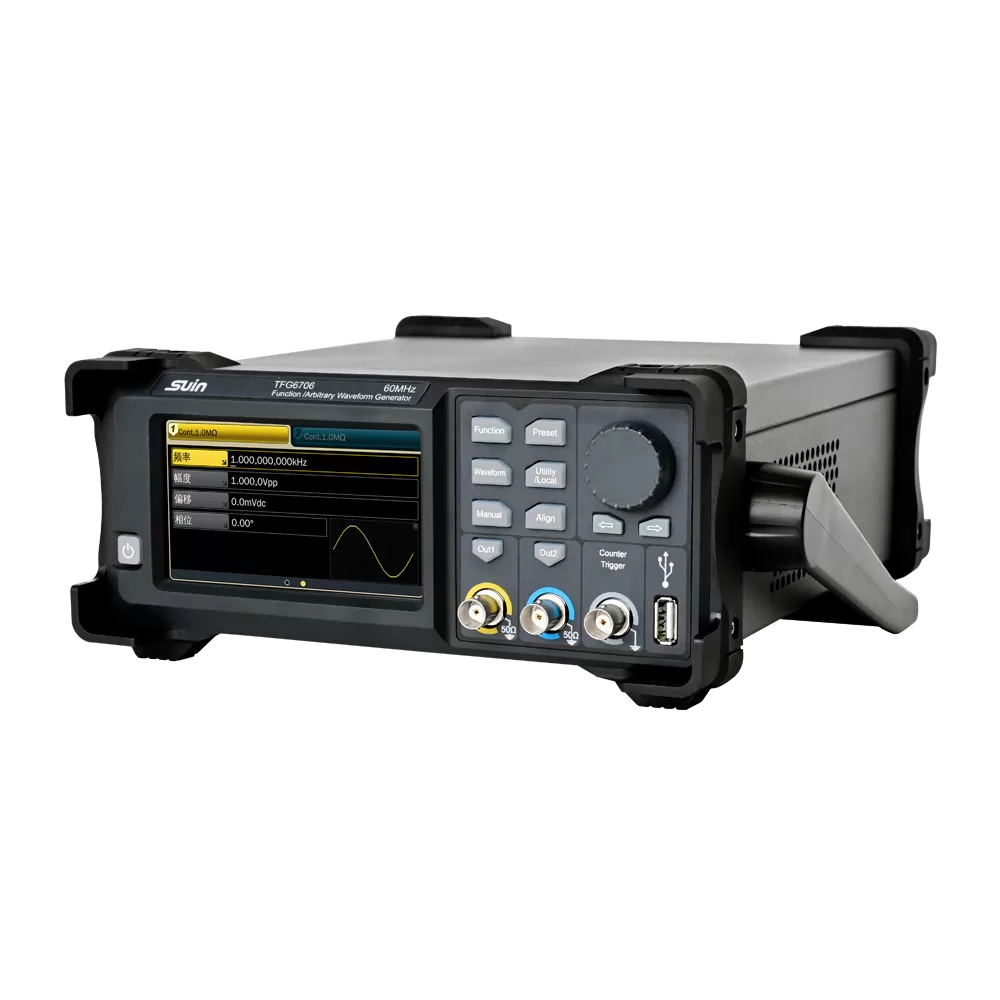

TFG6700 Series Function/Arbitrary Waveform Generators can generate up to 60 MHz Sine signal, with 625 MSa/s sample rate and 16 bits vertical resolution, it can output high quality electronic signal close to reality. 166 kinds of waveforms can meet most experiment requirement. Optional TCXO and power amplifier is available if users need higher accuracy measurement.
Contact Sales for Project Support
This is the primary domain of the AWG, where engineers design and validate new products.
Communications System Design:
Modulation Testing: Generate complex modulated signals (PSK, FSK, NPSK, ASK, etc.) used in WiFi, 5G, satellite, and radar systems to test receiver algorithms and performance.
Bit Error Rate Testing (BERT): Create data streams with known patterns and introduce controlled distortions (jitter, noise, intersymbol interference) to measure a receiver's sensitivity and error correction capabilities.
Protocol Emulation: Generate signals that mimic specific communication protocols (like CAN, LIN, FlexRay in automotive) to test bus controllers and network devices before the rest of the system is built.
Semiconductor & Integrated Circuit (IC) Testing:
Stress Testing: Create signals with extreme voltage spikes, slow rise times, or noise to push a device beyond its normal operating conditions and find its failure points.
Power Electronics: Generate complex Pulse-Width Modulation (PWM) signals with dead-time control to test motor drives, inverter circuits, and switch-mode power supplies.
Sensor Simulation: Generate the precise, often non-linear, output signal of a sensor (e.g., a pressure transducer, thermocouple, or accelerometer) so that the sensor interface circuitry can be developed and tested independently.
Aerospace & Defense:
Radar Signal Simulation: Create pulsed signals with specific chirps, pulse widths, and repetition rates to test radar receivers and signal processors.
Sonar & Ultrasound: Generate the precise acoustic pulse shapes needed for sonar arrays and medical ultrasound imaging systems.
Electronic Warfare (EW): Emulate threat signals and jamming scenarios to test the resilience of friendly communication and detection systems.
In manufacturing, the goal is to verify a product's functionality quickly and reliably.
Stimulus-Response Testing: The AWG provides a known, often complex, input signal to a Device Under Test (DUT). The DUT's output is then measured (e.g., by an oscilloscope or spectrum analyzer) and compared against a "golden" standard. If the response is within tolerance, the unit passes.
Fault Insertion: Intentionally generate "bad" signals—like a missing pulse, a glitch, or an out-of-spec voltage—to verify that the DUT's error-detection and safety mechanisms work correctly.
In university labs, AWGs are invaluable teaching tools.
Demonstrating Theoretical Concepts: Students can see and measure the effects of concepts like Fourier series (building a square wave from sine waves), modulation, filter responses, and noise.
Capstone Design Projects: Student teams use AWGs to provide the control signals or simulated sensor data for their robotics, communications, or embedded systems projects.
Technicians can use AWGs to troubleshoot faulty systems.
Signal Substitution: If a signal is missing in a complex system (e.g., an industrial controller), a technician can use an AWG to replicate that signal based on the system's documentation, injecting it to isolate the faulty module.
Broad Frequency Coverage with High Sample Rate: Supporting output frequencies up to 60 MHz and a 625 MSa/s sampling rate, the TFG6700 series delivers detailed waveform reconstruction and extends its usability across a wide range of test conditions.

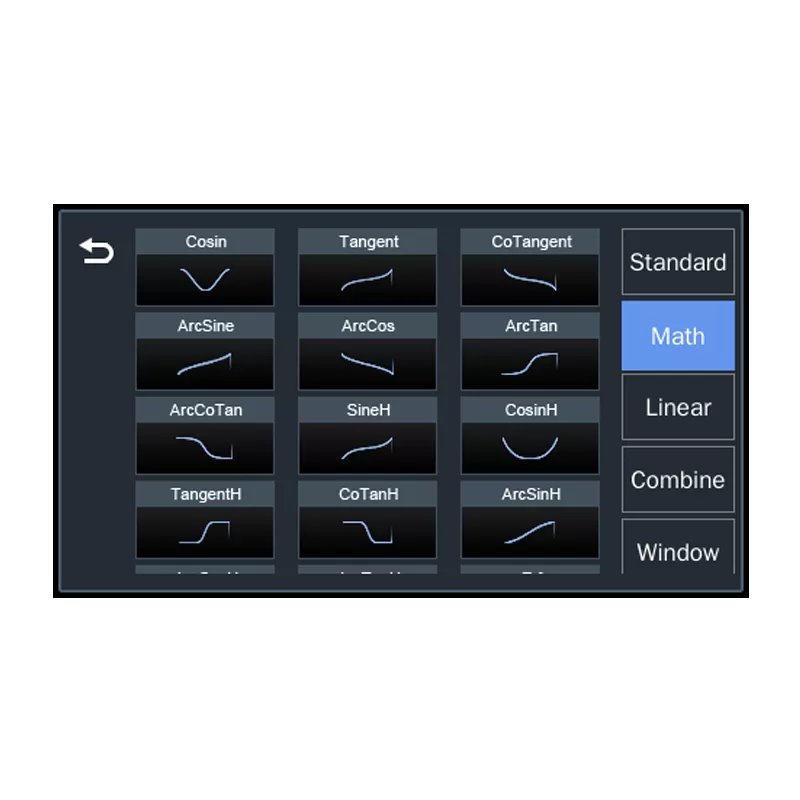

Extensive Waveform Library and Custom Signals: Engineers can leverage a large built‑in waveform library (166 types) and define custom arbitrary waveforms to simulate complex signal conditions representative of real‑world operating environments.
Dual Channel Output for Synchronous Testing: With two independent channels, the series supports correlated signal generation and phase‑aligned testing, useful for multi‑signal systems and cross‑channel verification workflows.
Modulation and Sweep Capabilities: TFG6700 series supports multiple modulation schemes, sweep operations, and burst modes, enabling comprehensive signal stimulus for modulation/demodulation tests and system stress testing.
Connect the TFG6700 to the test system and configure channels based on DUT requirements.
Select or define the waveform type and set frequency, amplitude, and offset parameters for each output.
Enable modulation or sweep functions where dynamic signal changes are required for system verification.
Run tests and monitor output waveforms using an oscilloscope or measurement instrument to validate response and performance.
TFG6700 Series can output signal with frequency up to 60 MHz(Sine), 625 MSa/s sample rate, 16 bits vertical resolution, which ensures engineers measurement requirement no matter in R&D or education.
166 kinds of waveform can be generated to meet higher measuring requirement in various fields.
Highest 24 Vpp amplitude can be provided by TFG6700 Series.

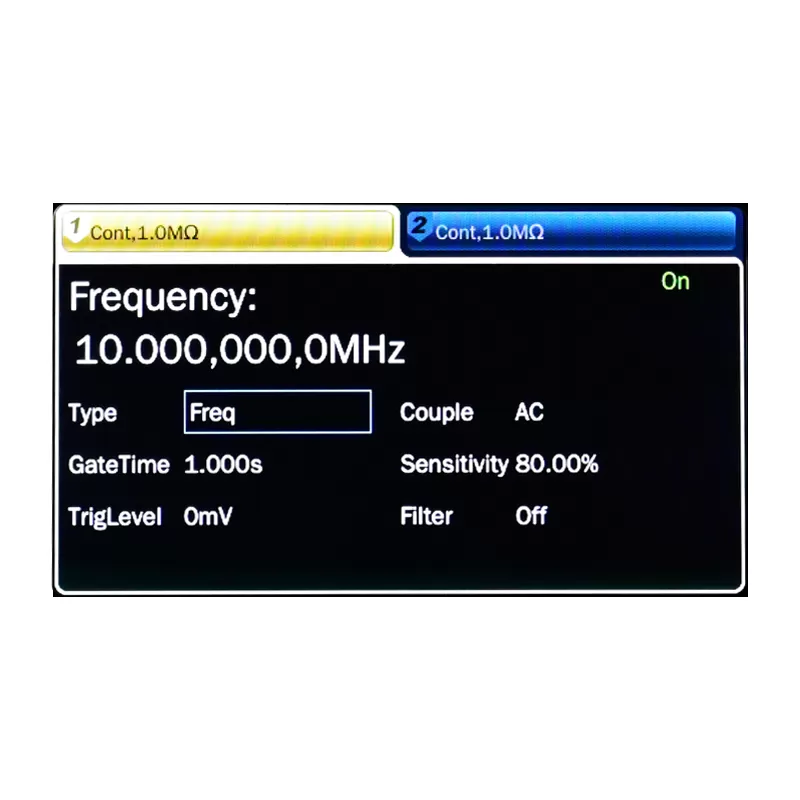

Built-in 300 MHz frequency counter, with 8 digits/s measuring resolution can conduct the frequency, period, pulse width and duty cycle measurement.

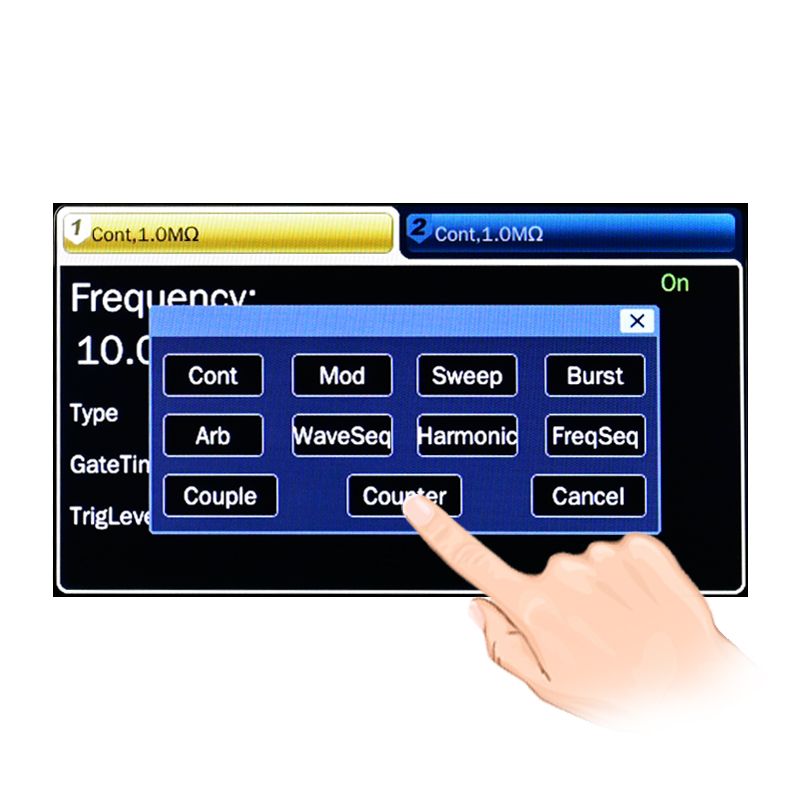

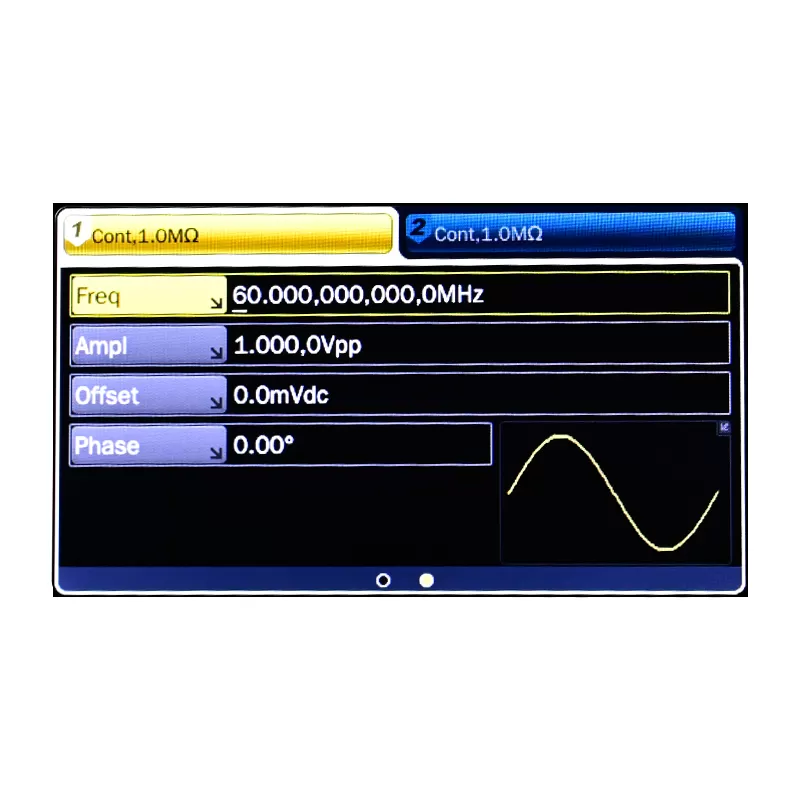

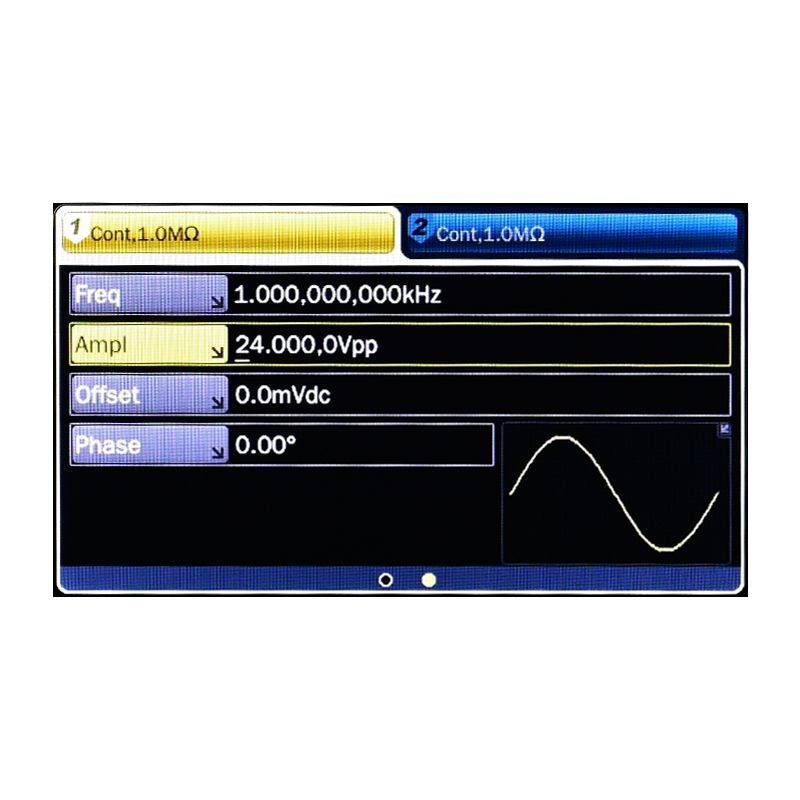

Advanced touch screen is more suitable for current market measuring requirement and also enhance the convenience in engineers' testing work.
| TFG6702 | TFG6703 | TFG6704 | TFG6706 | ||
| Frequency | |||||
| Sine | 1 μHz~20 MHz | 1 μHz~30 MHz | 1 μHz~40 MHz | 1 μHz~60 MHz | |
| Square | 1 μHz~40 MHz | ||||
| Pulse | 1 μHz~10 MHz | 1 μHz~10 MHz | 1 μHz~10 MHz | 1 μHz~25 MHz | |
| Others | 1 μHz~20 MHz | ||||
| Resolution | 1 μHz | ||||
| Accuracy | ±(25ppm + 34p Hz) | ||||
| Waveform | |||||
| Type | 166 kinds include: Sine, Square, Ramp, Pulse, Noise, DC, PRBS, user-defined | ||||
| arbitrary waveform, user-defined harmonic, etc. | |||||
| Sample Rate | 625MSa/s | ||||
| Vertical Resolution | 16 bits | ||||
| Arbitrary | Sample Rate | 625 MSa/s (jump-point sample); 1 μSa/s~312.5 MSa/s (poing-to-point sample) | |||
| Length | 2-32Mpts | ||||
| Resolution | 16 bits | ||||
| Squre | Rise/Fall Time | ≤3 ns (typ.) | |||
| Duty Cycle | 0.0001 %~99.9999 % | ||||
| Pulse | Rise/Fall Time | ≥3 ns | |||
| Duty Cycle | 8ns ~(period-8ns) | ||||
| Amplitude | |||||
| Range | 2 mVpp~24 Vpp, frequency≤10 MHz 2 mVpp~12 Vpp, frequency>10 MHz | ||||
| Resolution | 0.1 mVpp or 4 digits | ||||
| Accuracy | ±(1% of setting+1mV), Sine 1kHz,0V offset,≥10mVpp | ||||
| DC Offset (High-Z) | |||||
| Range | ±12 Vpk(ac+dc) | ||||
| Resolution | 0.1 mVdc or 4 digits | ||||
| Accuracy | ±(|setting value|×1 %+amplitude value×0.5 %+2 mV) | ||||
| Sweep | |||||
| Range | 1 μHz ~ upper frequency limits | ||||
| Type | Linear, logarithmic, step | ||||
| Time | 1ms to 500s | ||||
| Burst | |||||
| Mode | Triggered, Gated | ||||
| Period | 1μs ~ 999.9s | ||||
| Count | 1~231-1 | ||||
| Modulation | |||||
| FM,AM,PM,PWM,SUM | Carrier Waveform | Sine, Square, Ramp (only pulse for PWM), etc. | |||
| Modulation Waveform | Sine, Square, Ramp, etc. | ||||
| Modulation Frequency | 1mHz to 100kHz | ||||
FSK,4FSK,NFSK,PSK, 4PSK,NPSK,ASK,OSK | Carrier Waveform | Sine, Square, Ramp, etc. | |||
| Hop Frequency | 1 μHz to upper limits | ||||
| Hop Rate | 1mHz to 1MHz | ||||
| Counter | |||||
| Frequency Range | 1mHz to 300MHz (DC Couple) 10Hz to 300MHz (AC Couple) | ||||
| Resolution | 8digits/s | ||||
| Period and Pulse Width Measurement | 100ns to 20s | ||||
| Duty Cycle Measurement | 0.1% to 99.9% | ||||
| General Characteristic | |||||
| Power | 100V~240V,50/60Hz(1±10%); 100V~120V,400Hz(1±10%) <45 VA;<80 VA (with optional P/A) | ||||
| Dimension & Weight | 256×105×321mm, approx. 2.4kg/2.6kg (with optional P/A) | ||||
