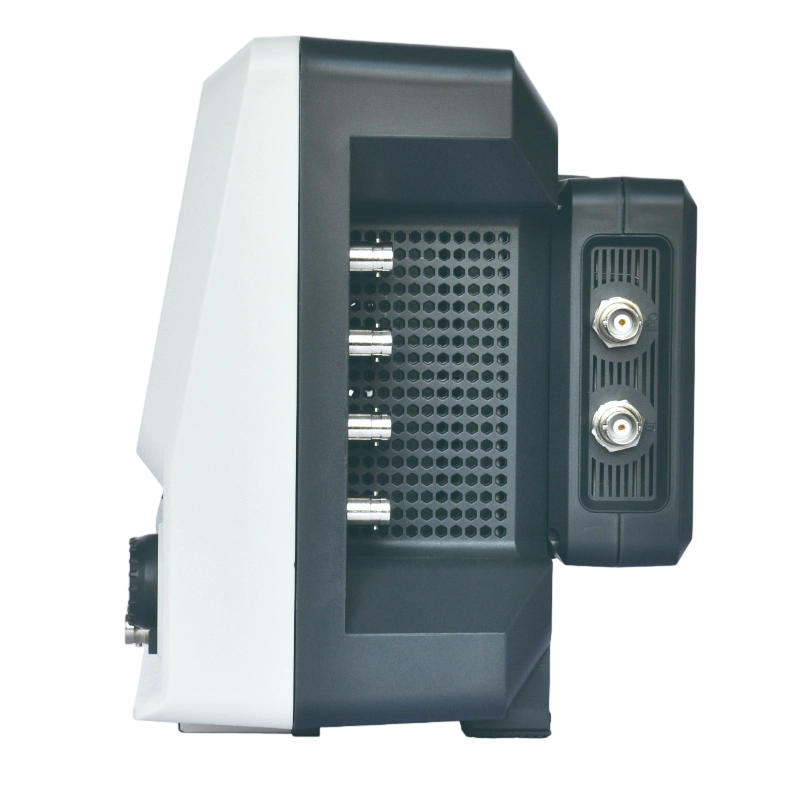

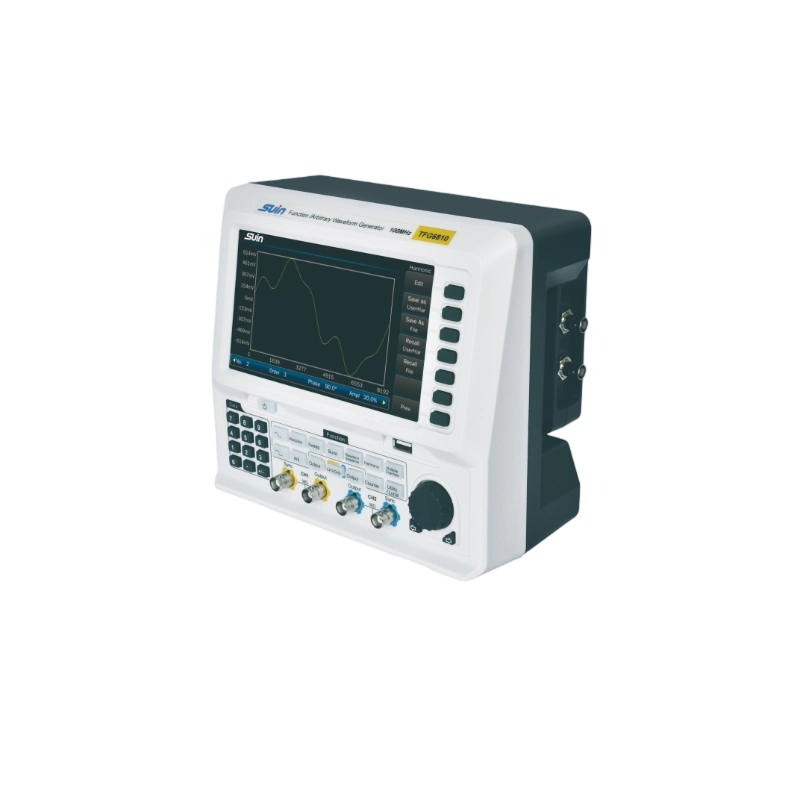

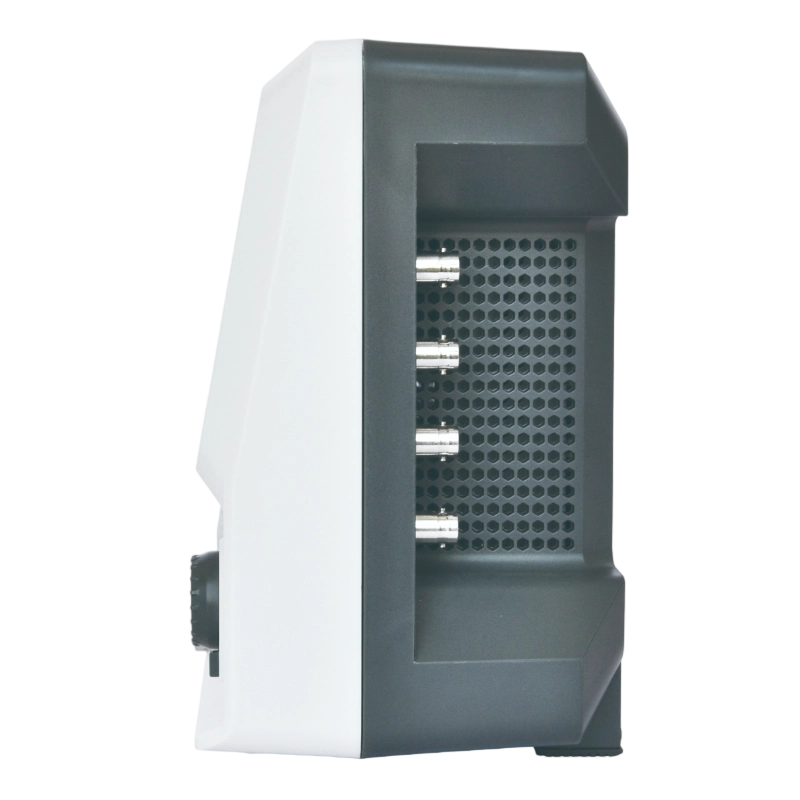

TFG6800 Series
35MHz/65MHz/100MHz Arbitrary Waveform Generator, 2-CH
35MHz/65MHz/100MHz Arbitrary Waveform Generator, 2-CH
With frequencies up to 100 MHz, 16Bit Resolution, and arbitrary waveforms of up to 16 Mpts, the TFG6800 series products can reproduce any waveform with high quality. The new portable design and optional power amplifier make this one of the most flexible and popular generators on the market.
Applications
This series of 35/65/100 MHz Function Signal Generator could be widely used in areas of Education, R&D, Industrial & Electrical Production and Test.
Testing and Development:
Component Testing: Used to test electronic components like amplifiers, filters, and ADCs by providing a controlled input signal.
System Testing: Useful in testing the overall performance of electronic systems and circuits.
Communication:
Signal Simulation: Simulating communication signals for testing receivers and transmitters.
Modulation/Demodulation: Testing modulation and demodulation schemes in communication systems.
Research and Development:
Experimental Waveforms: Creating and testing new waveform shapes and patterns in research settings.
Signal Processing: Testing signal processing algorithms and systems.
Education and Training:
Laboratory Experiments: Used in educational settings for laboratory experiments and training students in signal generation and analysis.

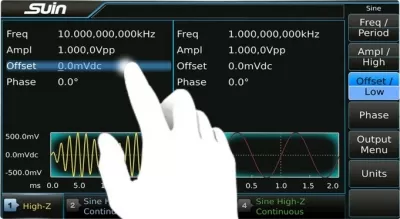

7 inch touchscreen display for easier operation

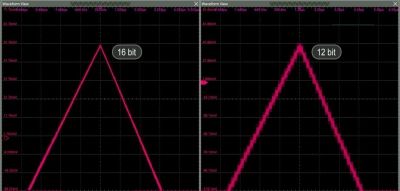

16 bits vertical resolution to produce a higher quality waveform.

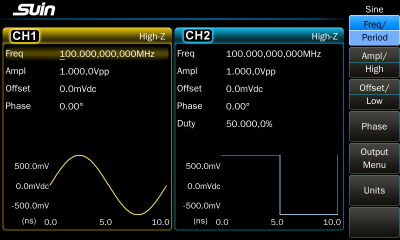

Sine and Square have same characteristics in CH1 and CH2.

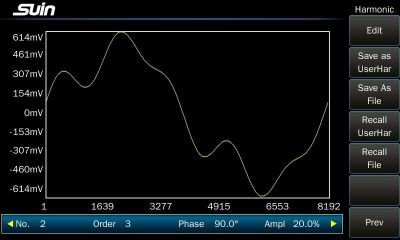

Harmonics function gives you the ability to add higher-order elements to your signal.

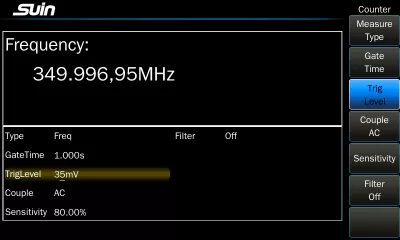

8-digit hardware frequency counter with statistics function and input range of 1mHz – 350MHz.

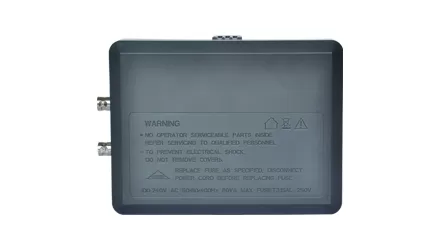

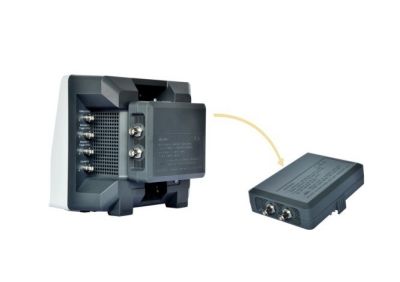

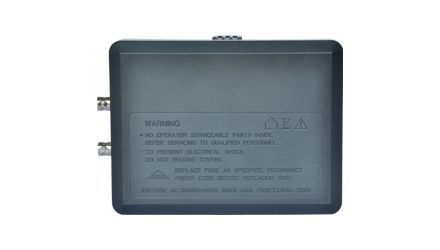

Removable power amplifier option makes it easy to install and uninstall.
| TFG6803 | TFG6806 | TFG6810 | ||
Frequency | ||||
| Sine/Square | 1μHz-35MHz | 1μHz-65MHz | 1μHz-100MHz | |
| Pulse | 1μHz-25MHz | |||
| Ramp | 1μHz-3MHz | |||
| PRBS | 1kbps~60Mbps | |||
| Noise (-3dB) | 100MHz Width | |||
| Other | 1μHz~20MHz | |||
| Resolution | 1μHz or 12 digits | |||
| Accuracy | ±(20ppm + 14pHz) | |||
Waveform | ||||
| Type | 165 kinds include: Sine, Square, Ramp, Pulse, Noise, DC, PRBS, user-defined,Arbitrary waveform, user-defined harmonic, etc | |||
| Sample rate | 250MSa/s | |||
| Vertical resolution | 16 bits | |||
| Arbitrary | Sample Rate | 1μSa/s~125MSa/s | ||
| Length | 2-16Mpts | |||
| Resolution | 16 bits | |||
| Square | Rise/FallTime | ≤4.2ns | ||
| Duty Cycle | 0.0001%~99.9999% | |||
| Pulse | Rise/FallTime | ≥8ns | ||
| Width | 13ns ~ (period - 13ns) | |||
Amplitude(High Z) | ||||
| Range | 2mVpp~20Vpp, frequency≤10MHz 2mVpp~10Vpp, frequency>10MHz | |||
| Resolution | 1mVpp or 4digits | |||
| Accuracy | ±(of settings value×1%＋1mV), Sine 1kHz, ≥10mVpp, offset 0V | |||
Offset(High Z) | ||||
| Range | ±10Vpk(ac＋dc) | |||
| Resolution | 1mVdc | |||
| Accuracy | ±(|setting value|×1%＋2mV＋amplitude value ×0.5%) | |||
Sweep | ||||
| Range | 1μHz ~ upper frequency limit | |||
| Type | Linear, logarithmic | |||
| Time | 1ms to 500s | |||
Modulation | ||||
FM,AM,PM, PWM, Sum | Carrier Waveform | Sine, Square, Ramp (only pulse for PWM), etc. | ||
| ModulatingWaveform | Sine, Square, Ramp, etc. | |||
| Modulating Frequency | 1mHz to 100kHz | |||
FSK,4FSK,NFSK,PSK, 4PSK,NPSK,ASK,OSK | CarrierWaveform | Sine, Square, Ramp, ect | ||
| HopFrequency | 1μHz -upper limits | |||
| Hop Rate | 1mHz to 1MHz | |||
Burst | ||||
| Mode | Triggered, Gated | |||
| Period | 1μs to 600s | |||
| Count | 1 to 100000000 cycles | |||
Counter | ||||
| Frequency Range | 1mHz to 350MHz(DC Couple) 10Hz to 350MHz(AC Couple) | |||
| Resolution | 8 digits/s | |||
Period and PulseWidth Measurement | 100ns to 20s | |||
| Duty Cycle Measurement | 0.1% to 99.9% | |||
General Characteristic | ||||
| Power | AC 100~240V, 50/60Hz ±10% | |||
| AC 100~120V, 400Hz ±10% | ||||
| Dimension & Weight | 226mm×200mm×125mm, Approx. 2.9kg | |||
| 226mm×200mm×166mm, Approx. 3.3kg(if amplifier power is selected) | ||||
