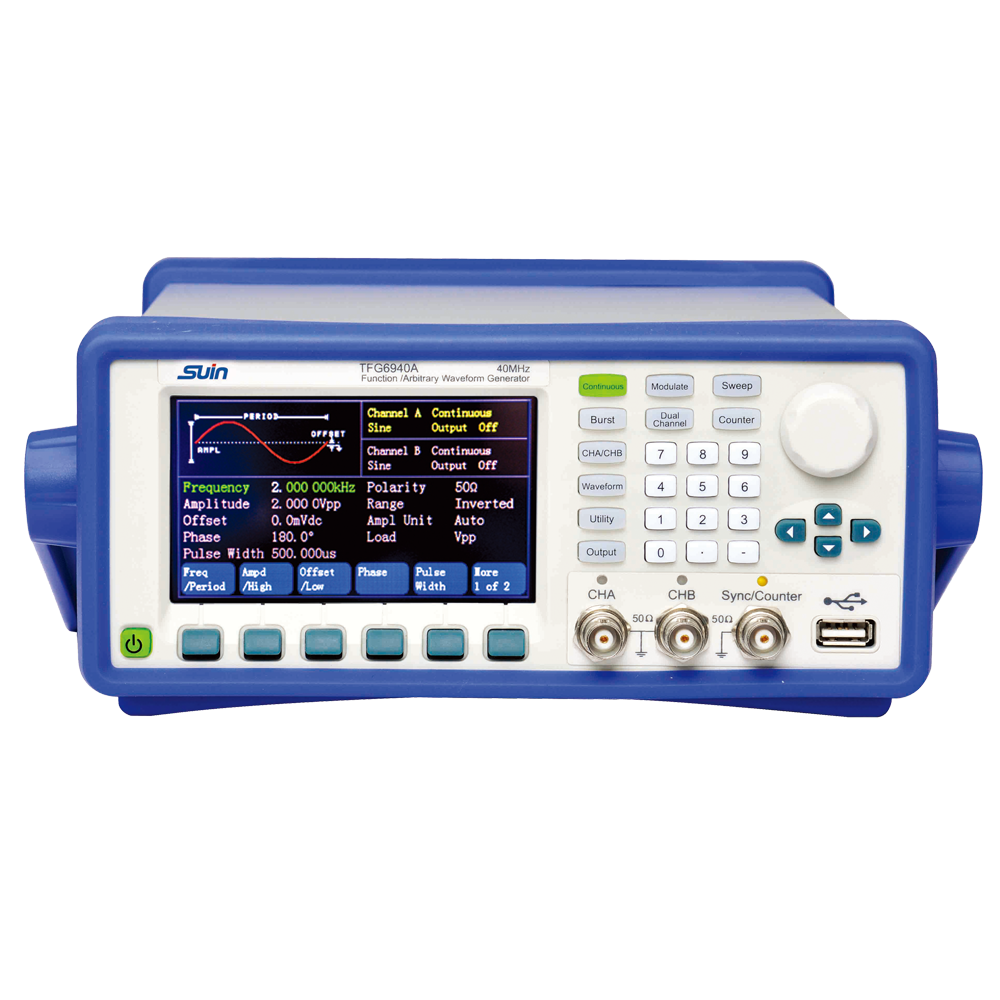

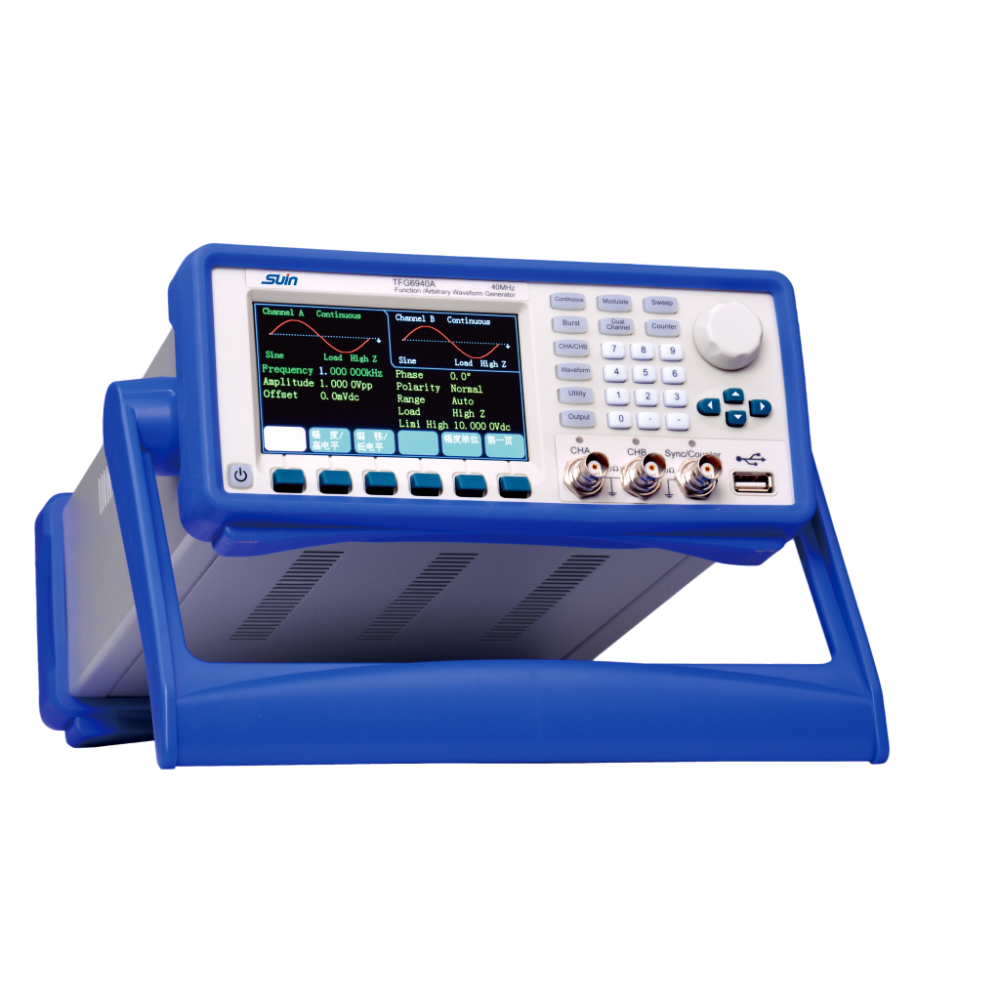

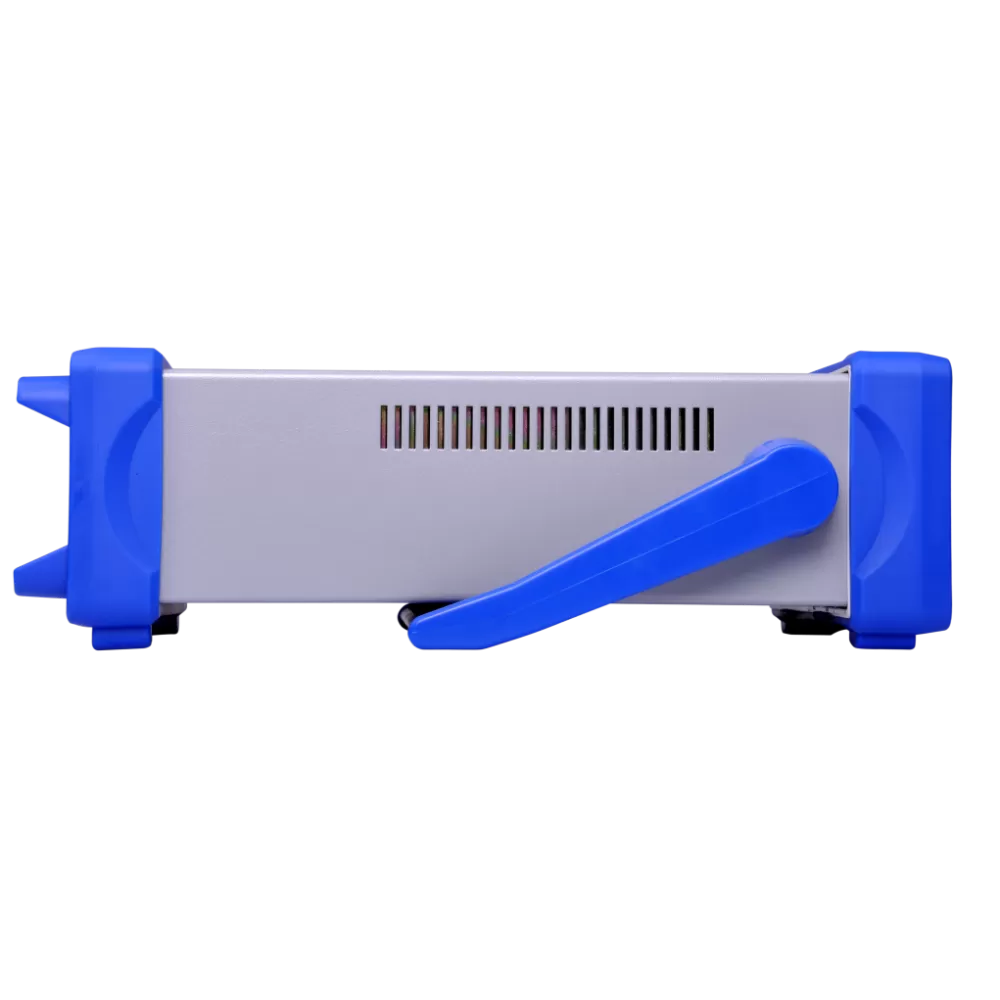

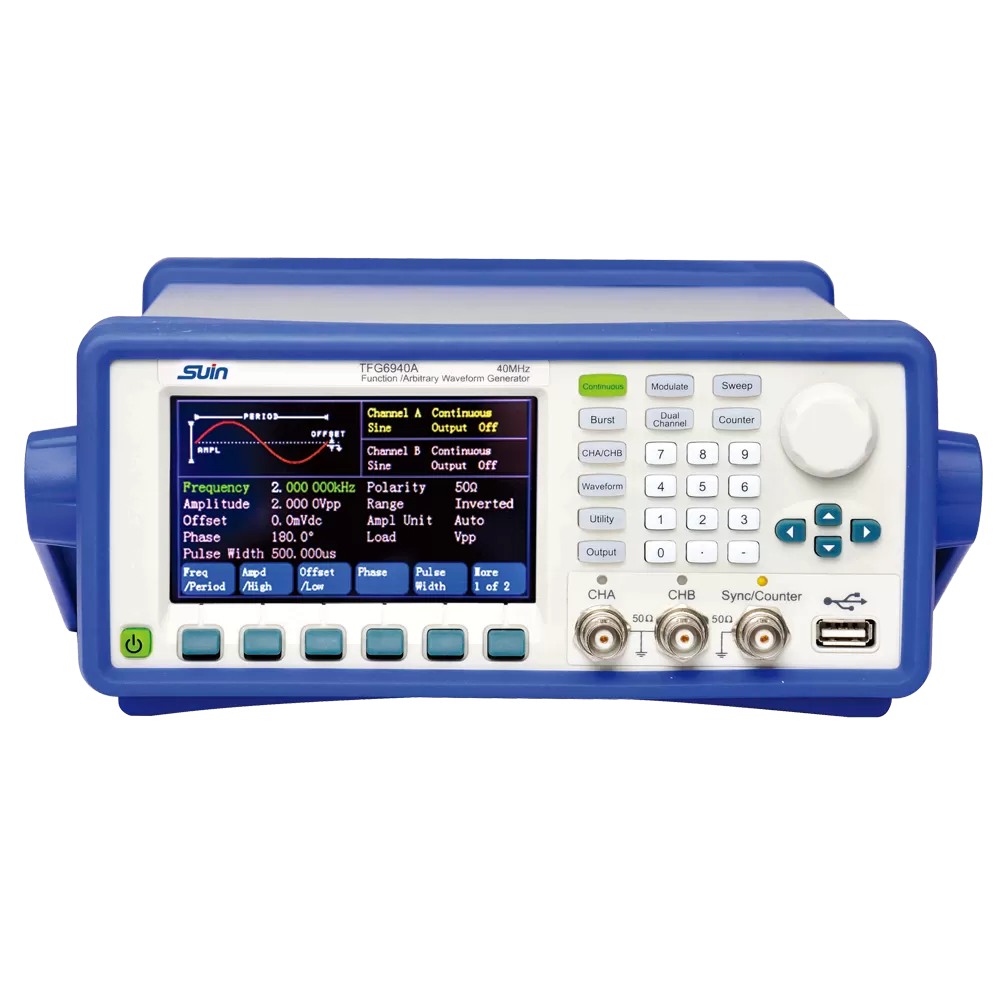

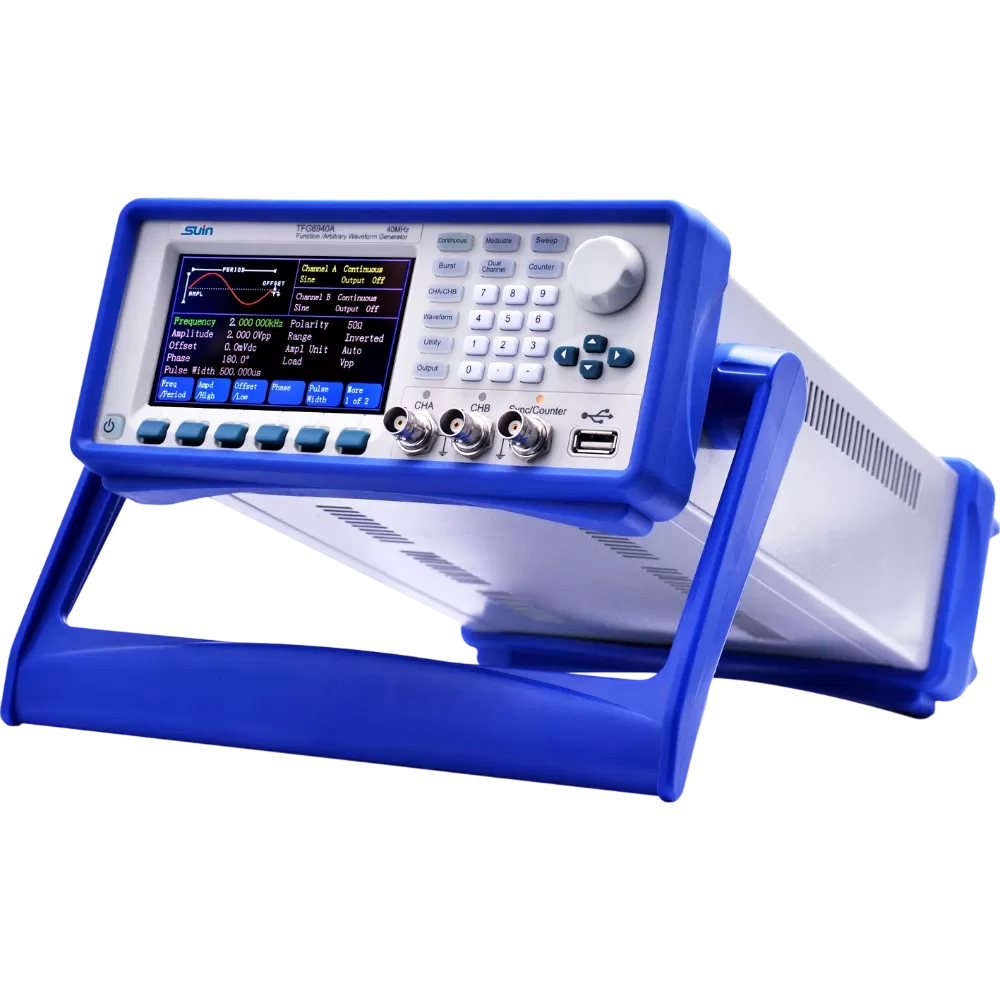

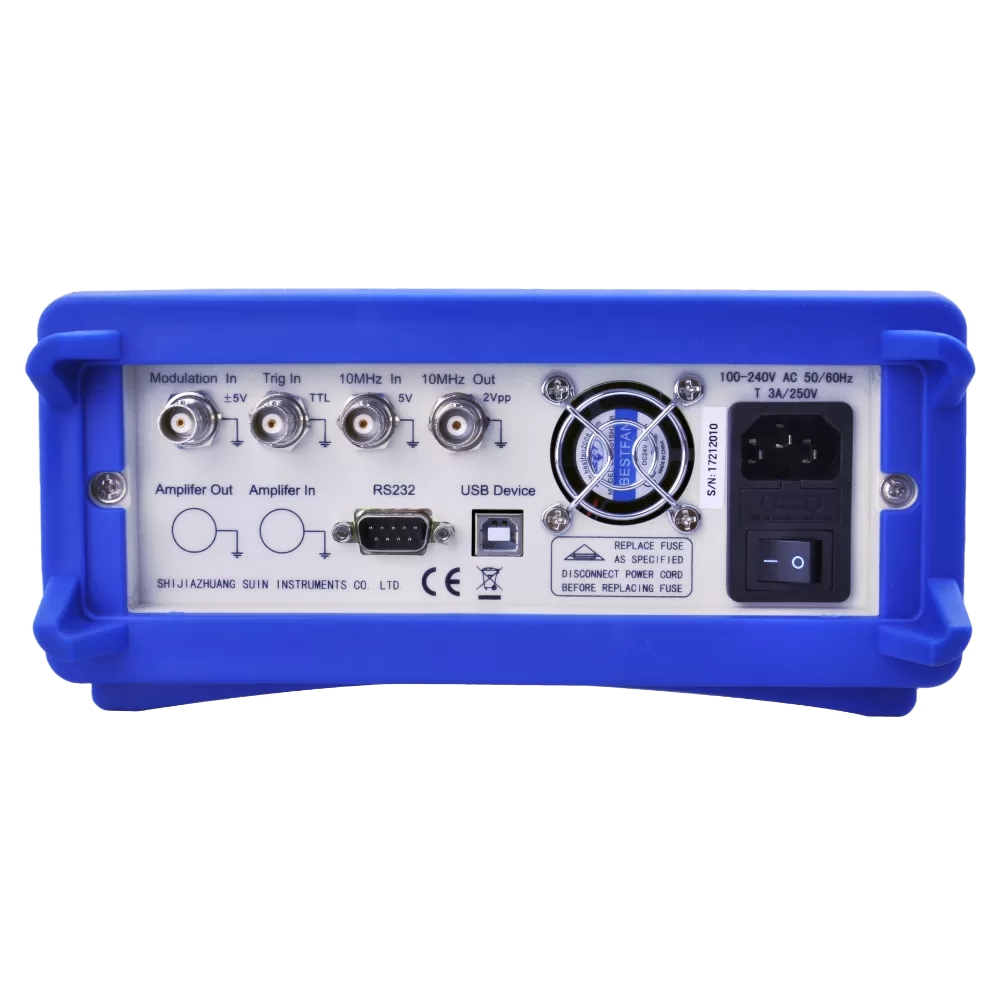

TFG6900A Series
10MHz/20MHz/30MHz/40MHz/60MHz Arbitrary Waveform Generator
10MHz/20MHz/30MHz/40MHz/60MHz Arbitrary Waveform Generator
TFG6900A Series arbitrary waveform generator is a high cost-effective instrument in your everyday measuring work, with two channels outputs, max frequency range 60MHz, and multi-function. It can make more accurate waveform to meet the laboratory requirement and easily operated. Its applications span across various industries, including telecommunications, research, education, etc. Below are some key applications:
Application:
Electronics & Semiconductor Testing
Mixed-Signal IC Validation: Providing analog and digital stimulus for ADC/DAC testing and mixed-signal IC characterization.
Power Electronics: Simulating PWM signals for motor drives, inverters, and power supply testing.
Research & Development
Physics Experiments: Simulating arbitrary signals for particle accelerators, plasma research, and laser modulation.
Material Science: Testing sensors and transducers with custom waveforms.
Automotive & Autonomous Systems
LiDAR & Radar Testing: Generating high-frequency pulsed signals for autonomous vehicle sensors.
Vehicle Bus Testing: Simulating CAN, LIN, and FlexRay signals for automotive electronics.
50 ppm frequency accuracy can meet the basic testing requirement in either education or industry measuring field.

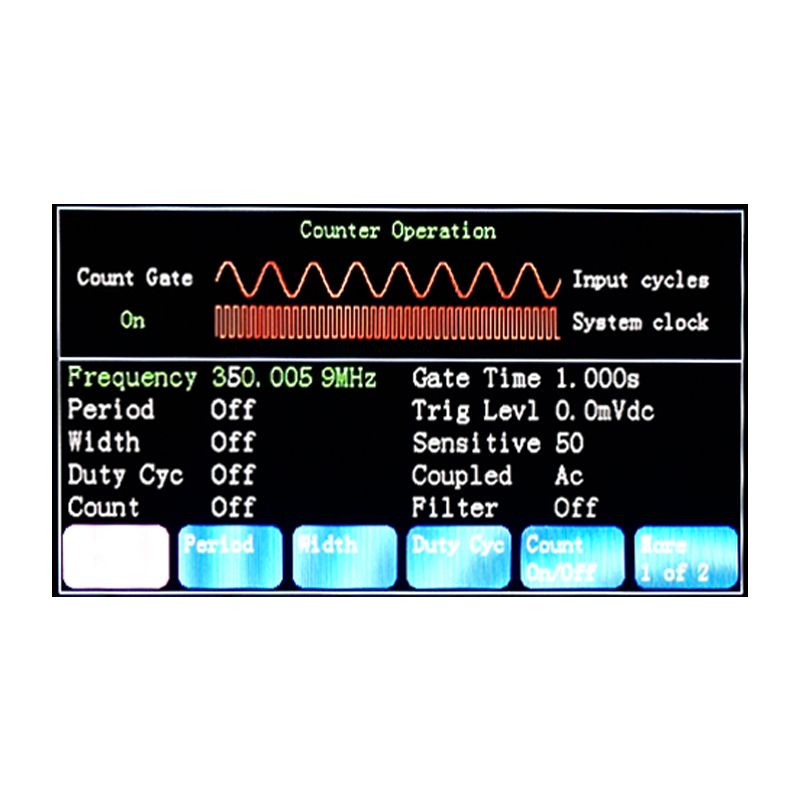

6 digits/s, 350 MHz frequency counter makes TFG6900A supporting frequency, period pulse width and duty cycle measuring.

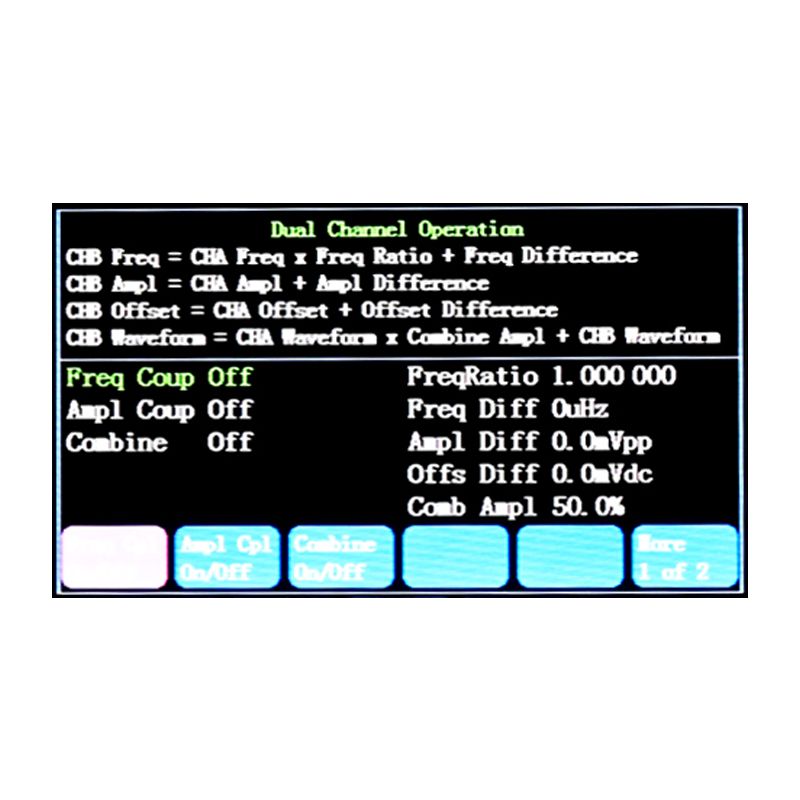

Additional channel coupling and combine functions are available in CHB, which meets the high requirement in communication field and circuit testing.

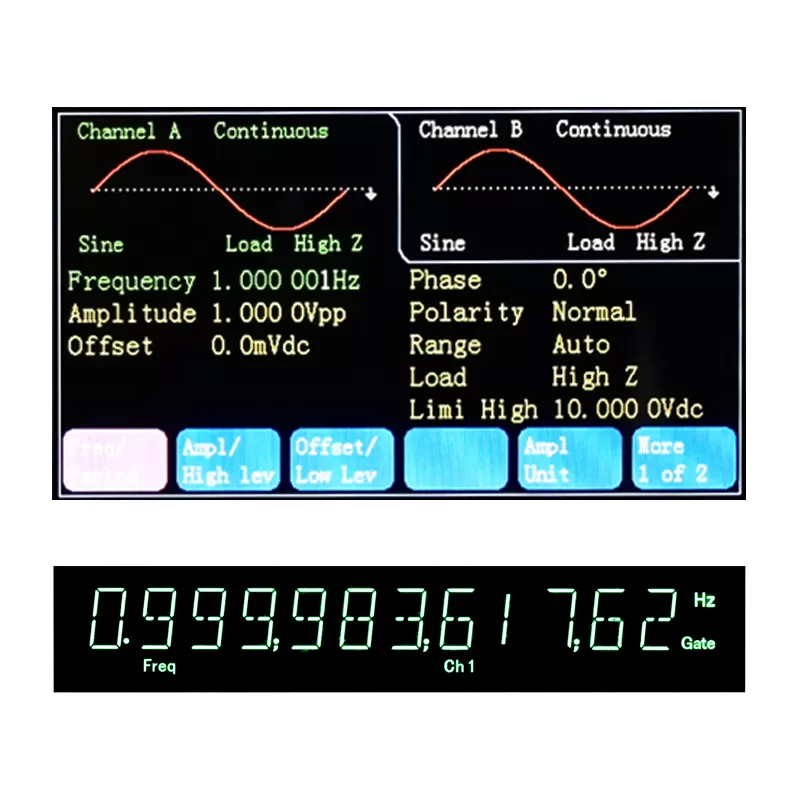

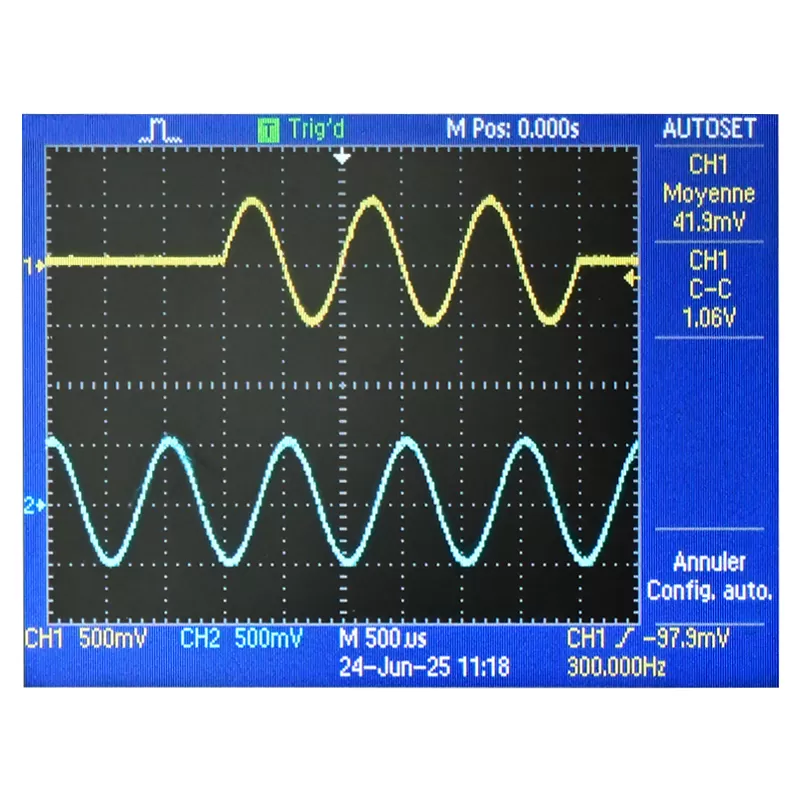

Dual channels are configured in TFG6900A, CHA has full functions, besides the basic frequency, waveforms, amplitude, it also has sweep, modulation and burst functions. While CHB only has the basic functions.

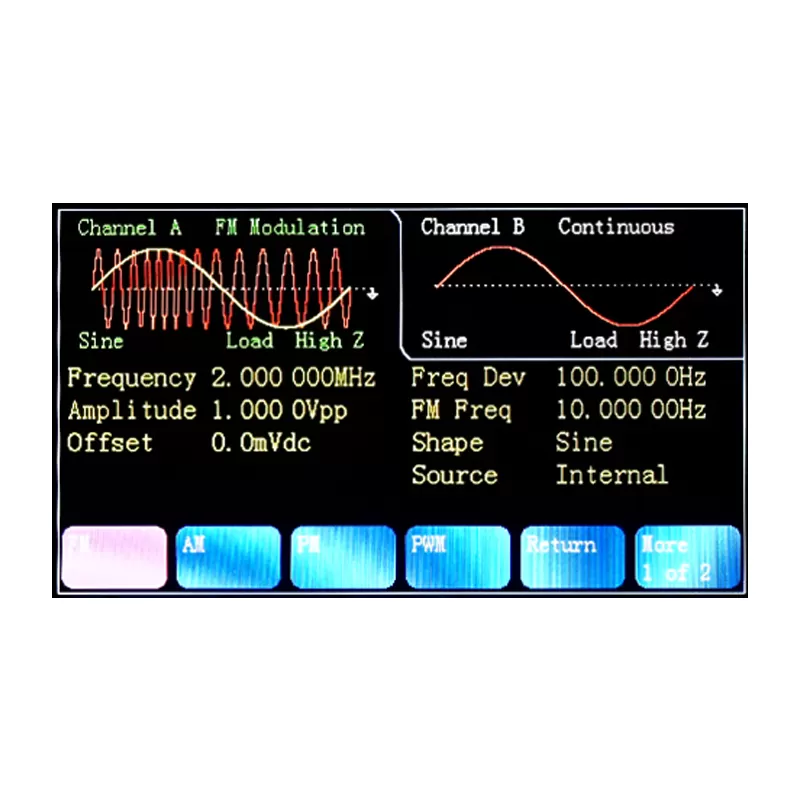

FM, AM, PM, PWM, Sum, FSK, BPSK modulations are available in TFG6900A.
| TFG6910A | TFG6920A | TFG6930A | TFG6940A | TFG6960A | ||
| Frequency | ||||||
| Range | Sine | 1μHz ~ 10MHz | 1μHz ~ 20MHz | 1μHz ~ 30MHz | 1μHz ~ 40MHz | 1μHz ~ 60MHz |
| Square, Pulse | 1μHz ~ 10MHz | |||||
| others | 1μHz ~ 5MHz | |||||
| Resolution | 1μHz | |||||
| Accuracy | ±(50ppm+1μHz) | |||||
| Waveform | ||||||
| Type | Sine, Square, Ramp, Pulse, Noise, | |||||
| 50 built-in waveforms + 5 user-defined waveforms | ||||||
| Length | 4096 points | |||||
| Sample Rate | 120MSa/s | 150MSa/s | ||||
| Vertical Resolution | 14 bits(CHA); 10 bits(CHB) | |||||
| Amplitude Characteristics | ||||||
| Range | Frequency≤20MHz | 0.1mVpp to 10Vpp(50Ω) 0.2mVpp to 20Vpp(Open circuit) | ||||
| Frequency>20MHz | 0.1mVpp to 7.5Vpp(50Ω) 0.2mVpp to 15Vpp(Open circuit) | |||||
| Resolution | 1mVpp (Amplitude≥1Vpp, load 50Ω) | |||||
| 0.1mVpp(Amplitude<1Vpp, load 50Ω) | ||||||
| 2mVpp (Amplitude≥2Vpp, open circuit) | ||||||
| 0.2mVpp(Amplitude<2Vpp, open circuit) | ||||||
| Accuracy | ±(1% of setting＋1mVpp)(1kHz Sine, 0V offset, auto range) | |||||
| Offset Characteristics | ||||||
| Range | ±5Vdc (50Ω), ±10Vdc (open circuit) | |||||
| Accuracy | ±(1% of setting+1mVdc) | |||||
| Modulation Characteristics (CHA) | ||||||
| FM,AM,PM,PWM,SUM | Carrier Waveform: Sine, Square, Ramp, etc. | |||||
| (only Pulse for PWM） | ||||||
| Modulating Waveform: Sine, Square, Ramp, etc. | ||||||
| FSK, | Carrier Waveform | Modulating Frequency: 1μHz ~ 100kHz | ||||
| BPSK | Sine, Square, Ramp, etc. | |||||
| Source | Internal/External | |||||
| Sweep Characteristics (CHA) | ||||||
| Carrier Waveform | Sine, Square, Ramp, etc. | |||||
| Type | Linear or Logarithmic | |||||
| Sweep Time | 5ms~500s | |||||
| Hold/Return Time | 0s~500s | |||||
| Trigger Source | Internal, External and Manual | |||||
| List Sweep | List Length: 600 pcs | |||||
| Burst Characteristics (CHA) | ||||||
| Carrier Waveform | Sine, Square, Ramp, etc. | |||||
| Burst Count | 1 ~ 1000000 | |||||
| Period | 1μs ~ 500s | |||||
| Trigger Source | Internal, External, Manual | |||||
| Counter | ||||||
| Frequency Range | 10mHz ~ 350MHz, resolution: 6 digits/s | |||||
| Period, Pulse Width | 100ns ~ 20s | |||||
| Duty Cycle | 1% ~ 99% | |||||
| General Characteristics | ||||||
| Power | AC 100 ~ 240V, 45 ~ 65Hz, < 30VA | |||||
| Dimension & Weight | 334×256×106 mm, Approx.3 kg | |||||
