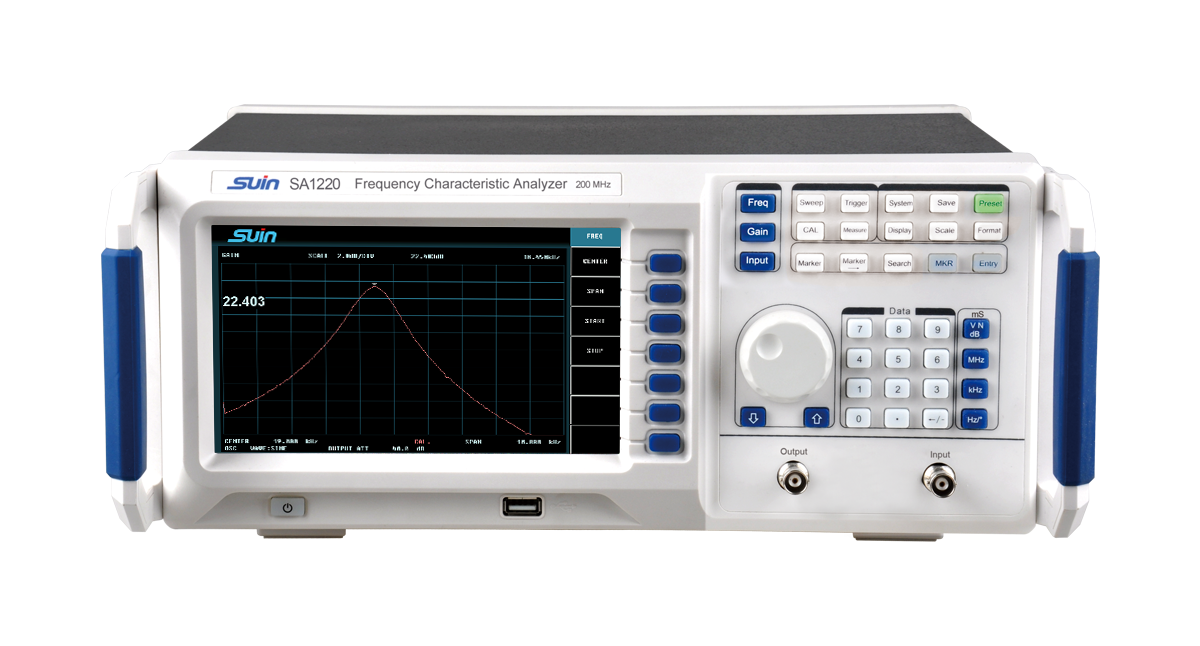

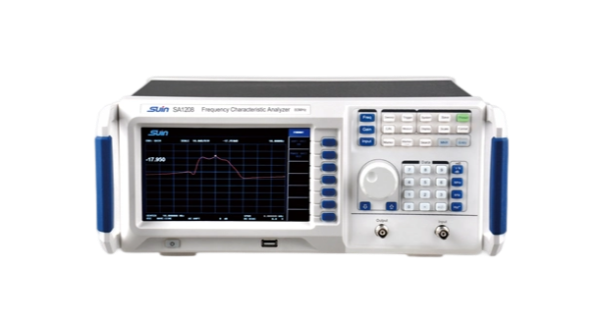

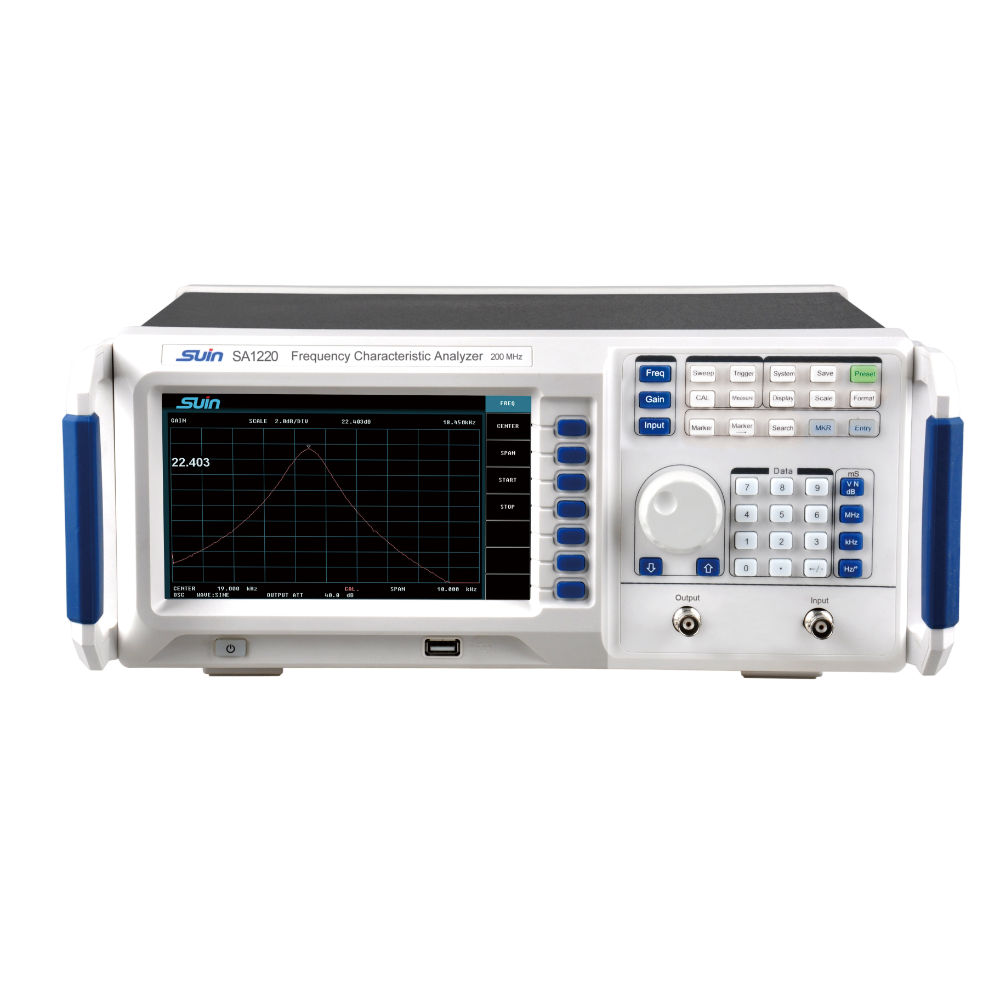

Frequency characteristic analyzers, also called frequency sweepers, are mainly used to measure the frequency characteristic of the electronic system or network. Suin SA1000 Series Frequency characteristic analyzers can measure the amplitude-frequency, phase-frequency, frequency-discrimination and S parameters of the 20 Hz~200 MHz signal.
| Series | Frequency Range | Frequency Resolution | Output Impedance | Sweep Mode | Output Level Range | Phase Range |
|
20 Hz-200 MHz | 1 mHz | 50Ω/75Ω | Linear, Logarithm | -80 dBm~ +10 dBm | −180°~+180° |
