SA1200 Series-Frequency Characteristic Analyzer

SA1200 Series

Frequency Characteristic Analyzer

Sweep Range

20 Hz~200 MHz

Output Level Range

-80 dBm~+10 dBm

Phase Range

−180°~+180°

Overview

Design Features

Specification

Accessory

SA1200 Series Frequency Characteristic Analyzers have max frequency sweep range 20Hz~200MHz, support measuring amplitude-frequency, phase-frequency, frequency discrimination and S parameters, which are widely used in amplifier, filter, high frequency tuner, etc. measuring.

Applications

Electronics & Circuit Design

Filter Testing: Measures the frequency response of low-pass, high-pass, band-pass, and notch filters.

Amplifier Analysis: Evaluates gain and phase response over a range of frequencies.

Impedance Analysis: Studies how components (resistors, capacitors, inductors) behave at different frequencies.

Telecommunications & RF Engineering

Antenna Characterization: Measures radiation patterns and impedance matching.

Cable & Network Testing: Analyzes signal attenuation and distortion in transmission lines.

Modem & Transceiver Testing: Ensures proper frequency response in communication devices.

200 MHz

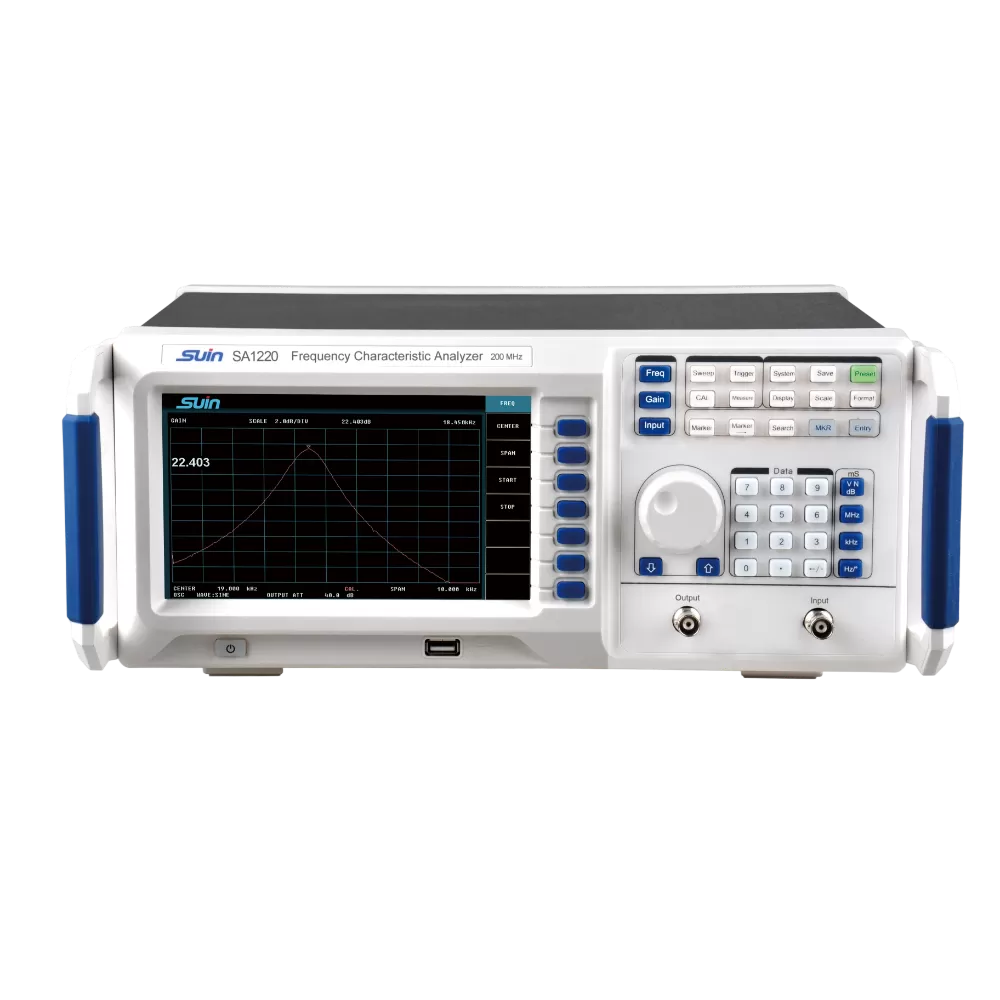

SA1220 Series Frequency Characteristic Analyzer can provide maximum 200 MHz frequency sweep.

Measuring Functions

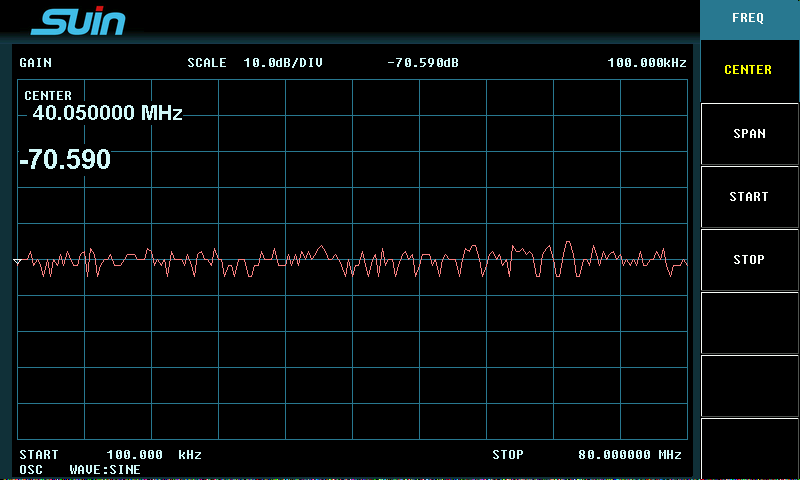

SA1220 can measure the amplitude frequency, phase frequency, frequency discrimination and S parameters in network.

Parameters displayed in cursor

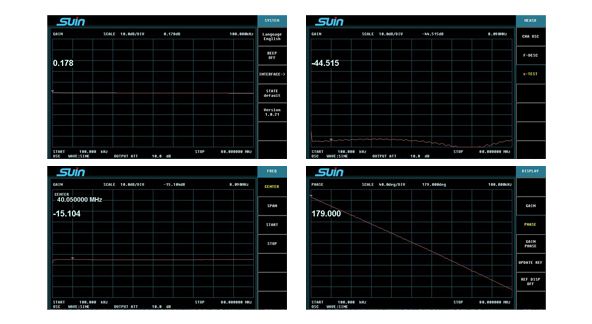

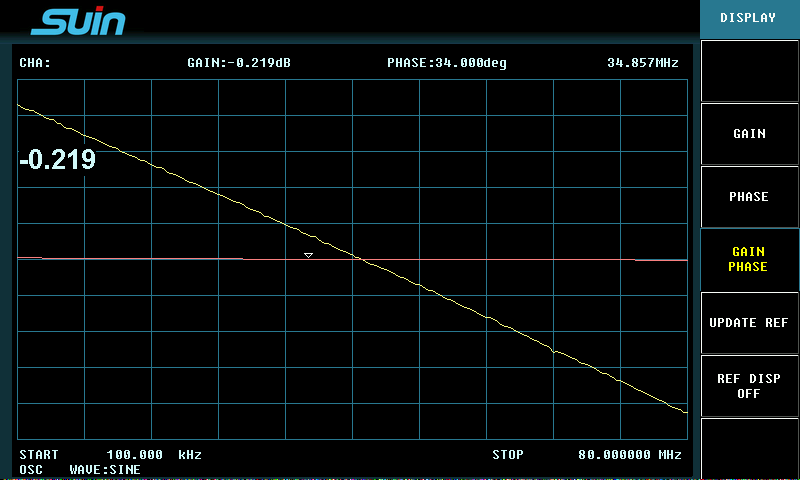

Parameters such as frequency, phase, and gain can be displayed in the cursor directly.

Cursors

Maximum 6 cursors can be set and displayed in the frequency sweep range.

		SA1208	SA1216	SA1220
Measurement
Frequency	Frequency Range	20Hz-80MHz	20Hz-160MHz	20Hz-200MHz
	Frequency resolution	1mHz
	Frequency accuracy	≤(set value×5×10^-6+1 mHz)
Measurement Function		amplitude-frequency, phase-frequency, frequency discrimination, S Parameters
Sweep Mode		Linear, Logarithm
Output	Output Level range	-80dBm~+10dBm
	Output Level accuracy	≤±1dB
	Output Impedance	50Ω/75Ω
	Output attenuation	0~90 dB, 0.1dB step
Input	Input Level range	-80dBm~+20dBm
	Input Level accuracy	±0.1dB
	Input Impedance	50Ω/75Ω/1MΩ
	Input gain	-6~12 dB，6 dB step
Phase	Phase Range	−180°~+180°
	Phase Accuracy	better than ±0.5°
(frequency discrimination) Input signal amplitude range		−5V≤A≤+5V
General Characteristics
Display		7'' TFT LCD, 800×480

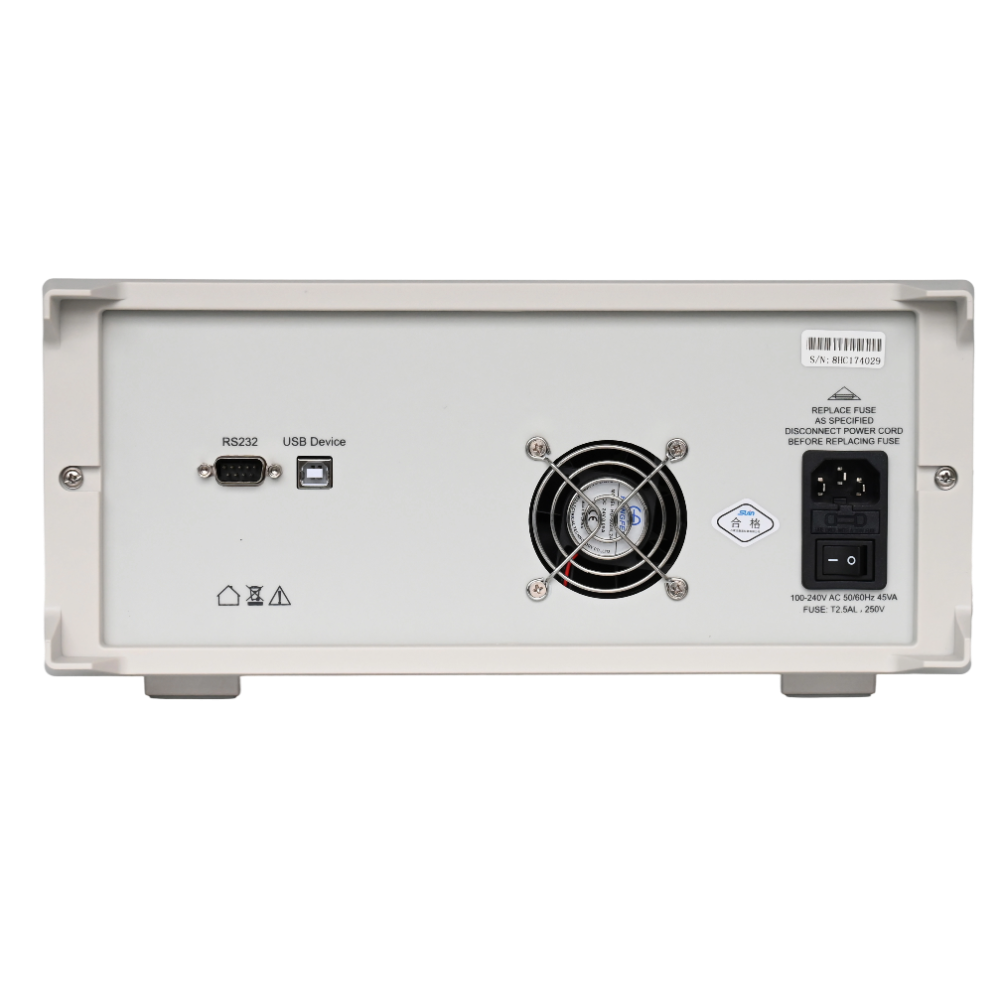

Interface		RS-232, USB Device
Power		AC 100V~240V, 50/60Hz(1±10%)
Dimension & Weight		364×155×328mm, 5.3kg

SEE ALL

STANDARD ACCESSORIES

Power Cord

BNC Cable

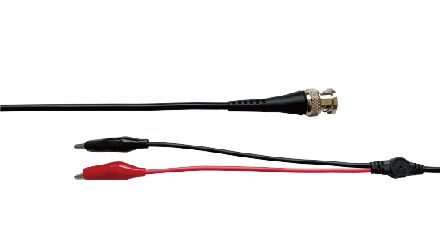

Test Clip Leads
