Suin Pulse Generators can produce high frequency square or pulse, usually used in the digital components testing, while pattern generators have 1 to 3channels, and can produce more synchronous pulse, widely used as the stimulus signal of computer BUS and digital telecommunication unit testing in universities, navigation, and radar producing areas.
| Series | CH | Frequency Range | Waveforms | Output Type | Amplitude | Pulse Width | Pattern Generator |
New
|

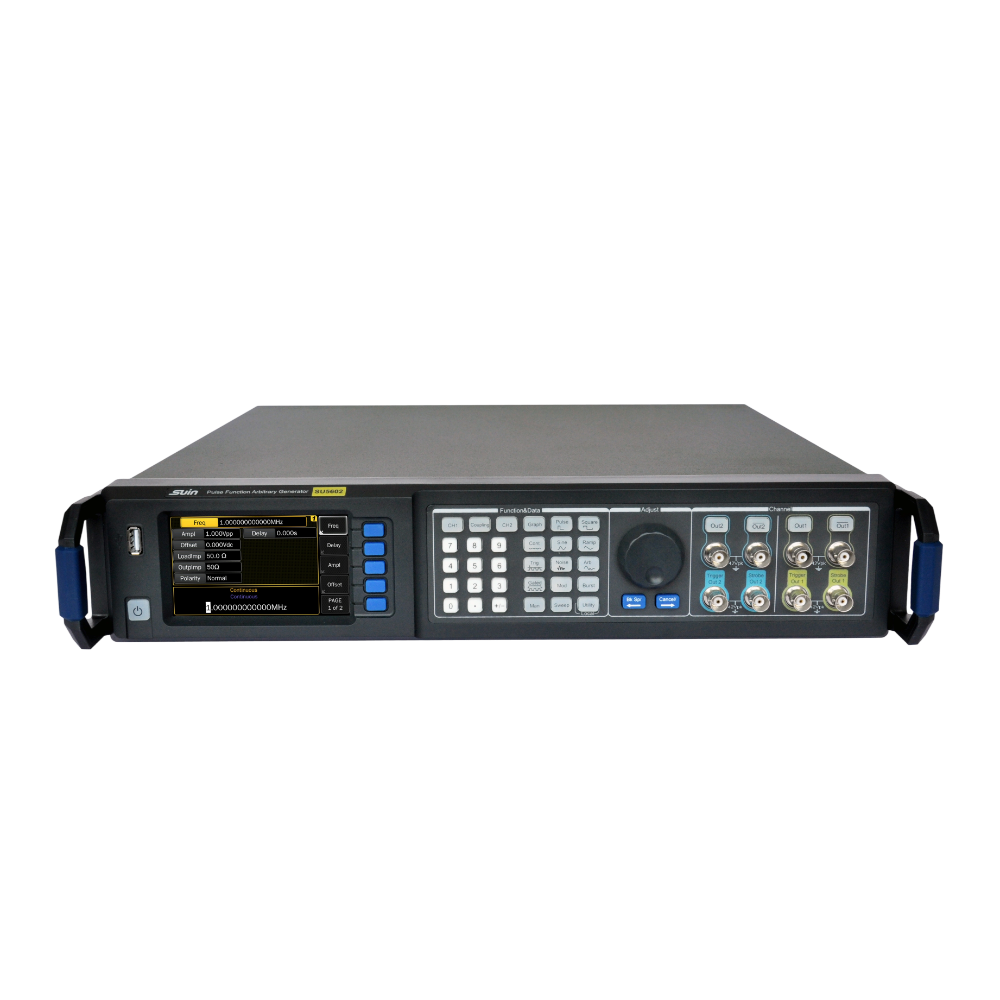

1/2 | Pulse/Square: 120 MHz Sine: 240 MHz | Pulse, Sine, Square, Ramp, Noise, Arbitrary; Pattern(optional) | Single-end, Differential | 50 mVpp~10 Vpp | 4.1 ns~(Period-4.1 ns) | Date Rate: 1 µbits/s~120 Mbits/s Memory: 16 Mbits |
|

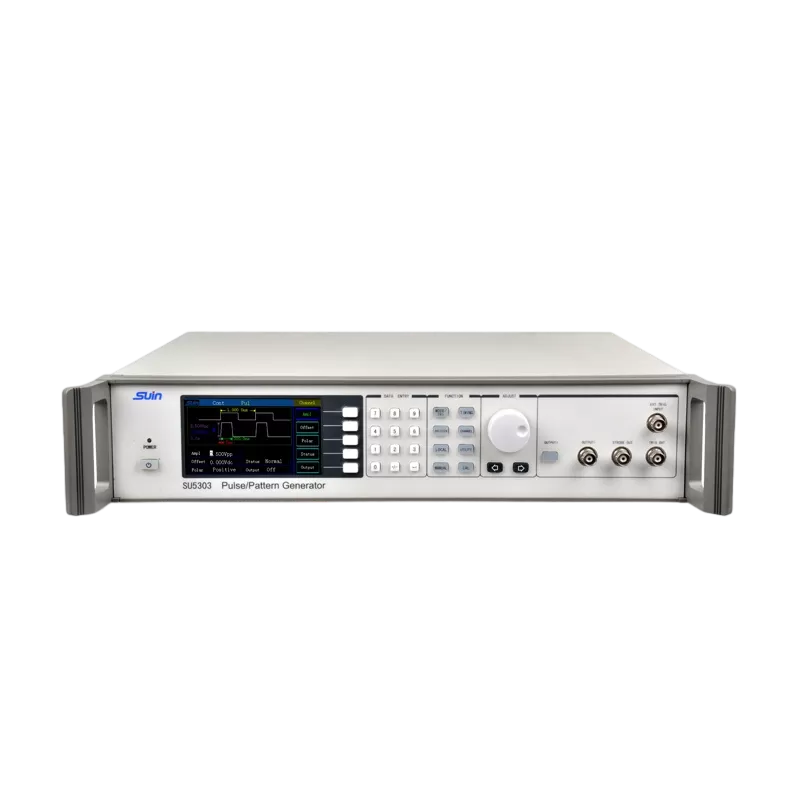

1/2 | 50 MHz | Pulse | Single-end | 50 mV~10 V(High Z) | 20 ns~10000 s | Date Rate: 100 mHz~50 MHz Memory: 2~16383 bits |
