Arbitrary Waveform Generators (AWGs) are essential tools in electronics development, testing, and research. Unlike standard function generators that produce simple waveforms such as sine, square, or triangle signals, AWGs can generate custom waveforms with precise control over frequency, amplitude, and phase. This capability allows engineers and technicians to simulate real-world signals, test complex circuits, and perform signal integrity experiments.
AWGs are widely used across communications, embedded systems, industrial automation, and laboratory research. Their flexibility and precision make them a critical part of modern electronic testing environments.
AWGs can produce flexible and diverse electrical signals according to user-defined waveforms. Key characteristics include:
1.Waveform Variety: Ability to generate standard waveforms as well as fully user-defined arbitrary waveforms.
2.High Sampling Rate and Resolution: Sampling rates from tens to hundreds of MSa/s and vertical resolution of 12–16 bits, ensuring accurate reproduction of high-frequency or complex signals.
3.Frequency Range: Generation of signals from microhertz levels up to hundreds of megahertz.
4.Modulation: Support for AM, FM, PM, PWM, or FSK modulation in many models.
5.Multi-Channel Output: Dual or multi-channel outputs for independent or synchronized signals.
6.Connectivity: USB, LAN, and GPIB interfaces for automated measurements and data logging.

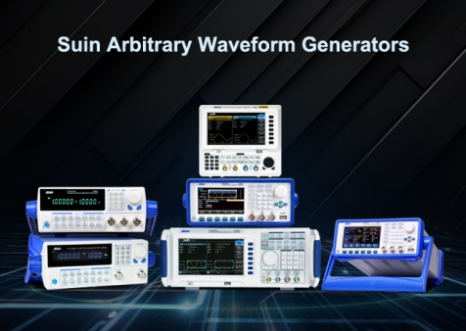

Representative products in this category include the TFG6800 Series, TFG2900A Series, TFG3900A Series, TFG6900 Series, TFG1900A Series, and TFG1900BSeries. These models cover a range of frequencies, channel counts, and waveform complexities, allowing engineers to select a device according to application needs.
AWGs are applied across multiple sectors, often in situations where precise and repeatable waveform generation is critical:
1.Communication Systems
AWGs simulate complex digital signals for testing receivers, transmitters, and modulation schemes. They reproduce multi-tone signals, noise, and pulse sequences, which are essential for evaluating signal integrity and system performance.
2.Embedded Systems Testing
Engineers use AWGs to emulate sensor outputs, actuator signals, or control patterns, enabling testing of microcontrollers, FPGAs, and embedded boards without requiring the full system hardware.
3.Circuit Validation and Signal Integrity Analysis
High-speed digital circuits, ADCs, DACs, and signal processing systems require accurate input signals for validation. AWGs provide low-noise, high-fidelity waveforms to assess timing, jitter, and linearity.
4.Research and Education
Laboratories employ AWGs for waveform synthesis experiments, modulation studies, and system modeling. They allow students and researchers to explore signal generation principles and develop complex test scenarios.
5.Industrial and Automotive Testing
AWGs reproduce sensor signals, engine control signals, or automation system inputs for development and quality assurance. Multi-channel AWGs can simulate multiple signals simultaneously, replicating real operational conditions.
Choosing an AWG requires evaluating technical specifications against application requirements. Below are detailed guidelines:
1.Frequency Range
Low-Frequency Applications (audio testing, sensor emulation): Generators with a range up to a few MHz are sufficient.
High-Frequency Applications (high-speed digital systems): Generators with hundreds of MHz range are needed, with low phase noise and high signal fidelity.
2.Vertical Resolution (Bit Depth)
Standard Testing: 12-bit resolution can handle general waveform reproduction.
Precision Measurement or Sensitive Circuits: 14–16 bit resolution reduces quantization noise and is critical for low-amplitude signals or ADC/DAC testing.
3.Sampling Rate
Slow Signals: Tens of MSa/s can accommodate most analog and digital testing.
High-Speed Signals: Sampling rate should be 4–5 times higher than the highest frequency component to avoid aliasing and waveform distortion.
4.Number of Channels
Single-Channel Testing: Basic device testing, sensor simulation, or standalone waveform generation.
Multi-Channel Testing: Synchronized or multi-input systems, differential signals, or RF quadrature signals require dual or four-channel AWGs.
5.Modulation Capabilities
Communication Testing: AM, FM, PM, or FSK modulation needed for transmitters, receivers, or digital protocols.
Control Systems or Embedded Applications: PWM or custom arbitrary waveforms for actuators, motors, and microcontroller inputs.
6.Interface and Automation
Standalone Bench Use: Front-panel control and touchscreen operation may suffice.
Automated Test or Lab Integration: USB, LAN, or GPIB interfaces are preferred for waveform programming, automated data collection, and integration into automated test equipment.
7.Portability and Form Factor
Field Testing: Compact, lightweight devices with intuitive touchscreens simplify operation in field conditions.
Lab Testing: Larger units with higher bandwidth and extended features are acceptable when portability is not required.
1.Waveform Memory: Large memory capacity allows longer and more complex waveform sequences without repetition.
2.Output Impedance: Matched impedance ensures minimal signal reflection when connecting to high-speed circuits.
3.Built-in Features: Some AWGs include frequency counters, pulse generators, and arbitrary waveform editors, reducing the need for additional instruments.
4.Budget vs. Performance: Engineers should balance cost against required bandwidth, resolution, and channel count to select the most suitable model.
Arbitrary Waveform Generators are indispensable tools in electronics design, testing, and research. They offer the flexibility to create precise, customizable, and multi-channel signals that replicate real-world operating conditions. Selection should consider frequency range, resolution, sampling rate, modulation, channel numbers, interface, and form factor. Proper selection allows engineers to reproduce signals accurately, analyze circuit responses, and validate system performance across a wide range of applications.
