Power Quality Analyzer Buying Guide: How to Choose the Right Model

Modern electrical systems are becoming increasingly complex due to the widespread use of power electronics, variable frequency drives, renewable energy systems, and sensitive electronic equipment. While electrical networks are designed to provide stable power, problems such as voltage fluctuations, harmonic distortion, voltage dips, transients, and phase unbalance can affect equipment performance and operational reliability.

Power Quality Analyzer is an essential measurement instrument used to monitor, analyze, and diagnose electrical power quality problems. Unlike basic electrical meters that only measure voltage, current, and power, a power quality analyzer provides detailed information about disturbances and long-term power system behavior.

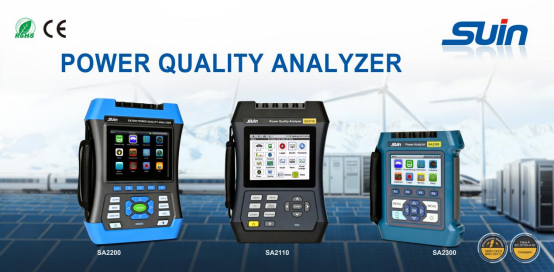

Suin supplies various standard power quality analyzers: Class A Power Quality Analyzer SA2200, Class S Power Quality Analyzer SA2110 ,Power Analyzer SA2300.Choosing the right power quality analyzer requires a clear understanding of your application requirements, measurement parameters, accuracy standards, and data analysis capabilities.

This guide explains the key features you should consider before purchasing a power quality analyzer.

1. Define Your Application Requirements Before Choosing a Power Quality Analyzer

The first step in selecting a power quality analyzer is identifying where and how the instrument will be used. Different applications require different measurement capabilities.

Industrial Equipment Testing

Manufacturing facilities often use power quality analyzers to identify problems caused by:

Motor starting current

Variable frequency drives

Voltage dips and interruptions

Harmonic distortion

Equipment shutdowns

For industrial troubleshooting, the analyzer should provide:

Real-time waveform analysis

Event recording

Harmonic measurement

Voltage and current monitoring

Power Distribution System Analysis

Utilities and electrical contractors typically require advanced power quality analysis for:

Grid monitoring

Compliance testing

Power supply verification

Fault investigation

In these applications, measurement accuracy and compliance with international standards are critical.

For example, Class A and Class S power quality analyzers are designed according to IEC 61000-4-30 requirements, providing standardized measurement methods for power quality evaluation.

Renewable Energy Applications

Solar photovoltaic systems and energy storage systems introduce new power quality challenges, including:

Harmonic distortion from inverters

Voltage fluctuations

Power factor problems

Energy conversion efficiency issues

A suitable power quality analyzer should support:

Harmonic analysis

Voltage/current monitoring

Power measurement

Long-term data logging

2. Measurement Parameters: The Most Important Power Quality Analyzer Features

A professional power quality analyzer should measure more than basic electrical parameters. Before purchasing, check whether the instrument supports the following functions.

Voltage Measurement

Voltage measurement is one of the fundamental functions of any power quality analyzer.

Important voltage-related parameters include:

RMS voltage

Voltage variation

Voltage unbalance

Voltage dips and swells

Transient overvoltage

Voltage abnormalities can cause:

Equipment malfunction

Unexpected shutdowns

Reduced equipment lifespan

For example, Suin power quality analyzers support voltage measurement up to 1000 Vrms depending on the model, making them suitable for various industrial and power system testing applications.

Current Measurement

Current measurement helps engineers understand load behavior and identify abnormal operating conditions.

Key considerations include:

Current measurement range

Current clamp compatibility

Accuracy

Inrush current measurement capability

A flexible current input solution is especially useful for industrial environments where cable access may be limited.

Some advanced analyzers support current measurements up to several thousand amps using flexible Rogowski coils, allowing testing of large electrical systems.

Harmonic Analysis

Harmonics are one of the most common power quality problems caused by:

Variable frequency drives

Switching power supplies

Inverters

Industrial converters

Excessive harmonic distortion may lead to:

Equipment overheating

Reduced energy efficiency

Control system failures

When selecting a power quality analyzer, consider:

Maximum harmonic order

Harmonic measurement accuracy

Inter-harmonic analysis capability

Suin power quality analyzer may support harmonic analysis up to the 100th for detailed waveform evaluation.

Power Factor and Energy Measurement

Power factor analysis helps identify inefficient electrical consumption.

Important measurements include:

Active power

Reactive power

Apparent power

Power factor

Energy consumption

These functions are valuable for:

Energy audits

Electrical optimization

Industrial energy management

3. Measurement Accuracy and Compliance Standards

Accuracy is one of the most important factors when choosing a power quality analyzer.

A high-quality analyzer should provide reliable measurement results under complex electrical conditions.

IEC 61000-4-30 Compliance

The IEC61000-4-30 standard defines measurement methods and accuracy requirements for power quality instruments.

Different classes indicate different accuracy levels:

Class A Power Quality Analyzer

Suitable for:

Compliance testing

Utility applications

High-precision analysis

Class S Power Quality Analyzer

Suitable for:

General troubleshooting

Industrial maintenance

Power quality surveys

For example, Suin SA2200 is a Class A portable power quality analyzer compliant with IEC 61000-4-30 Class A, while SA2110 is designed as a Class S analyzer for field measurement applications.

4. Data Recording and Analysis Capability

Power quality problems are not always continuous. Many electrical issues happen randomly and are difficult to detect without long-term monitoring.

Therefore, data logging capability is an important feature.

Look for:

Long-Term Recording

A good power quality analyzer should support:

Continuous monitoring

Trend recording

Event storage

This helps engineers identify:

Intermittent voltage problems

Equipment-related disturbances

Load changes

PC Software and Data Export

Professional power quality analysis usually requires software for:

Data visualization

Report generation

Waveform analysis

Historical comparison

For example, Suin power quality analyzers are supplied with PQA View software to improve measurement analysis efficiency during engineering applications.

5. Portable vs Fixed Power Quality Analyzer

One important purchasing decision is choosing between portable and permanently installed systems.

Portable power quality analyzers are widely used because they allow engineers to test different locations within electrical networks.

6. Sampling Rate and Transient Detection Capability

Electrical disturbances can occur within very short time periods.

A power quality analyzer with a higher sampling rate can capture:

Voltage peak value

Switching transients

Waveform distortion

When evaluating transient measurement capability, consider:

Sampling frequency

Event capture speed

Waveform recording function

Some advanced analyzers provide high-speed sampling for detailed transient analysis and waveform capture.

7. Connectivity and User Interface

Modern power quality analyzers should provide convenient data communication options.

Important features include:

USB connection

LAN communication

Wi-Fi support

Touchscreen interface

These functions improve:

Field operation efficiency

Data transfer

Remote analysis

For example, Suin SA2200 supports USB, LAN, and optional Wi-Fi communication, together with built-in data storage for field applications.

8. Safety Features and Environmental Considerations

Electrical testing involves high-voltage environments, so safety should always be considered.

Before purchasing, check:

Safety Ratings

Important specifications include:

CAT rating

Maximum input voltage

Protection level

Operating Environment

Consider:

Temperature range

Humidity conditions

Outdoor or indoor use

A suitable analyzer should match the actual working environment.

9. How to Choose the Right Power Quality Analyzer

Step 1: Identify Your Testing Purpose

Are you measuring:

Industrial equipment?

Power distribution systems?

Renewable energy systems?

Energy efficiency?

Step 2: Determine Required Measurements

Confirm whether you need:

Voltage/current measurement

Harmonic analysis

Transient capture

Flicker measurement

Power factor analysis

Step 3: Select the Appropriate Accuracy Level

Choose:

Class A for compliance and high-accuracy testing

Class S for general power quality analysis

Step 4: Evaluate Data Analysis Functions

Check:

Recording duration

Storage capacity

Software capability

Communication options

Conclusion

Selecting the right Power Quality Analyzer requires more than comparing basic specifications. The best instrument should match your application requirements, measurement accuracy needs, and data analysis workflow.

Key features to consider include:

Measurement parameters

Harmonic analysis capability

IEC 61000-4-30 compliance

Transient detection

Data logging

Software support

Portability

For engineers, electrical contractors, and industrial users, choosing a professional power quality analyzer can significantly improve troubleshooting efficiency, prevent equipment failures, and maintain reliable electrical system operation.

Suin Digital provides professional power quality analyzers designed for industrial power measurement, troubleshooting, and power quality analysis applications, including Class A and Class S models for different testing requirements.
