Power Quality Analyzer for Data Centers: A Guide to Reliable Power Monitoring

As AI computing, cloud services, and high-density server deployments continue to grow, data centers require increasingly reliable electrical power. Even short power disturbances can affect sensitive equipment, trigger protective devices, or make electrical faults more difficult to diagnose.

A power quality analyzer helps data center engineers and facility managers measure, record, and analyze electrical conditions. By monitoring voltage, current, harmonics, and power quality events, engineers can identify potential problems and make informed decisions about electrical system maintenance.

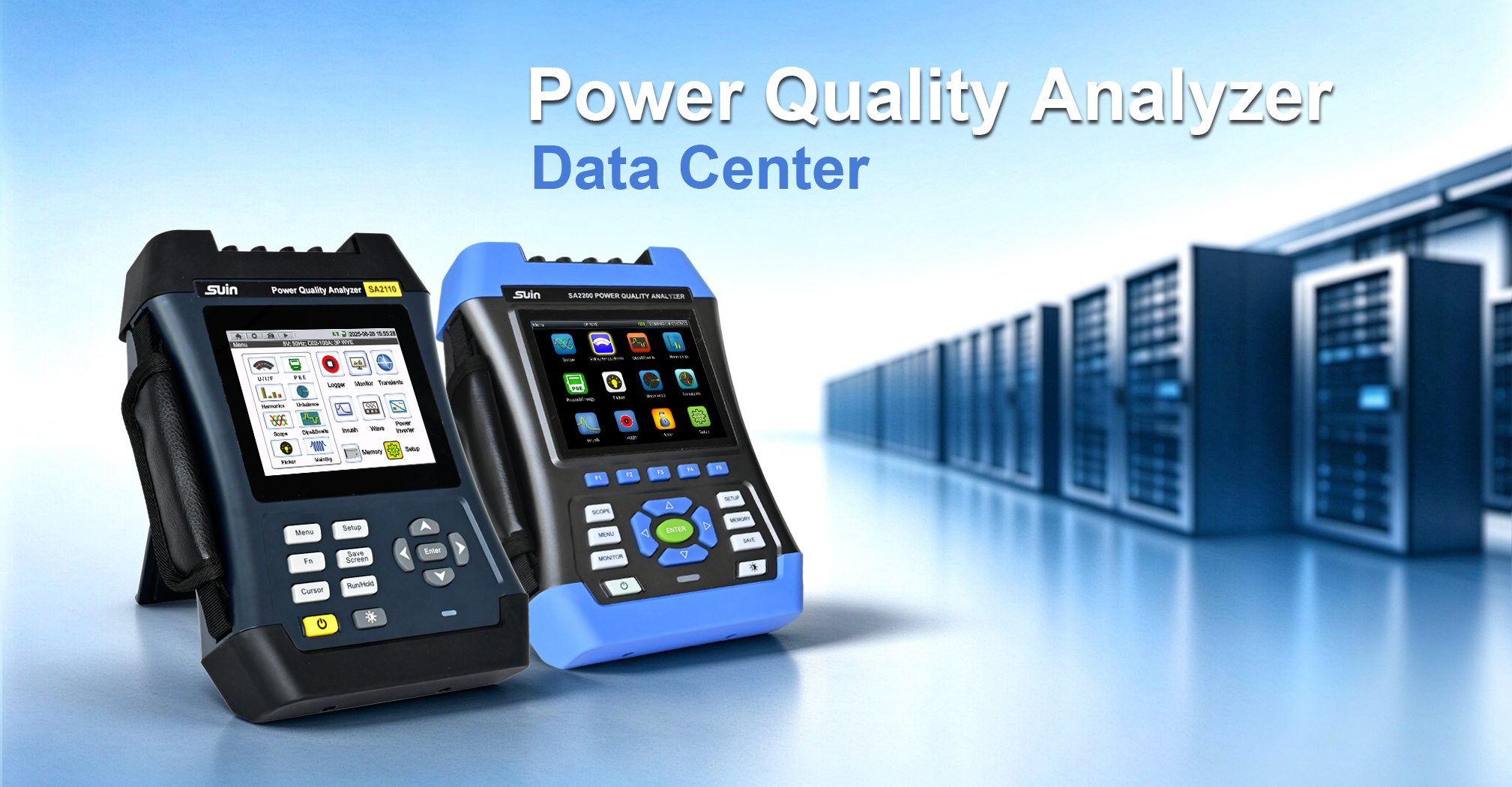

This guide explains common power quality issues in data centers, essential analyzer features, and how to select the right instrument for testing and troubleshooting. SUIN SA2200(Class A) and SUIN SA2110(Class S) are referenced as practical examples for data center power quality measurement and monitoring.

1. Why Is Power Quality Important in Data Centers?

Data centers rely on complex electrical infrastructure, including transformers, uninterruptible power supply (UPS) systems, power distribution units (PDUs), generators, and cooling equipment. These systems must work together to support continuous operations.

However, electrical faults, switching operations, nonlinear loads, and changing power demand can introduce disturbances.

Common power quality problems include voltage dips and swells, harmonic distortion, transient disturbances, three-phase unbalance, and power factor issues. These conditions can affect electrical system performance, contribute to equipment problems, and complicate fault diagnosis.

A power quality analyzer provides measurement data that helps engineers investigate these conditions and understand how the electrical system behaves under different operating conditions.

2. Common Power Quality Issues in Data Centers

Harmonic Distortion

UPS systems, server power supplies, variable-frequency drives, and other power electronic equipment can contribute to harmonic distortion, depending on their design and operating conditions.

Excessive harmonics may increase electrical losses, contribute to overheating, and affect the operation of electrical equipment.

A power quality analyzer can measure individual voltage and current harmonics, total harmonic distortion (THD), and other relevant parameters. These measurements help engineers evaluate waveform quality and investigate potential sources of distortion.

Voltage Dips and Swells

Voltage dips may occur during upstream electrical faults, motor starting, or sudden changes in electrical loads. Voltage swells can occur under certain fault and switching conditions.

Although UPS systems provide protection for critical loads, monitoring the electrical supply and distribution system remains important for troubleshooting and maintenance.

An analyzer with voltage event monitoring and recording capabilities can help capture the magnitude, duration, and timing of disturbances.

Transient Disturbances

Transient events are short-duration electrical disturbances that may occur during switching operations or electrical faults.

Because these events can happen rapidly, ordinary multimeters may not provide sufficient waveform information for detailed analysis.

When investigating transients, engineers should consider the analyzer's sampling rate, measurement range, trigger functions, and waveform recording capabilities.

Three-Phase Unbalance

Data centers typically use three-phase electrical distribution systems. Unequal phase loading or supply conditions can contribute to voltage and current unbalance.

Measuring phase voltages, currents, and power parameters helps engineers identify abnormal conditions and assess electrical system performance.

3. Key Features of a Power Quality Analyzer for Data Centers

Choosing the right instrument requires matching its measurement capabilities to the application.

Harmonic Analysis: Look for an analyzer that measures individual harmonics and THD. The required harmonic range depends on the equipment under investigation and the applicable measurement requirements.

Voltage Event Monitoring: Voltage dip, swell, and interruption recording can help engineers investigate disturbances affecting electrical equipment.

Transient Capture: For fast electrical events, consider sampling rate, transient measurement range, trigger settings, and waveform recording capabilities. Sampling rate alone does not determine overall transient measurement performance.

Long-Term Data Logging: Intermittent problems may not occur during scheduled inspections. Continuous or periodic recording helps engineers review electrical conditions over time and identify unusual events.

Three-Phase Measurement: Verify that the analyzer supports the required voltage and current inputs, wiring configurations, and current sensors for the installation being tested.

Measurement Standards: IEC 61000-4-30 defines power quality measurement methods and instrument performance classes, including Class A and Class S. Class A is generally appropriate for applications requiring more stringent measurement methods and comparability, while Class S serves applications with different measurement requirements. Always verify the manufacturer's declared compliance and the specific functions supported by the instrument.

4. How to Monitor Power Quality in a Data Center

A structured measurement process helps engineers collect useful data and investigate problems efficiently.

Step 1: Define the Objective

Determine whether the task involves harmonic analysis, voltage disturbance investigation, commissioning, or routine maintenance.

Step 2: Select the Measurement Point

Potential locations include the utility incomer, UPS input and output, main distribution board, and downstream circuits. Select measurement points according to the suspected problem. For example, both the SA2200 and SA2110 support the required voltage and current inputs, with flexible current clamp options for different current ranges.

Step 3: Configure the Analyzer

Set the appropriate wiring configuration, voltage range, current sensors, recording intervals, and event thresholds. Confirm that the instrument and accessories meet the electrical safety requirements of the installation.

Only qualified personnel should perform measurements on energized systems using appropriate safety procedures. For reference: SUIN SA2200 and SA2110 are rated CAT III 1000V / CAT IV 600V, meeting the safety requirements for measurements on data center distribution systems. And both of them also features IP53 protection grade for dusty and damp on-site environments.

Step 4: Record and Analyze Data

Record voltage, current, harmonics, power parameters, and relevant events. Longer monitoring periods may be necessary when investigating intermittent problems.

Step 5: Verify the Results

Compare recorded measurements with equipment operating conditions and maintenance records. After corrective action, repeat relevant measurements to assess changes in electrical performance.

5. How to Choose the Right Power Quality Analyzer

The best power quality analyzer depends on the application, required measurement class, and troubleshooting objectives.

For harmonic investigations, prioritize individual harmonic measurements and THD analysis. For voltage disturbance analysis, look for reliable event detection and recording. When investigating transient events, evaluate the sampling rate, measurement range, and waveform capture capabilities.

For long-term monitoring, data logging, sufficient storage, and convenient data export are important. Applications involving formal power quality assessments may also require compliance with specific standards and measurement classes.

Before selecting an instrument, verify its measurement range, accuracy, accessories, recording functions, and electrical safety ratings.

6. SUIN Power Quality Analyzers for Electrical Testing

SUIN provides power quality measurement instruments for electrical testing, troubleshooting, and power system analysis.

The SUIN SA2200 Class A Power Quality Analyzer is designed for applications requiring Class A measurement capabilities. Its published specifications include voltage measurement up to 1,000 Vrms, harmonics up to the 100th order, and a sampling rate of 200 kS/s.

The SUIN SA2110 Class S Power Quality Analyzer supports harmonic measurement up to the 100th order, voltage event monitoring, transient measurement, and long-term data logging.

These functions can support electrical engineers investigating power quality conditions in distribution systems and other industrial applications. Suitability for a specific data center depends on the required measurement methods, electrical installation, and testing objectives.

Detailed specifications are available on the official product pages for the SA2200 and SA2110.

Conclusion

Reliable electrical power is essential for data center operations. Monitoring harmonics, voltage disturbances, transients, and three-phase electrical parameters helps engineers investigate power quality issues and maintain electrical infrastructure.

When choosing a power quality analyzer, consider measurement accuracy, applicable standards, event recording, data logging, and electrical safety requirements.

Contact SUIN to discuss your power quality measurement requirements and identify a suitable analyzer for your application.
