Class A Power Quality Analyzer Working Principle and Applications

As electrical systems become increasingly complex, maintaining stable and reliable power quality has become a critical challenge for utilities, industrial facilities, and renewable energy operators. Voltage fluctuations, harmonic distortion, and transient disturbances can cause equipment failures, energy losses, and operational downtime.

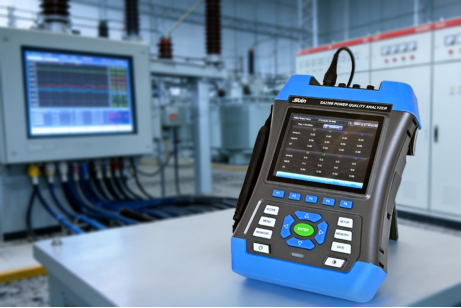

A Class A Power Quality Analyzer is designed to accurately monitor and evaluate these power quality parameters according to internationally recognized standards IEC61000-4-30. These instruments provide reliable data for diagnosing power system problems and improving energy efficiency. This article explains the working principles, measurement methods, and practical applications of Suin SA2200 Class A power quality analyzers in modern power systems.

Understanding Power Quality

Power quality refers to the stability and reliability of electrical power delivered to equipment. Ideally, a power system should provide a steady voltage waveform with constant frequency and minimal distortion.

However, in real electrical networks, several disturbances may occur:

Voltage dips and swells

Harmonic distortion caused by nonlinear loads

Transient overvoltages

Frequency variations

Phase unbalance in three-phase systems

Electrical noise and flicker

These issues can damage sensitive equipment such as industrial drives, automation systems, medical equipment, and data center infrastructure. Power quality analyzers are designed to identify and quantify these disturbances.

What Defines a Class A Power Quality Analyzer

Suin SA2200 Power quality analyzers are classified according to the IEC 61000-4-30 standard, which defines measurement accuracy and methods for monitoring power quality.

Class A analyzer represents the highest accuracy level within this standard. The main characteristics include:

Strict measurement uncertainty limits

Consistent measurement methods across different instruments

Time-synchronized event recording

Standardized detection of voltage events and disturbances

Because of these requirements, Class A instruments are widely used for official power quality assessments, grid compliance testing, and contractual verification between utilities and power users.

Working Principle of SA2200 Class A Power Quality Analyzer

Although they appear similar to portable measurement devices, their internal operation involves several sophisticated processes.

1. Multi-Channel Electrical Signal Measurement

SA2200 connects to the electrical network using voltage leads and current sensors. It continuously monitors multiple channels simultaneously, typically including three-phase voltage and current signals.

This allows the instrument to analyze:

Phase relationships between voltage and current

Three-phase balance conditions

Real-time power flow in the system

Accurate synchronization between channels is essential to ensure precise calculation of electrical parameters.

2. High-Speed Signal Sampling

Once SA2200 is connected to the electrical system, the instrument samples voltage and current signals at a high frequency. High sampling rates 200kS/s allows the analyzer to capture waveform distortions and short-duration events that would otherwise be missed.

Digital signal processing techniques are then used to reconstruct the waveform and analyze deviations from the ideal sinusoidal shape.

This process is essential for detecting:

Harmonic distortion

Transient spikes

Switching events in power electronics

3. Power Parameter Calculation

After converting the analog signals into digital data, the analyzer calculates a wide range of electrical parameters, including:

RMS voltage and current

Active and reactive power

Apparent power

Power factor

Frequency stability

Total harmonic distortion (THD)

Advanced algorithms ensure that these calculations follow standardized measurement methods defined by international power quality standards.

4. Disturbance Detection and Event Recording

One of the most important functions of SA2200 Class A power quality analyzer is identifying abnormal power events.

The analyzer continuously compares measured values against predefined thresholds. When disturbances occur, the device records:

Event start time

Event duration

Magnitude of the disturbance

Waveform snapshots before and after the event

This information allows engineers to trace the root cause of electrical problems.

5. Long-Term Data Logging and Analysis

Power quality issues are often intermittent and may only appear under specific load conditions. Therefore, SA2200 Power Quality Analyzers are frequently used for long-term monitoring.

Data logging allows engineers to:

Track trends in voltage stability

Identify recurring disturbances

Analyze power usage patterns

Correlate events with equipment operation

This long-term data is extremely valuable for preventive maintenance and system optimization.

Major Applications of SA2200 Class A Power Quality Analyzers

Due to their high accuracy and standardized measurement methods, SA2200 Class A Power Quality Analyzers are widely used across multiple sectors.

1. Utility Power Distribution

Electric utilities use them to monitor distribution networks and investigate customer complaints related to voltage disturbances or flicker. The data collected helps utilities maintain grid stability and comply with regulatory standards.

2. Industrial Power Systems

Industrial facilities often operate large motors, welding equipment, and variable-frequency drives. These loads can introduce harmonic distortion and reactive power issues.

SA2200 helps engineers:

Identify sources of harmonics

Optimize power factor correction systems

Prevent overheating of transformers and cables

3. Renewable Energy Integration

Renewable energy systems such as solar and wind power can introduce fluctuations into the grid due to variable generation conditions. Power quality monitoring helps ensure that these systems operate within grid compliance limits while maintaining stable power output.

4. Data Centers and Critical Infrastructure

Sensitive equipment used in data centers, telecommunications systems, and medical facilities requires stable power conditions.

Power quality analyzers help detect disturbances that may lead to:

Server crashes

Data loss

Equipment malfunction

5. Electrical Engineering Testing and Commissioning

During installation or upgrading of electrical systems, engineers use SA2200 power quality analyzers to verify system performance. These tests ensure that equipment operates within design specifications before full deployment.

Advantages of Using SA2200 Class A Power Quality Analyzer

Compared with basic power monitoring tools, SA2200 Class A analyzers provide several important benefits:

Highly accurate and standardized measurements

Reliable detection of complex power disturbances

Detailed waveform analysis capabilities

Long-term monitoring and event recording

Compliance with international power quality standards
