1500 MHz Signal Generator: A Practical Guide to RF Test Signals

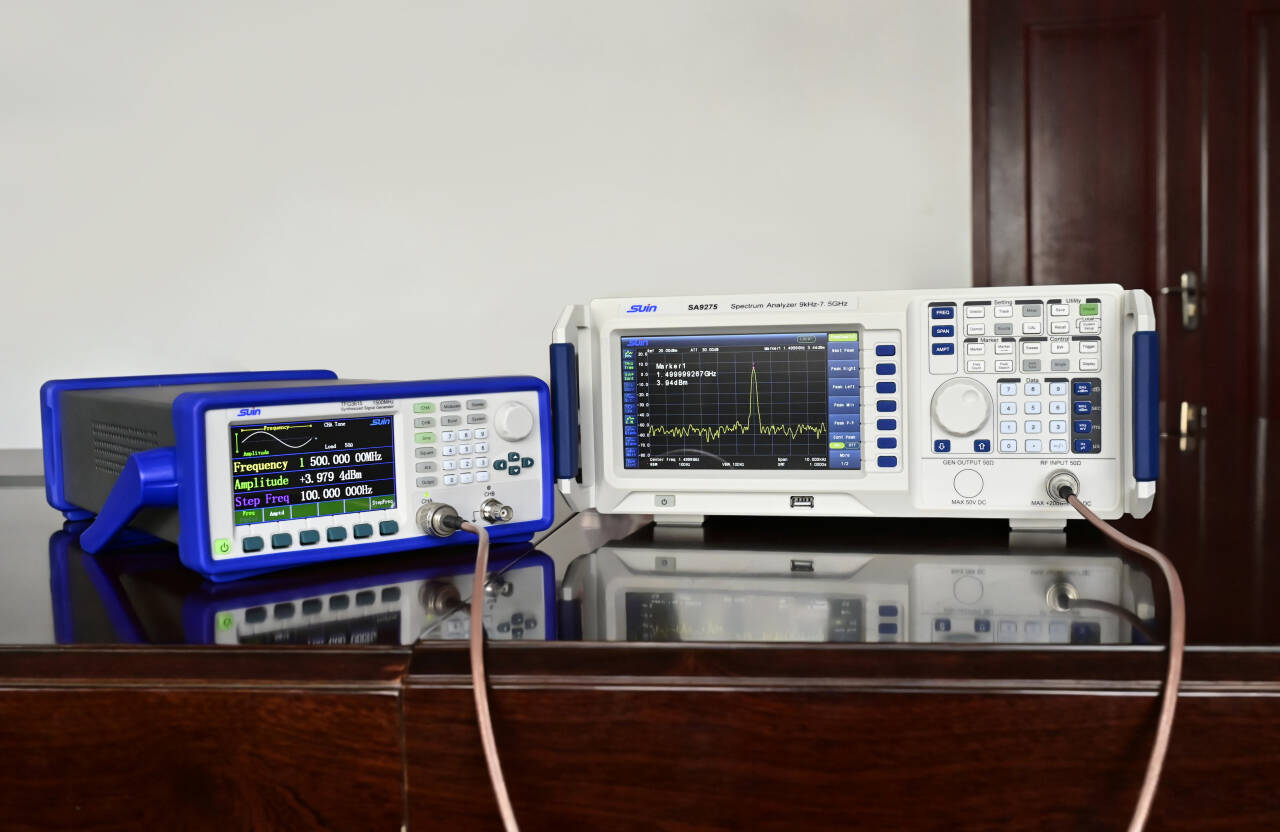

1500 MHz signal generator is a precision electronic instrument that produces controlled radio frequency (RF) signals at or near 1.5 GHz. These devices are indispensable tools for engineers and technicians working with wireless communications, RF system design, and electronic testing. By providing a stable and adjustable RF source, they help validate performance, troubleshoot circuits, and ensure devices operate correctly in real-world frequency environments.

What Is a 1500 MHz Signal Generator?

At its core, a signal generator creates electrical signals with specific properties — frequency, amplitude, waveform shape, and modulation. A 1500 MHz signal generator is optimized to generate RF signals up to 1.5 GHz. This frequency range overlaps with many modern communication bands, such as parts of cellular networks, Wi-Fi, industrial radio systems, and UHF broadcast ranges.

Unlike simple function generators that are used for audio and low-frequency lab work, RF signal generators require much tighter control over waveform purity, frequency accuracy, and spectral cleanliness. These characteristics are critical when testing high-frequency systems where even small errors can cause significant performance issues.

Why Use a 1.5 GHz Signal Generator?

There are several reasons why engineers choose a signal generator operating at 1500 MHz:

Communication System Testing: Many wireless receivers, transceivers, and RF front-ends are designed to work near or above 1 GHz. A stable 1500 MHz source is ideal for verifying sensitivity, selectivity, and frequency response.

Component Characterization: RF components such as filters, mixers, amplifiers, and antennas must be measured at relevant frequencies. A signal generator provides the stimulus necessary to gauge performance metrics like gain, bandwidth, and distortion.

Calibration and Verification: Precision measurement tools (e.g., spectrum analyzers and network analyzers) often need external signal sources for calibration. A generator with accurate frequency output ensures that these measurements remain traceable and reliable.

Modulation and Standards Development: Modern RF systems use complex modulation schemes (e.g., FSK,PSK). Advanced signal generators can embed modulation into the output, enabling realistic testing scenarios that emulate real communication signals.

Key Technical Features

When selecting or evaluating a 1500 MHz signal generator, engineers typically consider several important specifications:

Frequency Accuracy and Stability: The ability of the generator to maintain a precise frequency without drift is essential for repeatable measurements.

Output Power Control: Adjustable output level allows the instrument to simulate a wide range of signal conditions, from weak signals at the edge of receiver sensitivity to strong signals near full-scale input.

Phase Noise and Spurious Content: Low phase noise improves the quality of the generated signal, which is especially important when testing receivers or systems sensitive to noise.

Waveform and Modulation Options: Beyond continuous wave (CW) output, generators often support AM, FM, pulse modulation, and digital modulation formats — useful for more complex testing.

Applications in Engineering

Wireless Technology Development: From designing a smartphone RF front-end to optimizing a wireless sensor network, a 1500 MHz generator helps engineers replicate operating conditions and verify signal integrity.

Education and Research: In academic labs, students use RF signal generators to learn fundamental concepts of electromagnetics, signal propagation, and RF design principles.

Product Validation and Quality Control: Manufacturers rely on signal generators in production testing to confirm that radio products meet specification standards before shipment.

Field Troubleshooting: Technicians can use RF generators to isolate and diagnose issues in deployed communication systems, such as signal distortion or frequency misalignment.

Conclusion

1500 MHz signal generator is more than just a frequency source — it’s a versatile tool that bridges theoretical design and practical performance testing in RF engineering. Whether used in the lab, in production, or in the field, it provides the controlled and reliable signals necessary for developing and validating today’s wireless technologies.
