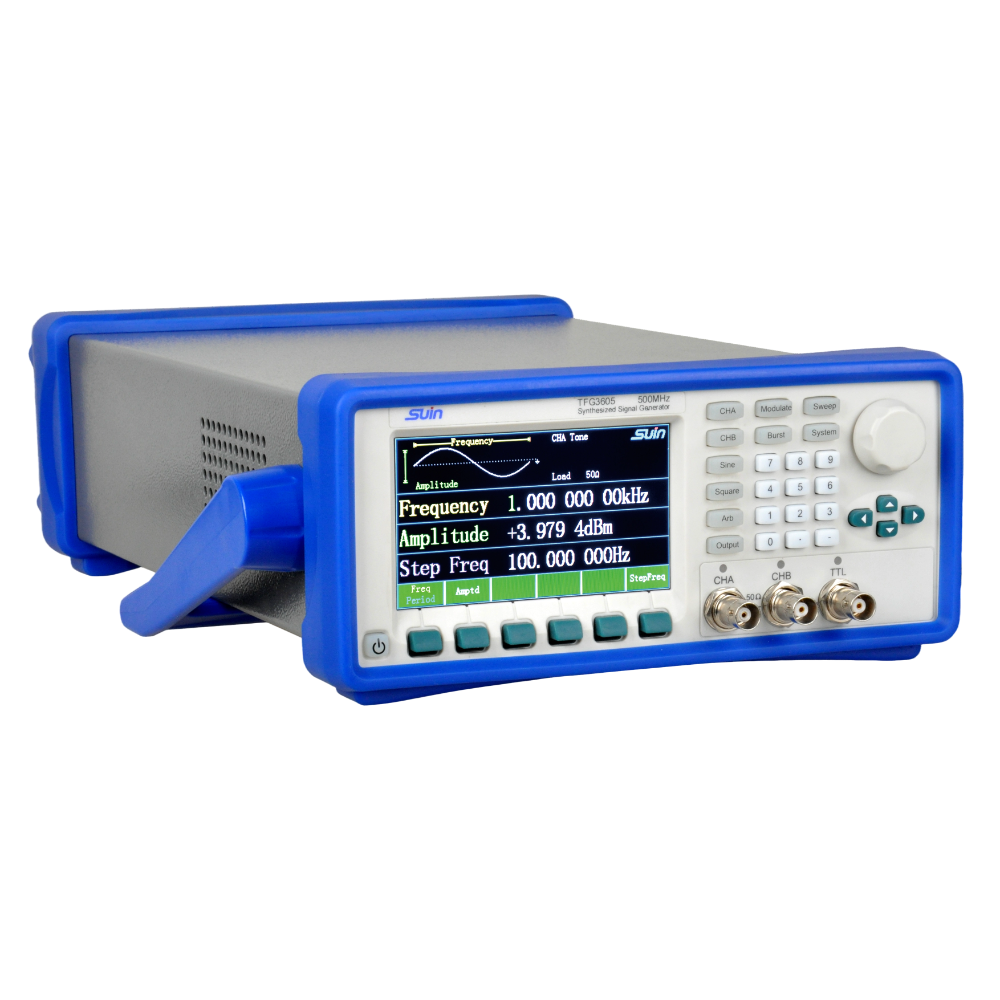

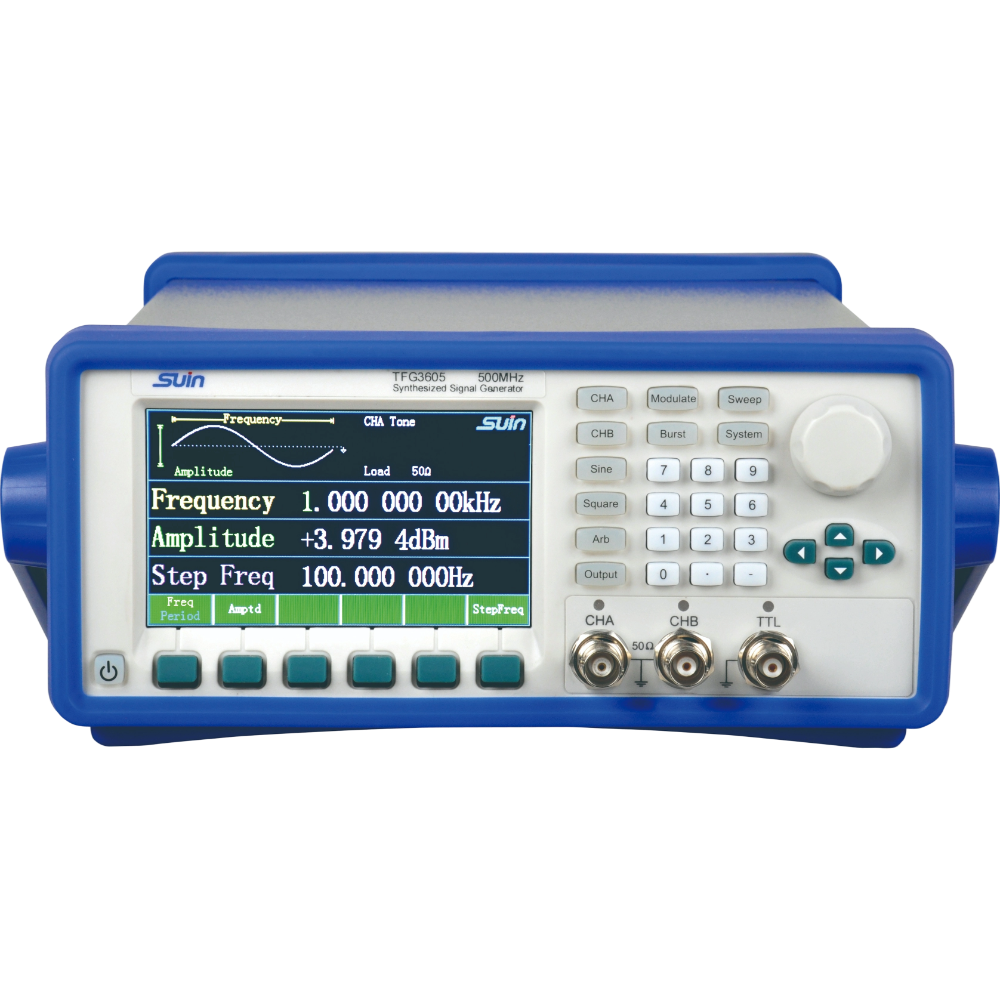

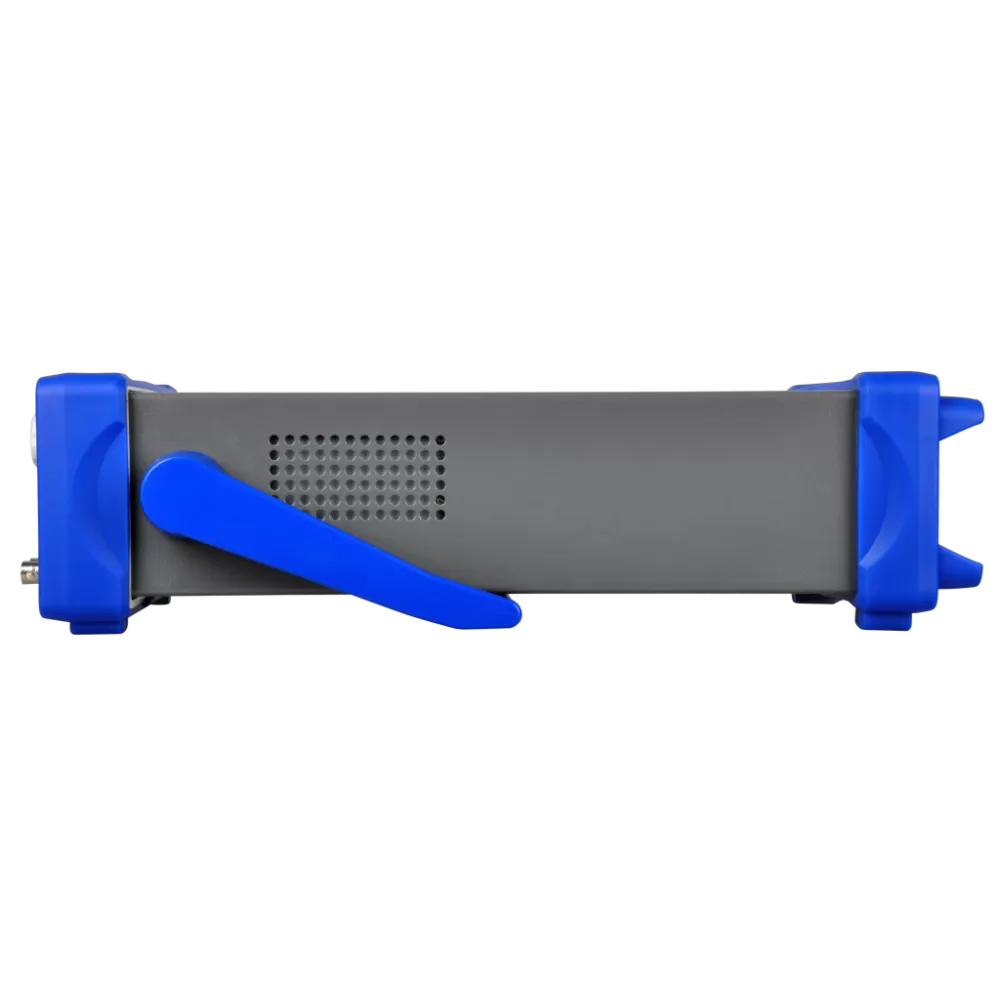

TFG3600 Series
Radio frequency signal generator
Radio frequency signal generator

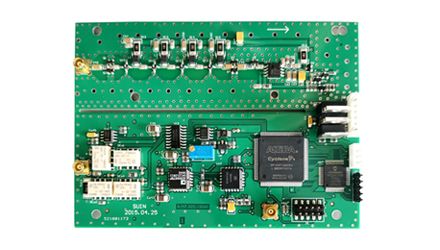

Adopting DDS and PLL technique, with FPGA and SOPC system, TFG3600 Series synthesized signal generator can measure max 1.5GHz frequency, frequency accuracy up to 1ppm. It is indeed a strong assistant in the areas of education, laboratory, telecommunication and metrology, etc.
Application
Electronics Testing: Testing and characterizing electronic components, such as amplifiers, filters, and mixers.
Telecommunications: Verifying the performance of communication systems, including mobile networks and wireless devices.
Research and Development: Prototyping and testing RF circuits, conducting experiments, and exploring new designs.
Aerospace and Defense: Evaluating the performance of radar, satellite communication systems, and electronic warfare equipment.

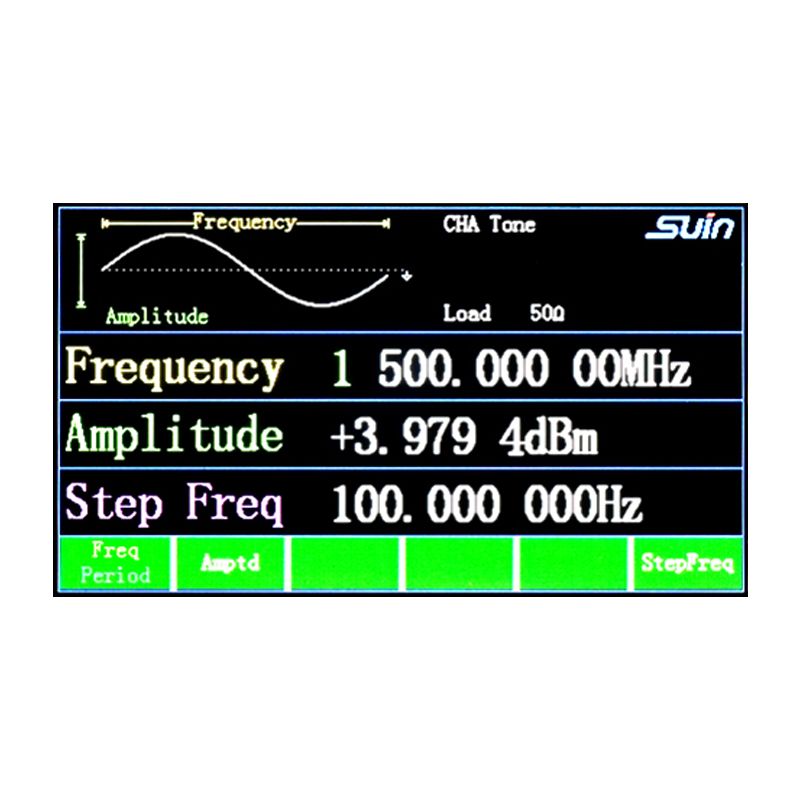

TFG3600 can output maximum 1500 MHz Sine signal, which meets the electronic circuit characteristic testing in the wireless communication, automobile and education fields.

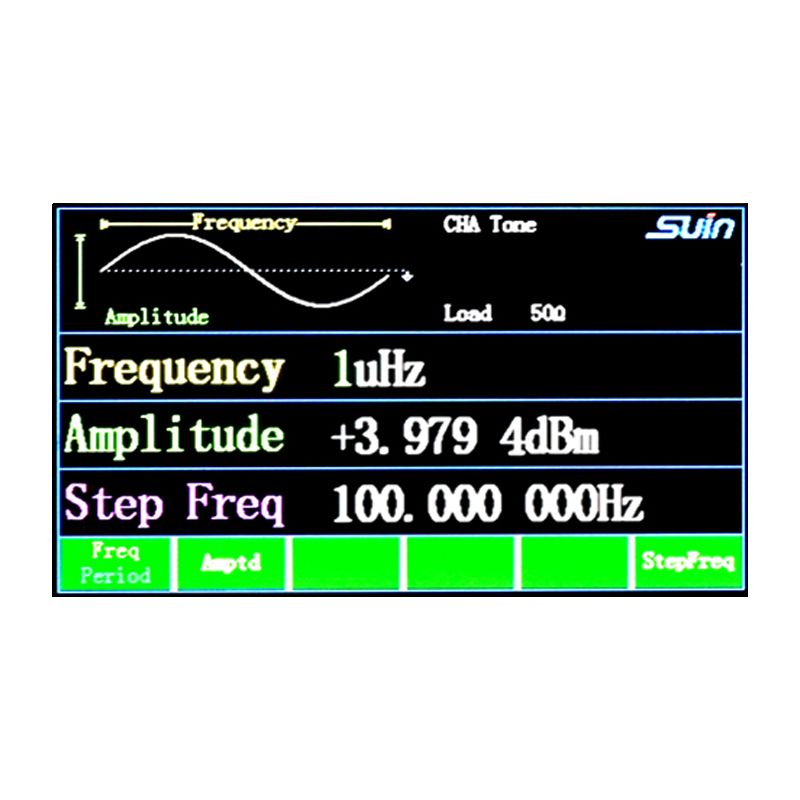

Frequency Resolution 1 μHz

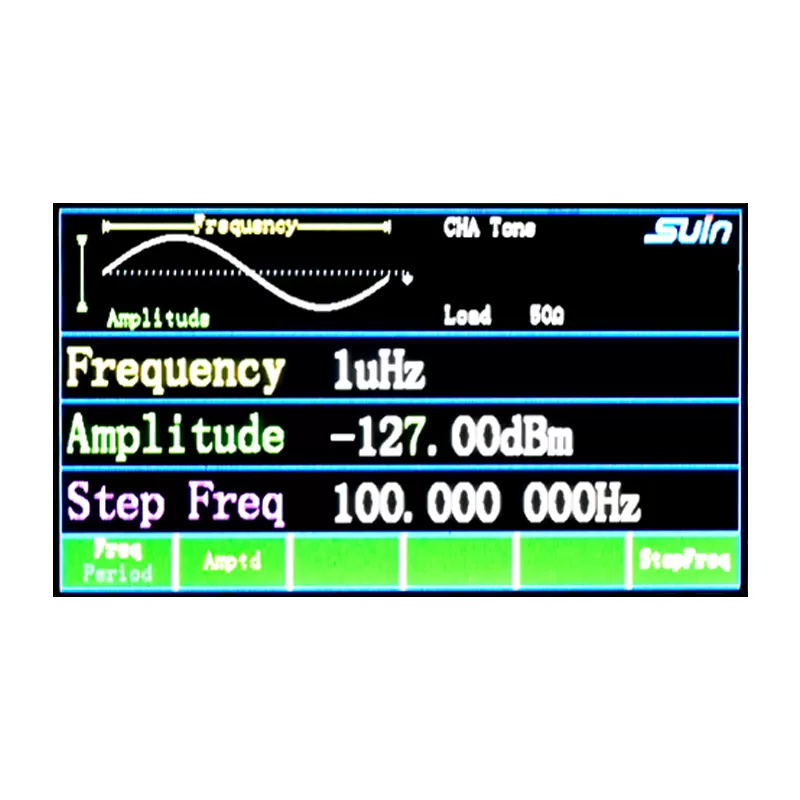

Amplitude -127 dBm~+13 dBm is easy for sensitive and high power signal testing.

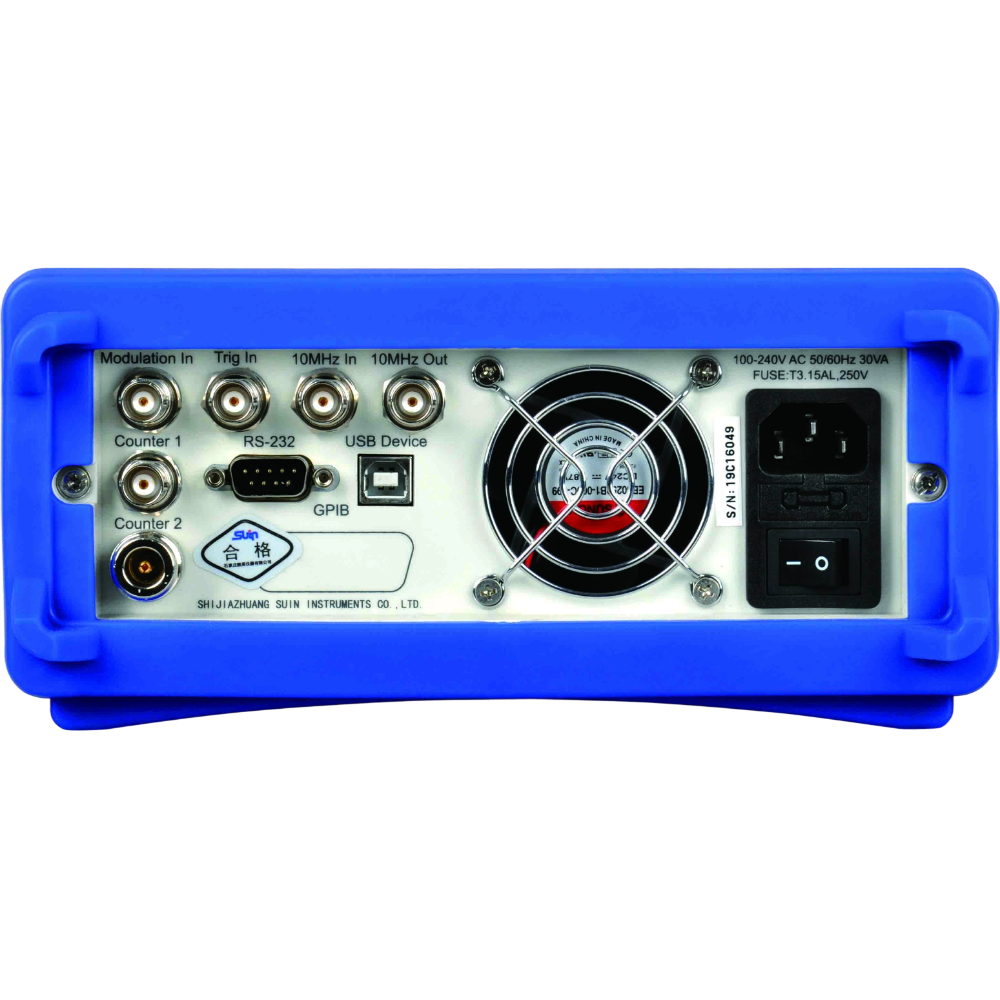

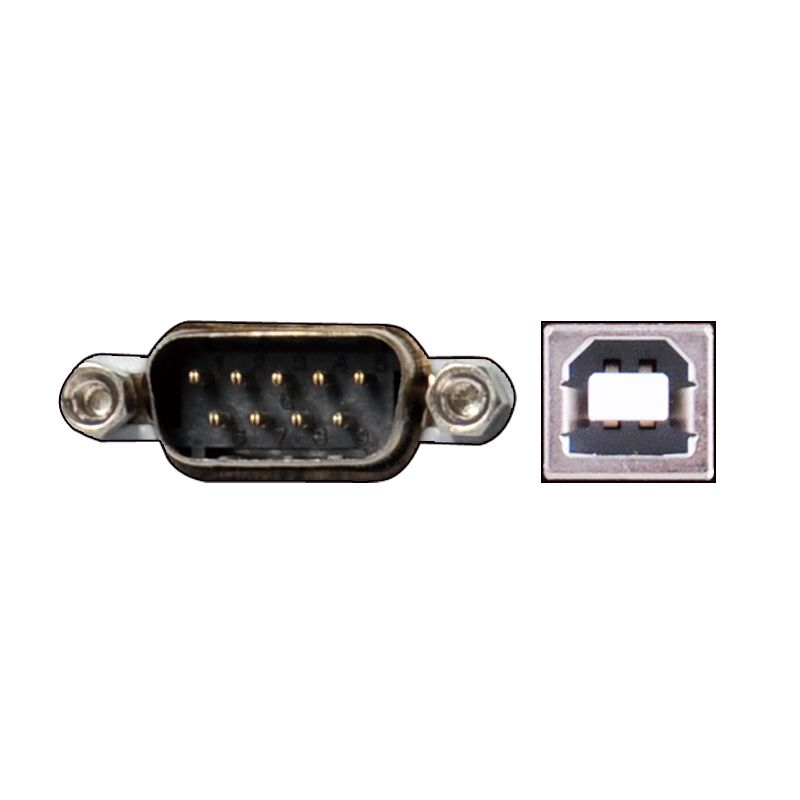

Standard USB Device and RS-232 communication interfaces.
| CHA | ||
| TFG3605 TFG3615 TFG3610 | ||
| Frequency | ||
| Range | Sine | 1μHz ~ 500MHz 1μHz ~ 1500MHz 1μHz ~ 1000MHz |
| Square | 1μHz ~ 80MHz | |
| Resolution | 1μHz (carrier frequency≤80MHz) | |
| 1Hz (carrier frequency>80MHz) | ||
| Accuracy | ±1ppm, Frequency≥1.0kHz, 18℃ to 28℃ | |
| ±50ppm, Frequency＜1.0kHz, Min. output 1μHz | ||
| Sine Output Level | ||
| Range | Freq≤500MHz | -127dBm ~ +13dBm (-127dBm ~ -117dBm typical) |
| Freq≤1000MHz | -110dBm ~ +13dBm (-100dBm ~ -110dBm typical) | |
| Freq≤1500MHz | -105Bm ~ +10dBm (-100dBm ~ -105dBm typical) | |
| Resolution | 0.1dB | |
| Accuracy | Freq≤300MHz | setting ±1dBm (output level +13dBm~-100dBm) |
| Freq≤1500MHz | setting ±2.2dBm (output level +13dBm~-80dBm, setting value±1.5dBm typ. ) | |
| setting ±2.7dBm (output level -80dBm~-100dBm, setting value±2.0dBm typ.) | ||
| Stationary Wave Ratio (SWR) | < 1.8 (output level≤0dBm) | |
| Spectrum Purity | ||
| Harmonic | < -33dBc (output level≤4dBm,typical value) | |
| Non-Harmonic | < -40dBc (output level≤4dBm, deviation CF≥5kHz） | |
| Sub-Harmonic | < -40dBc (output level≤4dBm） | |
| Residual FM | < 100Hz（BW: 0.3 ~ 3kHz, RMS< 120MHz） | |
| Square | ||
| Rise/Fall Time | ≤15ns | |
| Overshoot | ≤5% | |
| Modulation | ||
| Type | AM, FM, FSK, PSK | |
| External Modulation Input | Voltage Range: 5V full scale,Input Impedance: 10kΩ, Frequency: DC to 10kHz | |
| Frequency Sweep | ||
| Sweep Rate | 1ms ~ 800s Linear (carrier ≤80MHz) | |
| 100ms ~ 800s Logrithm (carrier ≤80MHz) | ||
| Step Time | 50ms ~ 10s Linear (carrier>80MHz) | |
| Burst (Carrier Frequency≤80MHz) | ||
| Burst Count | 1 to 10000 cycles | |
| Interval | 0.1ms to 800s | |
| CHB | ||
| Frequency | ||
| Range | 1μHz ~ 10MHz | |
| Resolution | 1μHz | |
| Accuracy | ±1ppm, Frequency≥1.0kHz, 18℃ to 28℃ | |
| ±50ppm, Frequency＜1.0kHz, Min. output 1μHz | ||
| Waveform | ||
| Type | Sine, Square, Ramp, Pulse, Sinc, Exp, Noise, DC | |
| Square | Rise/Fall Time | ≤50ns |
| Duty Cycle | 0.01% ~ 99.99% | |
| Pulse | Rise/Fall Time | ≤50ns |
| Pulse Width | 20ns ~ 20s | |
| Ramp | Symmetry | 0.0% ~ 100.0% |
| Output | ||
| Amplitude | 1mVpp to 10Vpp (50Ω), 2mVpp to 20Vpp (High Z) | |
| Offset | ±5Vpk ac+dc (50Ω), ±10Vpk ac+dc (High Z) | |
| Resolution | 5mVpp | |
| Accuracy | ±(1% of setting + 10mVpp) (1kHz Sine) | |
| Flatness | ± 0.5dB (1MHz Sine, 1Vpp) | |
| General Characteristics | ||
| Power | AC100V~240V, 50/60Hz,50VA Max | |
| Dimension & Weight | 254×103×374 mm, 4.2 kg | |
