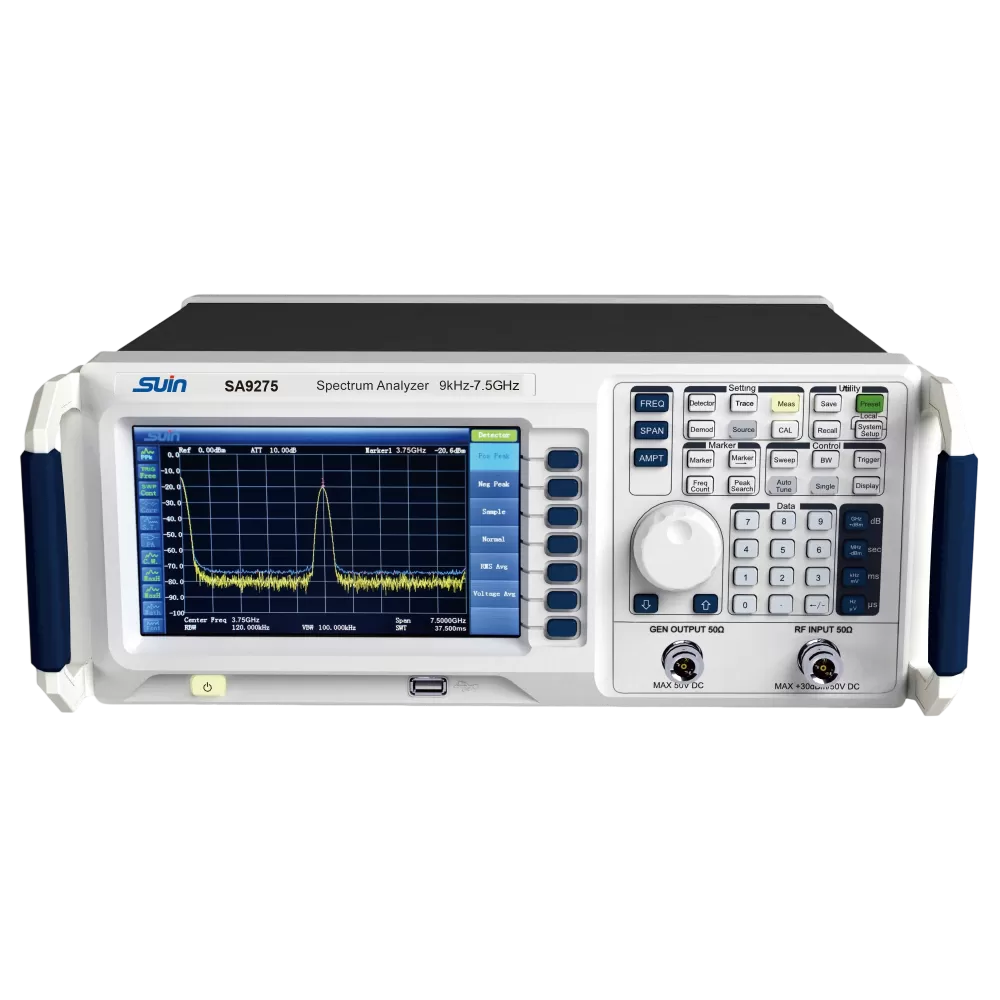

SA9200 Series
9kHz-3.2GHz/9kHz-7.5GHz RF Spectrum Analyzer
9kHz-3.2GHz/9kHz-7.5GHz RF Spectrum Analyzer

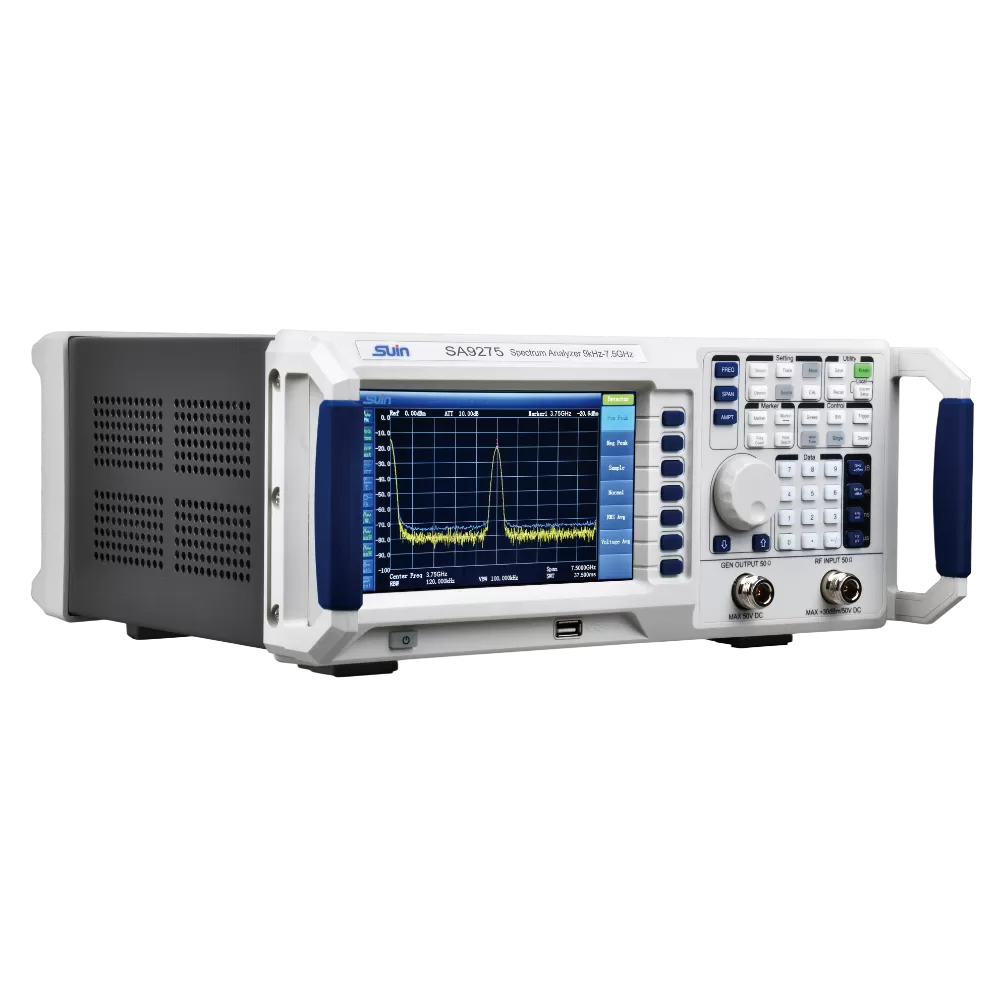

SA9200 Series is a high-performance RF spectrum analyzer with models SA9232 (9kHz~3.2GHz) and SA9275 (9kHz~7.5GHz), along with -TG variants featuring a tracking generator. It adopts all-digital IF technology, boasting a minimum DANL of -160dBm, phase noise of < -100dBc/Hz @10kHz offset (typ.), and total amplitude accuracy < 0.8dB. Standardly equipped with a preamplifier and EMI filter, it offers advanced functions like adjacent channel power and occupied bandwidth analysis, with a user-friendly interface and reliable measurements.
Applications
Research and Development
Analyze high-frequency signals in wireless communication and aerospace research, supporting precise signal characterization.
Education
Facilitate teaching of RF principles, allowing students to observe and study signal spectra intuitively.
Production Testing
Verify performance of RF components (e.g., filters, transmitters) during manufacturing, ensuring compliance with standards.
Maintenance
Troubleshoot communication equipment and systems, identifying interference and signal anomalies efficiently.
Pre-Compliance Testing

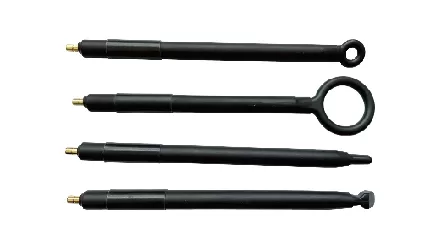

Conduct EMI radiated emissions tests with optional probes, aiding in product certification preparation.

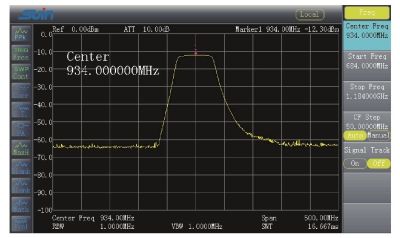

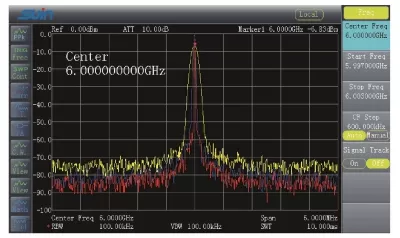

Lets you adjust the range of frequencies looked at, fitting various needs for checking signals.
A function that checks how signals interact with components, giving basic insights into their performance in RF setups.

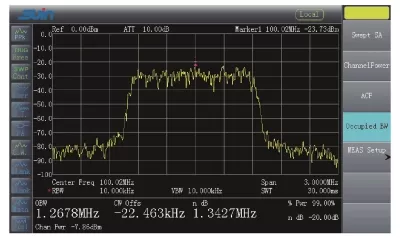

Shows the frequency range a signal takes up, useful for seeing if it stays within allowed limits.

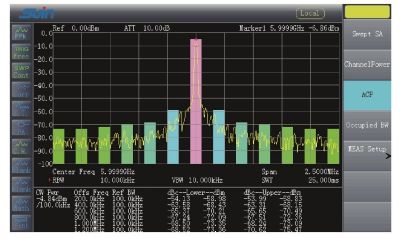

Looks at how much signal spills over into nearby channels, helping gauge potential interference.
| SA9232 | SA9275 | |
| Frequency Range | 9kHz~3.2GHz | 9kHz~7.5GHz |
| Resolution | 1Hz | |
| Aging Rate | ≤1*10-6/year | |
| Frequency Span | ||
| Frequency Span Range | 0Hz, 100Hz~3.2GHz | 0Hz, 100Hz~7.5GHz |
| Uncertainty | ±span/(sweep points-1) | |
| SSB Phase Noise(fc=1.0GHz) | -96dBc/Hz @ 10 kHz offset | |
| Bandwidth | ||
| Resolution Bandwidth (-3dB) | 10Hz~1MHz, step 1-3-10 | |
| RBW Uncertainty | 10%, nominal (RBW>1kHz) 20%, nominal(RBW≥10Hz, sweep time≥5s) | |
| Video Bandwidth (-3dB) | 1Hz to 1MHz, step 1-3-10 | |
| Amplitude | ||
| Range | DANL to +20dBm | |
| Maximum Input Level | DC Voltage: 50V | |
| CW RF Power: +20dBm (0.1W) | ||
| Max.Damage Level: +30dBm (1W) | ||
| Displayed Average Noise Level (DANL) | ||
| DANL (Preamplifier Off) | typ. -135 dBm | |
| DANL (Preamplifier On) | typ. -152dBm | |
| Reference Level Range | -100 dBm to +30 dBm, step 1 dB | |
| Sweep | ||
| Sweep Time Range | 1ms to 7500 s (100Hz≤Span≤7.5GHz) | |
| 20 μs to 7500 s (Span=0 Hz) | ||
| Sweep Time Uncertainty | 5%, nominal (100Hz≤Span≤7.5GHz) | |
| 0.5%, nominal (Span=0 Hz) | ||
| Sweep Mode | Continuous, Single | |
| Trigger | ||
| Trigger Source | Free, Video, External | |
| External Trigger Level | 5 V TTL level | |
| Advanced Measurement | ||
| Channel Power, Adjacent Channel Power, N-dB bandwidth, Occupied Bandwidth | ||
| EMI | 200Hz, 9kHz, 120kHz | |
| Input/Output | ||
| RF Input Impedance | 50 Ω | |
| Standard frequency | Frequency: 10MHz | |
| Amplitude: 0dBm~10dBm (input) -3dBm to +3dBm (output) | ||

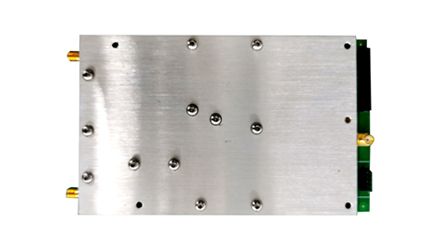

| Tracking Generator(-TG Model) | ||
| TG Frequency range | 100kHz to 3.2GHz | 100kHz to 7.5GHz |
| TG Output level range | -40dBm to 0dBm | |
| TG Output level resolution | 1dB | |

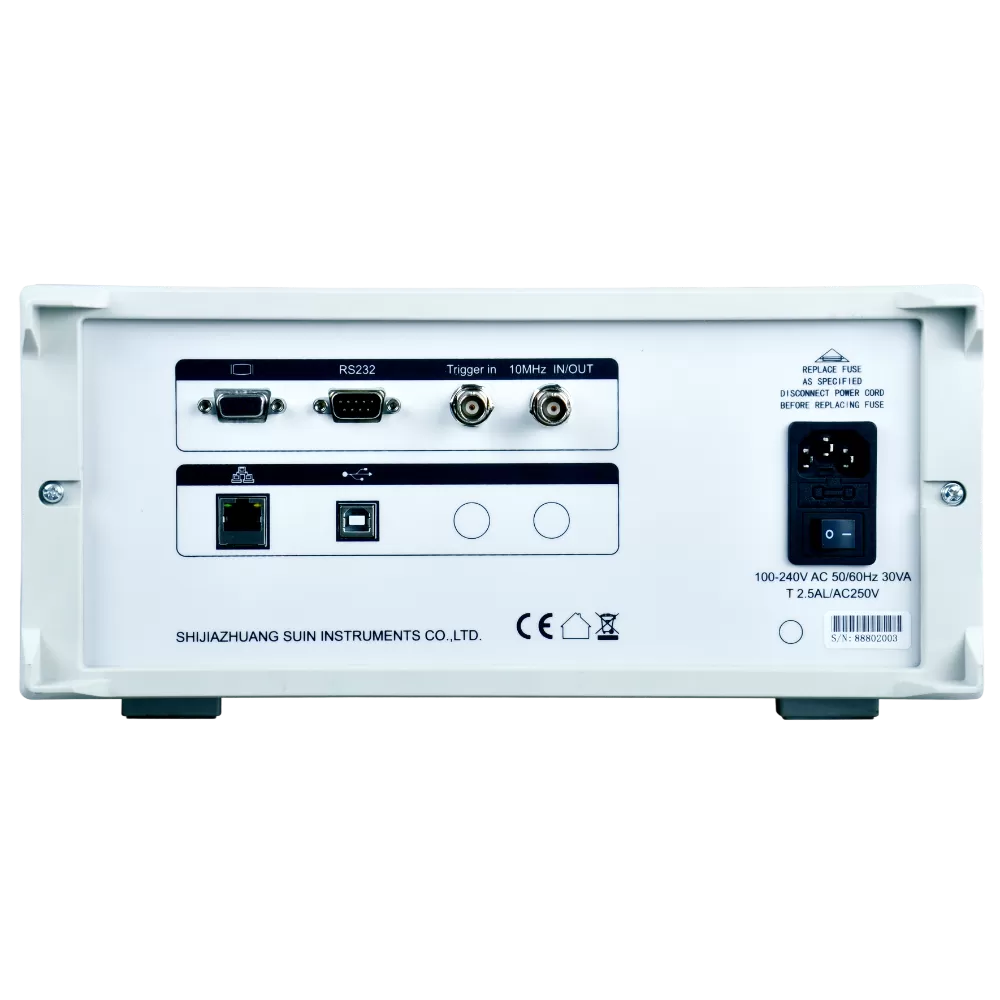

| Interface | ||
| Type | USB Host & Device, LAN, VGA | |
| General Characteristic | ||
| Power Supply | Input Voltage: AC100V to 240V | |
| Frequency: 50/60Hz (1±10%) | ||
| Power Consumption: 35W | ||
| Dimension & Weight | 364*155*328 mm, Approx. 6.5kg | |
Power Cord

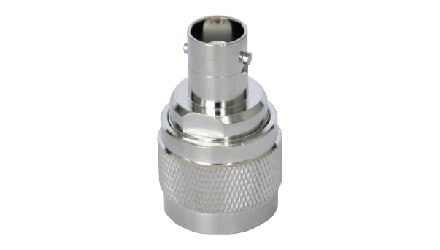

N-BNC Connector
CD
