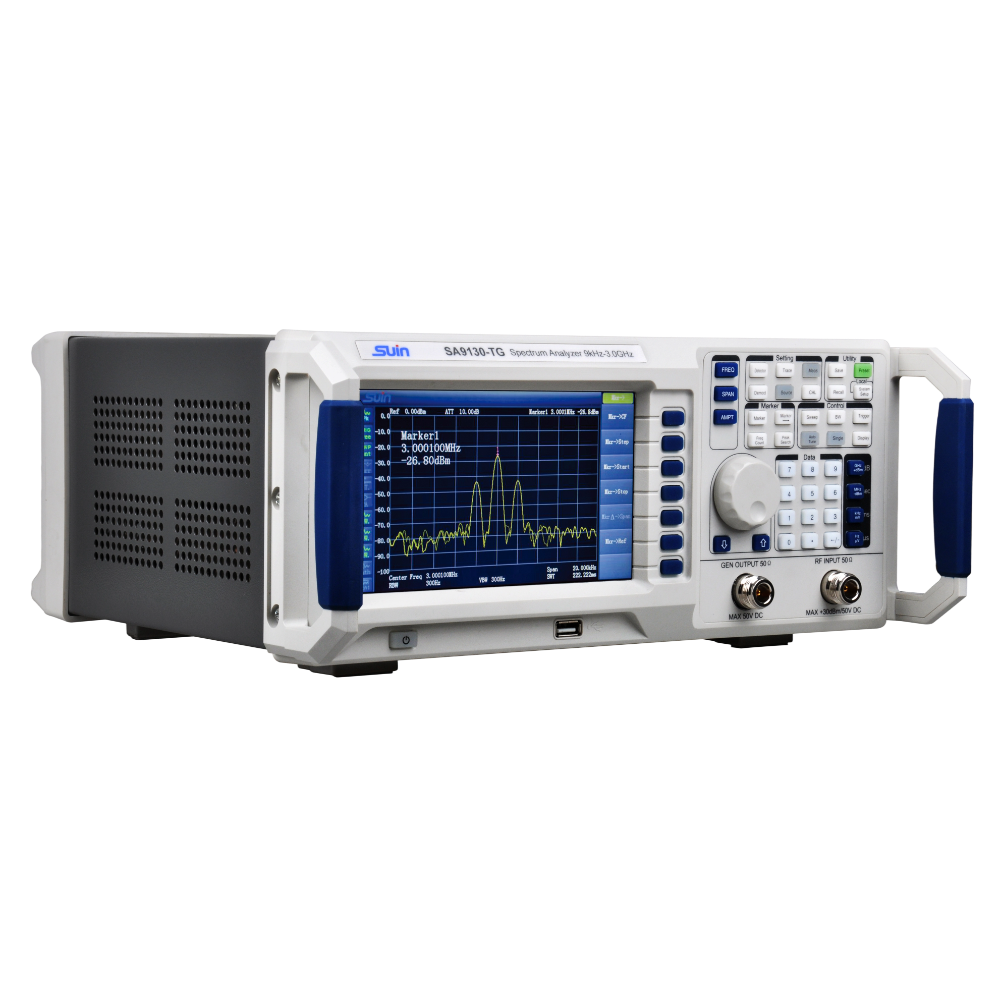

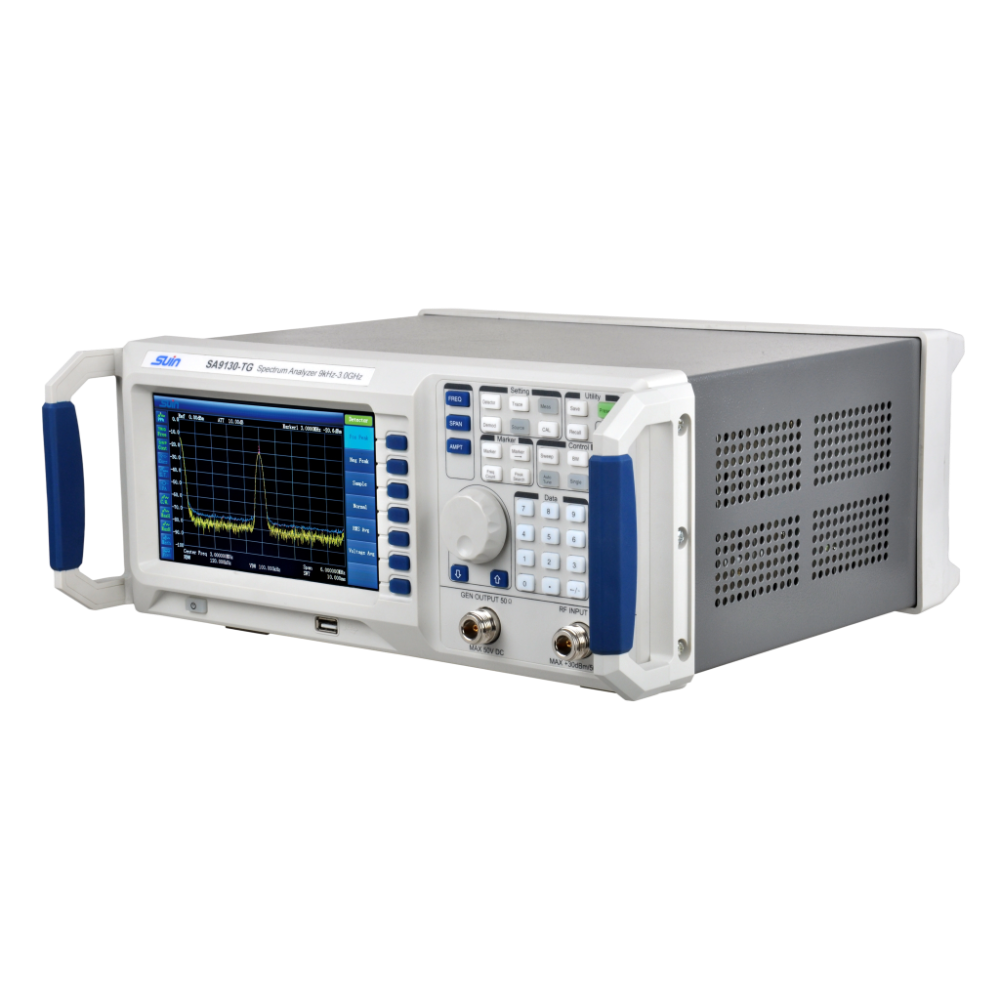

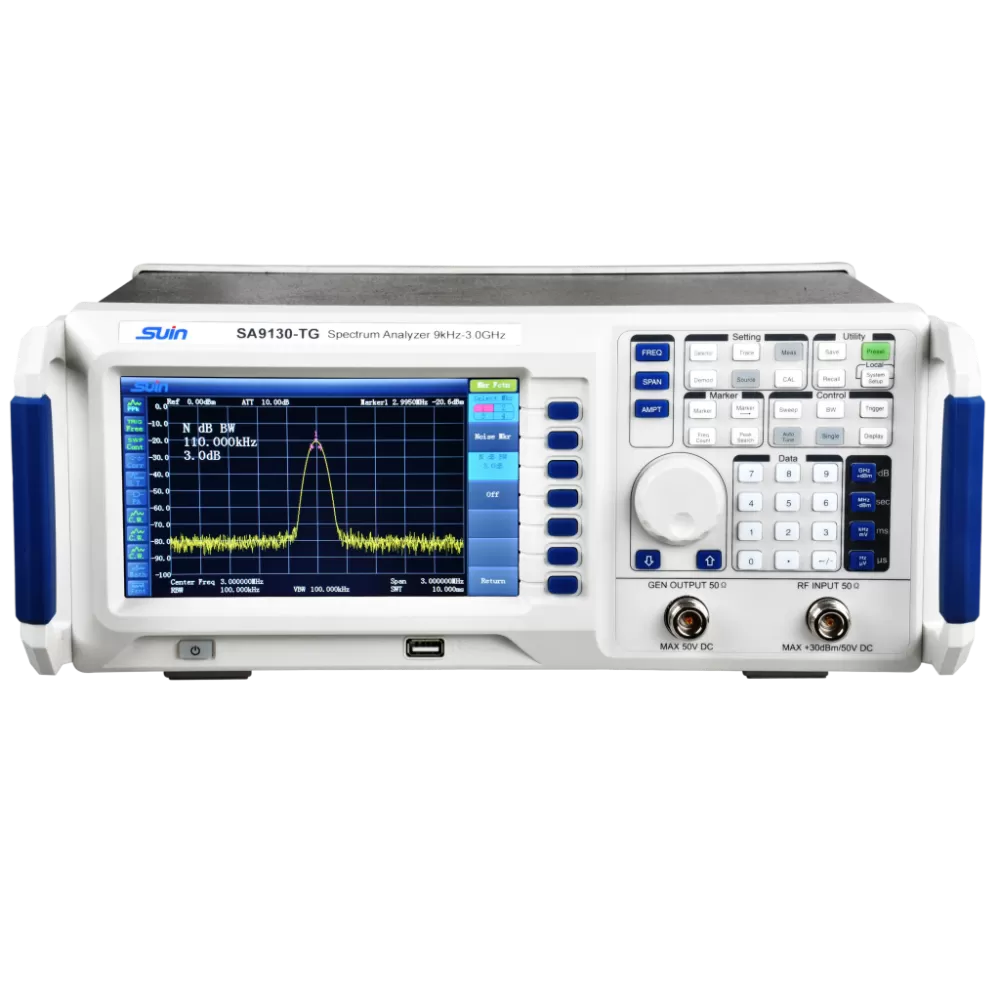

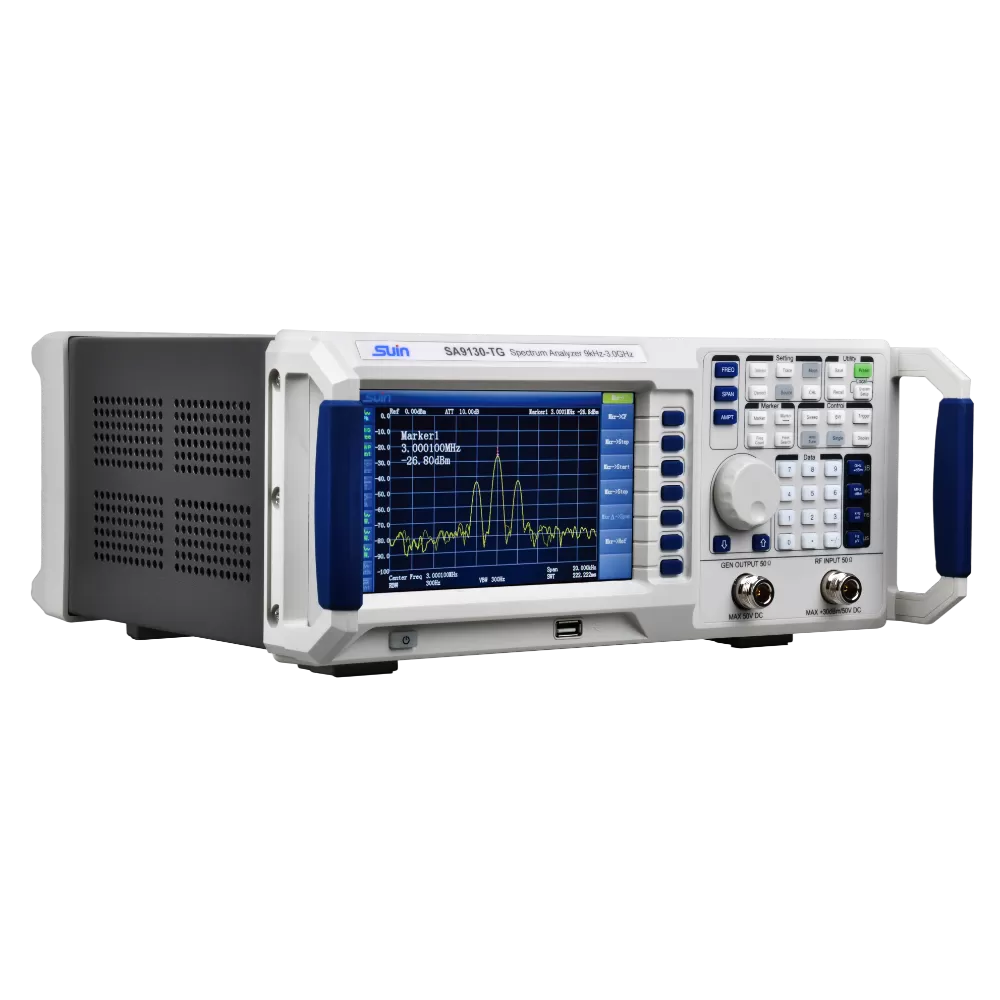

SA9100 Series
Inexpensive RF Spectrum Analyzer
Inexpensive RF Spectrum Analyzer
SA9100 Series is an affordable RF spectrum analyzer with models SA9115/SA9130 and their -TG variants (with optional tracking generator). Covering 9kHz to 1.5GHz (SA9115) or 3.0GHz (SA9130), it features high sensitivity (DANL typ. -135dBm with preamp on), phase noise of -80dBc/Hz (10kHz offset), and RBW from 1Hz to 1MHz. Equipped with a 7' TFT LCD and multiple interfaces (USB, LAN, RS232, VGA), it offers full measurement functions, auto-setting, and advanced capabilities like channel power and EMI testing, balancing cost and performance for RF analysis.
Applications
Wireless Communication
Analyze 5G NR (n77/n78/n79) and Wi-Fi 6E signals, verifying frequency and power compliance.
IoT Device Testing
Detect weak signals from IoT devices with high sensitivity, ensuring reliable transmission.
EMI/EMC Pre-Compliance
Use built-in functions to check electromagnetic interference, aiding in product certification.
Component Characterization
Test filters, cables, and oscillators via tracking generator for frequency response and phase noise.
Production Floor Testing
Perform quick pass/fail checks on RF components, balancing throughput and accuracy.
Field Maintenance
Troubleshoot field equipment like transmitters and receivers, identifying interference and signal anomalies.

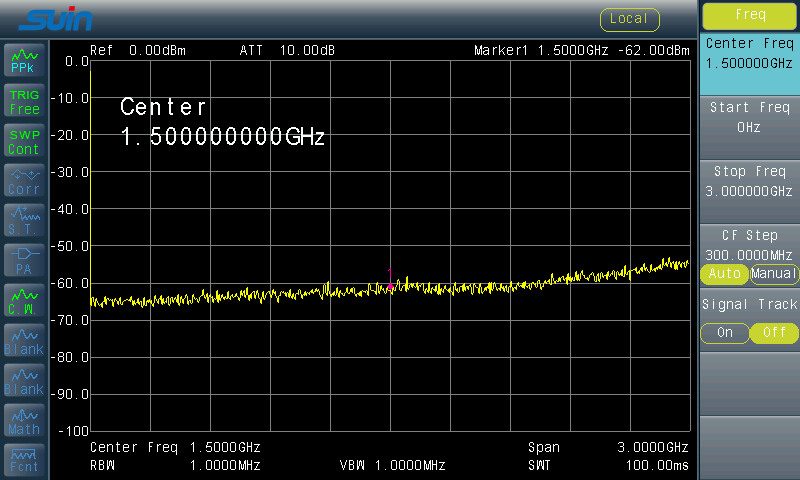

SA9100 Series can provide 9 kHz~3 GHz signal measurement, which is suitable for digital mobile communication or RF microwave components manufacturing, etc.

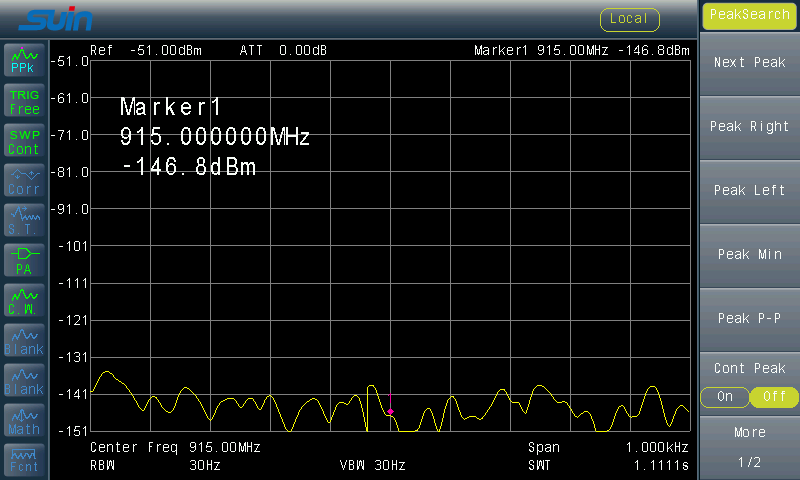

Typical -135 dBm DANL @ preamplifier on can be provided to meet the higher and strict test requirement.
Standardly configured with EMI filter, suitable for EMI testing together with near field probes.

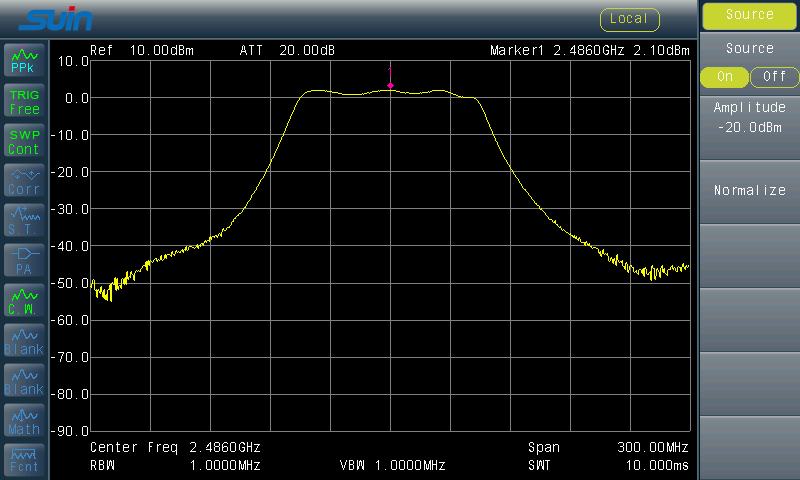

Up to 3 GHz tracking generator option can be selected by customers to work as a simple network analyzer to test the filter or antenna.
| SA9115 | SA9130 | |||
| Frequency | ||||
| Range | 9kHz ~ 1.5GHz | 9kHz ~ 3.0GHz | ||
| Resolution | 1Hz | |||
| Frequency Span | ||||
| Frequency Span Range | 0Hz, 100Hz ~ 1.5GHz | 0Hz, 100Hz ~ 3.0GHz | ||
| Uncertainty | ±span/(sweep points-1) | |||
| SSB Phase Noise(fc=1.0GHz) | -80dBc/Hz @10kHz offset | |||
| Bandwidths | ||||
| Resolution Bandwidth (-3dB) | 10Hz ~ 1MHz, step 1-3-10 | |||
| RBW Uncertainty | 10%, nominal (RBW>1kHz) | |||
| 20%, nimial(RBW≥10Hz, sweep time≥5s) | ||||
| Video Bandwidth (-3dB) | 1Hz to 1MHz, step 1-3-10 | |||
| Amplitude | ||||
| Range | DANL to +30dBm | |||
| Maximum Input Level | DC Voltage: 50V | |||
| CW RF Power: +30dBm (1.0W) | ||||
| Max.Damage Level: +40dBm (10W) | ||||
| Displayed Average Noise Level (DANL) | ||||
| DANL (Preamplifier Off) | typ. -125 dBm | |||
| DANL (Preamplifier On) | typ. -135 dBm | |||
| Reference Level Range | -100dBm to +30dBm, step 1dB | |||
| Sweep | ||||
| Sweep Time Range | 100Hz≤Span≤3GHz | 10 ms to 3000 s | ||
| Span=0 Hz | 20 μ;s to 3000 s | |||
| Sweep Time Uncertainty | 100Hz≤Span≤3GHz | 5%, nominal | ||
| Span=0 Hz | 0.5%, nominal | |||
| Sweep Mode | Continuous, single | |||
| Trigger | ||||
| Trigger Source | Free, Video, External | |||
| External Trigger Level | 5 V TTL level | |||
| Advanced measurement | ||||
| Channel Power, Adjacent Channel Power, N-dB bandwidth, Occupied Bandwidth | ||||

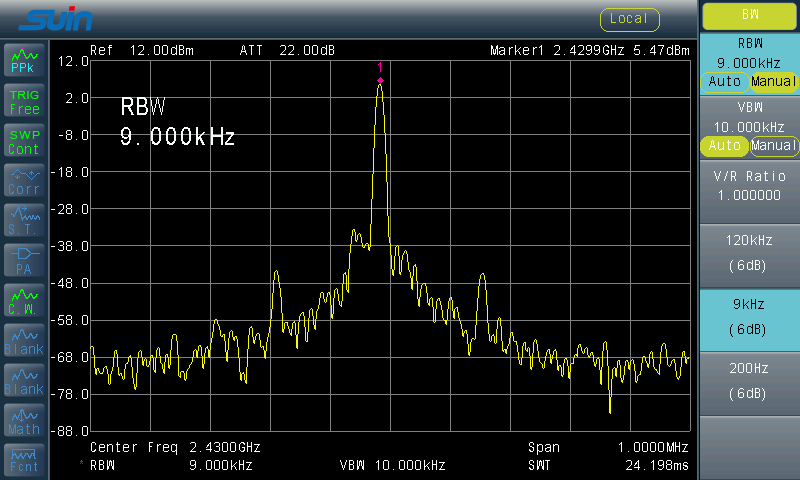

| EMI | 200Hz, 9kHz, 120kHz | |||
| Input/Output | ||||
| RF Input Impedance | 50Ω | |||
| Standard frequency | Frequency: 10MHz | |||
| Amplitude: 0dBm~10dBm(input) -3dBm to +3dBm (output) | ||||
| TRACKING GENERATOR (-TG Model) | ||||
| TG Frequency range | 9kHz to 1.5GHz | 9kHz to 3GHz | ||
| TG Output level range | -20dBm to 0dBm | |||
| TG Output level resolution | 1dB | |||
| Interface | ||||

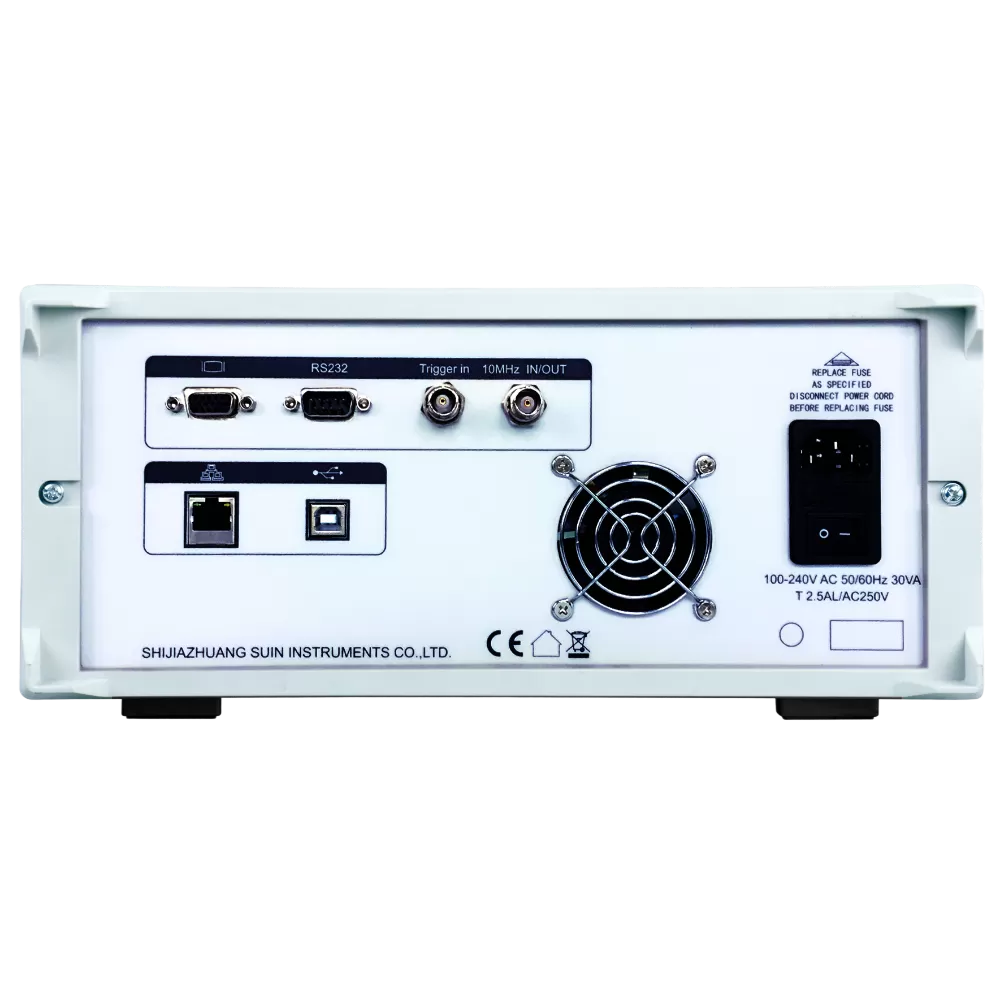

| Type | USB Host & Device, LAN, VGA, RS-232 | |||
| GENERAL CHARACTERISTIC | ||||
| Power Supply | Input Voltage | AC100V to 240V | ||
| Frequency | 50/60Hz(1±10%) | |||
| Power Consumption | 35W | |||

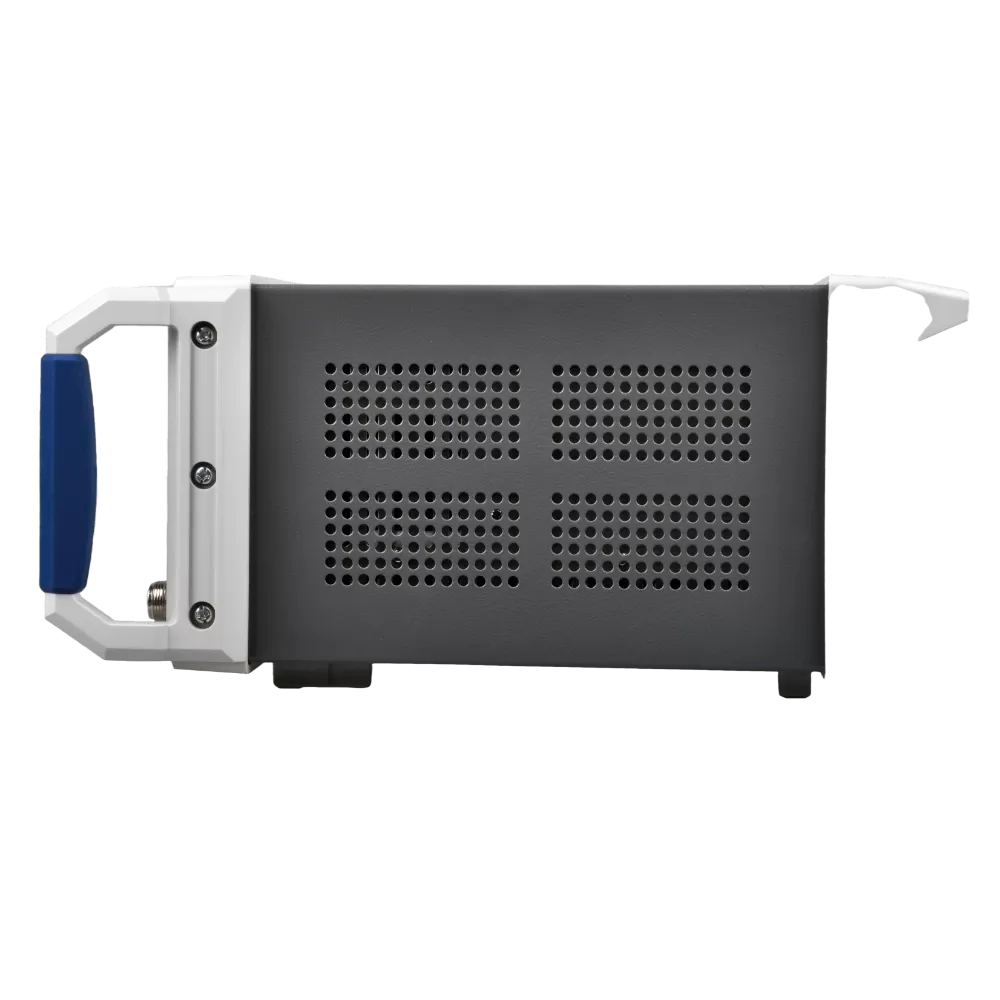

| Dimension & Weight | 363×154×327mm, approx. 6.0kg | |||
Power Cord
N-BNC Connector
CD
