2 GHz~12GHz Microwave Signal Generator
2 GHz~12GHz Microwave Signal Generator

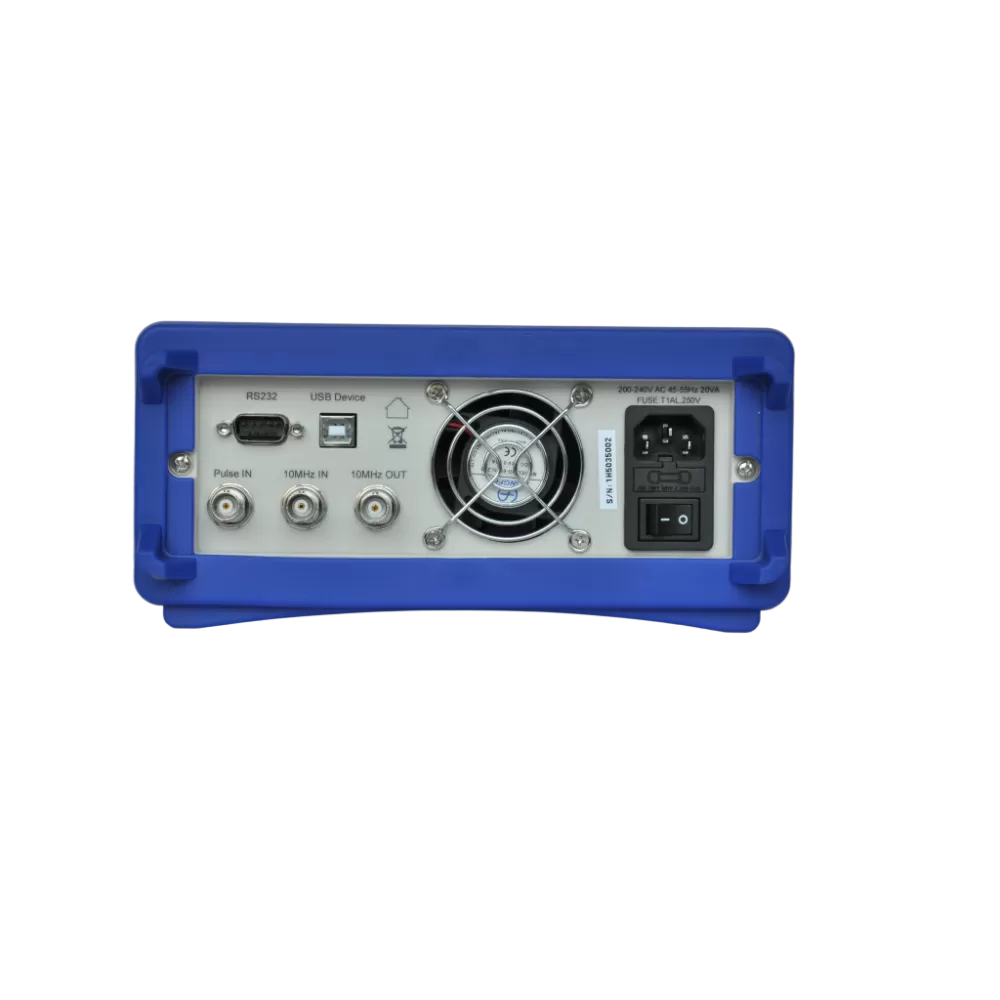

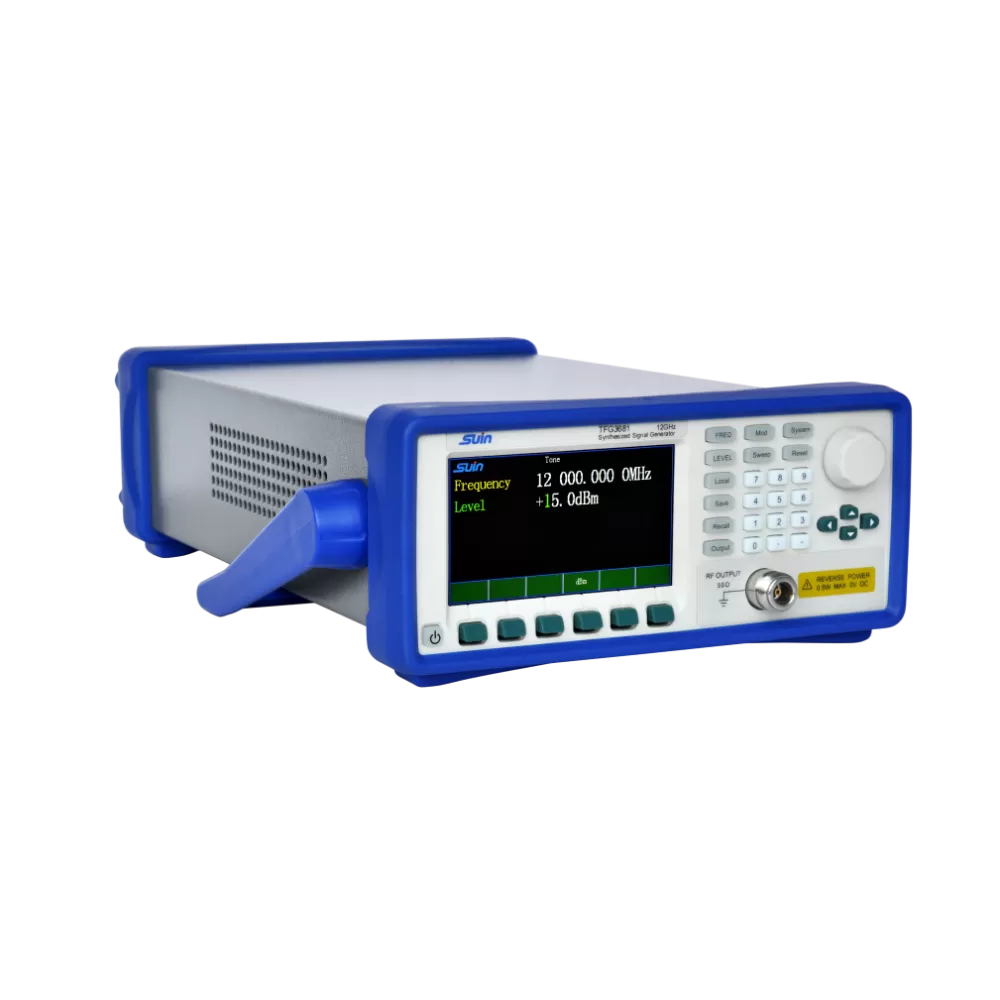

A microwave signal generator is a device that produces a continuous or pulsed microwave frequency signal. It is used in various applications such as testing and troubleshooting microwave communication systems, radars, and other electronic equipment.
Application
Microwave & Millimeter-Wave Testing
Used to test and calibrate components like amplifiers, mixers, filters, and antennas operating at 12 GHz.
Essential for verifying performance in 5G/6G, Wi-Fi 6E/7, and satellite communication systems.
Radar Systems & Defense Applications
Simulates radar signals for Doppler radar, synthetic aperture radar (SAR), and electronic warfare (EW) systems.
Used in testing phased-array antennas and radar receivers.
Satellite & Space Communications
Generates signals for Ku-band (12 GHz) satellite uplink/downlink testing.
Validates transponders, low-noise amplifiers (LNAs), and modems.

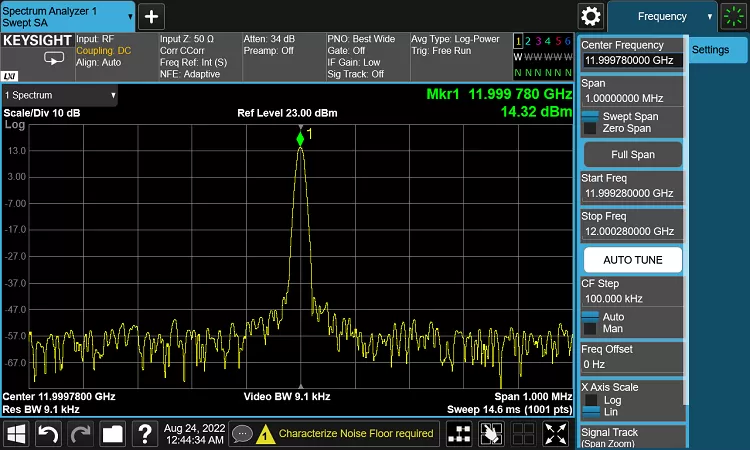

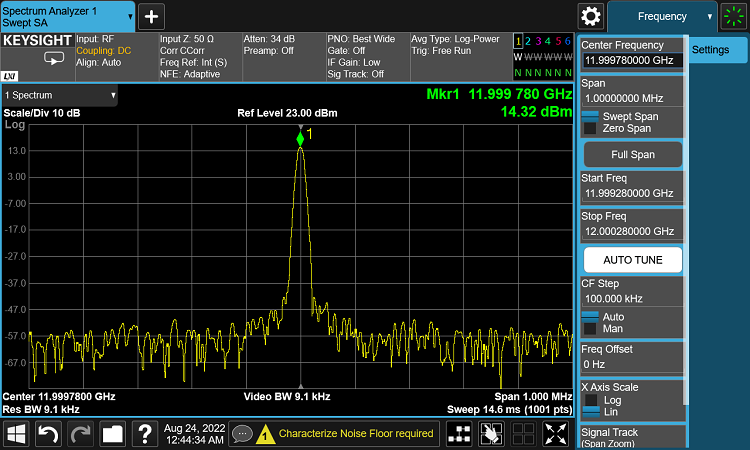

2 GHz~12 GHz high frequency and -20 dBm~+15 dBm level can be provided.

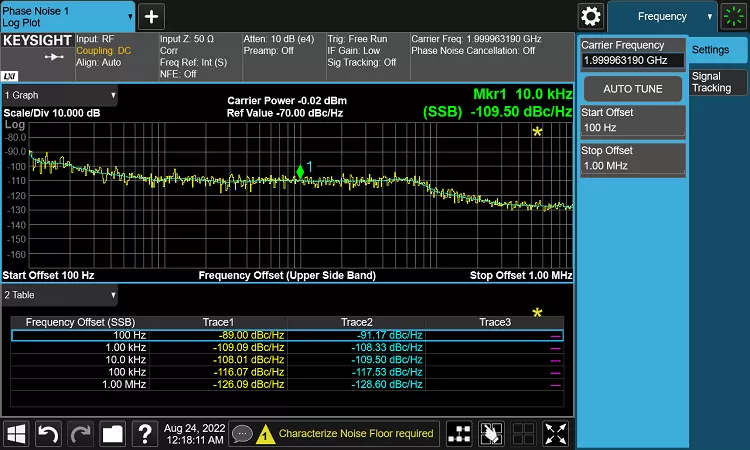

-95 dBc/Hz@100 kHz, -105 dBc/Hz@100 kHz(Typ.)

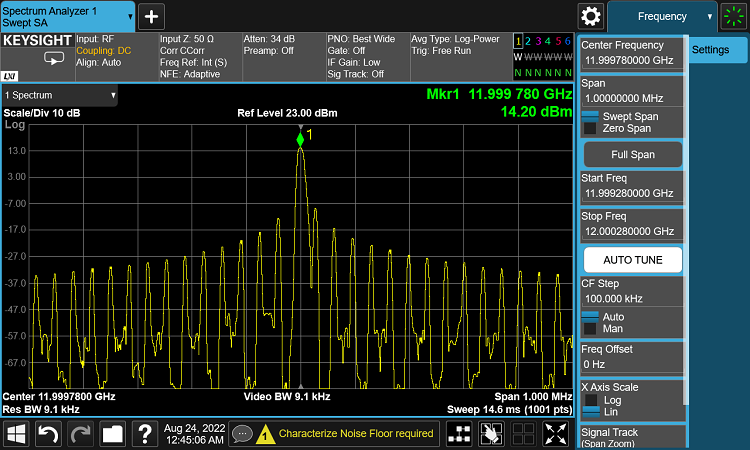

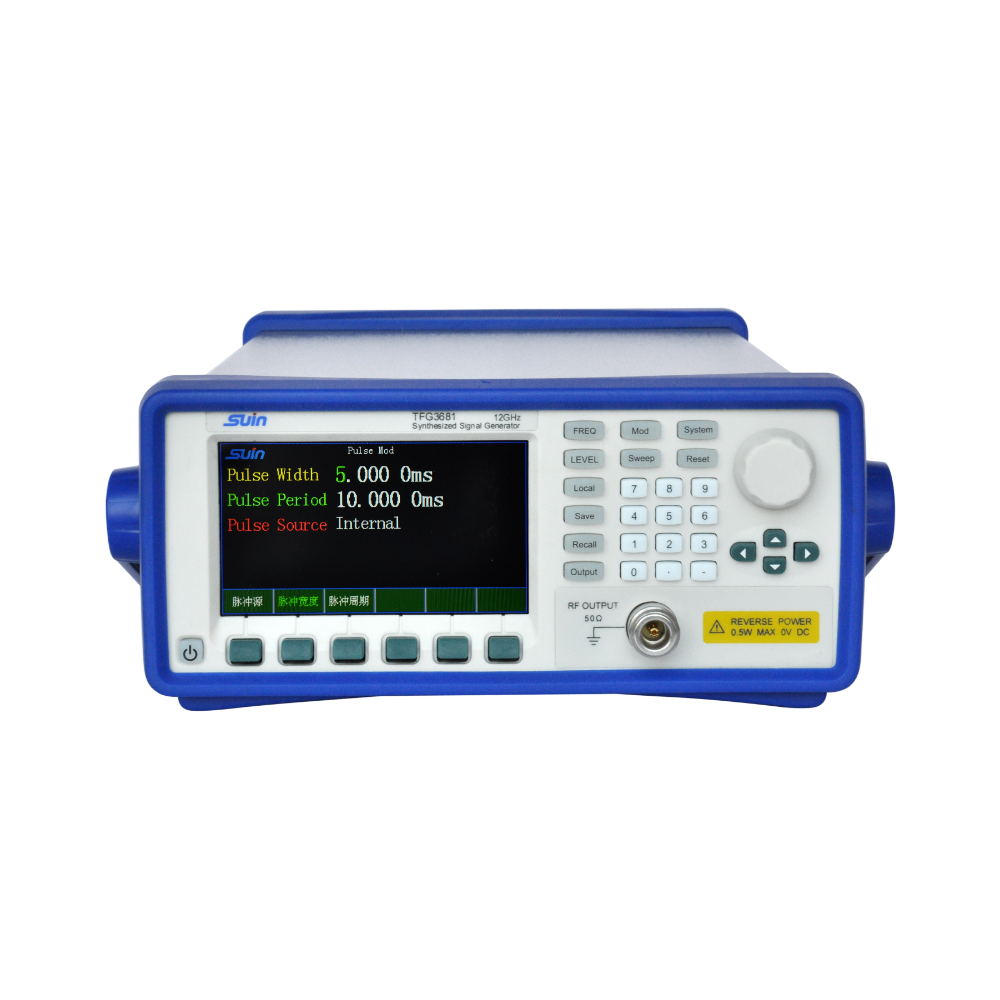

Standard pulse modulation can be provided to meet the radar, communication, ECM fields testing requirement.
| Frequency | ||
| Frequency Range | 2GHz~12GHz | |
| Resolution | 1Hz | |
| Accuracy | ±1ppm, 18ºC-28ºC | |
| Level | ||
| Setting Range | -20dBm~+15dBm | |
| Specified Range | -10dBm~+13dBm | |
| Resolution | 0.1dB | |
| Accuracy | ±1.5dBm of setting (output level:+13dBm~-10dBm) | |
| Output Impedance | 50Ω | |
| Spectrum Purity | ||
| Harmonic | <-33dBc | |
| Non-harmonic | <-40dBc | |
| Phase Noise | -95dBc/Hz@100kHz, -105dBc/Hz@100kHz(Typ.) | |
| Modulation | ||
| Internal Pulse Width | 0.1us-10ms | |
| Internal Pulse Period | 0.5us-10ms | |
| External Pulse Modulation | Pulse Width≥1.0us | |
| External Pulse Input Level | 0V/3.3V(low/high) | |
| General Characteristics | ||
| Power | AC100V~240V, 50(1±10%)Hz, 30VA | |
| Dimension&Weight | 256*106*386mm, 5.5kg | |
Power Cord

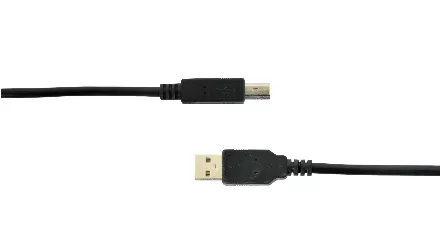

USB Cable
