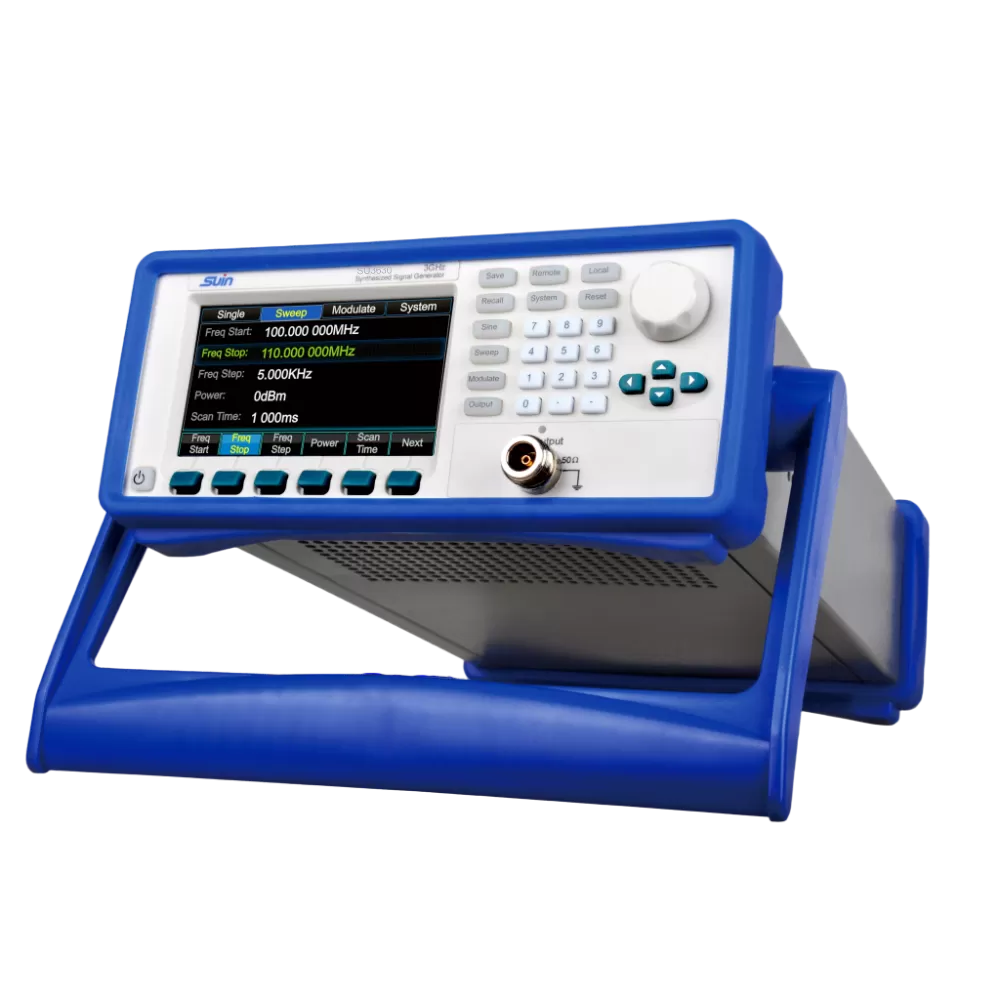

SU3630
3GHz Signal Generator
3GHz Signal Generator

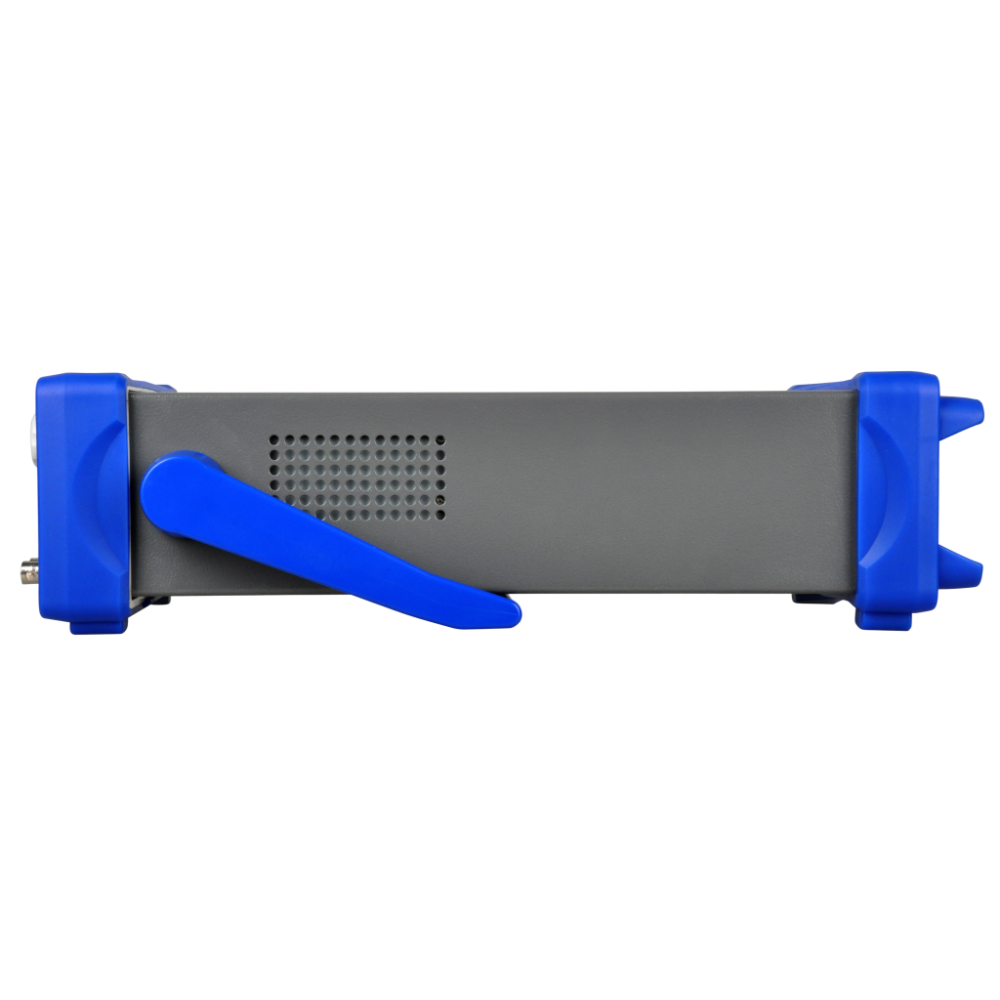

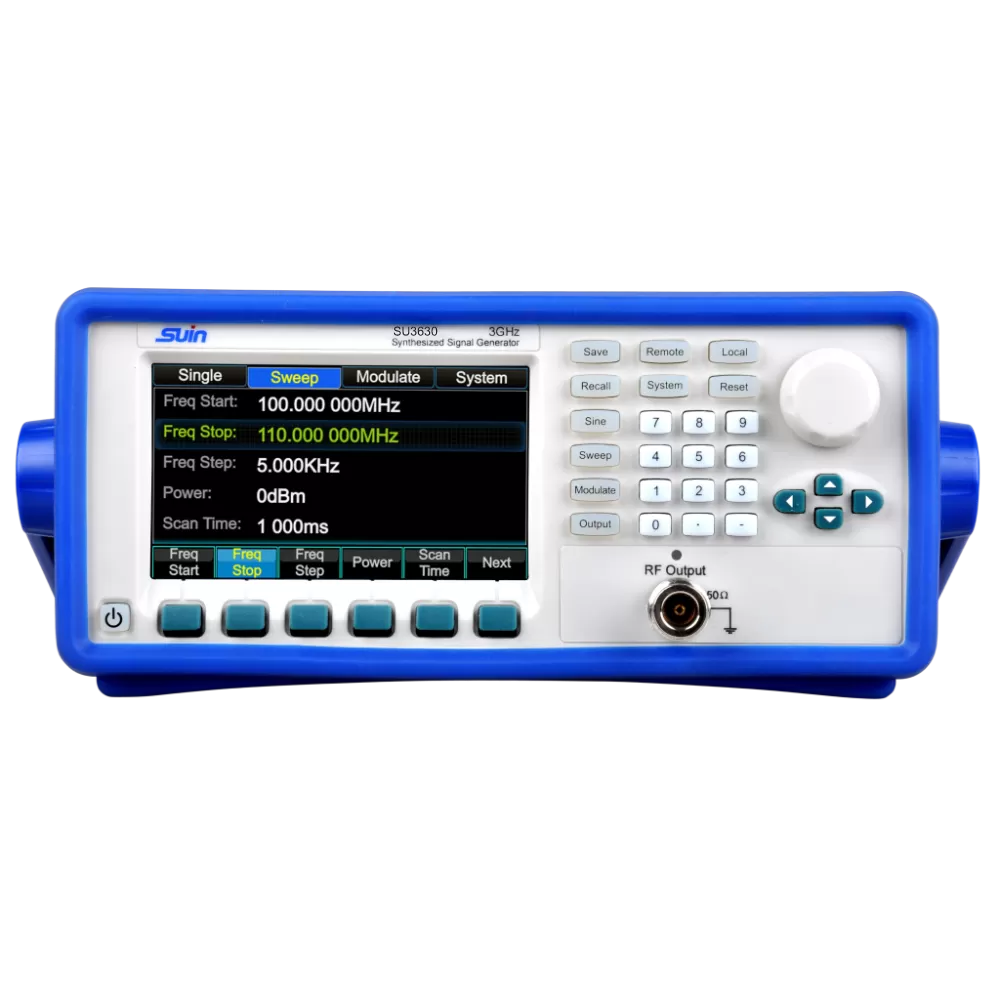

Adopting phase-lock technique(phase lock loop controlling the oscillator) to synthesize frequency signal, SU3630 Synthesized Signal Generator is 3GHz microwave synthesized signal generator, with reference frequency output 10MHz, low phase noise, 20kHz offset, -60dBm~ +10dBm output power range. High stability and high-frequency resolution, plus amplifier and pulse modulation function, make SU3630 have more applications in R&D, Lab, industrial field, test measurement and calibration, metrology systems.
Wireless Communication Testing
5G & LTE Testing: Used to simulate carrier frequencies for 5G, LTE, and other wireless standards.
Wi-Fi & Bluetooth: Generates signals for testing Wi-Fi (2.4 GHz) and Bluetooth devices.
RFID & NFC: Verifies the performance of RFID and NFC systems.
Radar & Satellite Systems
Radar System Calibration: Used in military and aviation radar testing (e.g., Doppler radar).
Satellite Communication: Simulates uplink/downlink signals for satellite transponders.
Component & Circuit Testing
Amplifier & Filter Testing: Evaluates frequency response, gain, and distortion in RF amplifiers and filters.
Mixer & Oscillator Testing: Tests frequency conversion and phase noise in mixers and local oscillators.
Antenna Characterization: Measures radiation patterns and impedance matching.

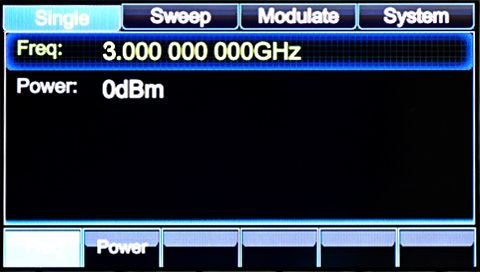

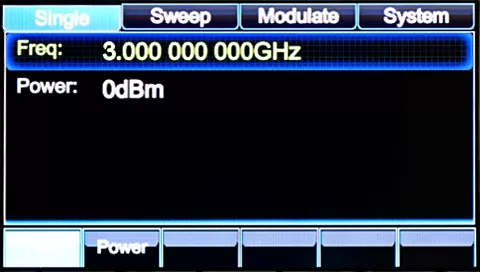

SU3630 Synthesized Signal Generator can provide 25 MHz~3 GHz RF signals to meet the test requirement of RF components, communication and signal simulation.

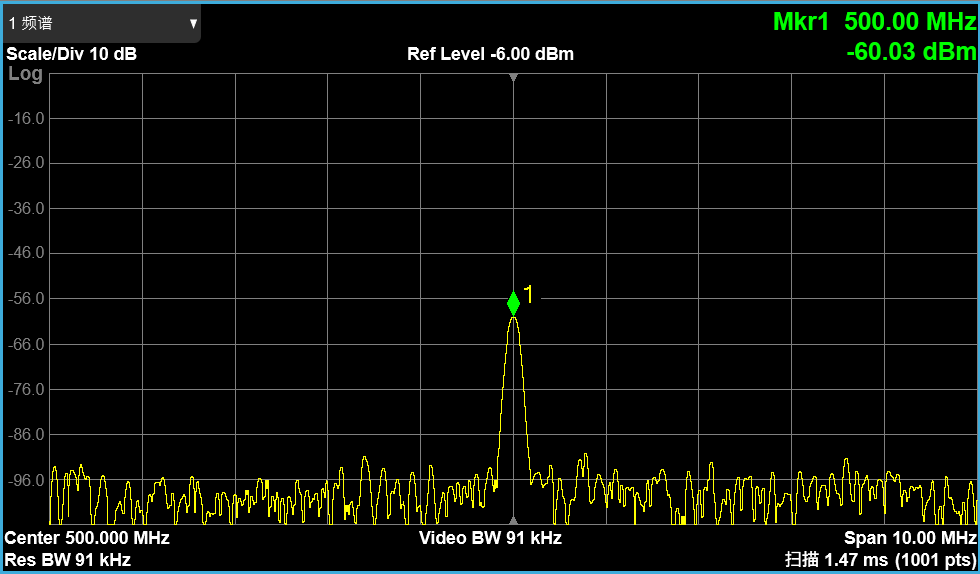

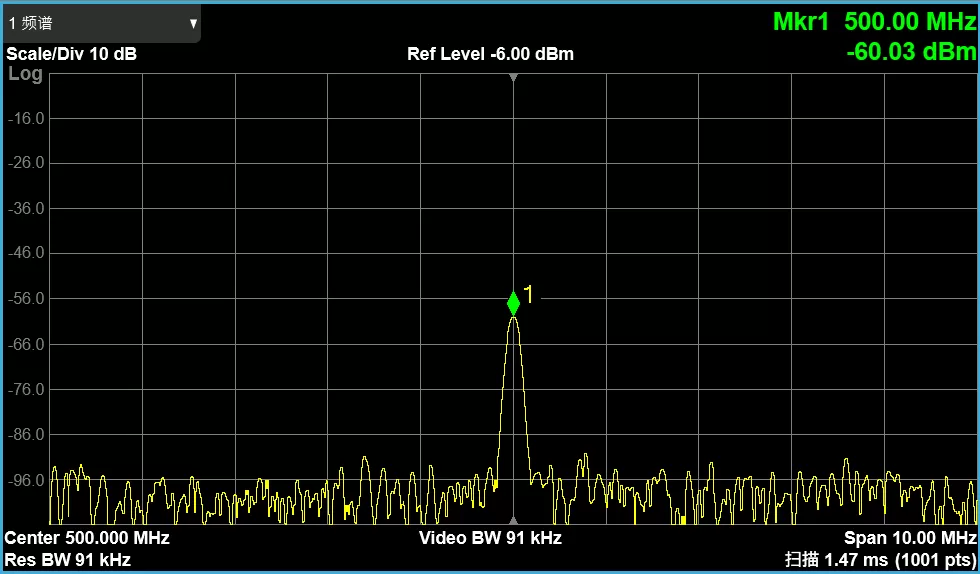

The minimum power SU3630 output can be lower to -60 dBm, which can cover the most testing requirements in communication protocols.
SU3630 can provide stable and high performance testing based on its ultra-low phase noise function.

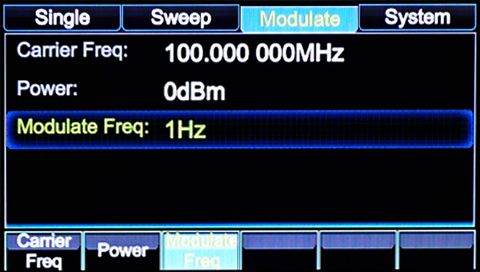

Basic pulse modulation function is available on SU3630 to simulate the signals in the communication.

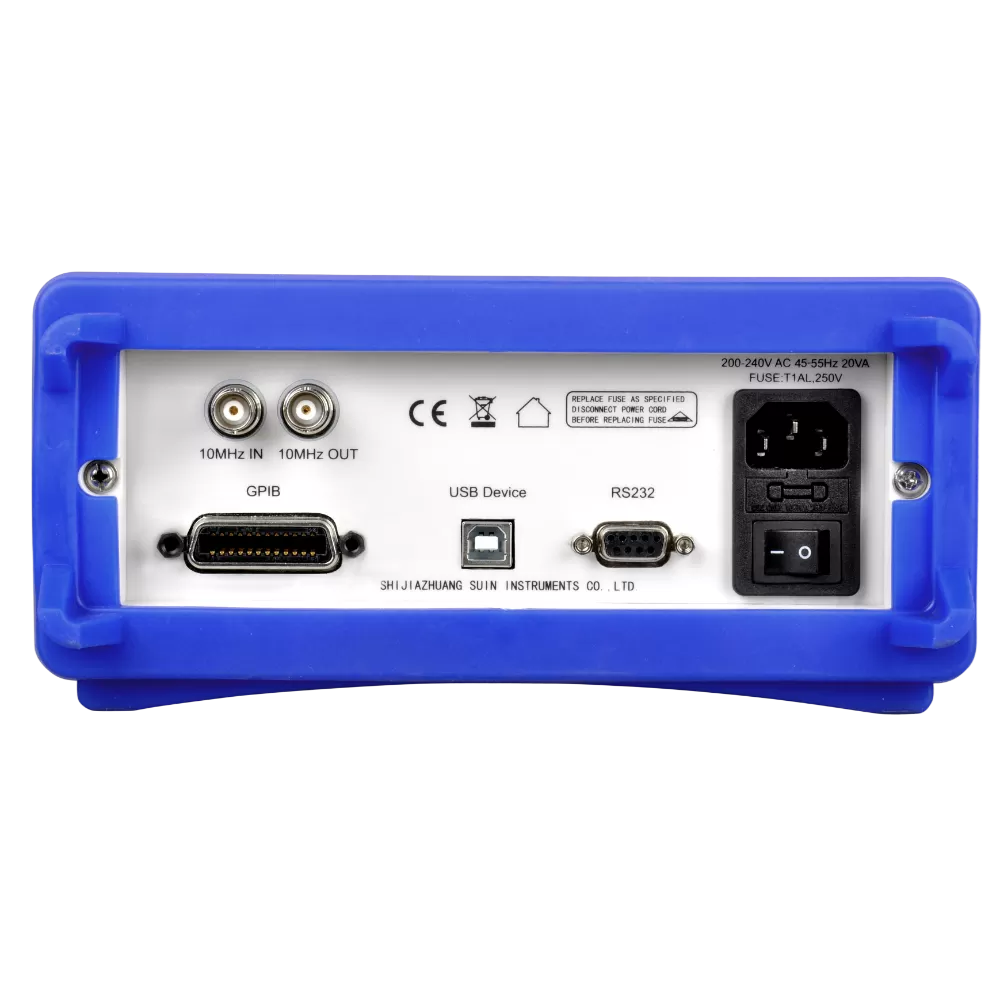

| Frequency | |
| Range | 25MHz~3GHz |
| Resolution | 3Hz |
| Reference Frequency | Reference Output: Frequency: 10MHz Level: >0dBm Port: BNC connector Reference Input: Frequency: 10MHz Power: -3dBm~+7dBm Input Port: BNC connectorImpedance(nominal): 50Ω |

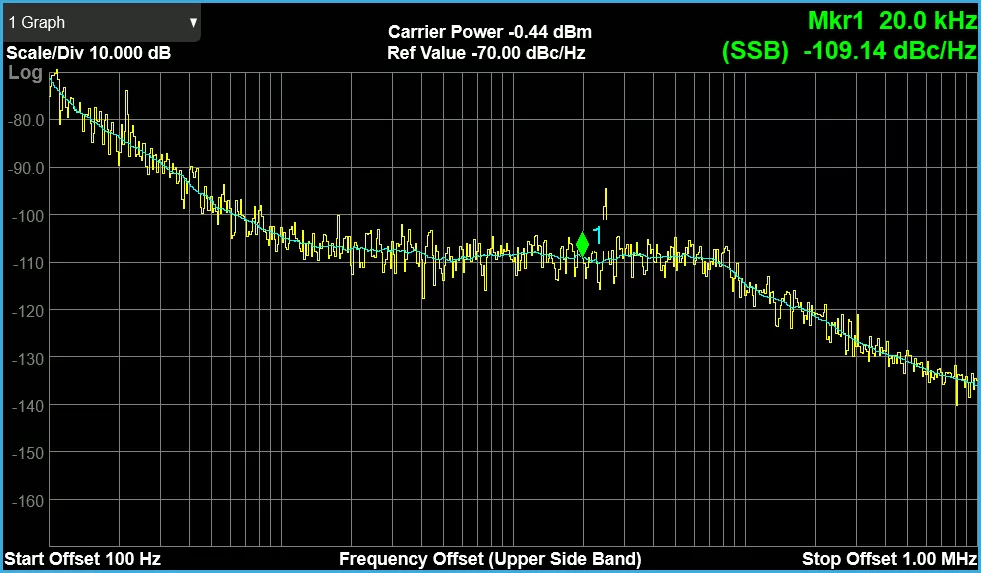

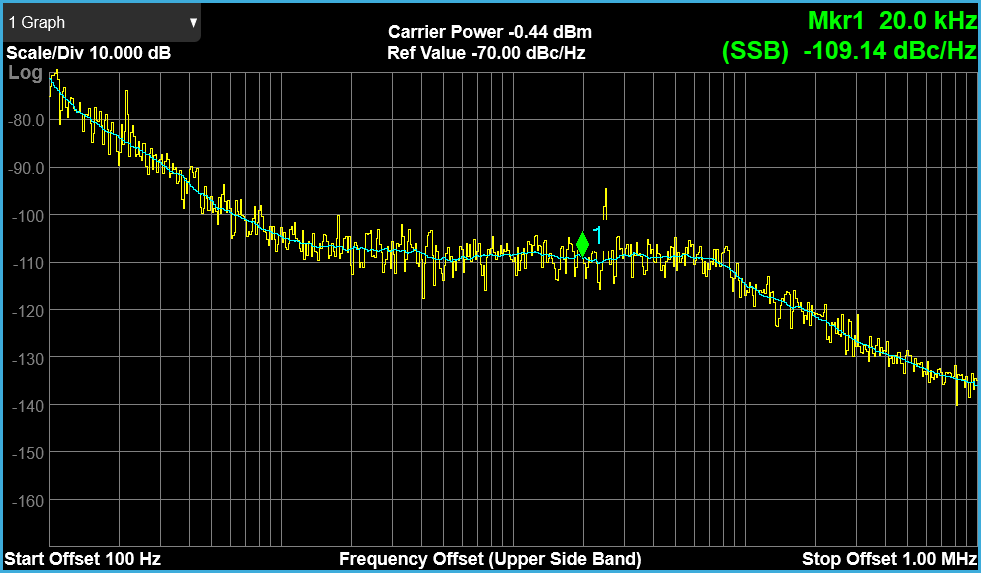

| Phase Noise | -90dBc~-115dBc Offset 20kHz |
| Spurious | Harmonic: <-35dBc (Power: ≤-5dBm) |
| Non-harmonic: <-60dBc | |
| Power | |
| Power Range | -60dBm~+10dBm |
| Resolution | 0.25dB |
| Accuracy | ±(1.0+2% absolute value of setting value)dB (output frequency 25MHz~2250MHz) |
| ±(1.0+4% absolute value of setting value)dB (output frequency 2200MHz~3000MHz) | |
| Input SWR | <1.5 typical value |
| RF Output | Terminal: N type Output Impedance: 50Ω |
| Pulse Modulation | |
| Break-make Ratio | > 80dB |
| Rising/Falling Edge | < 100ns |
| Pulse Width | 0.25s Min. |
| Pulse Period | 0.5s Min. |
| Sweep | |
| Frequency Sweep | Sweep Mode: Linear Min. Step: 3Hz |
| Power Sweep | Sweep Mode: Linear Min. Step: 0.25dBm |
| General Characteristics | |
| Power | AC 100V~240V, 50/60Hz, 50VA Max |
| Dimension & Weight | 386mm×256mm×123mm, <5kg |

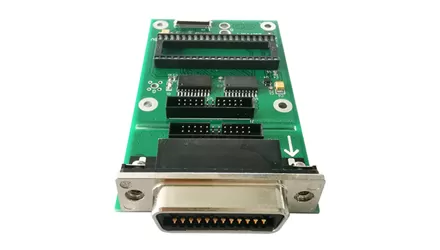

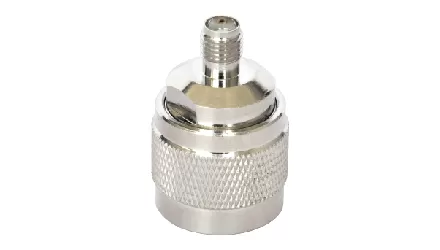

Power Cord
CD
