Stopwatch calibration equipment is often used for many years. However, as laboratory workloads change, older systems may become less practical for newer timing instruments, larger batches and automated measurement. When upgrading a stopwatch calibration system, the main goals should be broader calibration capability, easier operation and better efficiency.
A metrology lab may calibrate more than standard mechanical or electronic stopwatches. Depending on its service scope, it may also handle electric stopwatches, digital timing instruments, millisecond meters and timers with different input interfaces or resolutions.

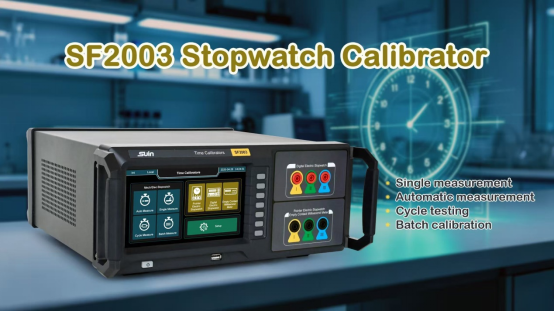

A newer system should ideally support multiple timing instruments within one platform. SUIN SF2003 Time Calibrators support most stopwatches calibration including mechanical & electronic stopwatches, pointer electric stopwatches, digital electric stopwatches, empty contact millisecond meters. This reduces setup changes and helps standardize procedures, especially for third-party laboratories handling different customer batches.
Measurement range can become a limitation as calibration requirements expand. When selecting a new system, laboratories should consider:
Minimum and maximum measurable time interval
Display and input resolution
Measurement range for different timer types
SUIN SF2003 Time Calibrators deliver wide measurement range:
Mechanical & electronic stopwatch: 0.3 s ~ 10,000,000,000 s
Pointer electric stopwatch: 0.02 s ~ 10,000,000,000 s
Digital electric stopwatch: 0.1 μs ~ 10,000,000,000 s
Millisecond meter: 0.1 ms ~ 10,000,000,000 s
A wider range provides greater flexibility for current and future work and can reduce the need for additional equipment.
For laboratories processing many similar devices, repetitive manual operations can take significant technician time. An upgraded system should support single measurements as well as automatic, cycle and batch testing. SUIN SF2003 Time Calibrators support all the mentioned calibration modes to meet the technician’s requirement.
PC control can further simplify routine work through predefined test sequences, repeated measurements and remote instrument control. Manual operation should still be available for individual measurements.
For larger batches, useful features include:
Reusable test settings
Automatic repetition
Sequential measurement
Consistent timing control
These functions reduce repeated setup while maintaining consistent test conditions.
SUIN SF2003 Time Calibrators are designed with PC Software to match the above requirements.
The internal oscillator is a key part of a stopwatch calibration system because its stability affects the generated and measured time intervals. For higher-accuracy work, an OCXO can reduce frequency variation caused by temperature changes.
Laboratories should review the reference frequency, frequency deviation, short- and long-term stability, external reference capability and calibration interval. Oscillator performance should also be included in the laboratory's uncertainty evaluation.
A stable time base is more important than high display resolution that is not supported by the underlying reference.
SUIN SF2003 Time Calibrators are equipped with a 10MHz crystal oscillator with excellent frequency deviation. This reliable time base guarantees high precision, fully meeting the requirements of third-party laboratories.
A single accuracy specification may not fully describe a multi-function time calibrator. The laboratory should evaluate the complete measurement method, including time-base accuracy, measurement interval, input resolution, trigger method, device resolution, operator influence and fixture repeatability.
Mechanical stopwatch calibration may introduce uncertainty from physical start and stop operation, while electronic timing devices may use direct electrical inputs. Equipment should therefore be selected according to the actual calibration application rather than the headline accuracy alone.
A calibrator may be used repeatedly throughout the working day, so interface design can directly affect productivity.
Useful features include:
Clear menu structure
Readable display
Fast access to common measurement modes
Easy parameter entry
Clear result display
A touchscreen or larger display can be useful when it makes operation faster without adding unnecessary menu complexity. For instance, SUIN SF2003 Time Calibrators provide 7-inch touchscreen for easy operation.
Before upgrading, the laboratory should confirm that the new system supports its current calibration methods and requirements, including:
National verification regulations
Internal laboratory procedures
Accreditation requirements
Customer-specific methods
Uncertainty targets
Traceability requirements
For laboratories working under ISO/IEC 17025, equipment suitability should be considered within the validated method, uncertainty budget and traceability system.
A newer instrument alone does not guarantee compliance; the complete calibration method must meet the applicable requirements.
Stopwatch calibration may require more than the calibrator itself. Mechanical devices, for example, may need fixtures to operate start, stop and reset controls consistently.
The laboratory should consider the complete setup, including:
Stopwatch and timer fixtures
Test leads and input adapters
Communication cables
PC software
External reference connections
SUIN SF2003 Time Calibrators offer you standard accessories including power cord, dual banana plug & BNC - banana test leads, USB2.0 cable and PC software CD and optional accessories including SF2001 Stopwatch Fixture, SF2601 Timer Fixture, SF2602 Intelligent Fixture.
Considering these components during procurement helps ensure the workstation is ready for use and provides consistent measurements.
A multi-function time calibrator may replace several older instruments, reducing bench space, maintenance requirements, calibration schedules and operator training.
Before purchasing, laboratories should review their actual workload, including device types, measurement ranges, monthly volume, batch sizes and repetitive procedures. This helps determine whether the priority should be broader device coverage, automation, batch capability or measurement range.
Because calibration equipment is normally used for several years, it is also useful to leave some margin in:
Measurement range
Resolution
Device compatibility
Automation and software control
External reference support
The goal is not to purchase unnecessary functions, but to avoid a system that quickly reaches its limits.
A successful upgrade should provide:
Support for more timing devices
Wider measurement range
Better reference stability
More efficient repeated and batch measurements
PC-controlled operation
Easier daily use
Better compatibility with current procedures
Greater flexibility for future work
For laboratories evaluating a newer stopwatch and time calibration platform, a system such as SUIN SF2003 Time Calibrators can be considered when broader timing-instrument coverage, extended range and automated measurement are required.
Upgrading a stopwatch calibration system should deliver a practical improvement in laboratory capability and efficiency. Broader device support, stable timing performance, automation and batch handling can address many limitations of older systems.
The new system should meet the laboratory's current workload while providing enough flexibility for future timing calibration requirements.
