RF Signal Generator Selection Guide Based on Key Performance Specifications

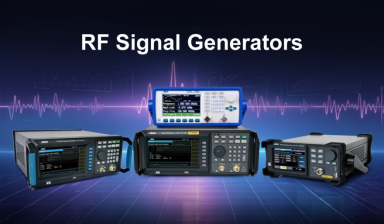

RF signal generators are fundamental instruments in RF and microwave test systems, widely used in communication systems, radar development, component validation, and electronic warfare simulation. When selecting a signal generator, engineers must balance frequency coverage, resolution, output power range, phase noise performance, and modulation capability according to application needs. Suin can supply wide range RF Signal Generators from 1.5 GHz to maximum 13.6 GHz to match different measuring requirement.

1. Frequency Range: Matching Application Bandwidth Requirements

One of the most important selection criteria is frequency coverage:

High-end wideband model: 9 kHz-6.5 GHz

Mid-range RF model: 9 kHz-3.6 GHz

Microwave model: 2 GHz-12 GHz

Precision low-frequency model: 1 µHz-1.5 GHz

General-purpose model: 25 MHz-3 GHz

Selection Guidance

Up to 1 GHz systems (IoT, low RF, analog circuits): 1 µHz-1.5 GHz or 9 kHz-3.6 GHz is sufficient

Cellular/wireless communication (LTE, sub-6 GHz 5G, WiFi, Bluetooth): 3.6 GHz or 6.5 GHz models are recommended

Microwave/radar/satellite/defense applications: 12 GHz model is required

In general, always choose a frequency range with at least 20-30% headroom above your maximum test frequency to avoid harmonic or edge distortion issues.

2. Frequency Resolution: Precision Matters in Modern RF Design

Best case: 0.01 Hz resolution

Mid-level: 1 Hz resolution

General: 3 Hz resolution

Low-frequency precision model: 1 µHz resolution

Why it matters

PLL and frequency synthesizer testing

Doppler shift simulation (radar systems)

Phase noise characterization setups

High-stability reference design validation

Selection Guidance

Standard RF testing: 1 Hz or 0.01 Hz is sufficient

Metrology/ultra-stable oscillators: µHz-level resolution is valuable

3. Output Level Range: Power Flexibility for System Simulation

High-end RF models: −130 dBm to +20 dBm

Mid-range: −110 dBm to +20 dBm

Microwave model: −20 dBm to +15 dBm

Precision model: −127 dBm to +13 dBm

Lower minimum power (e.g., −130 dBm) enables:

Sensitivity testing

Receiver noise floor simulation

Weak signal analysis

Higher maximum power (up to +20 dBm):

Driver-level testing

Power amplifier characterization

Overdrive and compression testing

Selection Guidance

Receiver testing: prioritize very low output capability (≤ −120 dBm)

Transmitter/PA testing: prioritize +10 to +20 dBm output range

4. Level Accuracy: Measurement Confidence

Most models specify:

≤ 0.5 dB typical accuracy or ±(1.0–2% + absolute offset) in some models

Why it matters

Level accuracy directly affects:

Gain measurement accuracy

Calibration of RF chains

EVM and modulation accuracy tests

Selection Guidance

Calibration labs: ≤ 0.5 dB preferred

Production test: ±1 dB is acceptable

General lab use: ±1–2 dB is usually sufficient

5. Phase Noise Performance: Critical for High-Frequency Systems

Phase noise is one of the most important differentiators:

Best performance: < −110 dBc/Hz @ 20 kHz offset

Microwave model: −105 dBc/Hz @ 100 kHz offset

Why phase noise matters

Phase noise represents short-term frequency instability of the signal source. As described in RF literature, it appears as noise sidebands around the carrier and can significantly degrade system performance in coherent RF systems.

High phase noise leads to:

Poor modulation accuracy (EVM degradation)

Reduced radar resolution

Increased bit error rate in digital communications

LO degradation in mixers (reciprocal mixing issues)

Selection Guidance

High-performance communication systems → prioritize < −110 dBc/Hz

General RF testing: −105 dBc/Hz is sufficient

Pulse-only or basic RF use: phase noise is less critical

6. Modulation Capability: Application Flexibility

AM/FM/PM/ΦM (phase modulation)

Pulse modulation (Pulse Mod)

Digital modulation (FSK/PSK in some models)

Selection Guidance

AM/FM/PM support:

General RF testing

Analog communication simulation

Educational and lab environments

Pulse modulation:

Radar system testing

Time-domain RF systems

Switching system validation

Digital modulation (FSK/PSK):

Modern communication system development

Baseband-to-RF system integration

Protocol testing

Overall Selection Strategy

When choosing an RF signal generator, prioritize parameters in the following order:

Step 1: Frequency Coverage: Must meet system maximum frequency requirement

Step 2: Phase Noise: Critical for communication, radar, and coherent systems

Step 3: Output Power Range: Determines whether receiver and transmitter testing is possible

Step 4: Frequency Resolution: Important for precision synthesis and measurement systems

Step 5: Modulation Capability: Depends on whether system is analog, digital, or pulsed

Step 6: Level Accuracy: Important for calibration and repeatability
