Programmable DC Power Supply for Industrial Testing and Precision Applications

Programmable DC Power Supply is a high-precision electronic instrument designed to provide stable, adjustable, and controllable DC voltage and current for testing, validation, and development of electronic systems. It plays a critical role in laboratories, production lines, communication systems, automotive electronics, and power electronics industries where accurate power control is required.

Compared with traditional fixed-output power sources, programmable designs allow engineers to define output parameters such as voltage, current, timing, and protection limits. This enables accurate simulation of real operating conditions, improving test reliability and product validation accuracy.

Application of Programmable DC Power Supply

Programmable DC power supplies are used across multiple engineering environments where stable and adjustable power output is required for device evaluation and system testing.

In general electronic testing environments, a standard Programmable DC Power Supply is used for circuit verification, component testing, and prototype debugging. It provides stable output control and supports a wide range of voltage and current adjustments, making it suitable for daily engineering work in laboratories and production testing stations.

In precision measurement and low-noise environments, a Programmable Linear DC Power Supply is preferred due to its low ripple and high output purity. Linear regulation reduces electrical noise, making it suitable for analog circuits, sensor testing, and instrumentation development where signal integrity is critical.

In more complex test systems, especially where multiple voltage rails are required, a 4-Channel Programmable DC Power Supply is commonly used. Each channel operates independently, allowing simultaneous testing of different circuit sections or multiple devices under test. This improves efficiency in embedded system development, multi-board testing, and automated production environments. Suin SE28000 Series Programmable DC Power Supply is just designed for such applications.

Multi-Channel and Flexible Output Design

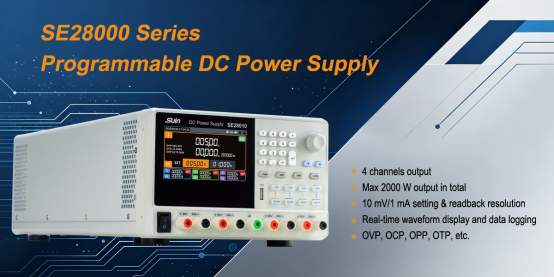

Modern electronic systems often require multiple power inputs with different voltage levels. SE28000 Series 4 channels programmable DC power supplies address this requirement by integrating 4 independent output channels into a single instrument.

This design reduces equipment redundancy and simplifies test system architecture. Engineers can configure each channel separately, enabling synchronized or independent operation depending on the test requirement.

In automated test environments, multi-channel systems are particularly valuable for batch testing, parallel validation, and multi-module system integration, where consistency and repeatability are essential.

Automation, Remote Control, and System Integration

Programmable DC power supplies are increasingly integrated into automated test systems. Through standard communication interfaces such as USB, LAN, RS485 and RS232, SE28000 Series 4 channels programmable DC power supplies can be remotely controlled by software systems or industrial controllers.

This allows engineers to perform functions such as:

Remote voltage and current setting

Real-time output monitoring

Automated test sequence execution

Data logging and analysis integration

Multi-device synchronization control

These capabilities are essential in production lines and high-throughput testing environments where manual operation is not efficient or consistent enough.

Key Technical Parameters for SE28000 Series

Selecting a programmable DC power supply requires careful evaluation of technical performance to ensure compatibility with application requirements.

Important parameters of SE28000 include:

80 V output voltage and 10 mV/1 mA resolution

Maximum 20 A output current and total power 2000 W

Load regulation and line regulation stability

Ripple and noise ≤50 mVp-p & ≤30 mArms for sensitive circuits

5.0 ms Response speed under dynamic load conditions

Full Protection functions including over-voltage, over-current, over-power and over-temperature

USB, LAN, RS485, RS232 Interface compatibility for automation systems

Channel configuration and synchronization capability

These parameters directly affect test accuracy, system stability, and long-term reliability in industrial environments.

Procurement and Engineering Selection Considerations

From a procurement and engineering perspective, selecting the right programmable DC power supply requires balancing performance, flexibility, and system integration capability.

Linear power supplies are typically selected for low-noise environments, while standard programmable models are used for general testing applications. Multi-channel configurations are preferred in complex systems where multiple power rails are required simultaneously.

Other important considerations include long-term stability, calibration accuracy, interface compatibility, and support for automated testing environments. In industrial procurement, these factors often determine overall system efficiency and maintenance cost over time.

Conclusion

Programmable DC power supplies are essential tools in modern electronic testing and industrial development. With capabilities ranging from precise single-output control to multi-channel synchronized operation, SE28000 Series support a wide range of engineering applications.

Proper selection based on technical requirements, application scenarios, and system integration needs helps improve testing efficiency, reduce operational complexity, and ensure reliable long-term performance in industrial environments.
