How RF Signal Generators Support 5G Network Development and Testing

The deployment of 5G communication networks has significantly increased the complexity of wireless infrastructure testing. Compared with previous generations of mobile communication systems, 5G base stations operate at higher frequencies, support wider bandwidths, and use advanced modulation technologies to achieve extremely high data throughput and low latency. These technical characteristics require more precise and flexible RF testing equipment during the development, verification, and maintenance of base stations.

Among the essential instruments used in RF laboratories and communication system testing environments, RF signal generators play a critical role. They provide stable, controllable, and highly accurate radio frequency signals that allow engineers to simulate real wireless environments and evaluate the performance of 5G base station hardware.

Role of RF Signal Generators in 5G Infrastructure Testing

A 5G base station includes several key RF subsystems, such as transmitters, receivers, power amplifiers, filters, mixers, and digital baseband processing units. Each of these components must be thoroughly tested to ensure proper system performance.

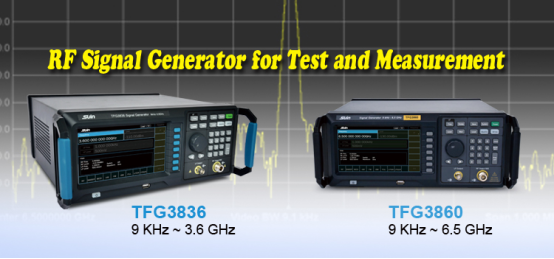

RF signal generators are employed to deliver test signals over a broad frequency spectrum, featuring precise control of amplitude and modulation characteristics. Suin TFG3836 supports frequency up to 3.6 GHz, while TFG3860 extends this capability to 6.5 GHz.

By generating standardized RF signals that emulate real communication signals, engineers can evaluate how the base station responds under different operating conditions.

In 5G testing environments, RF signal generators are commonly used for:

Transmitter and receiver verification

RF front-end performance testing

Interference and coexistence testing

Calibration of RF measurement instruments

System-level validation before deployment

High-frequency coverage, low phase noise, stable output power, and flexible modulation capabilities are key requirements for instruments used in these scenarios.

Receiver Sensitivity and Dynamic Range Testing

Receiver sensitivity is one of the most important parameters of a 5G base station. It determines the ability of the system to detect and process weak signals from user equipment (UE). Poor receiver sensitivity can lead to dropped connections, reduced coverage, and lower overall network performance.

RF signal generators are used to produce extremely low-level RF signals that simulate weak signals from distant mobile devices. Engineers gradually adjust the signal level while monitoring the base station receiver performance to determine the minimum signal level that can still be correctly demodulated.

This process allows engineers to evaluate:

Receiver sensitivity thresholds

Signal-to-noise ratio performance

Dynamic range of the RF front-end

Error vector magnitude (EVM) under weak signal conditions

Accurate amplitude control and stable signal generation are essential for obtaining reliable test results.

Transmitter Performance Evaluation

The transmitter section of a 5G base station must deliver high output power while maintaining excellent signal quality. Any distortion or instability can negatively affect network performance and cause interference with adjacent channels.

RF signal generators provide reference signals used to stimulate different stages of the transmitter chain. During transmitter testing, engineers analyze several key parameters, including:

Frequency accuracy and stability

Output power linearity

Adjacent channel leakage ratio (ACLR)

Spurious emissions

Phase noise performance

By comparing the generated reference signals with the transmitted output, engineers can determine whether the base station transmitter meets regulatory and performance requirements.

Interference and Coexistence Testing

As wireless networks become denser, the risk of RF interference between communication systems increases. 5G base stations must operate reliably even in environments where multiple wireless technologies coexist, including LTE, Wi-Fi, satellite communication systems, and other RF devices.

RF signal generators enable engineers to simulate different types of interference signals to evaluate the immunity of base stations against external disturbances. This testing helps determine how well the receiver can filter unwanted signals and maintain stable communication.

Interference simulation scenarios may include:

Adjacent channel interference

Co-channel interference

Multi-signal RF environments

Out-of-band emissions

By reproducing these conditions in the laboratory, engineers can identify potential vulnerabilities and optimize the RF front-end design.

Calibration and RF System Alignment

Regular calibration is necessary to ensure that RF systems maintain measurement accuracy over time. RF signal generators provide precise reference signals used to calibrate measurement instruments such as spectrum analyzers, power meters, and vector signal analyzers.

In 5G base station production and maintenance environments, RF generators are also used to align system parameters, verify signal paths, and troubleshoot hardware issues.

Reliable calibration improves measurement consistency across different test setups and ensures compliance with communication standards.

Importance of Signal Quality in 5G Testing

Signal purity is a critical factor in RF testing applications. High phase noise or unwanted spurious signals can affect measurement accuracy and lead to incorrect performance evaluations.

For this reason, RF signal generators used in 5G testing environments must provide:

Low phase noise performance

High frequency stability

Precise amplitude control

Clean spectral output with minimal spurious signals

These characteristics allow engineers to perform accurate testing and obtain repeatable measurement results.

Conclusion

As 5G communication networks continue to expand worldwide, the demand for high-precision RF testing equipment is increasing. RF signal generators serve as fundamental instruments in the development, validation, and maintenance of 5G base stations.

By providing stable RF signals with accurate frequency, amplitude, and modulation characteristics, Suin TFG3836 and TFG3860 RF Signal Generators can help engineers to simulate real network conditions and thoroughly evaluate system performance. Applications such as receiver sensitivity testing, transmitter verification, interference simulation, and calibration all rely on high-quality RF signal generation.

With the ongoing evolution of wireless technologies, RF signal generators will remain indispensable tools in ensuring that 5G infrastructure delivers reliable, high-speed communication services.
