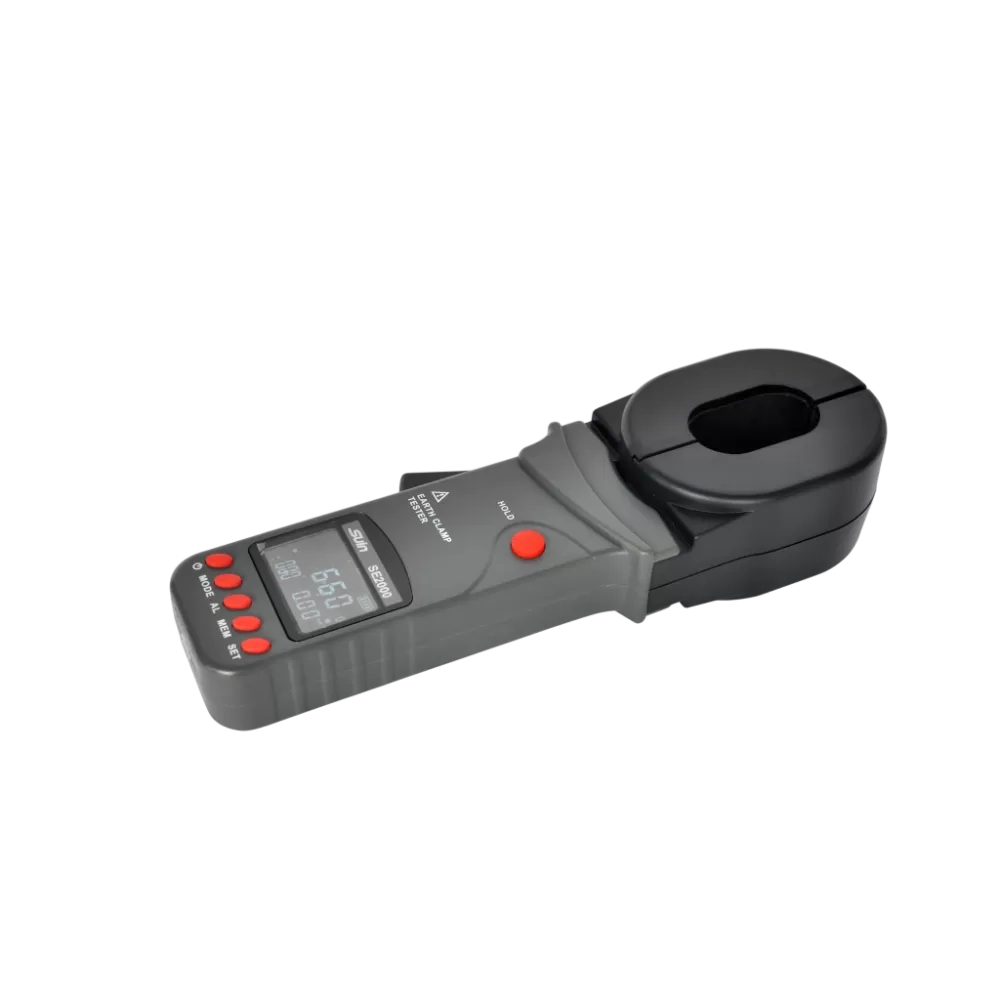

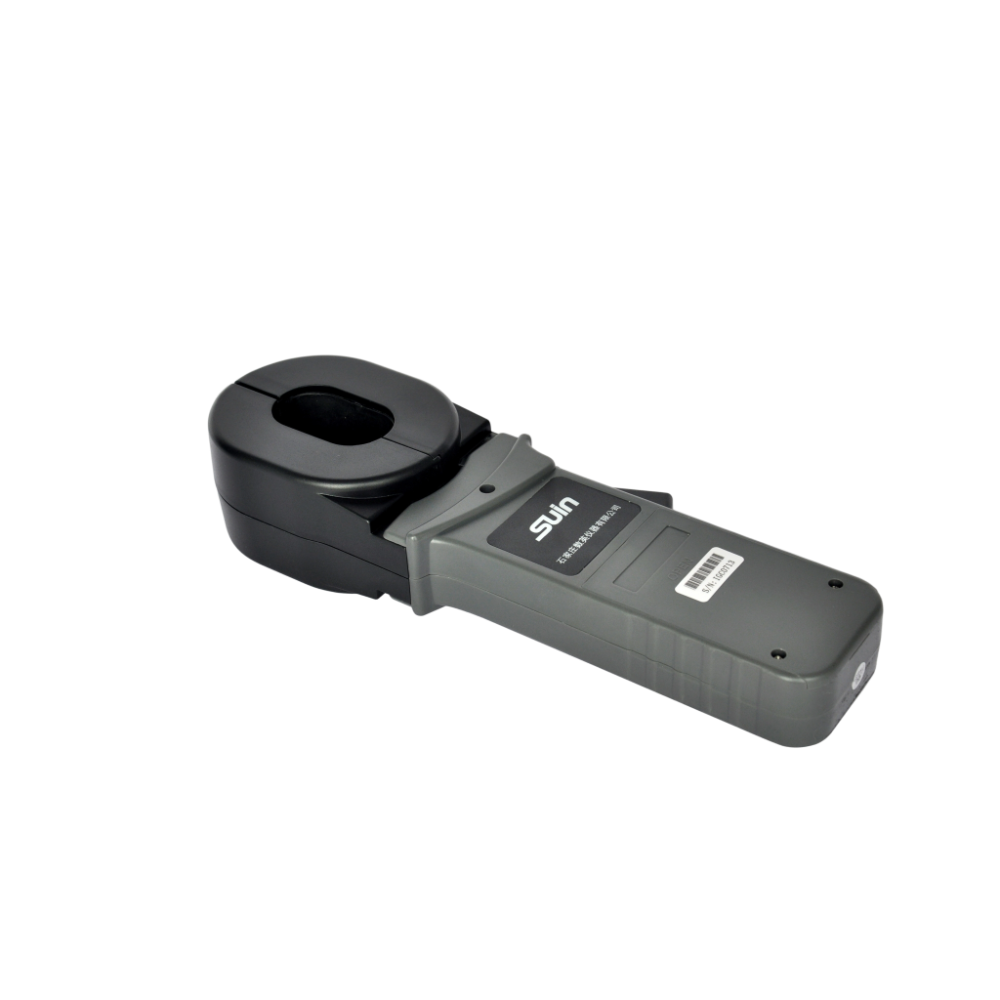

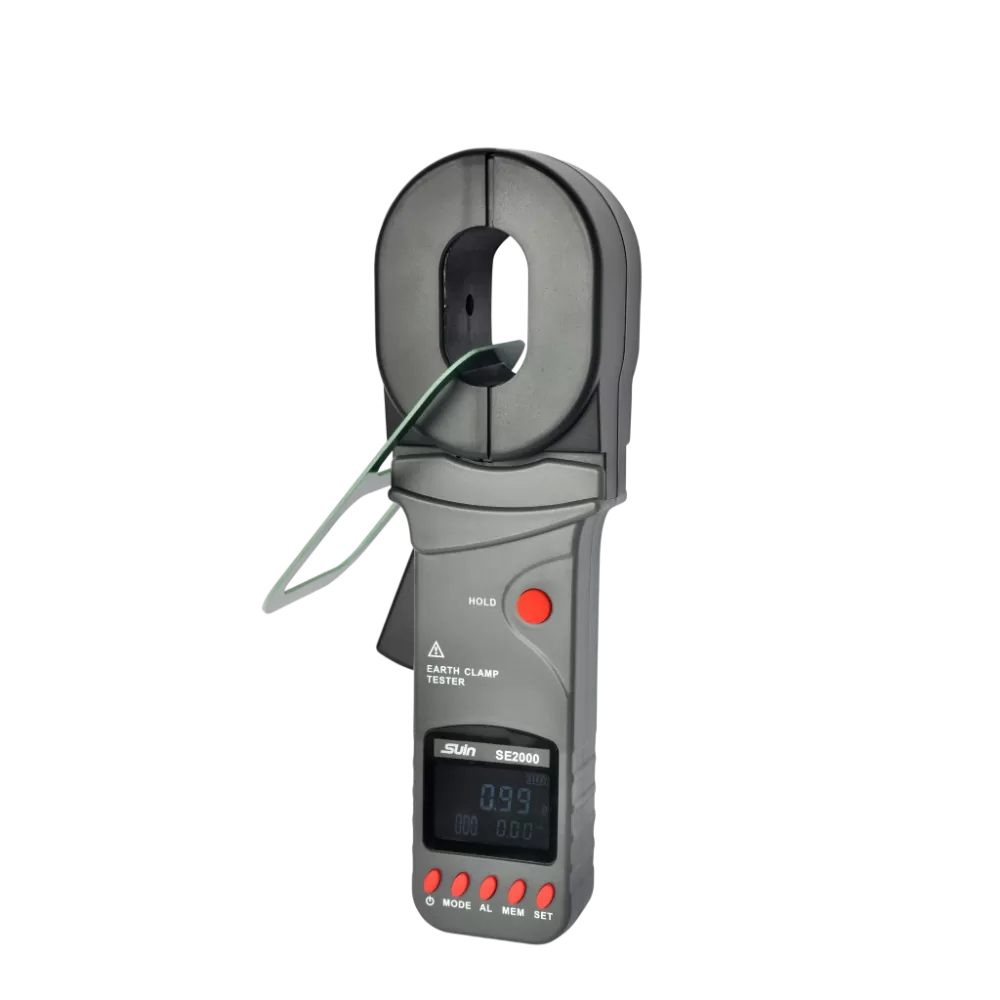

SE2000 Ground Tester

SE2000

SE2000 Ground Tester

Resistance range

0~1,200 Ω

Current range

0-20 A

Memory

300 groups

Overview

Design Features

Specification

Accessory

The SE2000 Ground Tester is a high-performance instrument designed for precise ground resistance testing. It has a wide resistance range from 0 to 1200 Ω, enabling it to handle various testing scenarios. It can measure current within 0-20 A, providing comprehensive data. Equipped with 300-group memory and an LCD display, it stores results conveniently and shows values clearly.

Applications

Telecommunication and Power Industries

Tests grounding of base stations, power lines, and substations to prevent malfunctions and ensure safe operation.

Meteorology and Computer Rooms

Protects meteorological equipment from lightning and maintains computer room equipment stability via proper grounding checks.

Oil Fields and Gas Stations

Ensures safe grounding of storage tanks, pipelines, and dispensers to avoid ignition risks.

Factory Grounding Networks and Lightning Rods

Verifies factory grounding networks and lightning rod performance, safeguarding machinery, workers, and structures.

Current lowest to 9.95 mA

SE2000 can also test the leak current from lowest 9.95 mA to highest 20 A, which is very helpful when there are huge harmonics and spurious waves in the under-tested ground network.

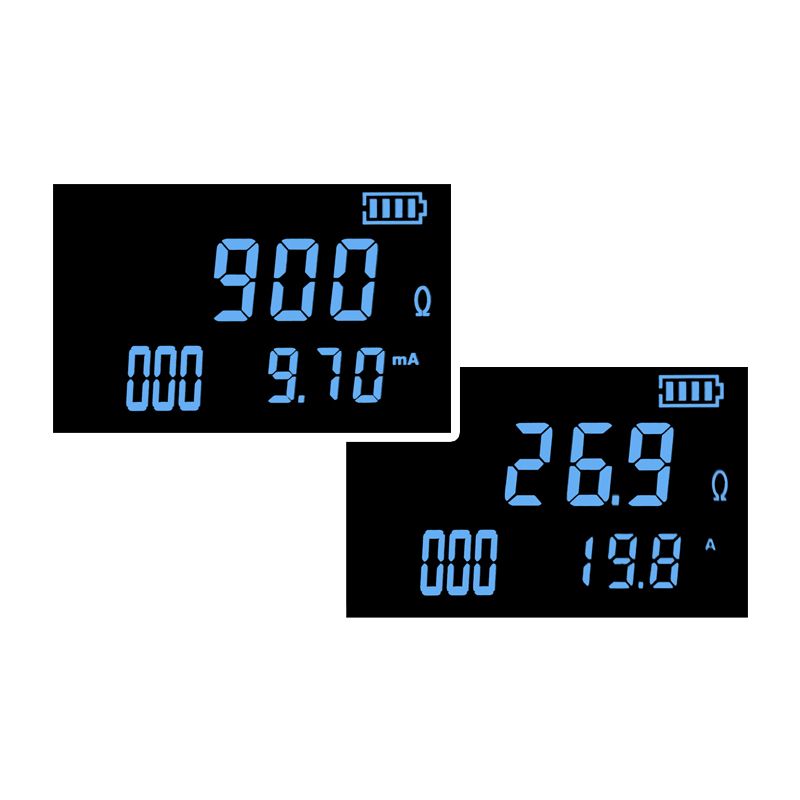

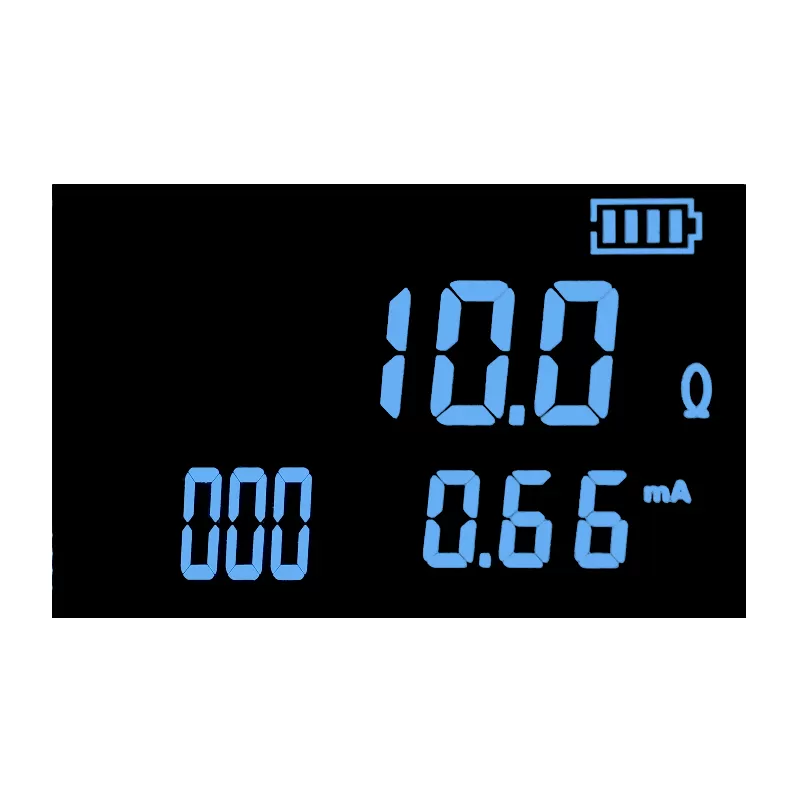

Resistance and Current display synchronously

SE2000 can show resistance and current synchronously, thus reduce the testing time.

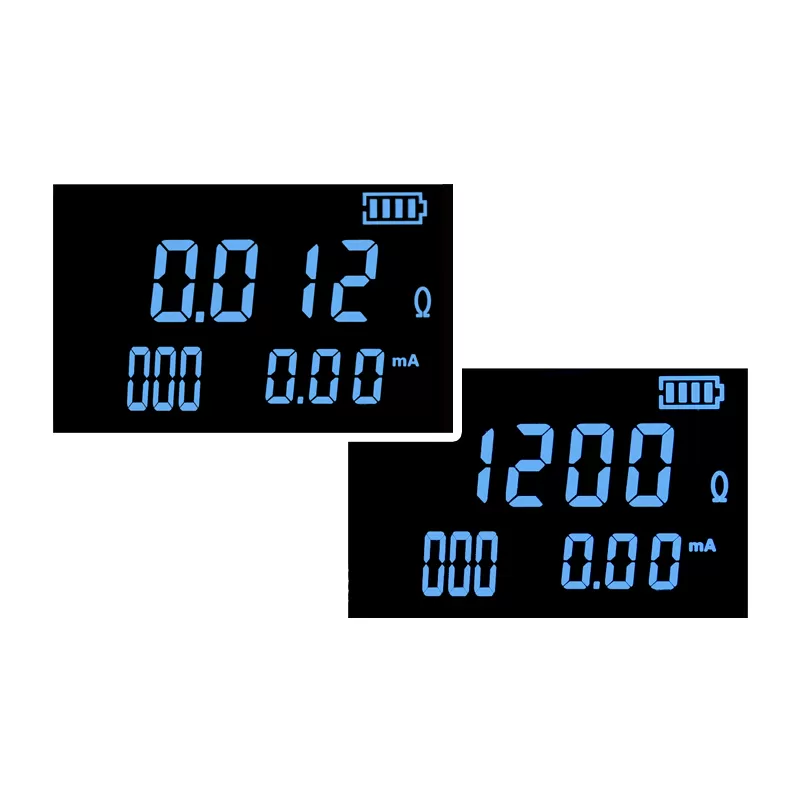

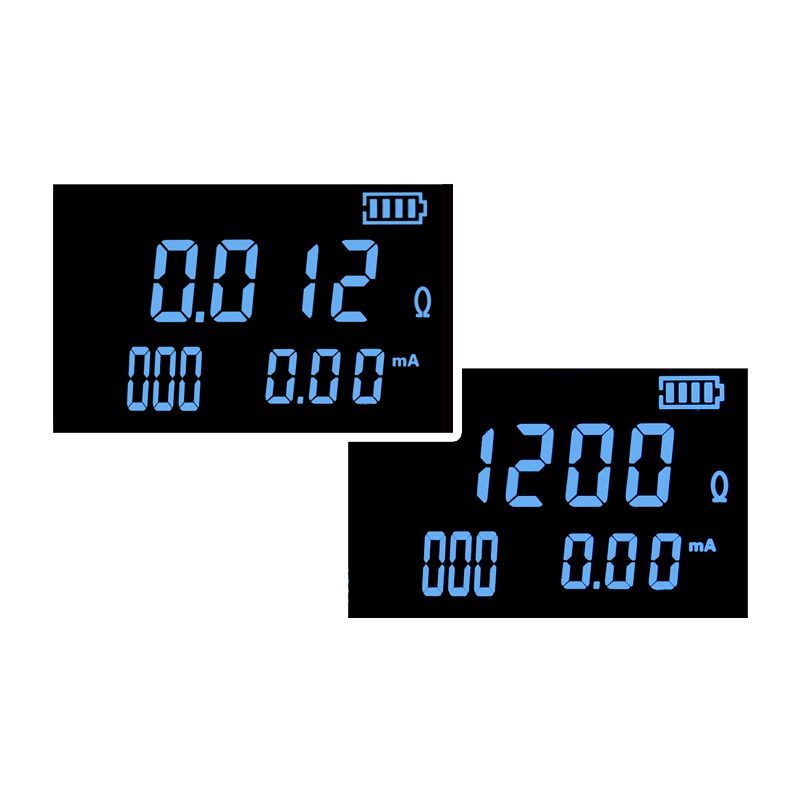

Resistance lowest to 0.010 Ω

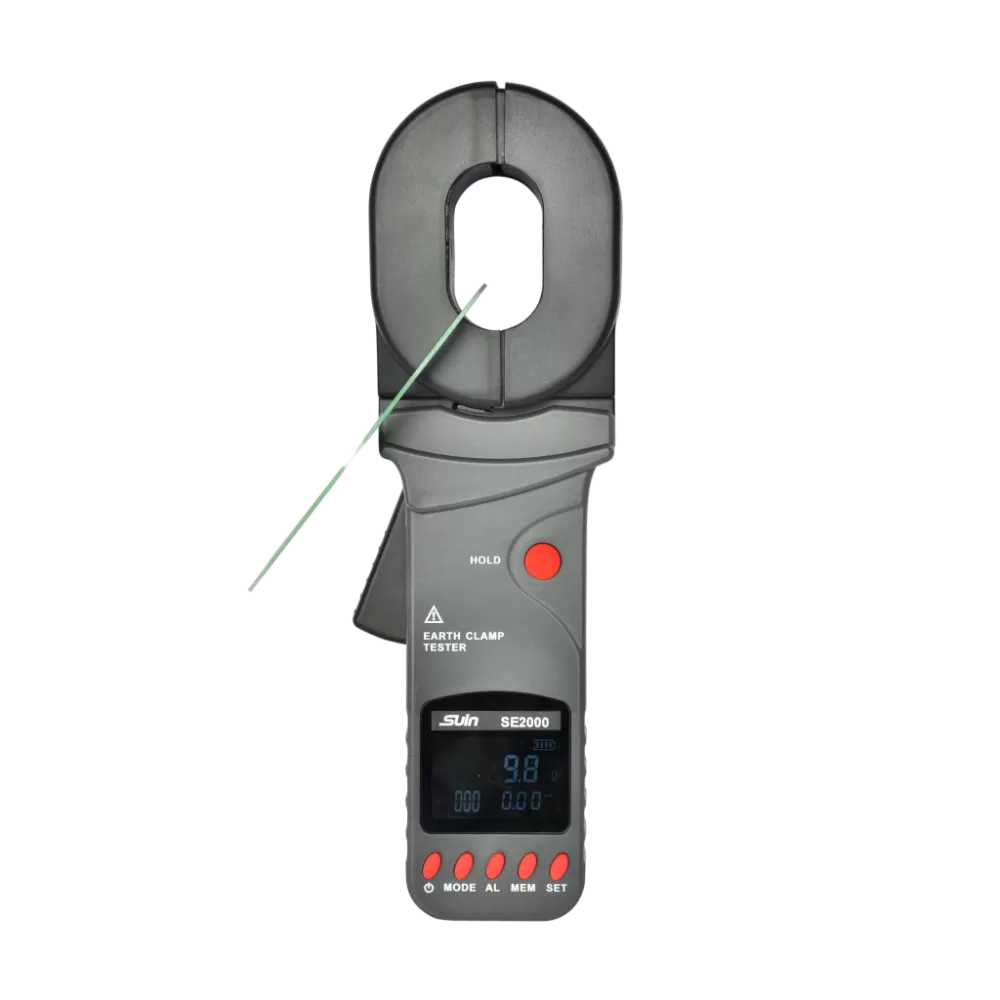

SE2000 Ground Resistance Tester can test ground resistance lowest to 0.010 Ω with resolution 0.001 Ω, highest to 1200 Ω, special clamp type makes the measurement conducted no need of using earth rod.

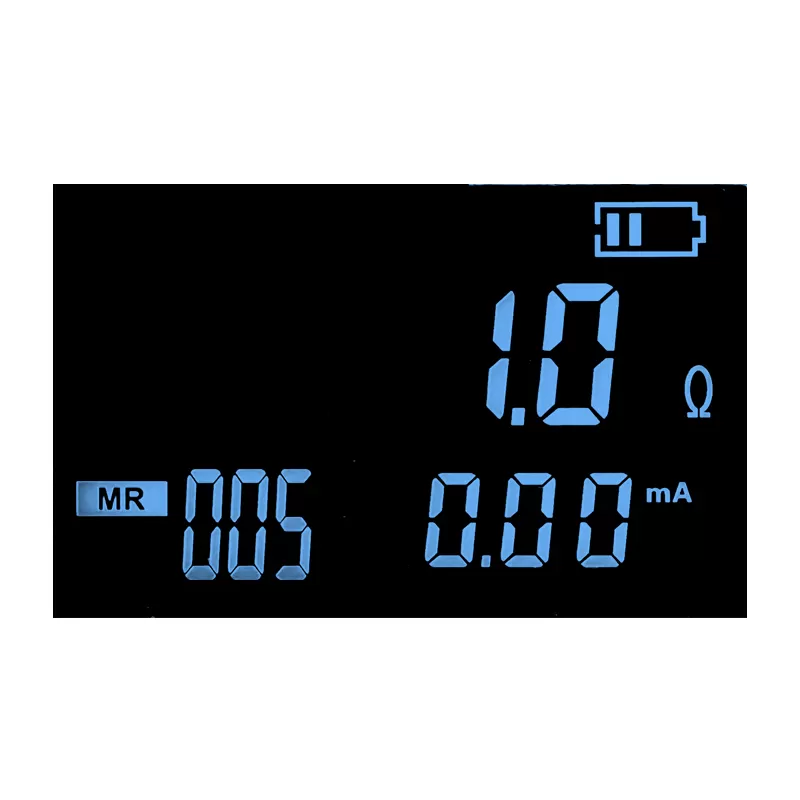

Storage

Maximum 300 group data can be stored for recalling any time.

Mode	Range	Resolution	Accuracy
Resistance	0.010Ω-0.099Ω	0.001Ω	±（1%＋0.01Ω）
	0.10Ω-0.99Ω	0.01Ω	±（1%＋0.01Ω）
	1.0Ω-49.9Ω	0.1Ω	±（1%＋0.1Ω）
	50.0Ω-99.5Ω	0.5Ω	±（1.5%＋0.5Ω）
	100Ω-199Ω	1Ω	±（2%＋1Ω）
	200Ω-395Ω	5Ω	±（5%＋5Ω）
	400Ω-590Ω	10Ω	±（10%＋10Ω）
	600Ω-880Ω	20Ω	±（20%＋20Ω）
	900Ω-1200Ω	30Ω	±（25%＋30Ω）
Current	0.00mA -9.95mA	0.01mA	±（2.5%＋1mA）
	10.0mA -99.0mA	0.1mA	±（2.5%＋5mA）
	100mA -300mA	1mA	±（2.5%＋10mA）
	0.30A-2.99A	0.01A	±（2.5%＋0.1A）
	3.0A-9.9A	0.1A	±（2.5%＋0.3A）
	10.0A-20.0A	0.1A	±（2.5%＋0.5A）

SEE ALL

STANDARD ACCESSORIES

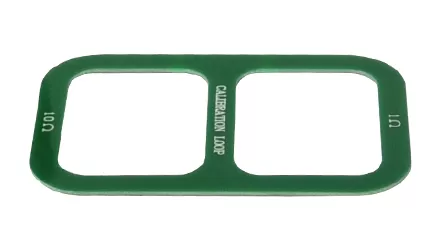

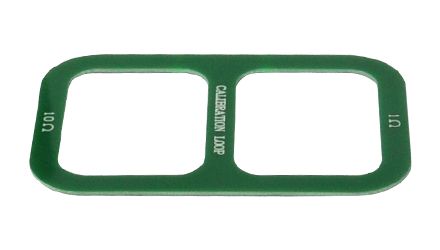

Calibration Loop

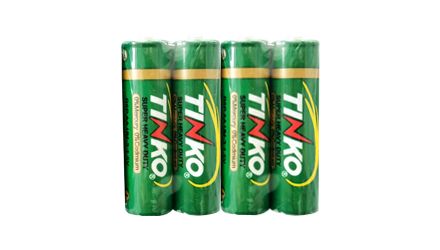

Battery(1.5V)
