SA2100 Class S Power Quality Analyzer
SA2100 Class S Power Quality Analyzer

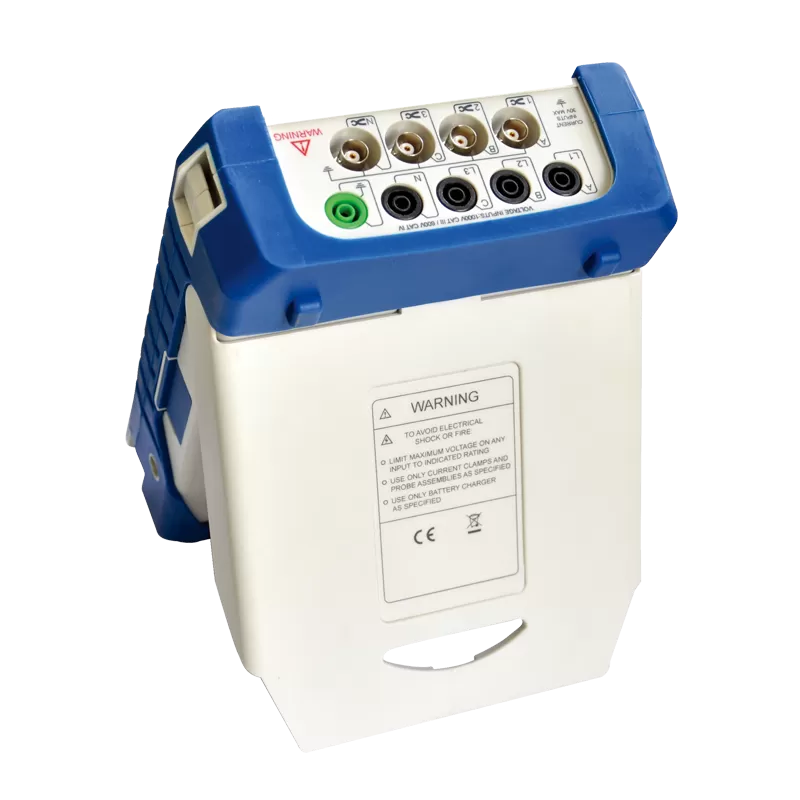

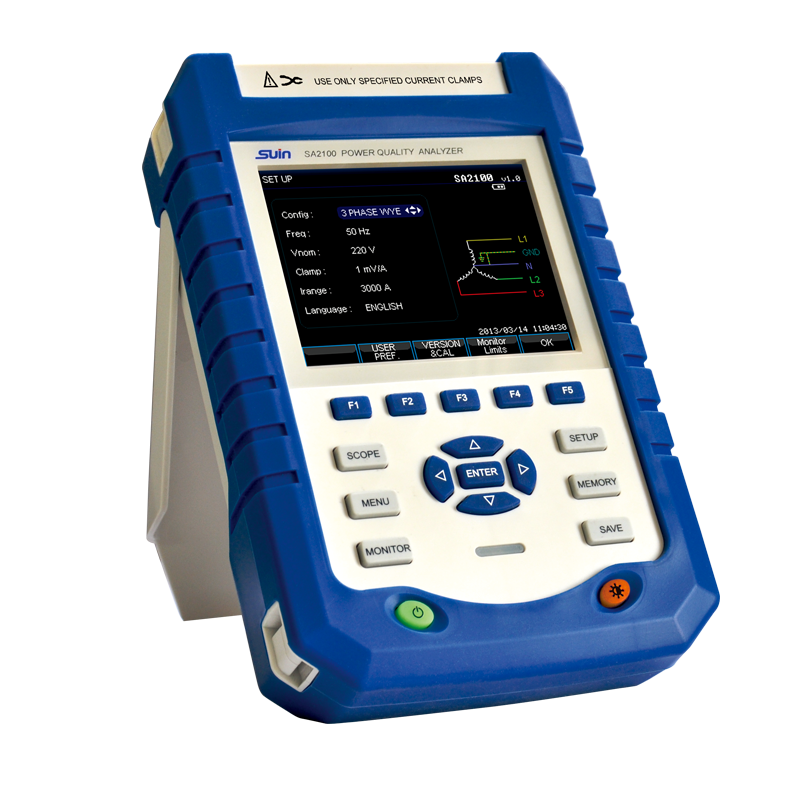

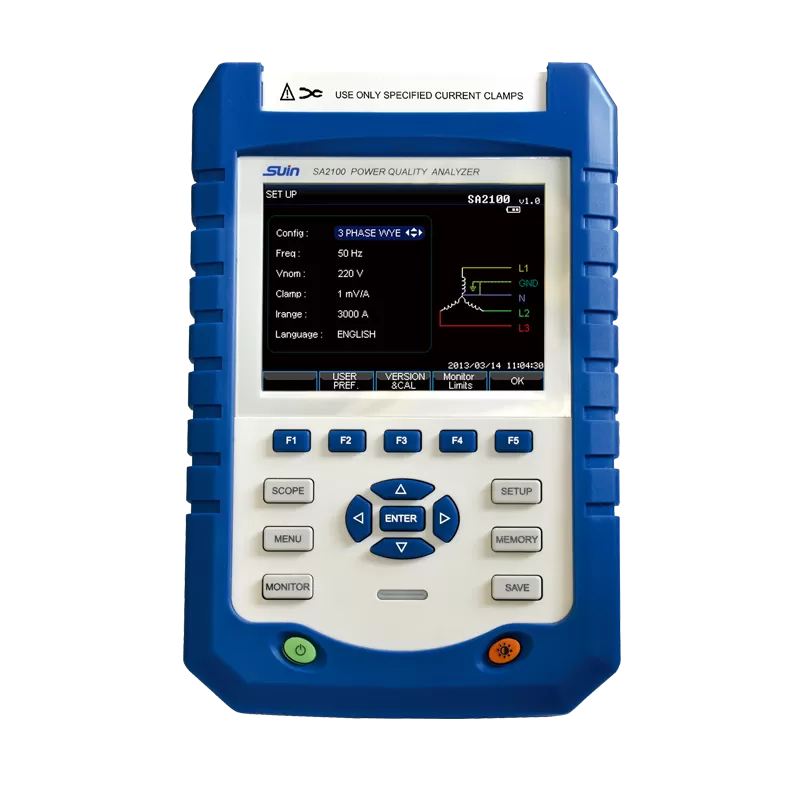

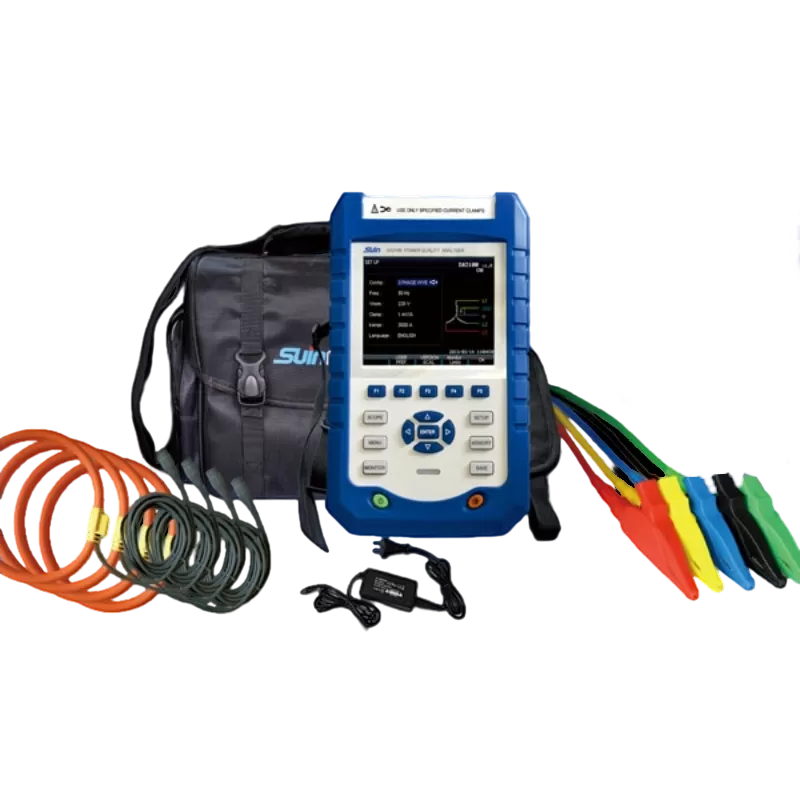

SA2100 is a handheld, Class S portable power quality analyzer designed for measuring and analyzing single or three-phase power systems. It offers a basic voltage measurement accuracy of ±0.5% and can display 1-50th harmonics, supporting dynamic measurements like inrush, flicker, and transients. With a 5.6' TFT LCD screen and 10 language options, it ensures easy operation. Equipped with an 8GB Micro SD card for data storage, it features a powerful logger function to record user-defined parameters for 4 phases simultaneously. It supports various wire combinations and has electrical safety compliance with IEC61010-1, ensuring safe use in different environments.
Applications
Electrical Power Sector
Detect voltage dips/swells and harmonics in grids, ensuring stable power transmission.
Medical Facilities
Monitor power quality for sensitive equipment, preventing malfunctions from electrical anomalies.
Transportation Systems
Analyze power in railways/airports to avoid disruptions caused by current unbalances.
Telecommunication
Safeguard base stations by identifying transient issues that may affect signal transmission.
Industrial Production
Optimize factory power usage by pinpointing energy waste and equipment-damaging harmonics.
Commercial Buildings
Check power stability for HVAC and lighting systems, reducing downtime risks.

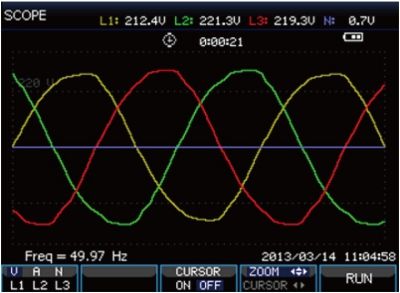

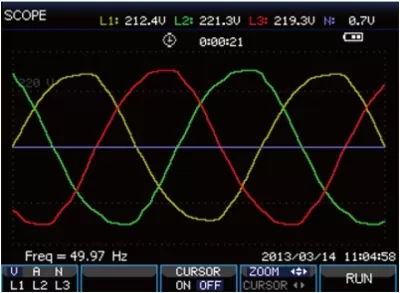

View the voltage/current waveform and readings. Cursor Zoom function.

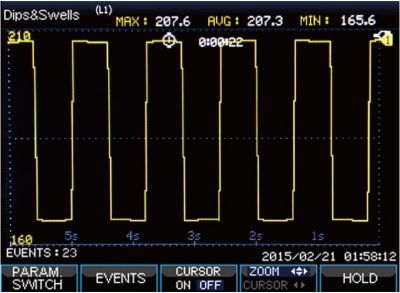

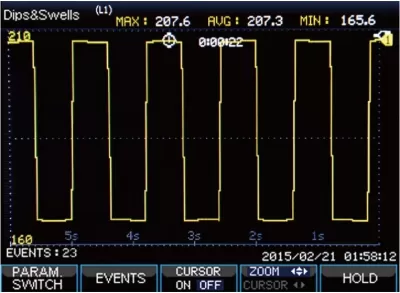

Capture the abnormal Event, such as Swells, Dips, Interruptions and Rapid Voltage change

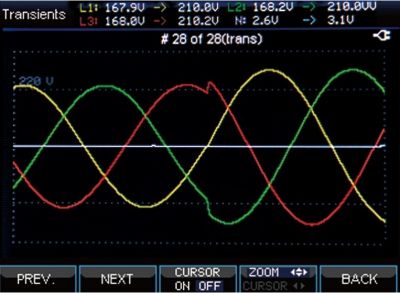

Capture waveforms at high-resolution during a variety of disturbances, maximum 100 events, sample rate 20Ks/s

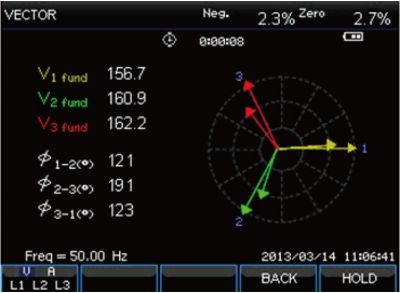

Check the unbalance in 3 phases based on IEC61000-4-30 standards
| Measurement Range | Resolution | Accuracy | ||
| Voltage/Current/Frequency | ||||
| Vrms(AC+DC) | 1~ 1000Vrms | 0.1Vrms | ±0.5% of nominal voltage | |
| Vpk | 1 ~ 1400Vpk | 0.1Vpk | ±0.5% of nominal voltage | |
| V(Crest Factor) | 1.0 ~>2.8 | 0.01 | ±5% | |
| Arms (AC) | 10mV/A | 0 ~ 100A | 0.1A | ±0.5%±0.2A |
| 1mV/A | 1~1000A | 0.1A | ±0.5%±0.2A | |
| 50mV(65mV)/1000A | 15~5000A | 1A | ±1%±2A | |
| A(Crest Factor) | 1~10 | 0.01 | ±5% | |
| Frequency | 42.5 ~ 57.5Hz (50Hz nominal) | 0.01Hz | ±0.01Hz | |
51 ~ 69Hz (60Hz nominal) | 0.01Hz | ±0.01Hz | ||
| 385~414Hz (400Hz nominal) | 0.01Hz | ±0.1Hz | ||
| Dips & Swells | ||||
| Vrms1/2 | 0 ~ 200% of nominal voltage | 0.1Vrms | ±1% | |
| Arms1/2 | 1 ~ 3000A | 1A | ±1%±2A | |
| Duration | hour-minute-second-microsecond | 0.5 cycle | 1 cycle | |
| Harmonic(IEC61000-4-7) | ||||
| Harmonic Number | 1 ~ 50 | |||
| Harmonic Voltage %f | 0.0 ~ 100.0% | 0.10% | ±0.1%±nx0.1% | |
| Harmonic Current %f | 0.0 ~ 100.0% | 0.10% | ±0.1%±nx0.1% | |
| THD | 0.0 ~ 100.0% | 0.10% | ±2.5% | |
| Phase | -360° ~ 0° | 1° | ±nx1.5° | |
| Power and Energy | ||||
Active Power/Apparent Power /Reactive Power | 1.0 ~ 20.00MW | 0.1kW | ±1.5±10 digits | |
| KWh | 0.00kWh ~ 200GWh | 10Wh | ±1.5±10 digits | |
| Power Factor | 0 ~ 1 | 0.01 | ±0.03 | |
| Flicker (IEC61000-4-15) | ||||
| Pst(1min),Pst,Plt,PF5 | 0.00 ~ 20.00 | 0.01 | ±5% | |
| Unbalance | ||||
| Voltage | 0.0 ~ 5.0% | 0.10% | ±0.5% | |
| Current | 0.0 ~ 20.0% | 0.10% | ±1% | |
| Voltage Phase | -360° ~ 0° | 1° | ±2digits | |
| Current Phase | -360° ~ 0° | 1° | ±5digits | |
| Voltage Transient | ||||
| Vpk | ±6000Vpk | 1V | ±15% | |
| Vrms | 10 ~ 1000Vrms | 1V | ±2.5% | |
| Min. Test Time | 50us | |||
| Inrush Current | ||||
| Arms | 0~3000Arms | 0.1 | ±1%±5digits | |
| Inrush Duration | 6s ~ 32min selectable | 10ms | ±20ms | |
| Logger | ||||
| Recording | user-defined parameters for 4 phases at the same time | |||
| Memory | Data stored in Micro SD card, 32GB | |||
| Duration Time | 2 hrs to 1 year, depends on the recording items and time interval | |||
| Interval | 1s to 1 hrs | |||
| Monitor | ||||
| Support EN50160 in default or user-defined standard | ||||
| Channel(Voltage/Current) | 4/4 | ||||
| Voltage Range | 1-1000Vrms, 6000V transient voltage | ||||
| Current Range | depends on supplied current clamp | ||||
| Micro SD card(bulid-in) | 32GB | ||||
| Battery | NI-MH, 3800Ah/>7h | ||||
| interface | USB Host, LAN | ||||
| Screen | 5.6' TFT LCD with resolution320*240(SA2100) | ||||
| Language | 10-Chinese, English, French, German, Korean, Polish, Portuguese, Spanish,Turkish,Russian | ||||
| Dimension/Weight | 262*173*66mm/1.6kg | ||||
| Wire Combinatios | 1Ø+NEUTRAL,1Ø SPLIT PHASE,1Ø IT NO NEUTRAL, 3Ø WYE, 3Ø DELTA, 3Ø IT, 3Ø HIGH LEG, 3Ø OPEN LEG, 2-ELEMENT, 2 1/2-ELEMENT | ||||
| Electrical Safety | IEC61010-1 ,Safety Degree: 600V CAT IV 1000V CAT III |

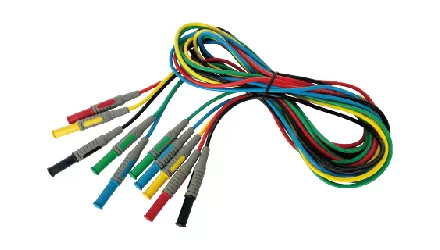

Voltage Test Leads

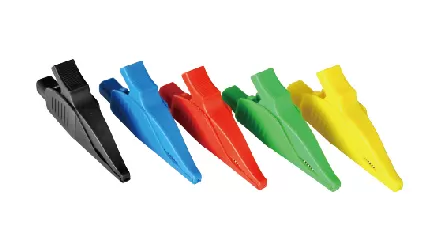

Aligator Clips

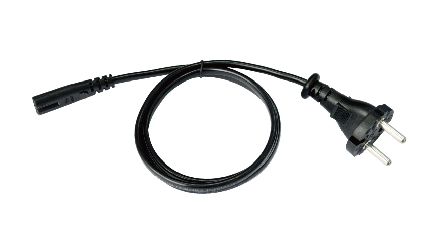

Power Cord

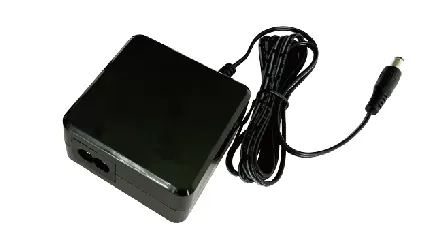

Power Adapter

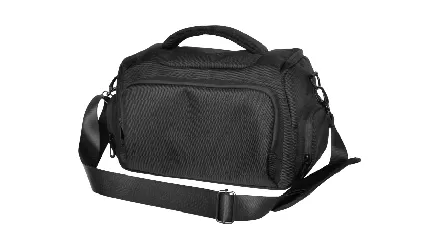

Soft Carry Bag
CD

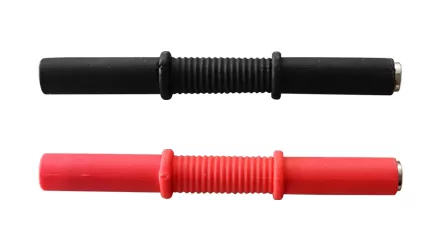

Voltage Magnetic Probe
| Rated Voltage | Rated Current | Connection Size | Metal | Color |
| 1000 V CAT Ⅲ, 600 V CAT Ⅳ | 1A | 4mm | Stainless Steel | Red/Black |
Hard Protection Case
Dimension: 555×455×225 mm
C01-5A
| Measurement Range | 0-5A |
| Output Voltage Ratio | 10mV/A |
| Accuracy | 0.2% |
| Frequency Characteristic | 45Hz~55Hz |
| Clamp Radius (mm) | 8 |
| Dimension (mm) | 158×43×24 |
| Cable Length (cm) | 200 |
| Power | ○ |
C02-100A
| Measurement Range | 0-100A |
| Output Voltage Ratio | 10mV/A |
| Accuracy | 0.2% |
| Frequency Characteristic | 50Hz~400Hz |
| Clamp Radius (mm) | 8 |
| Dimension (mm) | 171×46×27 |
| Cable Length (cm) | 200 |
| Power | ◇ |
C03-200A
| Measurement Range | 1~200A |
| Output Voltage Ratio | 1mV/A |
| Accuracy | 0.2% |
| Frequency Characteristic | 50Hz~400Hz |
| Clamp Radius (mm) | 13 |
| Dimension (mm) | 174×52×27 |
| Cable Length (cm) | 200 |
| Power | ◇ |
C04-1000A
| Measurement Range | 1~1000A |
| Output Voltage Ratio | 1mV/A |
| Accuracy | 1% |
| Frequency Characteristic | 40Hz~100kHz |
| Clamp Radius (mm) | 52 |
| Dimension (mm) | 111×216×45 |
| Cable Length (cm) | 200 |
| Power | ◇ |

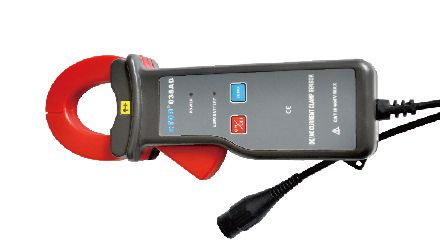

C05-1000AD
| Measurement Range | 0.0~1000A (AC/DC) |
| Output Voltage Ratio | 1mV/A |
| Accuracy | ±3% |
| Frequency Characteristic | AC: 45Hz~400Hz |
| Clamp Radius (mm) | 30×35 |
| Dimension (mm) | 122×70×33 |
| Cable Length (cm) | 150 |
| Power | 9V Dry cell 6LR61 |

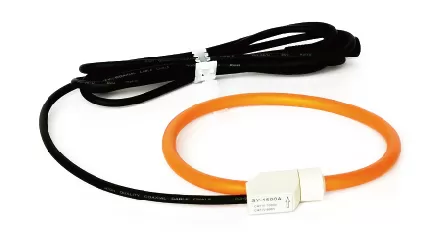

C06-1500A
| Measurement Range | 10~1500A |
| Output Voltage Ratio@50Hz | 100mV/1000A |
| Accuracy | ±0.5%+Position Error |
| Maximum Allowable Input | 100kA |
| Phase Error | <±1° |
| Noise | <2mVrms (10Hz~10kHz) |
| Frequency Characteristic | 10Hz~10kHz (-3dB) |
| Weight | 110g |
| Length | 200cm |
| CT Perimeter | 35cm |
| Measurement Position Error | ±1% |
C07-3000A
| Measurement Range | 15~3000A |
| Output Voltage Ratio@50Hz | 65mV/1000A |
| Accuracy | ±1%+Position Error |
| Maximum Allowable Input | 100kA |
| Phase Error | <±1° |
| Noise | <2mVrms (10Hz~10kHz) |
| Frequency Characteristic | 10Hz~10kHz (-3dB) |
| Weight | 130g |
| Length | 200cm |
| CT Perimeter | 50cm |
| Measurement Position Error | ±2% |
Beidou/GPS Receiver
| Model | GN200B |
| Satellite System | GPS/BDS |
| Voltage | 3.3 V~5 V |
| Starting Speed | Cold starting 30 s, Hot starting 1 s |
| Interface | PS/S |
| Lead Length | 5 m |
| Working Temperature | 0 ℃ ~ 45 ℃ |
| Storage Temperature | -40 ℃ ~ +85 ℃ |

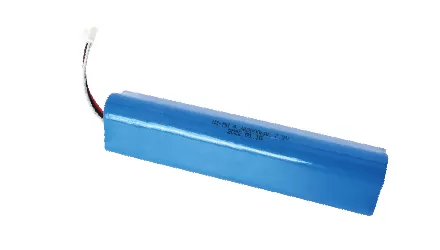

SA2100 Battery
