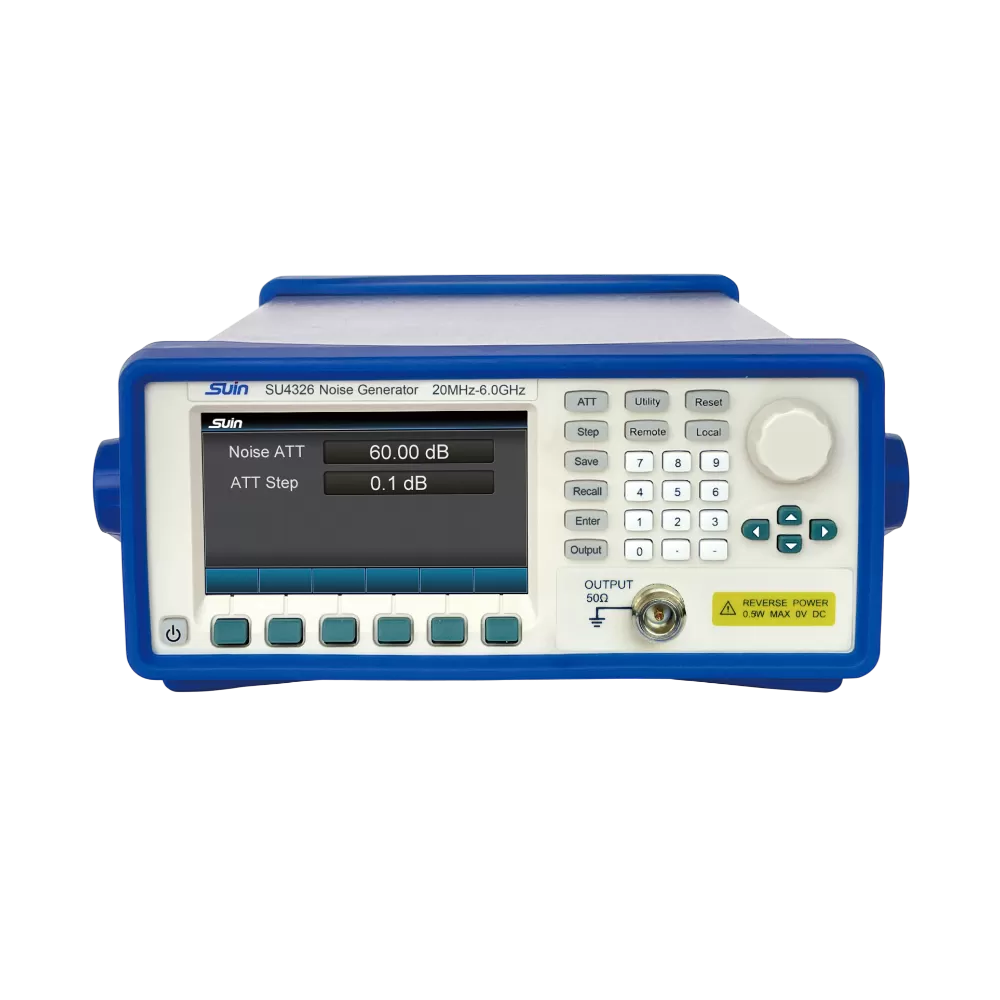

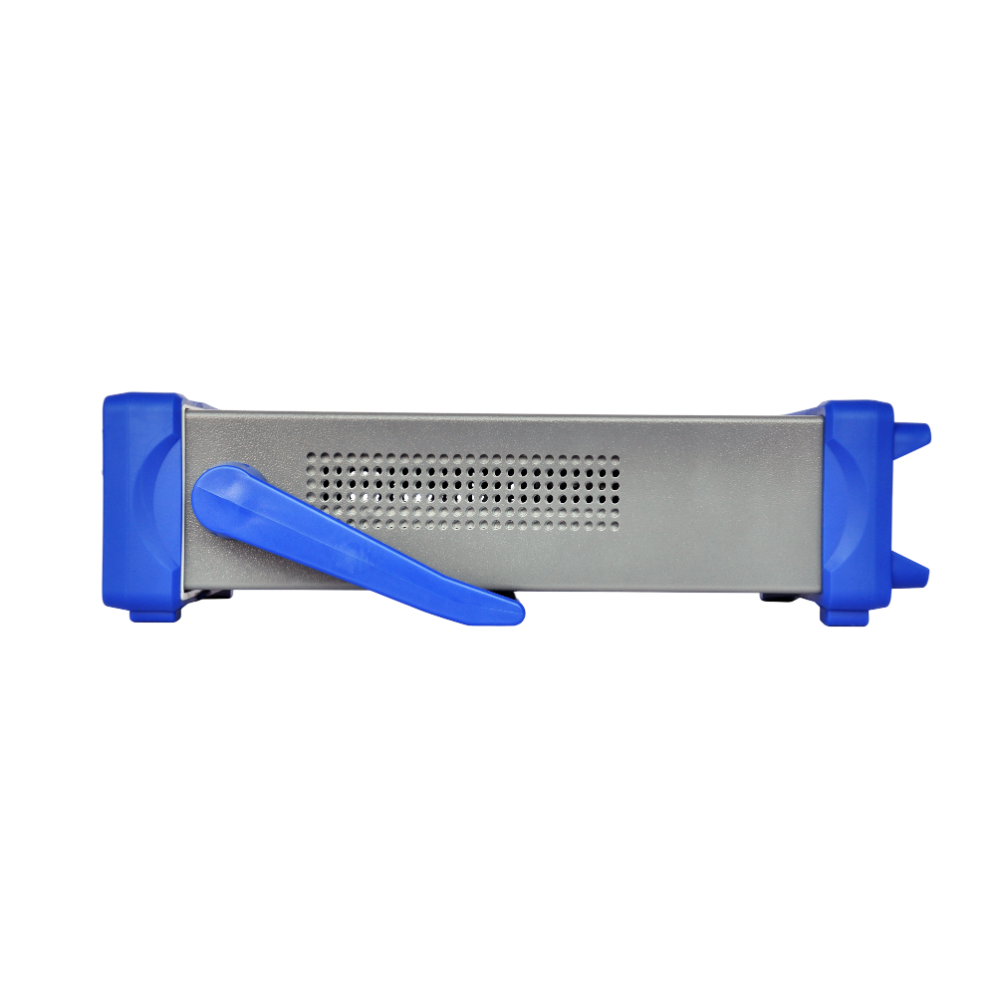

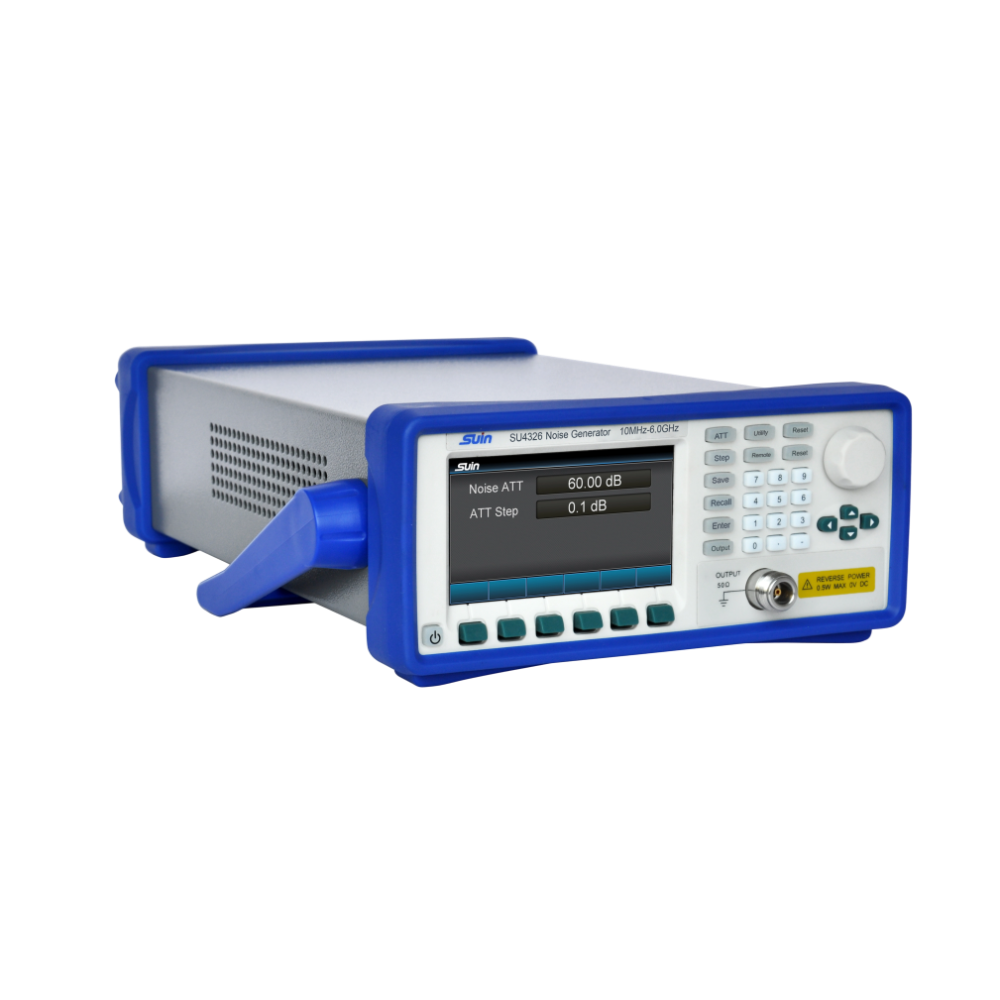

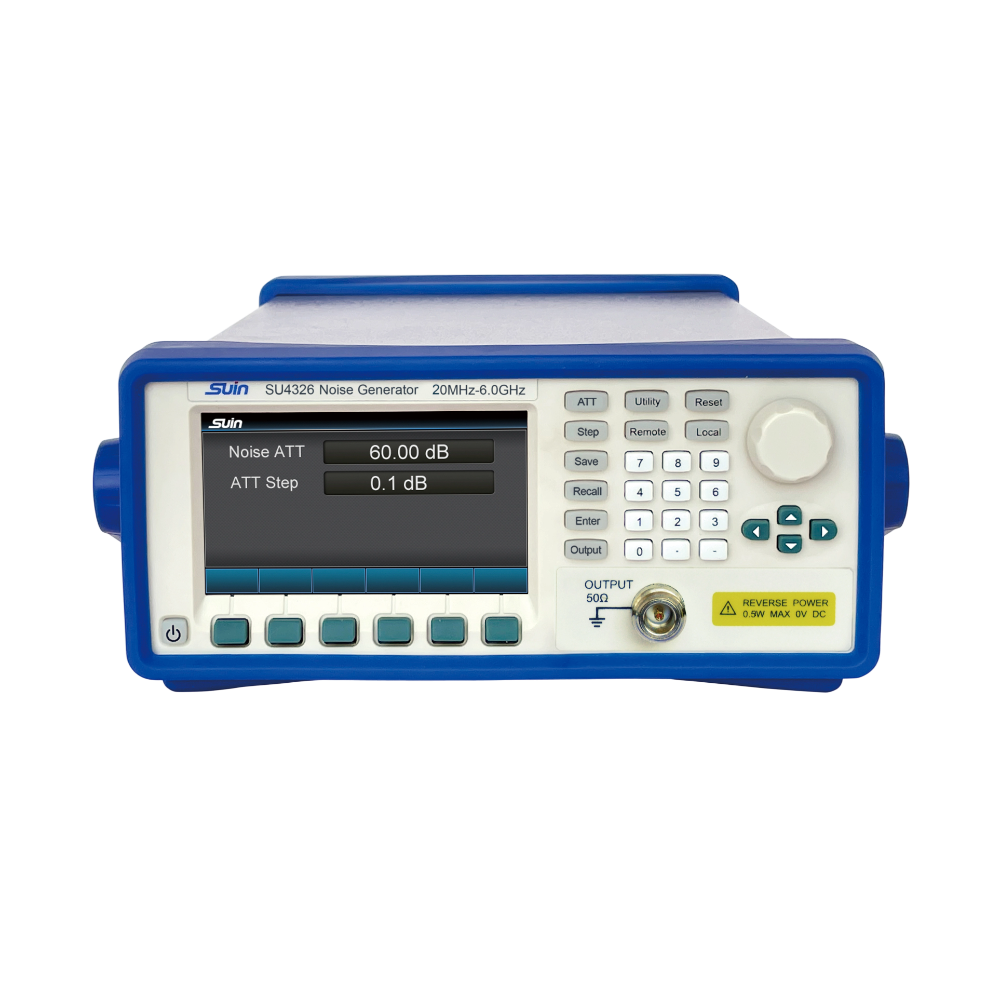

SU432X Series

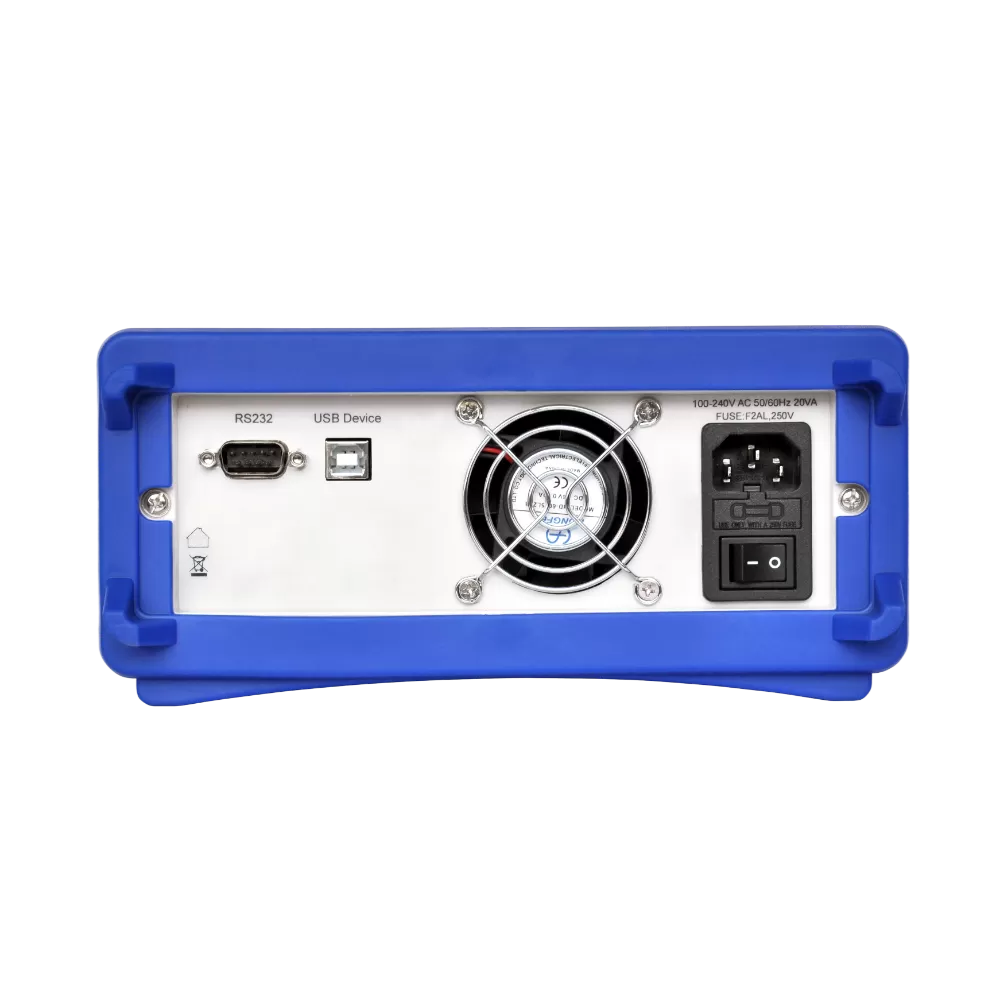

SU432X Series Noise Source is a high-performance measurement equipment essential for ensuring the working stability of facilities in communication systems. It generates Gauss white noise with a broadband standard, featuring uniform and controlled spectral density, and no DC or excess noise. The series, including models SU4323 and SU4326, utilizes the heat noise from the intermediate amplifier, which has the characteristics of Gauss white noise, as its noise source. With different noise bandwidths (10MHz ~ 3.0GHz for SU4323 and 10MHz ~ 6.0GHz for SU4326), an attenuation range of 0.0~60.0dB with a 0.1dB step, and a maximum output noise of ≥3.0dBm within their respective bandwidths, it offers reliable performance. It also comes with interfaces like RS-232, USB (standard), and optional GPIB, making it adaptable to various working environments.

Applications

• Satellite Communications

Simulates Gauss white noise in satellite circuitry, helping to obtain an appropriate SNR for measuring the miscode ratio of intermediate frequency modems, ensuring the stable operation of satellite communication systems.

• Microwave and Scatter Communication

Plays a role in these communication fields by simulating relevant noise, aiding in the testing and optimization of communication equipment and systems.

• UAV and Navigation

Simulates link noise in UAV and navigation systems, contributing to the evaluation and improvement of their communication links and overall performance.

• Electronic Countermeasures and Electromagnetic Compatibility

Widely applied in these areas, supporting related tests and research to enhance the anti-interference ability and compatibility of electronic systems.

• BER Test and CATV Test

Used in bit error rate (BER) tests and cable television (CATV) tests, providing reliable noise simulation to assess the quality and performance of these systems.
