SS7406
100MHz-40GHz Universal Frequency Counter/Timer/Analyzer
100MHz-40GHz Universal Frequency Counter/Timer/Analyzer

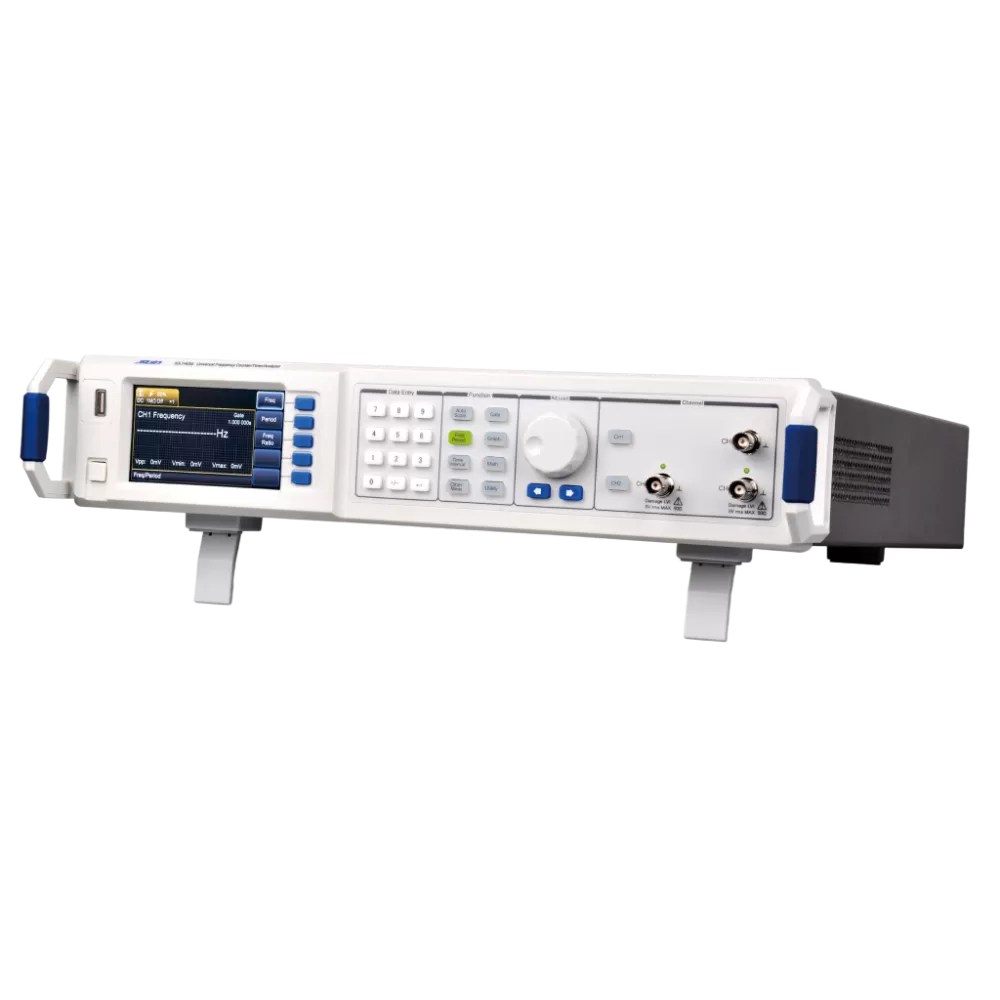

SS7406 frequency counter / timer / analyzer packs the functionality of a frequency counter, frequency meter and timer into one feature-rich instrument. With higher resolution, you can capture very small frequency and time changes. Meantime it offers comprehensive analysis modes, including measurement statistics, histograms, and trend chart.
Its applications span various fields, including electronics, telecommunications, and engineering. Here are some key applications:
Electronics & Circuit Design
Testing oscillators & clock signals – Verifies the frequency of crystal oscillators, microcontroller clocks, and PLLs.
Troubleshooting digital circuits – Measures signal frequencies in logic circuits (e.g., SPI, I2C, UART).
PWM signal analysis – Checks pulse-width modulation frequencies in motor control and power electronics.
Radio Frequency (RF) & Wireless Communication
RF signal measurement – Validates transmitter/receiver frequencies in radios, walkie-talkies, and IoT devices.
Antenna tuning – Ensures antennas operate at the correct resonant frequency.
Testing VCOs & synthesizers – Measures voltage-controlled oscillator (VCO) outputs in RF systems.
Industrial & Automation
Servo & stepper motor control – Monitors encoder and driver signal frequencies.
Sensor calibration – Verifies output frequencies of tachometers, flow meters, and proximity sensors.

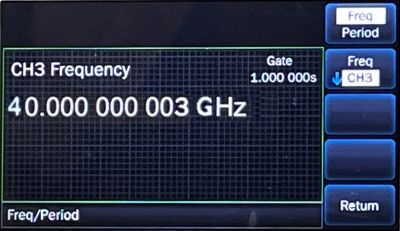

Frequency measurement up to 40GHz (option)

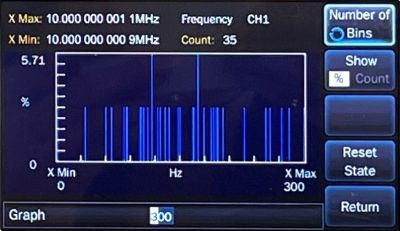

Visible Histogram can be generated and screenshot by users, thus easier for long time measurement.

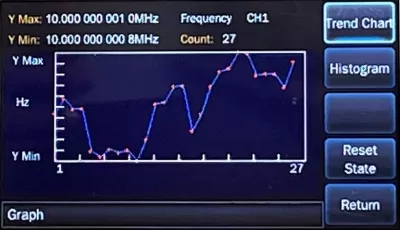

Another method of measuring data display is trendchart, which is also available to be downloaded for engineers' analysis.
| Measuring Function | ||
| Frequency Range | Channel 1: 1mHz-200MHz | |
| Channel 2: 1mHz-200MHz | ||
Channel 3: options 3GHz/6.5GHz/12.4GHz /16GHz/20GHz/26.5GHz/40GHz | ||
| Measurement Resolution | 11 digits/s | |
| Period | 5ns-1000s | |
| Time Interval Range | 1ns-10000s | |
| Time Resolution | 25ps | |
| Pulse Width | 1ns-10000s | |
| Duty Cycle | 1%-99% | |
| Totalize | 0~1×1013 | |
| Phase Difference | 1°~359° | |
| Input | ||
| Dynamic Range | 50mVrms~1.0Vrms (Sine), 150mVpp~4.5Vpp (Pulse) | |
| Input Impedance | 1MΩ//35pF or 50Ω | |
| Coupling Mode | AC or DC | |
| Input Attenuation | ×1 or ×10 | |
| Trigger Level | -5.000V~+5.000V, min.step 1mV or auto trigger level | |
| Other Functions | ||
| Frequency Ratio | ratio value range:0.00001~999999 | |
| Up/Low Limit | 'Limit'light on shows the result out of range, off shows within range | |
| Statistics Calculation | Multi-average, Max, Min, PPM, SD, Allan Variance | |
| Standard Time Base | ||
| Daily Aging | 1×10-8/day | |
| Yearly Aging | 5×10-7/year | |
| Optional Time Base | ||
| Daily Aging | 5×10-10/day | |
| Yearly Aging | 5×10-8/year | |
| Channel Options | ||
| Frequency Range | Dynamic Range | |
| 3.0GHz | 100MHz~3GHz | -27dBm~+19dBm (100MHz~2.6GHz) |
| -15dBm~+19dBm (2.6GHz~3GHz) | ||
| 6.5GHz | 200MHz~6.5GHz | -15dBm~+13dBm |
| 12.4GHz | 6.5GHz~12.4GHz | -15dBm~+10dBm |

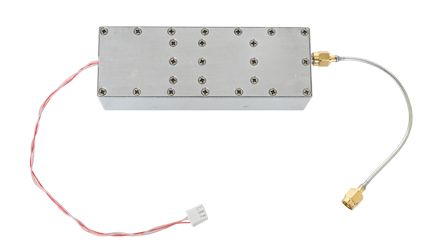

| 16.0GHz | 6.5GHz~16GHz | -15dBm~+10dBm |
20.0GHz | 200MHz~20GHz | -10dBm~+10dBm (200MHz~350MHz) |
| -15dBm~+10dBm (350MHz~18GHz) | ||
| -10dBm~+10dBm (18GHz~20GHz) | ||
26.5GHz | 10GHz~26.5GHz | -20dBm~+10dBm (10GHz~20GHz) |
| -15dBm~+10dBm (20GHz~24GHz) | ||
| -10dBm~+10dBm (24GHz~26.5GHz) | ||
| 40GHz | 18GHz~40GHz | -29dBm~+15dBm (18GHz~20GHz) |
| -20dBm~+15dBm (20GHz~28GHz) | ||
| -29dBm~+10dBm (28GHz~37GHz) | ||
| -20dBm~+13dBm (37GHz~40GHz) | ||
| Damage Level | +20dBm | |
| General Characteristics | ||

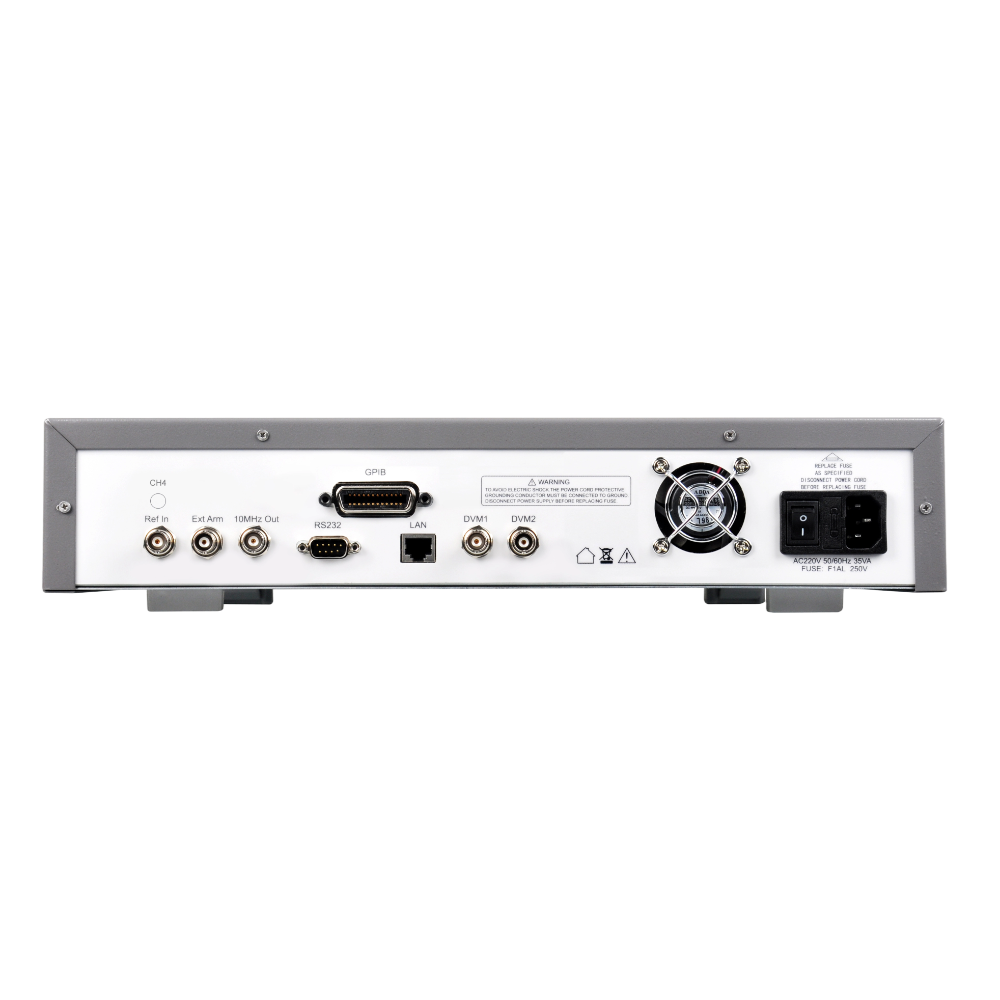

| Interface | RS-232, GPIB, LAN | |
| Power | Standard: AC220V (10%), 50Hz (5%), <70VA | |
| Optional: AC110V (10%), 60Hz (5%), <70VA | ||
| Dimension & Weight | 454×97.5×480mm, 7.3Kg | |
