SS7301
Frequency Counter
Frequency Counter

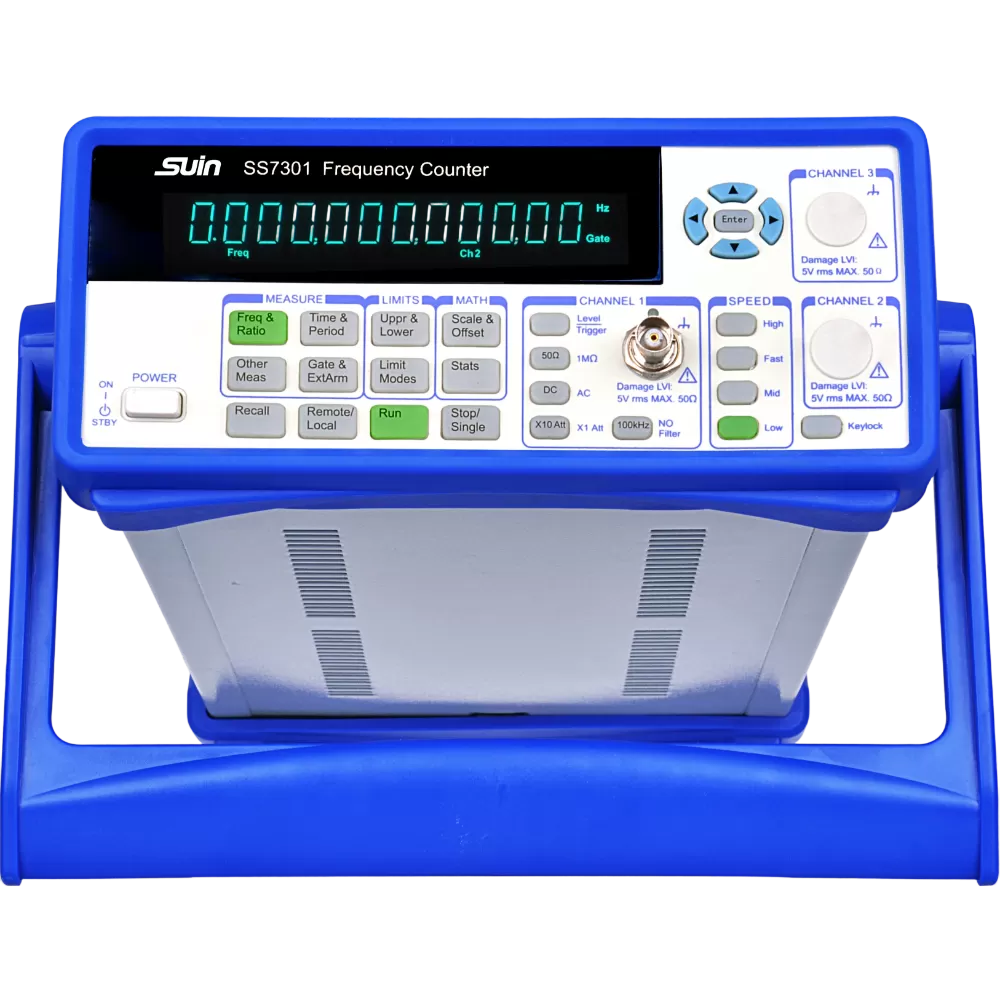

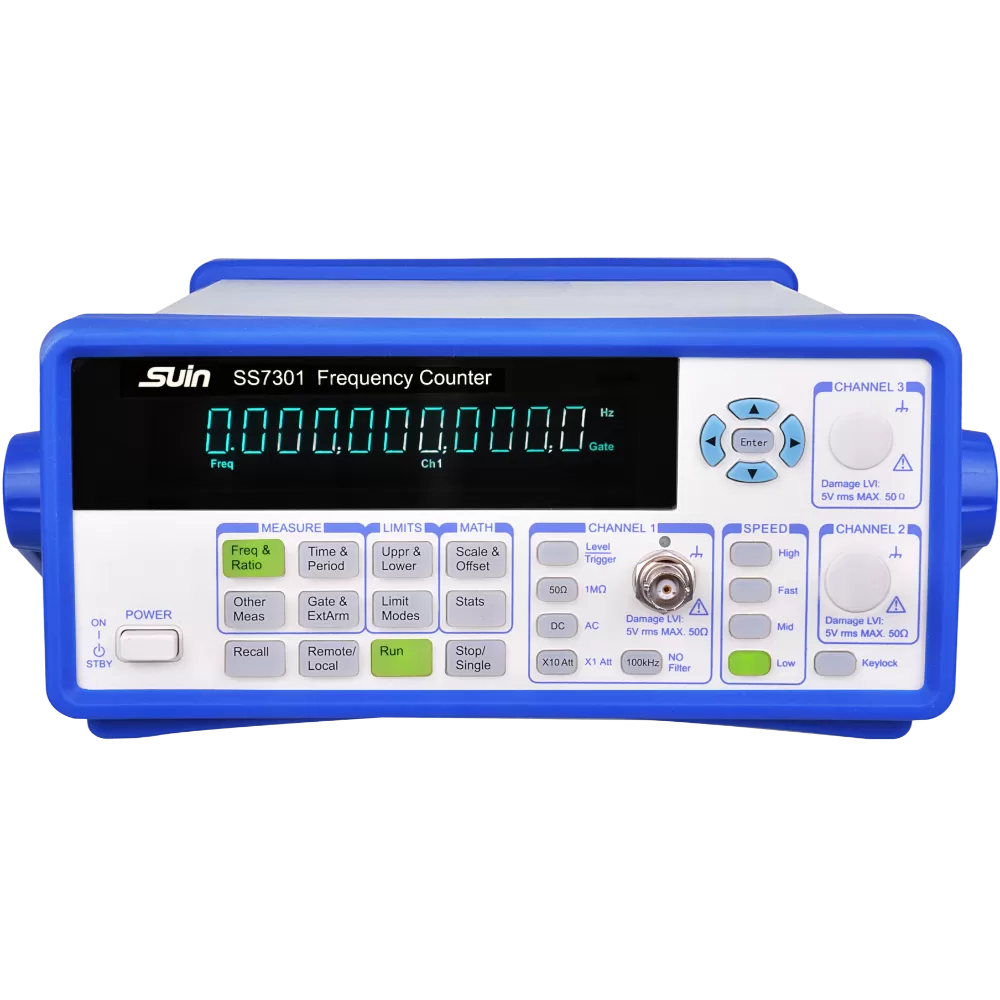

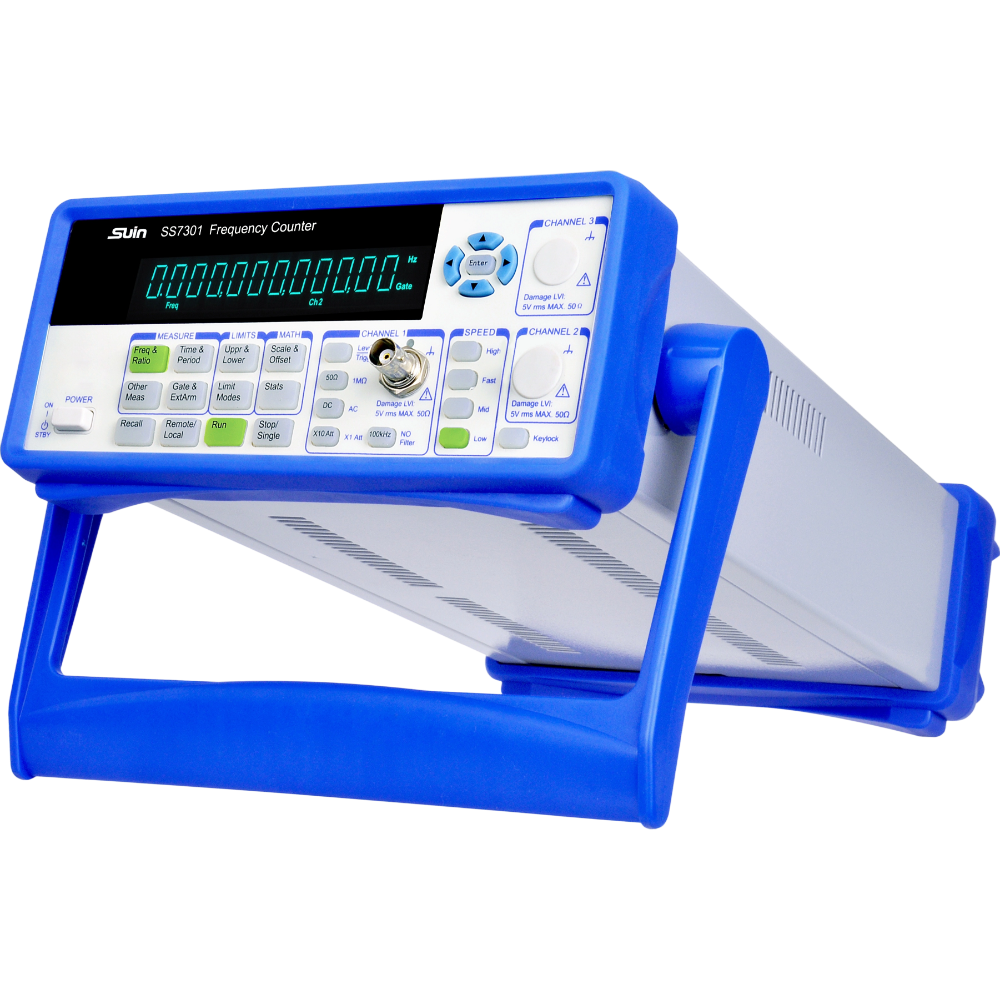

SS7301 Frequency Counter, with one standard channel, can measure up to 200MHz frequency, 10 digits/s resolution. It also have measuring functions of period. To meet RF measuring requirement, additional CH2 and CH3 can be added with high frequency options up to 40GHz.
Applications
Electronics & Embedded Systems
Measuring clock frequencies of microcontrollers, CPUs, and digital circuits.
Testing oscillators (crystal, RC, LC) for accuracy and stability.
Telecommunications & RF Engineering
Verifying carrier frequencies in radio transmitters/receivers.
Testing signal generators, synthesizers, and local oscillators.
Research & Education
Physics experiments (e.g., measuring resonant frequencies in mechanical systems).
Teaching signal analysis and frequency measurement concepts in labs.

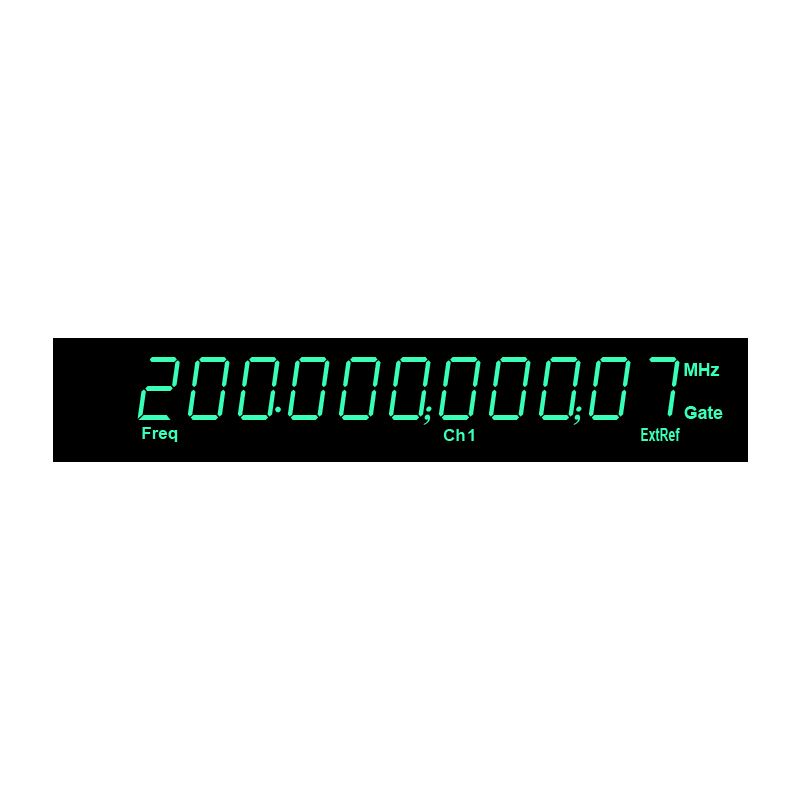

Same with SS7000 Series Frequency Counters, SS7301 can also measure up to 200 MHz frequency on its standard channel (CH1). If users have higher frequency measuring requirement, optional high frequency channel can be also selected.

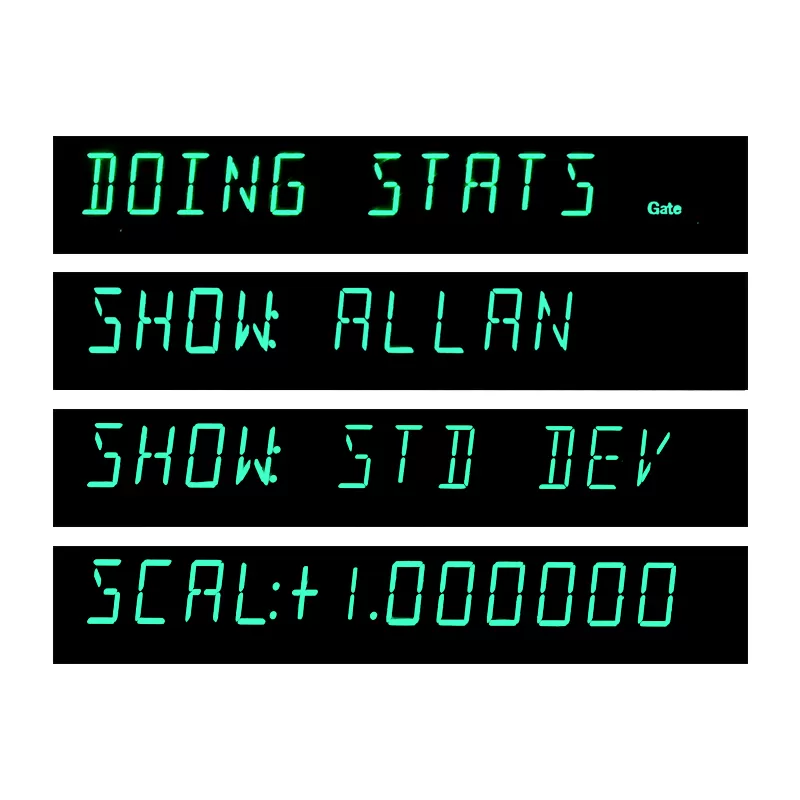

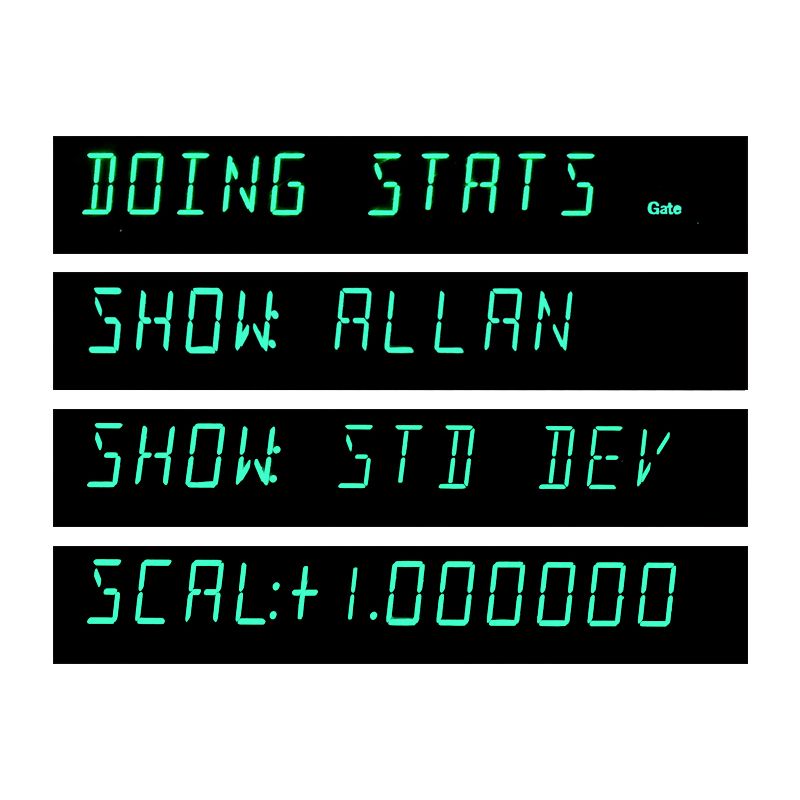

SS7301 has mathematics function including statistics and scale, which can help to evaluate the signal's conformity.

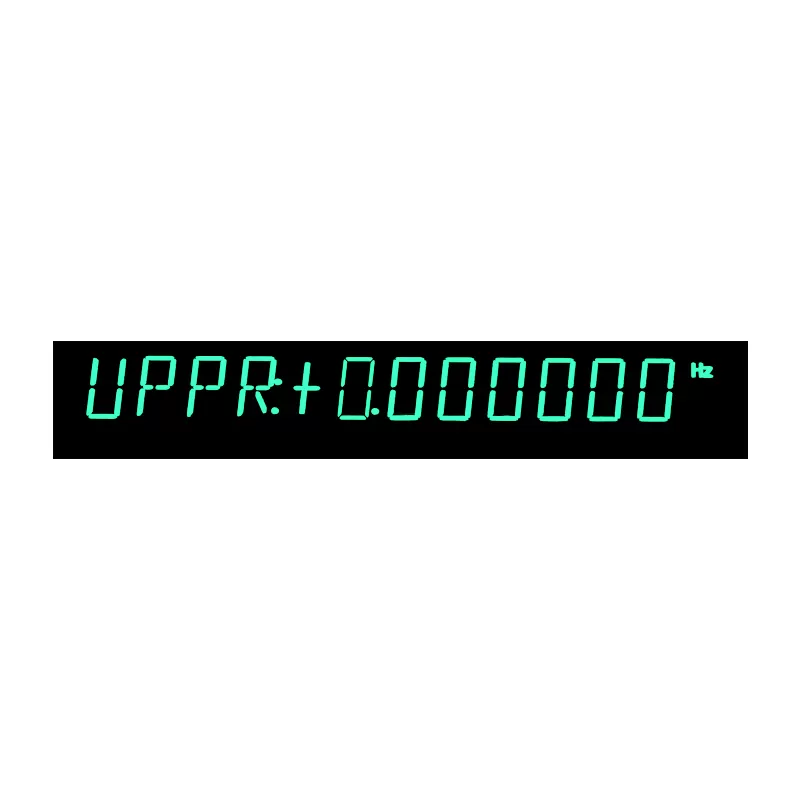

Up and Low limit function: Users can set upper and lower limit range on SS7301, when the measuring result is out of the limit range, “Limit”will light on, otherwise, it will light off.

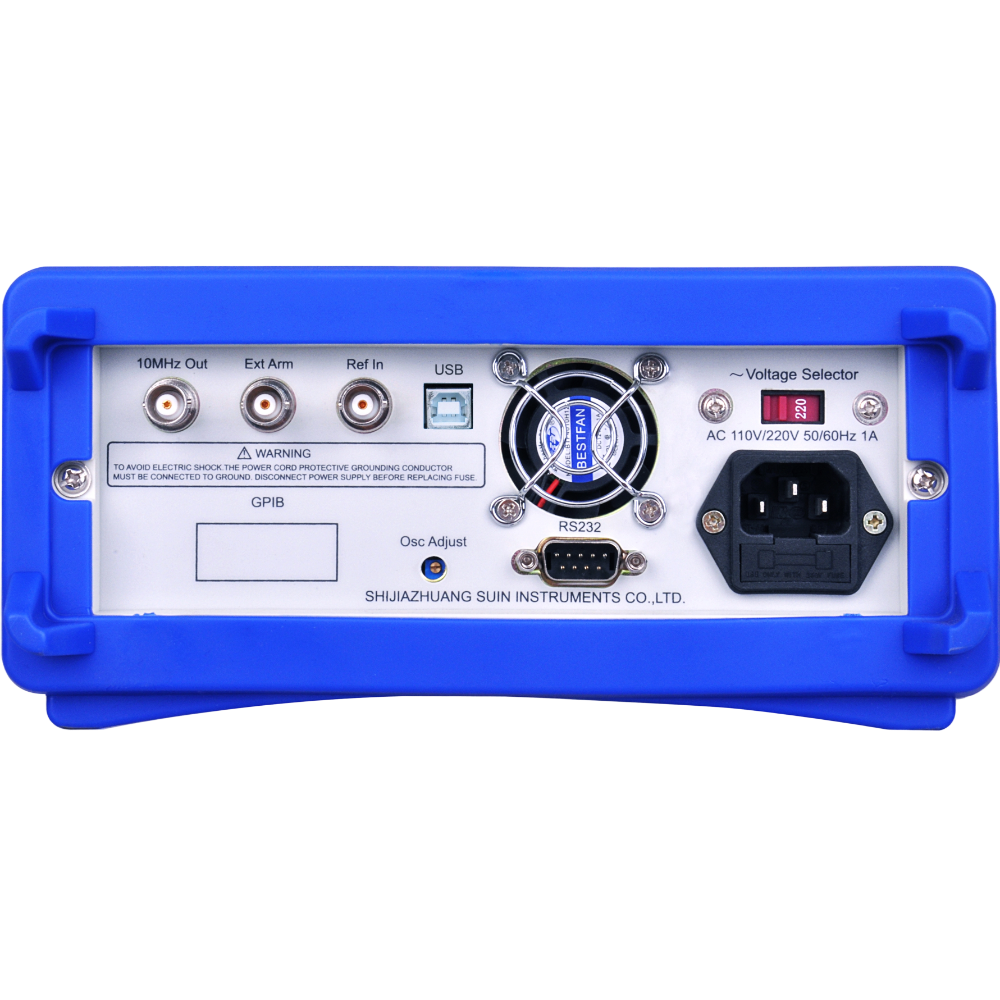

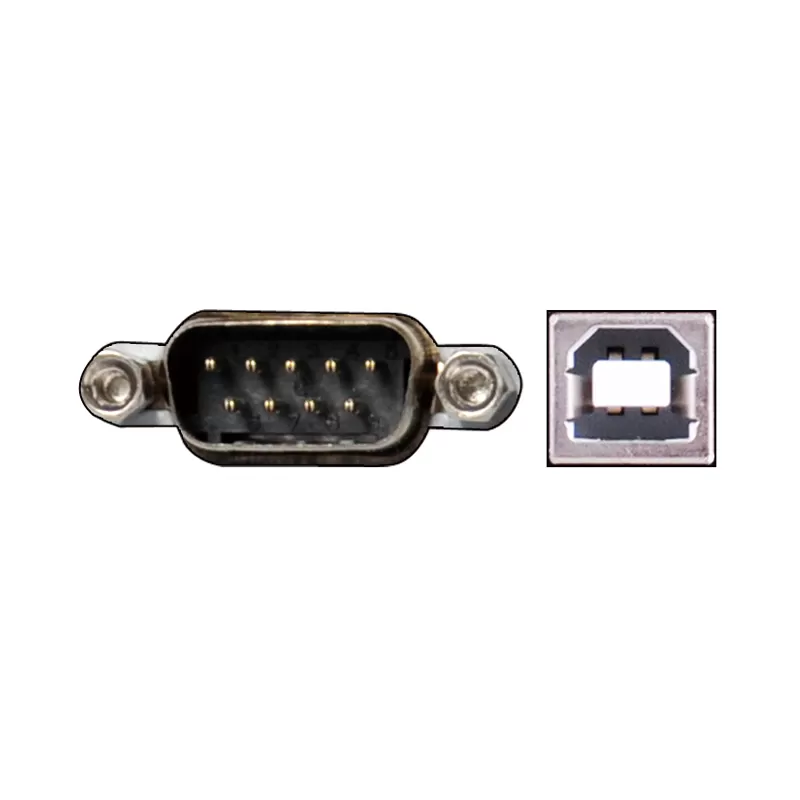

Standard USB Device and RS-232 interfaces are configured with SS7301 for remote controlling.
| Measuring Functions | ||
| Frequency | CH 1: 0.001Hz ~ 200MHz | |
| CH 2: options 3GHz/6.5GHz/12.4GHz/16GHz/20GHz/26.5GHz/40GHz | ||
| CH 3: options 3GHz/6.5GHz/12.4GHz/16GHz/20GHz/26.5GHz/40GHz | ||
| Display Resolution | 10 digits/s | |
| Period | 5ns ~ 1000s | |
| Input | ||
| Dynamic Range | 50mVrms ~ 1.0Vrms (Sine), 150mVPP ~ 4.5VPP(Pulse) | |
| Input Impedance | 1MΩ//35pF or 50Ω | |
| Coupling Mode | AC or DC | |
| Trigger Mode | Rising edge or Falling edge | |
| Input Attenuation | ×1 or ×10 | |
| Low-pass Filter | stop frequency approx.100kHz | |
| Trigger Level | -5.000V ~ +5.000V, step 5mV | |
| Other Functions | ||
| Frequency Ratio | √ | |
| Frequency Self-test | √ | |
| Up/Low Limit | "Limit" light on shows the result out of range, off shows within range | |
| Statistics Calculation | Multi-average, Max.,Min., PPM, SD, Allan Variance | |
| Standard Time Base | ||
| Accuracy | 5×10-8 | |
| Daily Aging | 1×10-8/day | |
| Optional Time Base | ||
| Accuracy | 5×10-8 | |
| Daily Aging | 5×10-10/day | |
| Channel Options | ||
| Frequency Range | Dynamic Range | |
| 3.0GHz | 100MHz~3GHz | -27dBm~+19dBm (100MHz~2.6GHz) |
| -15dBm~+19dBm (2.6GHz~3GHz) | ||
| 6.5GHz | 200MHz~6.5GHz | -15dBm~+13dBm |
| 12.4GHz | 6.5GHz~12.4GHz | -15dBm~+10dBm |
| 16.0GHz | 6.5GHz~16GHz | -15dBm~+10dBm |
| 20.0GHz | 200MHz~20GHz | -10dBm~+10dBm (200MHz~350MHz) |
| -15dBm~+10dBm (350MHz~18GHz) | ||
| -10dBm~+10dBm (18GHz~20GHz) | ||
| 26.5GHz | 10GHz~26.5GHz | -20dBm~+10dBm (10GHz~20GHz) |
| -15dBm~+10dBm (20GHz~24GHz) | ||
| -10dBm~+10dBm (24GHz~26.5GHz) | ||
| 40GHz | 18GHz~40GHz | -29dBm~+15dBm (18GHz~20GHz) |
| -20dBm~+15dBm (20GHz~28GHz) | ||
| -29dBm~+10dBm (28GHz~37GHz) | ||
| -20dBm~+13dBm (37GHz~40GHz) | ||
| Damage Level | +20dBm | |
| General Characteristics | ||
| Interface | Standard: USB, RS-232 | |
| Optional: GPIB | ||
| Power | AC 220V(10%) or AC110V(10%), 50Hz(5%) OR 60Hz(5%) | |
| Dimension & Weight | 375×105×235mm, Approx. 3.5kg | |
