SK10000
Programmable DC Power Supply
Programmable DC Power Supply

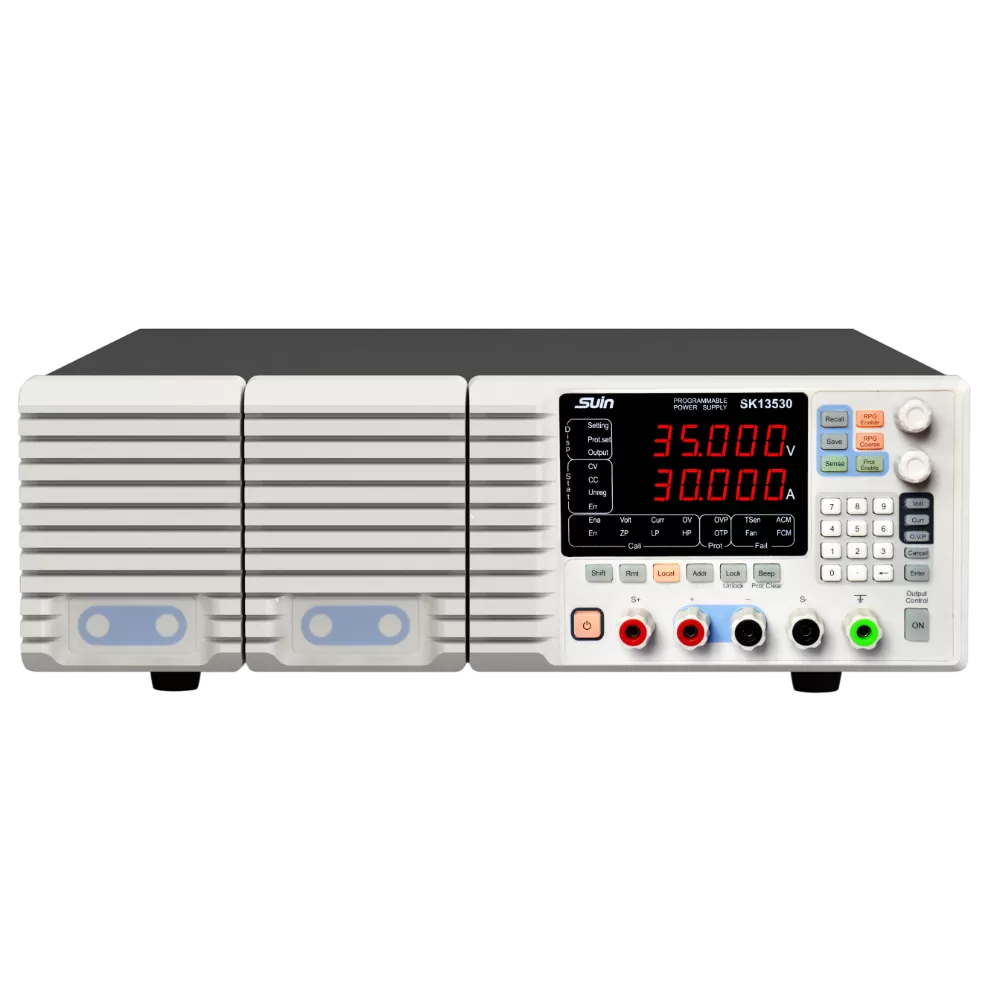

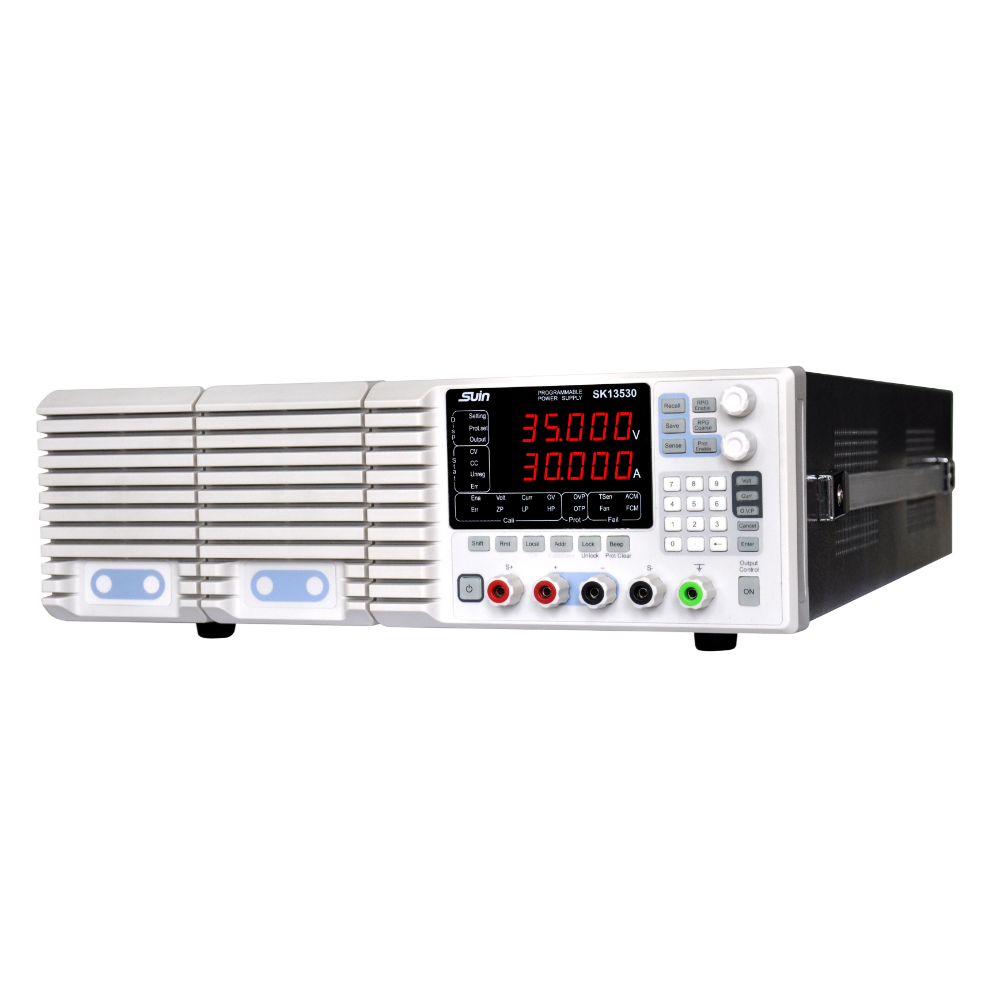

SK1000 Series programmable dc power supply features maximum 1000W high power, 35V/30A, and LED display to show voltage and current data synchronously. Standard RS-232 port allows you to complete the measurement by remote.
Applications
Telecommunications & Data Centers
Server Power Backup: Acts as a high-capacity DC power source for telecom base stations and data center UPS systems.
RF Amplifiers & Transmitters: Supplies stable DC power for high-power radio transmitters and amplifiers.
Research & Laboratory Use
High-Energy Physics Experiments: Powers electromagnets, particle accelerators, and plasma research equipment.
Material Testing: Used in high-power resistive load testing, semiconductor testing, and high-voltage experiments.
Laser & Plasma Systems: Provides stable DC for high-power lasers and plasma generators.
Industrial Applications
Motor Drives & Automation: Powers high-power DC motors in industrial machinery, CNC machines, and robotic systems.
Welding Equipment: Supports high-current DC welding machines (e.g., TIG, plasma cutting).
SK10000 Series Programmable DC Power Supply can output maximum 35 V/30 A 1000 W high power electronic signal.

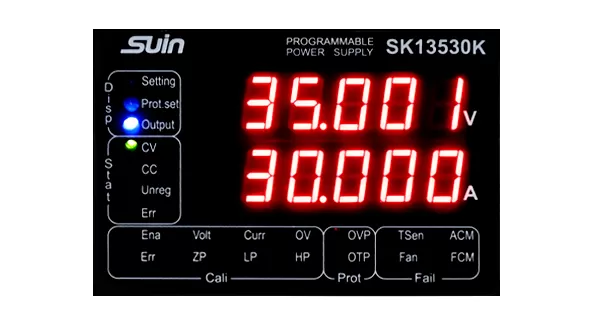

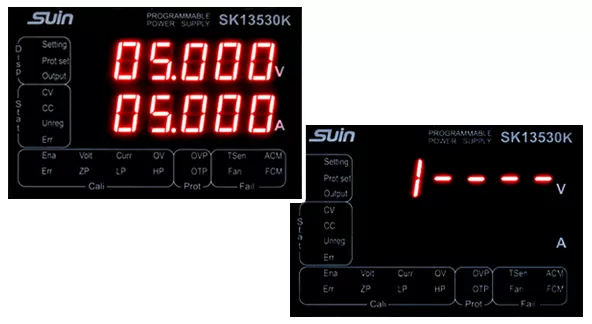

LED display can show voltage, current and working status more clearly.

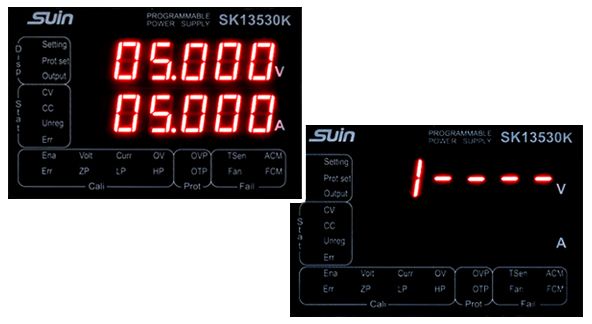

Maximum 6 group presetting values can be saved and recalled for users convenient cooperation.

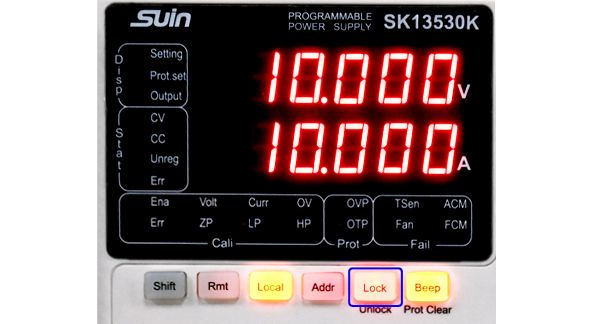

Keypad locked function is available for SK10000 Series to avoid wrong measurement or damage to the power supply due to misoperation.
| Model | SK13515 | SK13530 | SK13530K |
| Output Range | 35V/15A | 35V/30A | |
| Output Power | 500W | 1000W | |
| Resolution | 1mV/1mA | ||
| Source Effect | |||
| CV | ≤1×10-5+1mV | ||
| CC | ≤1×10-5+3mA | ||
| Load Effect | |||
| CV | ≤1×10-4+3mV | ||
| CC | ≤1×10-4+3mA | ||
| Period and Random Deviation (PARD) | |||
| CV | ≤1mV | ||
| CC | ≤6mA | ≤20mA | |
| Accuracy | |||
| Voltage | ≤±（0.05%+10mV） | ≤±（0.1%+10mV） | |
| Current | ≤±（0.2%+50mA） | ≤±（0.2%+50mA） | |
| OVP | ≤±（0.5%+0.5V） | ≤±（0.5%+0.8V） | |
| General Characteristics | |||
| Power | AC220(1±10%)V,50(1±5%)Hz | AC220~230(198~242)V,50(47~63)Hz | |
| Interface | RS-232 (standard) USB Device(option) | ||
| Dimension & Weight | 455×148×475mm,Approx 25kg | 445×148×675mm,Approx 35kg | 345×148×475mm, 13kg |
Power Cord
RS232 Cable
CD
